Catenary, Third Rail, and APS: How Transit Planners Choose Electric Train Power Systems

For an electric train to move, a continuous, unbroken circuit must exist between the power grid, the moving vehicle, and the ground. If that physical connection breaks for even a fraction of a second, a 400-ton transit vehicle becomes a powerless steel box coasting on momentum. Today, city planners and transit engineers face a rigid infrastructure trilemma to maintain that circuit: string high-voltage wires in the air, lay a live rail on the ground, or embed segmented power strips directly into the pavement.[6]

For a daily commuter, the choice of power delivery dictates whether their train can hit 200 mph between cities or if it must crawl through a dense downtown to avoid electrocuting pedestrians. For a municipal taxpayer, it represents the difference between a surface tram and a heavily engineered, grade-separated subway.[6]

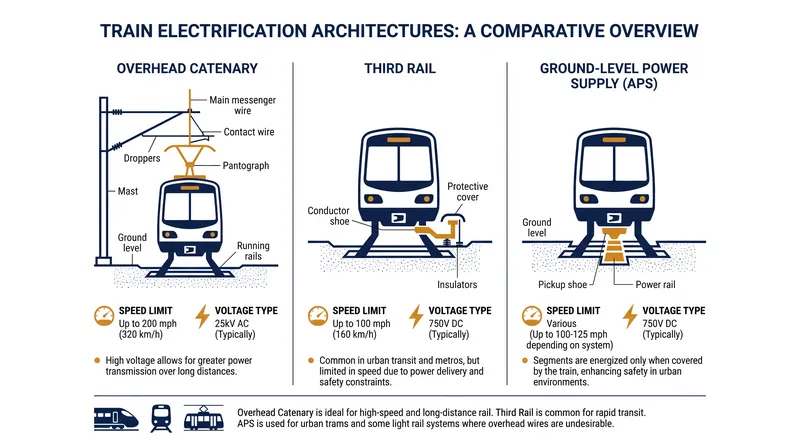

The Federal Railroad Administration evaluates these trade-offs through a rigorous cost and benefit risk framework. Planners cannot simply choose the cheapest option; they must match the electrification architecture to the specific operating domain of the train, factoring in speed requirements, clearance limits, and pedestrian density.[1]

The most visible and widely used system is the overhead catenary. This architecture suspends a contact wire above the track, which the train taps into using a roof-mounted pantograph that maintains constant upward pressure against the line.[3][5]

Catenary systems are the undisputed kings of high-speed rail. Because the wire is suspended high above the ground, it can safely carry massive voltages—often 25,000 volts (25kV) of alternating current. This high voltage allows trains to draw the immense power required to overcome aerodynamic drag at speeds exceeding 150 mph.[3]

According to Railway Technology, "overhead lines are generally considered safer as they are out of reach of the public," making them the standard for mainline electrification where reliable, high-capacity power transfer is needed for intercity travel.[3]

However, catenary systems introduce significant urban integration challenges. The web of wires and support masts creates visual clutter, and the infrastructure requires substantial vertical clearance that many legacy tunnels and bridges cannot accommodate.[5]

When a route must pass through historic city centers or low-clearance tunnels, planners often pivot to the third rail. This system places a live conductor rail alongside the running tracks, which the train contacts via a metal shoe extending from the bogie.[5]

Third rail systems operate at much lower voltages, typically between 600 and 750 volts of direct current. Gem Cable Solutions notes that comparing overhead and third rail electrification reveals a stark trade-off: third rails are cheaper to install in confined spaces like subway tunnels, but their lower voltage requires power substations to be placed much closer together.[5]

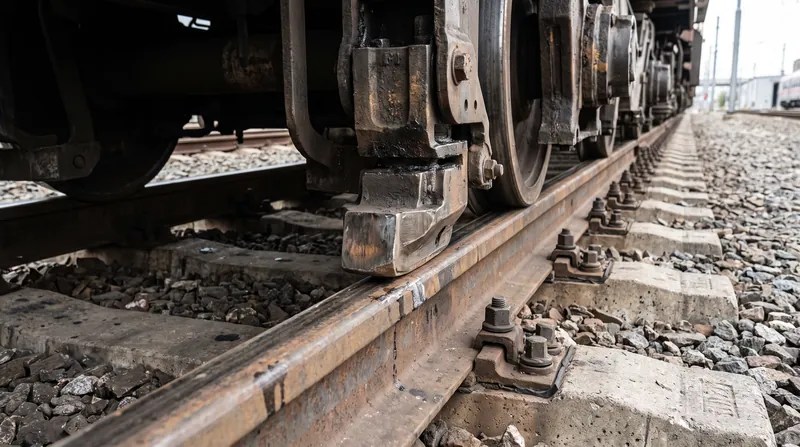

Furthermore, the physical dynamics of a metal shoe sliding along a ground-level rail impose a hard speed limit. Third rail systems are generally capped at around 100 mph; beyond that speed, the shoe begins to bounce, breaking the electrical circuit and causing damaging electrical arcing.[3][5]

The most binding constraint of the third rail, however, is safety. A live rail carrying 750 volts at ground level is lethal. Consequently, third rail systems must be entirely grade-separated—fenced off from the public, elevated on viaducts, or buried underground.[3]

This grade-separation requirement forces cities to build expensive tunnels, dramatically inflating the cost of new transit lines. To solve this, engineers developed a third architecture: Ground-Level Power Supply, or APS.[4][6]

APS embeds a segmented power rail directly into the pavement between the running tracks. Unlike a traditional third rail, the APS rail is not continuously live, eliminating the electrocution risk for pedestrians.[4]

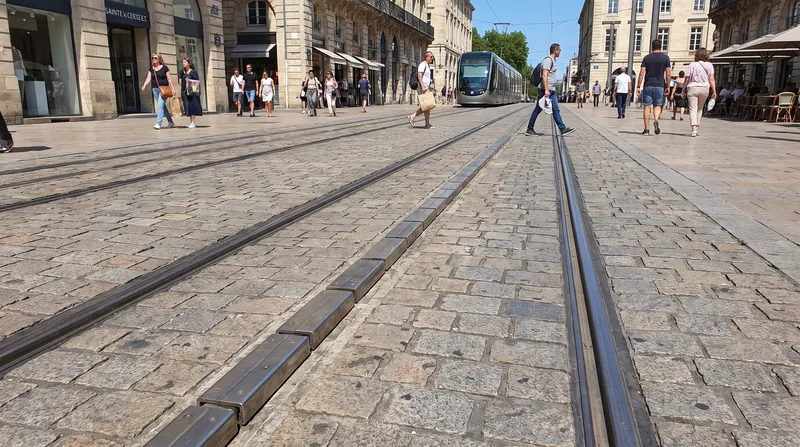

Instead, the system uses radio signals to energize only the specific 8-meter segment of rail that is physically covered by the tram at any given moment. As the tram moves forward, the segment behind it instantly powers down, rendering it safe for cyclists and pedestrians to step on.[4]

Citizens For Modern Transit highlights this ground-level power supply as a critical innovation in light rail technology. First deployed at scale in Bordeaux, France, the system allows cities to run high-capacity electric trams directly through pedestrian plazas without the visual blight of overhead wires or the lethal danger of a live third rail.[4]

Regardless of how the power is delivered to the train, it must safely return to the substation to complete the circuit. This return path is typically routed through the steel running rails.[2]

Managing this return current is a complex engineering challenge. The IEEE Standards Association published the 2023 guide for multi-point grounding systems (IEEE 2752-2023) to address the specific risks of stray currents in electrified railways.[2]

If the return current leaks from the running rails into the surrounding earth, it can accelerate the galvanic corrosion of nearby underground utility pipes and building foundations. Proper grounding architecture is therefore just as critical as the power delivery method itself.[2]

The decision between catenary, third rail, and APS is never purely technical. It is a negotiation between the speed a region demands, the safety a city requires, and the infrastructure budget the taxpayers can bear.[1][6]

As municipalities push to decarbonize their transit networks, the evolution of these power systems dictates where new lines can be drawn. The next generation of rail expansion will depend entirely on which of these three architectures can best navigate the physical and financial constraints of the modern urban core.[6]
