The Science of Sun Kinks: How Modern Railways Prevent Heat-Induced Track Buckling

When summer temperatures soar, commuter trains often slow down or stop entirely—not because the locomotives are failing, but because the steel tracks they run on are physically expanding. Modern rail networks rely on seamless tracks to deliver high-speed, comfortable rides, but this design traps immense thermal energy. When that energy reaches a critical threshold, the track can violently warp out of shape, creating a dangerous deformation known in the industry as a "sun kink."[5]

For the daily rider, a heat-related delay can feel like an administrative failure, but it is actually a real-time response to the laws of thermodynamics. Steel expands as it warms. A single mile of steel track can expand by several inches when the temperature rises from a cool morning to a blistering afternoon.

Historically, railways managed this expansion by leaving small gaps between shorter sections of rail. This created the iconic "clickety-clack" sound of older trains, but it also limited train speeds and drastically increased wear and tear on both the wheels and the infrastructure.[2]

To solve those problems, modern infrastructure shifted to Continuous Welded Rail (CWR). In a CWR system, rails are welded together into seamless ribbons that can stretch for miles. This eliminates the gaps, allowing for the high-speed rail networks and smooth commuter lines we rely on today.[1]

However, eliminating the gaps means the thermal expansion has nowhere to go. When the steel heats up and tries to expand, the fixed ends of the welded rail prevent it from lengthening. This generates massive internal compressive stress, turning the rail into a tightly coiled spring.

To manage this trapped energy, engineers rely on a concept called the Rail Neutral Temperature (RNT), sometimes referred to as the Stress-Free Temperature. This is the specific temperature at which the rail is experiencing zero internal stress—neither pulling apart from the cold nor pushing outward from the heat.[4]

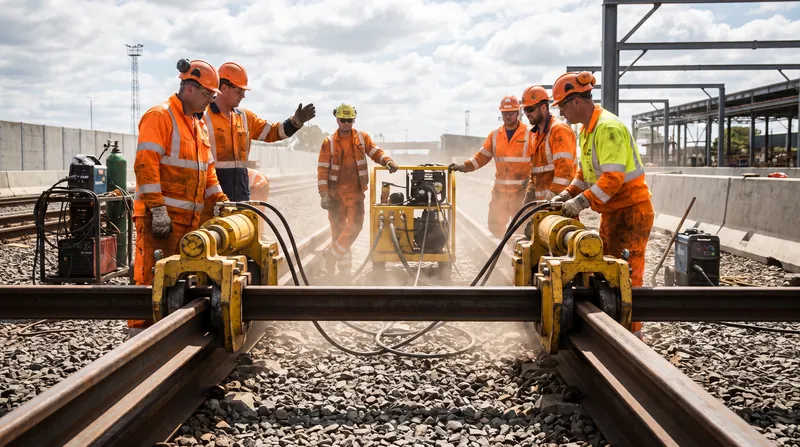

When installing CWR, crews do not simply lay the steel on the ground. They artificially stretch the rail using hydraulic tensors or heat it with specialized equipment before fastening it down. By locking the rail into place while it is stretched, they artificially set the RNT to a specific target—usually a mathematical sweet spot between the region's historical maximum and minimum temperatures.[4]

If the RNT is set too low, the rail will experience dangerous compressive forces during a summer heatwave. If it is set too high, the rail will experience extreme tensile forces during a winter freeze, which can cause the steel to snap and leave a dangerous gap. Engineers must constantly balance these two extremes based on local climate data.

The danger of buckling arises when the actual temperature of the steel exceeds the RNT by a significant margin. It is crucial to note that rail temperature is not the same as ambient air temperature. Because steel absorbs and retains solar radiation, rails in direct sunlight can be up to 20 degrees Celsius hotter than the surrounding air.[5]

As the rail heats up and compressive forces build, the only things keeping the track straight are the heavy wooden or concrete sleepers and the crushed rock ballast surrounding them. This track structure provides lateral resistance, holding the pressurized steel in a straight line.[2]

If the compressive stress exceeds the lateral resistance of the ballast, the track will suddenly and violently buckle sideways to relieve the pressure. This sun kink can occur in a matter of seconds, transforming a straight, safe track into a sharp, unnavigable curve that can easily derail a train.[3]

Curves are particularly vulnerable to this phenomenon. As trains navigate a curve, their massive weight and momentum exert additional outward lateral forces on the track. If the rail is already highly stressed by heat, the added force of a passing train can be the exact trigger that pushes the track structure past its breaking point.[5]

This vulnerability is exactly why railways implement speed restrictions during extreme heat. Slower trains exert significantly less lateral force on the rails, particularly on curves, reducing the likelihood that a passing locomotive will trigger a buckle in a highly stressed section of track.

To prevent these failures, modern railways are deploying new diagnostic tools. Researchers are utilizing advanced acoustic and magnetic measurement systems to measure the in-situ thermal stresses of existing tracks without dismantling them, allowing maintenance crews to verify if a track's neutral temperature has shifted over time.[4]

Other mitigation strategies are surprisingly low-tech. In regions experiencing unprecedented heatwaves, maintenance crews often paint vulnerable sections of rail white. The white paint reflects solar radiation, which can lower the physical temperature of the steel by several degrees, buying crucial margin against the buckling threshold.[5]

Ultimately, as global temperatures shift, railway operators are being forced to re-evaluate their historical RNT targets. For the commuter, understanding this delicate balance of thermal physics and mechanical engineering reframes a summer speed restriction: it is not a failure of service, but a precise, calculated intervention to keep thousands of tons of steel safely on the rails.[5]
