The Adhesion Limit: How the Coefficient of Friction Between Steel Wheel and Rail Dictates Maximum Tractive Effort

Commuters waiting on a platform often assume that a delayed, sluggish train is the result of an underpowered engine or an aging electrical grid, a claim frequently echoed by frustrated transit advocacy groups. The engineering reality, however, contradicts this entirely: the true bottleneck for any train's acceleration is not a lack of horsepower, but the microscopic physics of steel touching steel. According to the Advanced Steam Traction Trust, no matter how much torque a locomotive's traction motors produce, the maximum pulling force is strictly governed by the coefficient of friction at the wheel-rail interface.[8]

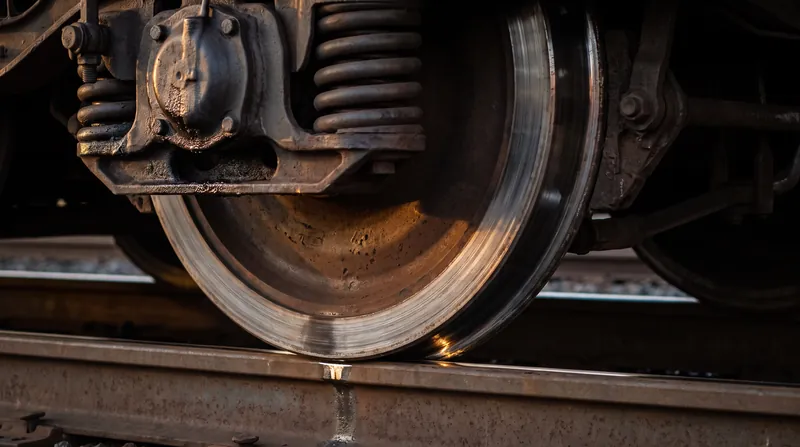

If the motors apply more force than this adhesion limit allows, the wheels simply spin in place, converting electrical energy into heat and noise rather than forward motion. For a transit agency purchasing new light rail vehicles, or a freight operator leasing locomotives, this physical boundary dictates the entire procurement strategy. The contact area between a standard 40-inch steel train wheel and the rail is remarkably small—roughly the size of a dime. Through this tiny patch, the locomotive must transmit all the force required to move thousands of tons of cargo or hundreds of impatient passengers.[8]

The KTH Royal Institute of Technology notes that this wheel-rail contact is a highly stressed environment where immense pressures dictate the dynamic behavior of the entire vehicle. The mathematical core of this relationship is the coefficient of friction, a dimensionless number representing the ratio of the force of friction between two bodies to the force pressing them together. In a 2024 technical breakdown, MTJ notes that on a dry, clean railway, the static coefficient of friction between steel and steel typically ranges from 0.35 to 0.50.[1][3]

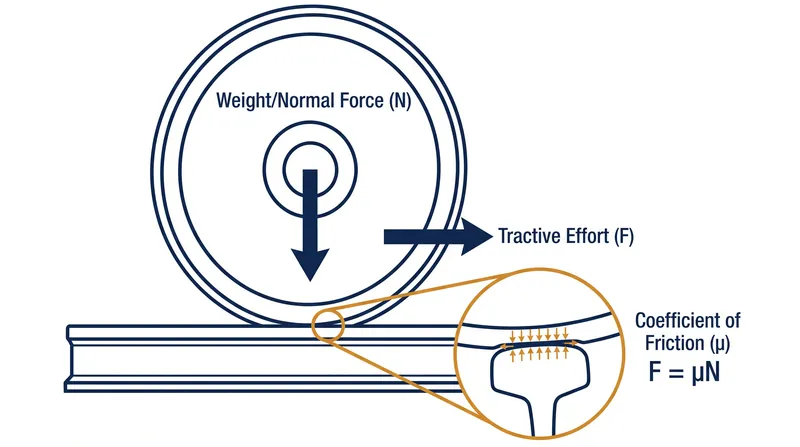

This means a locomotive can exert a horizontal pulling force equal to roughly 35 to 50 percent of the weight resting on its driven wheels before those wheels break traction and begin to slip. This fundamental equation—tractive effort equals weight multiplied by the coefficient of friction—explains why locomotives are deliberately built to be incredibly heavy. A transit planner cannot simply buy a lighter, more energy-efficient locomotive and expect it to pull the same number of cars. As RailElectrica explicitly states, "The maximum tractive effort that can be developed by a locomotive is limited by the adhesion between the driving wheels and the rails."[1][4]

If the axle load is too low, the adhesion limit drops proportionally, and the train becomes physically incapable of accelerating its payload, regardless of how many megawatts the traction motors draw from the overhead wires. The reality of daily transit operations, however, rarely involves perfectly clean, dry rails. Environmental contamination drastically alters the physics of the contact patch. When rain begins to fall, the coefficient of friction can drop significantly, but the most notorious operational hazard is the combination of light moisture and fallen leaves.[4][5]

As trains crush leaves onto the railhead, the organic matter forms a hard, Teflon-like pectin coating that is notoriously difficult to remove. Under these contaminated conditions, the coefficient of friction can plummet to between 0.05 and 0.10. For a commuter rail network, this sudden loss of adhesion is catastrophic for scheduling. A train that requires a stopping distance of half a mile on dry rails may suddenly need more than a mile to safely halt. To prevent collisions, signaling systems force trains to run at reduced speeds with greater separation, cascading into the network-wide delays that frustrate daily riders.[4][5]

To combat this, railway engineers have spent decades developing mechanical and chemical interventions. The most traditional method, dating back to the steam era, is the application of sand directly into the wheel-rail interface. Modern locomotives are equipped with pneumatic sanding systems that blast fine silica sand onto the railhead just ahead of the driving wheels when slip is detected. Research published by MDPI demonstrates that this sanding mechanism physically breaks through the contamination layer, mechanically interlocking the wheel and rail to artificially restore the adhesion coefficient.[7]

However, sanding is not a perfect solution for modern transit networks. The abrasive nature of the sand accelerates wear on both the wheels and the rails, leading to higher maintenance costs for transit agencies and more frequent wheel-truing operations. Furthermore, excessive sand can insulate the train from the track, interfering with the electrical track circuits used by signaling systems to detect the train's location. Beyond mechanical sanding, modern electric and diesel-electric locomotives rely on advanced micro-slip control systems.[7]

Rather than preventing wheel slip entirely, these computerized traction inverters allow the wheel to rotate slightly faster than the train's actual forward speed—typically by a margin of 1 to 3 percent. This controlled micro-slip actually generates a higher effective tractive effort than pure static rolling, maximizing the available adhesion without entering an uncontrolled spin. Research from AIP Publishing highlights that dynamic wheel-rail adhesion characteristics are highly dependent on surface roughness and the presence of fluids.[6]

By continuously monitoring axle speeds hundreds of times per second, modern traction controllers can modulate the torque applied to each individual motor, keeping the wheel exactly at the peak of the adhesion curve even as track conditions change meter by meter. For specialized applications where gradients are too steep for standard steel-on-steel friction to overcome, engineers must abandon the adhesion model entirely. As documented by Wikipedia's overview of adhesion railways, routes with inclines exceeding 7 to 10 percent typically require a rack-and-pinion system.[2][6]

In these extreme environments, a toothed gear on the locomotive physically meshes with a toothed rail laid between the running rails. This mechanical interlock bypasses the coefficient of friction entirely, allowing trains to climb mountains that would be physically impossible for a standard adhesion locomotive. The rack-and-pinion design proves that when physics prevents sufficient grip, mechanical engineering must step in to bridge the gap.[2]

The adhesion limit represents a hard physical boundary that dictates the economics of rail transport. Every decision a transit agency makes—from the weight of the locomotives they procure to the scheduling of autumn leaf-clearing trains—is a direct response to the coefficient of friction. Until materials science discovers a way to alter the fundamental physics of steel touching steel, the contact patch will remain the ultimate governor of railway performance.[1][3][8]
