Moving Block Signalling Uses Dynamic Braking Envelopes to Compress Metro Headways to 90 Seconds

The absolute limit on a transit network’s capacity is determined the moment an agency decides how a train detects the vehicle ahead of it. That single engineering choice—the signalling protocol—dictates the physical space required between every train on the line. For a city planner trying to move more people, or a commuter waiting on a crowded platform, this invisible digital handshake matters more than the top speed of the train or the size of the railcars.

It is the only mechanism that can safely squeeze 40 trains an hour into a tunnel originally built to handle 24. When trains communicate their exact speed and location continuously, the system can tailor the safety buffer to the exact second. This allows transit authorities to compress the time between trains—known as headway—from a standard 150 seconds down to 90 seconds or less.[1]

The result is a massive increase in throughput on existing infrastructure. Upgrading the signalling protocol allows cities to boost line capacity without the billion-dollar expense of boring new tunnels, acquiring new right-of-way, or laying additional track. The shift relies on a technology called Communications-Based Train Control (CBTC), which fundamentally changes how a railway views empty space and manages the flow of heavy vehicles.[1]

The limits of fixed blocks

For more than a century, railways have relied on fixed-block signalling to prevent collisions. The track is divided into physical segments, or blocks, using electrical circuits built into the rails. The safety rule is absolute: only one train is permitted inside a block at any given time. If a train occupies a block, the signal behind it turns red, forcing the following train to stop and wait.[3]

Because the system only knows that a train is somewhere within that block, it must assume the worst-case scenario. The block must be long enough to allow the heaviest, fastest train to come to a complete stop before hitting a stationary object. On systems like the New York City Subway, these fixed blocks can be over 1,000 feet long.[2]

This creates an artificial separation between trains. Even if a train is moving slowly and could safely stop in 200 feet, the fixed-block system still enforces a rigid 1,000-foot buffer. The space inside the block is entirely wasted, leaving riders waiting longer at stations while the track ahead sits empty. As urban populations have grown, transit operators have exhausted the safety margins built into these legacy designs.[2]

How moving block works

Moving-block signalling eliminates the physical track circuits entirely. Instead of dividing the railway into static zones, the system relies on high-capacity, bidirectional radio networks—similar to Wi-Fi or LTE—to link every train to a central wayside computer. The train continuously calculates its exact position using trackside transponders and onboard tachometers, achieving an accuracy of 5 to 10 meters.[1][3]

Multiple times per second, the train transmits its location, speed, and direction to the control center. The wayside computer processes this data from every train on the line simultaneously. Because the system knows exactly where the trains are and how fast they are moving, it no longer needs to rely on the blunt instrument of a fixed physical block.

The occupancy zone effectively detaches from the steel rails and attaches to the train itself. The block moves continuously with the vehicle, reflecting its actual location in real time rather than a predefined geographic zone. This continuous stream of precise data forms the foundation of modern CBTC systems, allowing trains to operate in a tightly choreographed, standardized environment that maximizes every available foot of track.[1]

The dynamic braking envelope

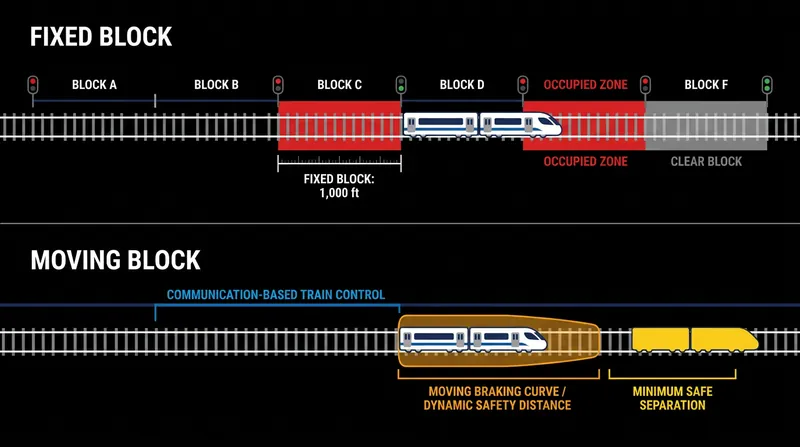

With real-time telemetry established, the wayside computer calculates a Limit of Movement Authority (LMA) for each train. This is a safe braking envelope—a virtual bubble of empty track that extends ahead of the vehicle. Unlike a fixed block, this envelope is dynamic. It expands and contracts based on the train’s instantaneous speed and braking capabilities.[3]

If a train accelerates to 50 miles per hour, the braking envelope stretches forward to ensure it has enough room to stop safely. As the train decelerates to pull into a station, the envelope shrinks. Because the safety distance is tailored to the exact physics of the moment, a following train can safely creep much closer to the train ahead.[2][3]

This precision replaces discrete, hard-braking commands with smooth, continuous deceleration trajectories. The system automatically adjusts speeds to maintain optimal spacing, preventing the cascading delays that occur when a human operator brakes too late or accelerates too slowly. The artificial separation is completely eliminated, keeping headways as short as physically possible while maintaining the strict safety certifications required for mass transit operations.[1]

The capacity math

The mathematical impact of this shift is profound. Under a legacy fixed-block system, a typical minimum headway is roughly 150 seconds, which translates to a maximum throughput of 24 trains per hour. By shrinking the safety buffer to a dynamic envelope, CBTC can compress that headway to 90 seconds.[4]

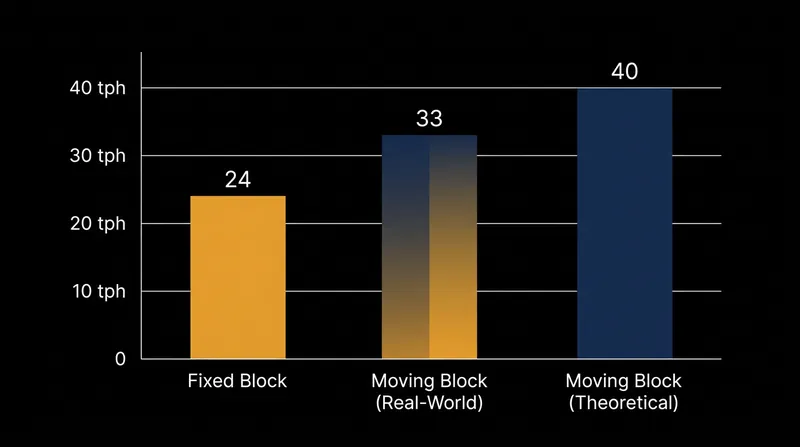

In theory, a 90-second headway allows a line to run 40 trains per hour—a 66 percent increase in total capacity. This theoretical ceiling demonstrates the sheer efficiency of the moving-block algorithm. However, in deployed practice on retrofitted urban metros, the actual capacity uplift typically lands between 20 and 40 percent.[4]

Paris Métro Line 1, for example, successfully increased its throughput from roughly 20 to 27 trains per hour after transitioning to a moving-block system. While this falls short of the theoretical maximum, a 35 percent increase in passenger volume on a century-old subway line represents a transformative upgrade for the city's transit network, proving that the technology works reliably at full revenue scale.

The new bottleneck

The gap between the 66 percent theoretical gain and the 40 percent real-world limit reveals the ultimate constraint on urban transit. Once moving-block signalling is installed, the track itself is no longer the bottleneck. The limiting factor shifts from the digital signalling protocol to the physical reality of the station platform.[4]

A train can only move as fast as passengers can board and alight. If a train requires 45 seconds of dwell time at a crowded station to clear the doors, a 90-second headway becomes nearly impossible to maintain across the entire line. The signalling system can deliver the train to the station faster, but it cannot force people through the doors.

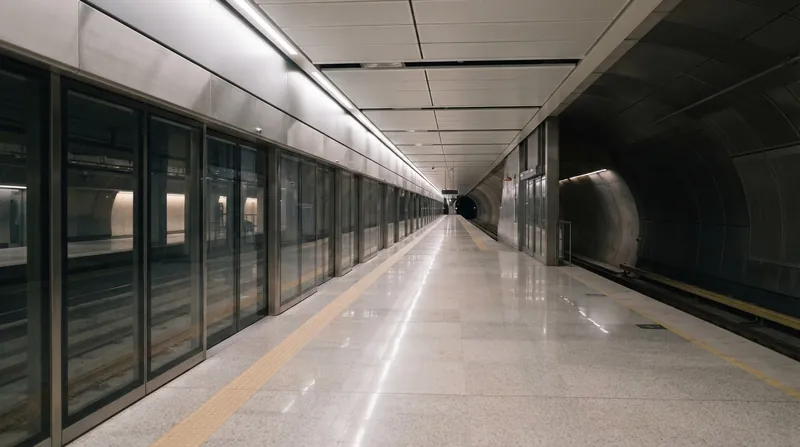

Consequently, moving-block upgrades are often paired with platform screen doors and automated train operation to shave precious seconds off the dwell time. By removing the artificial separation of fixed blocks, transit agencies have successfully solved the track capacity problem, leaving the unpredictable nature of human movement as the final frontier in urban rail efficiency.
