Wheel Flange Lubrication Cuts Curve Wear by 90 Percent While Preserving Braking Adhesion

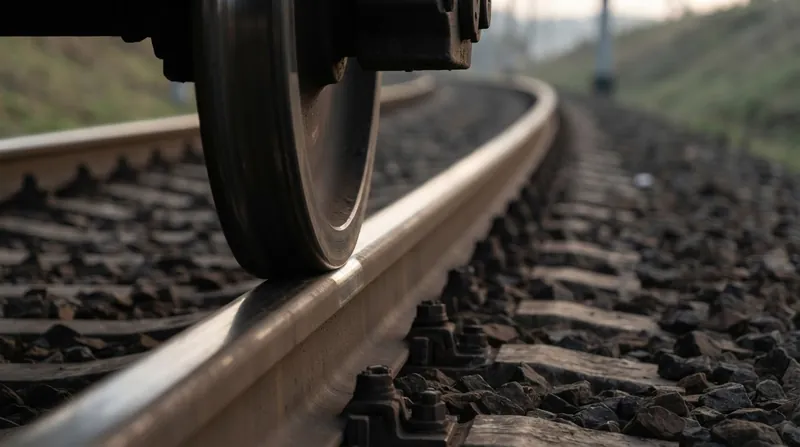

A fully loaded commuter train weighs roughly 400 metric tons, resting entirely on steel contact patches no larger than a 25-cent coin. That immense mass must navigate tight urban curves without grinding the tracks to dust or losing the grip required to stop safely at the next station platform.[4]

For decades, transit agencies faced a brutal compromise between track wear and braking performance. If the rails were left dry, the friction generated in sharp curves would rapidly shave steel from both the wheel flanges and the rail faces, degrading the infrastructure.[3]

This metal-on-metal grinding produces the high-pitched 100-decibel squeal familiar to anyone who rides an older subway system. Beyond the noise, unlubricated curve friction forces transit operators to replace sections of rail every three to five years, passing millions of dollars in maintenance costs directly to taxpayers.

However, simply greasing the entire track introduces a catastrophic safety risk. A train relies entirely on the friction between the wheel tread and the top of the rail to accelerate and, more importantly, to brake within its designated stopping distance.[1]

Dividing the Wheel Interface

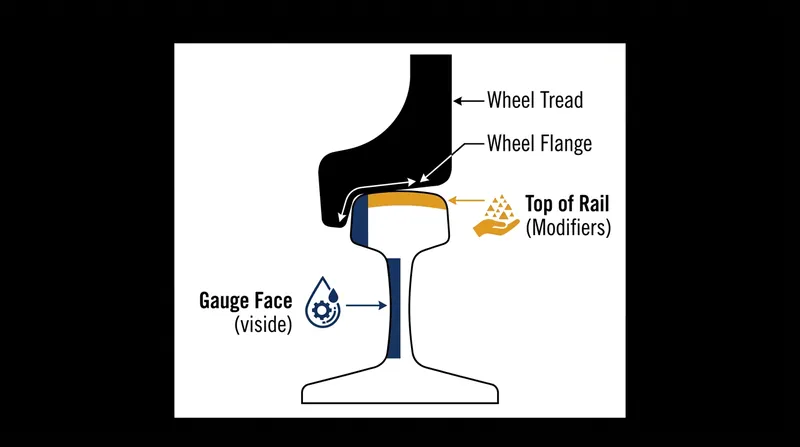

Modern railway engineering solves this paradox by treating the wheel-rail interface as two completely separate tribological zones. The side of the rail, known as the gauge face, receives a heavy boundary lubricant, while the top of the rail receives a specialized friction modifier.

Wheel flange lubrication specifically targets the vertical interface where the inside lip of the train wheel rubs against the side of the rail. Applicators mounted on the train bogie or the trackside dispense a solid stick of molybdenum disulfide or a thick grease directly into this gap.[3]

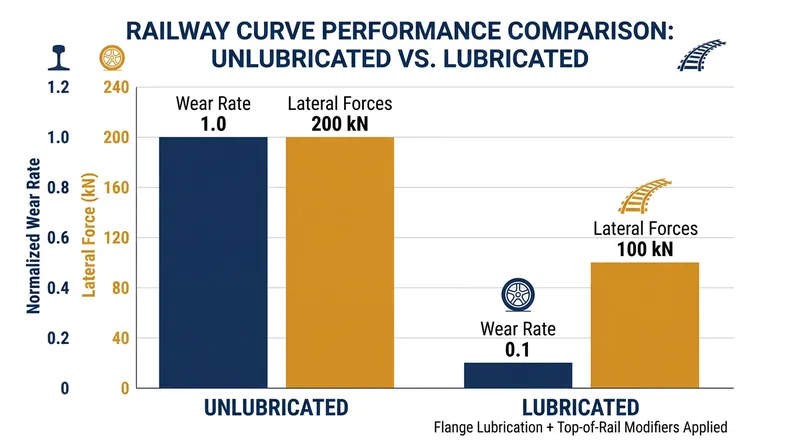

By isolating the lubricant to the flange, this system eliminates direct metal-to-metal contact during hard cornering. Field tests demonstrate that targeted flange lubrication reduces curve friction and subsequent steel wear by up to 90 percent, extending the lifespan of both the wheels and the track infrastructure by years.

"Solid-stick flange lubrication is a simple technology, but it is very effective at reducing the wear rate of wheel-flange height and thickness," notes Wayne Kennedy, a principal rail consultant. This targeted approach saves heavy-haul and commuter lines millions in replacement materials.

Without this lubrication, the lateral forces generated in a tight 300-meter radius curve can exceed 50 kilonewtons, actively pushing the rail outward. Flange lubrication drops these lateral forces by up to 50 percent, significantly reducing the risk of a flange-climb derailment where the wheel rides up over the railhead.

Preserving Braking Adhesion

While the gauge face requires maximum slipperiness, the top of the rail demands a delicate balance. If the top surface becomes too slick from migrating flange grease or environmental moisture, the train's wheels will slip during acceleration and slide dangerously during emergency braking.[1]

To manage this, transit systems deploy top-of-rail friction modifiers. Unlike traditional greases, these water-based suspensions contain proprietary solid particles that dry into a thin film on the railhead, leaving no oily residue that could compromise safety.

This film does not eliminate friction; instead, it shapes it. The modifier is engineered to maintain an intermediate coefficient of friction, typically around 0.35. This specific value is high enough to preserve the adhesion required for safe braking, yet low enough to prevent the wheels from binding.

The rheological properties of these modifiers are highly specialized. Under the low shear forces of a train coasting through a curve, the film acts as a lubricant to reduce lateral drag and mitigate the stick-slip oscillations that cause curve squeal.[1]

However, when the train applies its brakes, the high shear forces cause the modifier to behave differently. The material resists flow, allowing the wheel tread to bite into the railhead and transfer the braking force effectively without sliding past the station platform.[1]

A 2026 tribology study published in the journal Applied Sciences confirmed this non-Newtonian behavior. Researchers found that these transient interfacial films undergo continuous formation and depletion, regulating adhesion dynamically under rolling and sliding contact to keep the train safely anchored.[1]

Cutting Costs for Transit Agencies

For local transit authorities and freight operators, mastering this dual-friction approach directly impacts the bottom line. Reducing lateral drag in curves lowers the mechanical resistance the train must overcome, which translates directly into reduced energy consumption and lower emissions.

Heavy-haul freight networks have recorded energy savings of between 1.8 and 4.3 percent simply by implementing proper flange lubrication. For a major transit agency running hundreds of electrically powered commuter trains daily, that reduction in drag significantly lowers the municipal power bill.

Furthermore, extending the interval between rail replacements minimizes service disruptions. Commuters experience fewer weekend track closures and speed restrictions, because the rails maintain their optimal geometry for much longer periods before requiring specialized grinding or complete replacement.[2]

"The application of top-of-rail products reduces creepage forces, improves the steering behaviour of the vehicle, and reduces locomotive energy requirements," details engineering documentation from L.B. Foster, a major supplier of railway friction management systems.

By extending rail grinding intervals by a factor of two and wheel life by up to 20 times, these chemical interventions transform track maintenance from a constant reactive struggle into a predictable, manageable schedule.

Automating the Application

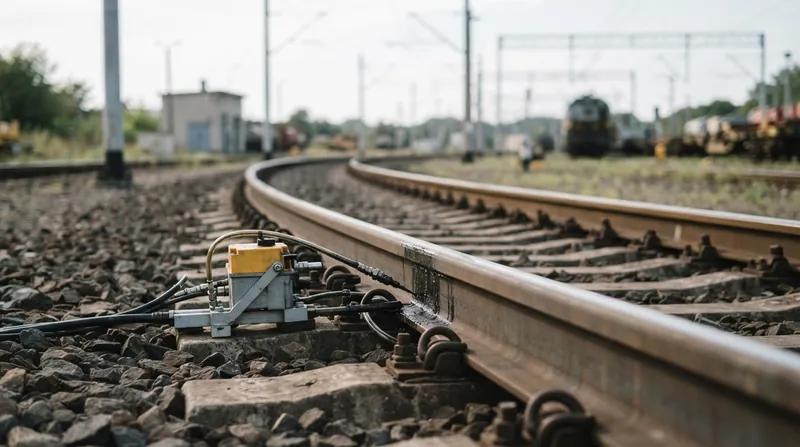

Historically, applying these materials required maintenance crews to manually grease trackside lubricators, a labor-intensive process prone to inconsistent coverage. Today, modern trains utilize onboard automated systems that dispense precise amounts of flange lubricant and top-of-rail modifiers based on GPS data and curve detection.[2]

These automated systems ensure that the friction modifiers are applied exactly where they are needed, such as the entry points of sharp curves. This precision prevents over-applying material that could migrate to the wrong part of the wheel and compromise the 0.35 friction target.[2]

Optical detection techniques are also being deployed to evaluate track lubricity from moving platforms. By scanning the rail surface at speeds exceeding 10 miles per hour, transit agencies can verify that the correct friction coefficient is being maintained across the network.[2]

Ultimately, the science of railway tribology proves that efficiency is not about eliminating friction entirely, but about placing the exact right amount of friction in the exact right place. This invisible engineering keeps heavy trains on the tracks, on schedule, and within budget.[4]
