How Lateral Catenary Wire Stagger Prevents Pantograph Grooving

Suspended 5,000 millimeters above the rails at a tension of up to 31 kilonewtons, the copper contact wire of a modern electrified railway is designed to outlast the trains running beneath it. It achieves this longevity by passing the physical punishment of high-speed friction onto a sacrificial component on the train's roof.[1]

That component is the pantograph carbon strip, a replaceable block of metallized graphite that presses upward against the live wire to draw power. Because the train is moving while the wire remains stationary, the sliding interface between the two generates intense mechanical friction and electrical heat.[2]

If railway engineers strung the overhead contact wire perfectly straight down the centerline of the track, that friction would be disastrous. The 12-millimeter-wide copper wire would rub continuously against the exact same spot on the pantograph strip for the duration of the journey.[1]

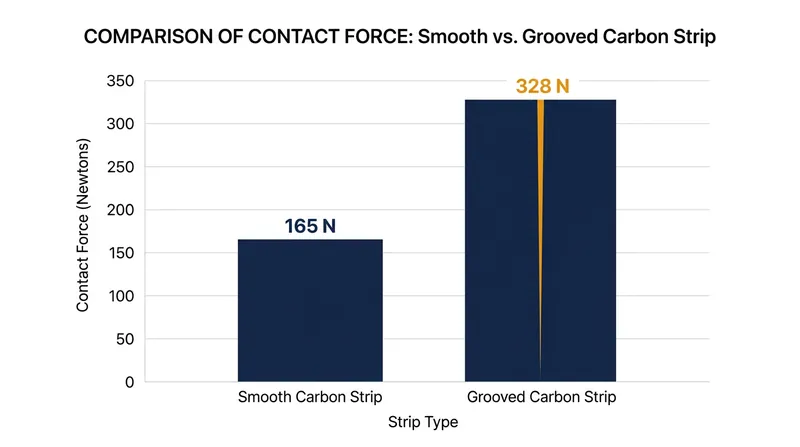

Within days, this concentrated friction would slice a deep, localized groove into the carbon material. Once a groove forms, the contact force between the wire and the carbon spikes to over 300 newtons, accelerating the degradation and threatening to snag the overhead infrastructure.[2]

To prevent this catastrophic localized wear, rail networks employ a geometric technique known as catenary wire stagger. Rather than running in a straight line, the contact wire is deliberately zigzagged horizontally from side to side as it spans the distance between support masts.[1]

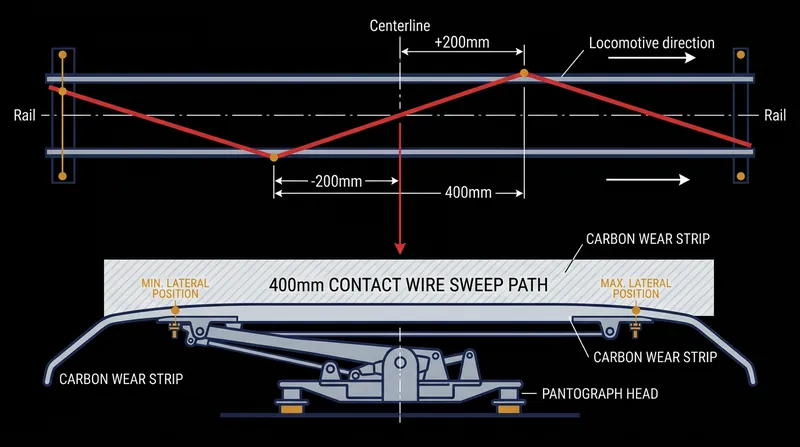

On a standard straight section of track, the wire is pulled off-center by alternating registration arms, typically reaching 200 to 300 millimeters to the left and right of the track's centerline. As the train travels forward, the wire sweeps back and forth across the width of the pantograph.[1]

This sweeping motion fundamentally changes the wear dynamics of the system. By distributing the friction of a 12-millimeter wire across a 400-millimeter lateral path, the stagger dilutes the mechanical abrasion, ensuring the carbon strip wears down evenly as a flat surface rather than being cut in half.[3]

The mechanics of sacrificial wear

The relationship between the overhead line and the pantograph is an exercise in planned obsolescence. Overhead contact wires are incredibly expensive to install and replace, requiring specialized equipment and extensive track closures.[1]

To protect this static infrastructure, the pantograph strip is engineered to fail first. Modern strips are manufactured from high-grade carbon infused with molten metals, typically copper, creating a composite that balances electrical conductivity with structural resilience.[2]

As the metallized carbon strip slides against the copper wire, it deposits a micro-layer of graphite along the contact surface. This self-lubricating property drastically reduces the friction coefficient, allowing the train to draw massive electrical currents without grinding the overhead wire to dust.[2]

However, this lubrication only works if the contact patch remains broad and flat. When irregular wear or a lack of stagger allows a groove to form, the geometry of the interface breaks down, and the self-lubricating graphite layer is scraped away faster than it can be deposited.[2]

The threat of electrical arcing

The consequences of a grooved pantograph strip extend beyond simple mechanical failure. A deep groove compromises the aerodynamic stability of the pantograph head, causing it to bounce and briefly lose physical contact with the wire.[2]

When the carbon strip separates from the live wire by even a fraction of a millimeter, the high-voltage current jumps the gap, creating an electrical arc. This arcing generates extreme localized temperatures that vaporize the carbon and melt the surface of the copper wire.[1][2]

Researchers analyzing abnormal wear patterns on metro lines have found that offline arcing is a primary driver of rapid material loss. The intense heat degrades the carbon matrix, generating abrasive debris that further accelerates the destruction of the contact strip.[2]

By sweeping the wire across the collector shoe, the stagger geometry prevents the initial groove from forming, thereby suppressing the bounce and keeping the electrical connection solid. Continuous contact eliminates the arcing, protecting both the train and the infrastructure from thermal damage.[2][3]

High-speed wave dynamics

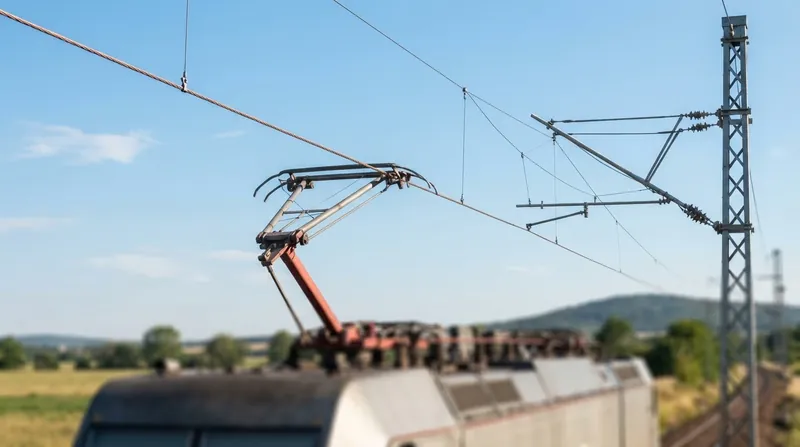

As train speeds increase, the engineering requirements for the overhead contact system become significantly more complex. Above 250 kilometers per hour, the physical interaction between the pantograph and the wire transitions into a wave propagation problem.[1]

The upward pressure of the pantograph creates a mechanical wave that travels down the contact wire ahead of the train. "They attenuate the contact-line oscillations that occur during the passage of pantographs and so enable good dynamic behavior of the contact wire," states Siemens Mobility regarding its elastic support systems.

To ensure the wave travels faster than the locomotive, the contact wire is held under immense tension, typically between 27 and 31 kilonewtons. This high tension makes the wire rigid, which in turn makes the lateral stagger even more critical for preventing localized wear.[1]

A highly tensioned, perfectly straight wire would act like a bandsaw against the carbon strip. The ±200-millimeter stagger ensures that this immense pressure is constantly moving, spreading the load and allowing the pantograph to survive the extreme forces of high-speed transit.[1][3]

Navigating curves and clearances

While a ±200-millimeter stagger is standard on straight tracks, the geometry must adapt when the railway curves. On curved sections, the natural tension of the wire tries to pull it toward the inside of the bend, requiring careful placement of support masts.[1]

Engineers use pull-off arms to hold the wire against this inward force, maintaining a stagger that typically does not exceed 300 millimeters from the centerline. This ensures the wire never slips off the edge of the pantograph, which would cause a catastrophic entanglement.[1]

The precision of this zigzag pattern dictates the maintenance schedule for the entire fleet. When the stagger is calibrated correctly, a standard metallized carbon strip can provide reliable power collection for up to 100,000 kilometers of service before requiring replacement.[2]

As rail networks push toward 350-kilometer-per-hour operating speeds, the tolerance for stagger deviation is shrinking. Diagnostic trains now use laser triangulation to measure wire position down to the millimeter, ensuring the sweep remains wide enough to protect the carbon without risking an edge-snag that would bring the line to a halt.[1][3]
