Why Zinc Fails in Freshwater and Magnesium Burns in Salt: The Science of Marine Anodes

A common piece of marina wisdom holds that zinc is the universal shield for underwater metal, a sacrificial barrier that will save a boat's running gear regardless of where it floats. Many owners moving a vessel from a coastal slip to an inland lake simply leave their existing anodes in place.

The evidence contradicts this habit directly, revealing that a metal's ability to protect a hull depends entirely on the water's electrical conductivity. In freshwater, a zinc anode forms a hard crust and stops working completely, leaving the boat's actual drive components to corrode.[1][3]

Conversely, owners who install highly active magnesium anodes for river use and then take their boat into the ocean face a different failure. The saltwater accelerates the magnesium's depletion so violently that it can burn away in weeks, potentially damaging the surrounding paint.[2]

The Water as a Wire

Galvanic corrosion occurs when two different metals are submerged in an electrolyte, creating a weak battery. The less noble metal gives up its electrons to protect the more noble metal, which is why sacrificial anodes are bolted to bronze propellers and steel shafts.[1]

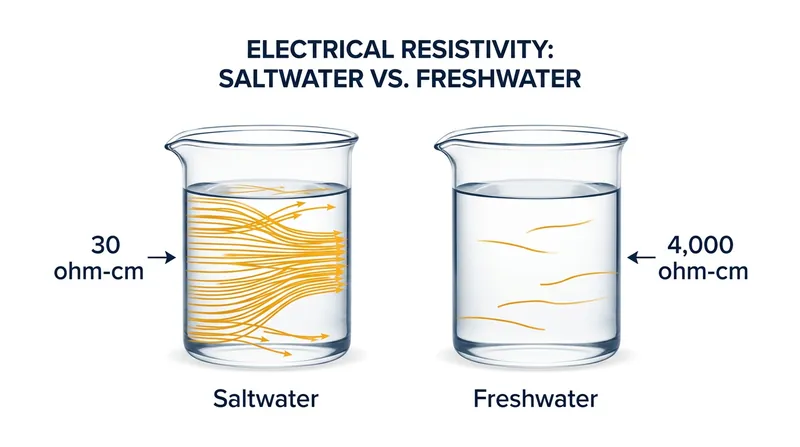

For this circuit to function, the water itself must carry the electrical current between the metals. Saltwater is packed with dissolved sodium and chloride ions, making it a highly efficient conductor with a resistivity of roughly 30 ohm-cm.[2][4]

Freshwater lacks those dissolved ions, meaning it resists electrical flow. Typical lake water has a resistivity of around 4,000 ohm-cm, requiring a much stronger electrical push from the anode to drive the protective current through the water and into the boat's running gear.[1][4]

This is where the specific voltage of the anode material becomes the deciding factor in whether a boat owner faces a $4,500 outdrive replacement. The anode must generate enough voltage to overcome the water's resistance, or the protection simply stops.[4]

The Passivation of Zinc

Zinc has been the standard marine anode since the early 1950s, offering a galvanic potential of -1.05 volts. In highly conductive saltwater, that voltage is more than enough to push a protective current through the water and keep the anode actively dissolving.[2]

Move that same zinc anode into a freshwater lake, and the physics change immediately. The 4,000 ohm-cm resistance of the freshwater chokes off the electrical flow, preventing the zinc from shedding its ions at a fast enough rate to remain active.[3][4]

"Zinc in freshwater doesn't just stop working; it actively builds an insulating oxide barrier that seals it off from the galvanic circuit entirely," says Dr. Sylvia Vance, a marine metallurgist at the Corrosion Research Institute. "We call this passivation, and it happens rapidly."[3]

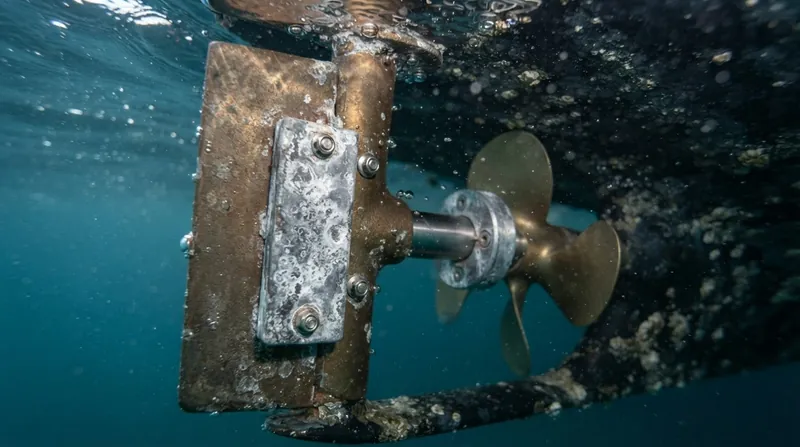

Within 72 hours of entering freshwater, a zinc anode develops a calcareous coating that acts like a layer of electrical tape. The anode will look perfectly intact at the end of the season, while the expensive aluminum outdrive next to it is pitted and destroyed.[1][3]

Magnesium's Saltwater Overkill

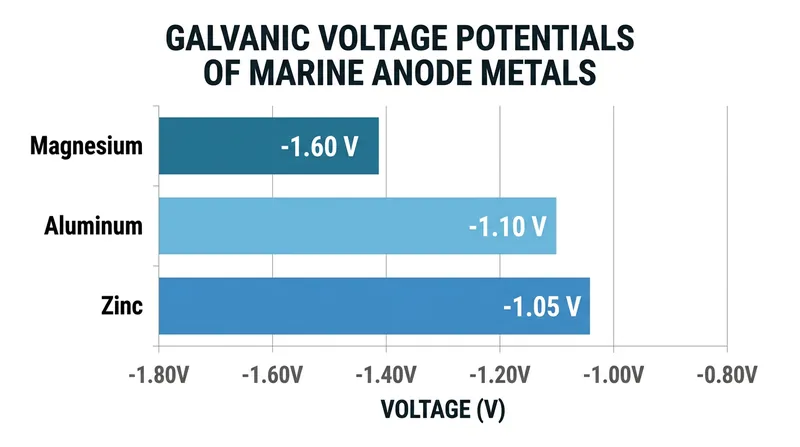

To protect metals in highly resistive freshwater, engineers turn to magnesium. With a galvanic potential of -1.60 volts, magnesium provides a massive electrical push, easily driving a protective current through the mineral-poor water of inland lakes and rivers.[2][4]

For a trailer-boater who exclusively launches in freshwater, magnesium is the only reliable choice. It remains active, sheds its electrons, and sacrifices itself exactly as designed, keeping the boat's vital underwater components pristine throughout the summer season.

The danger arises when that magnesium-equipped boat is trailered to the coast and launched into the ocean. Placed in saltwater, which has almost zero electrical resistance, the -1.60-volt push of the magnesium creates a massive, uncontrolled galvanic current.[2]

The magnesium anode will overprotect the vessel, dissolving up to 130 times faster than it would in a lake. A block of magnesium that should last a year in freshwater can be completely consumed by the ocean in less than three weeks.[4]

This rapid depletion does more than just leave the boat unprotected once the anode is gone. The intense electrical activity can cause hydrogen embrittlement in high-strength steel components and physically blow the antifouling paint off the hull surrounding the anode.[1][2]

The Aluminum Alloy Compromise

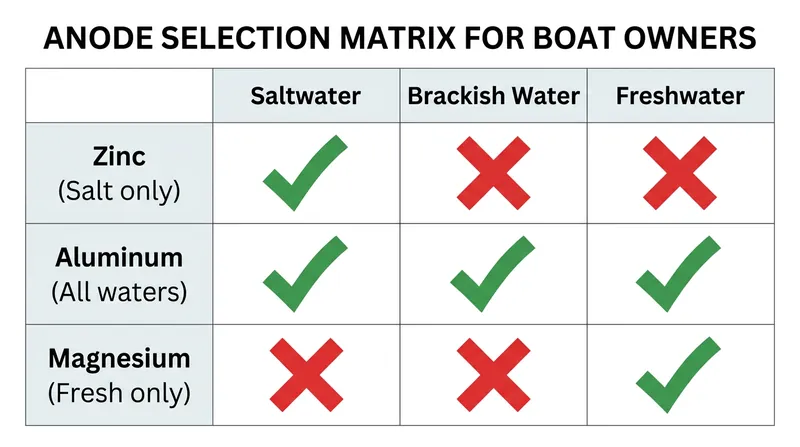

Historically, boat owners who split their time between coastal bays and inland rivers had to physically unbolt and swap their anodes every time they moved. The introduction of modern aluminum-indium alloys in the late 1990s provided a versatile alternative.[3]

Aluminum anodes sit between zinc and magnesium in terms of electrical activity, generating a potential of roughly -1.10 volts. Crucially, the addition of indium prevents the aluminum from forming the hard, passivating oxide crust that plagues zinc in freshwater.[1][3]

In saltwater, an aluminum anode lasts up to 50 percent longer than a zinc anode of the same weight, while providing slightly better protection. It is highly efficient, shedding its mass evenly without the rapid burnout associated with magnesium.[2]

When moved into freshwater, the aluminum alloy continues to function, though at a reduced capacity compared to magnesium. It will not passivate like zinc, making it the safest default choice for a vessel that frequently navigates through brackish estuaries into inland waterways.[1]

Making the Right Maintenance Call

Understanding these conductivity rules shifts anode selection from a guessing game to a precise maintenance decision. An owner buying a used boat must immediately check what metal is bolted to the hull, rather than assuming the previous owner chose correctly.[4]

The visual condition of an anode is often the most deceptive indicator of a boat's safety. An anode that looks brand new after six months in the water is not a sign of a healthy electrical system; it is proof that the anode is passivated and doing nothing.[3]

A properly functioning sacrificial anode should look heavily pitted, porous, and visibly degraded by the end of the season. That missing metal represents the corrosion that was successfully diverted away from the vessel's propellers, shafts, and through-hull fittings.[1]

Industry standards recommend replacing any anode once it has lost half of its original mass. Pushing an anode past the 50 percent depletion mark reduces its surface area significantly, limiting its ability to generate the necessary protective current.[1][2]

The water environment strictly dictates the required metal. By matching the anode's voltage to the local conductivity, an owner ensures their vessel remains electrically shielded, turning a complex chemical reaction into a predictable seasonal refit.[4]
