Why Solid-State EV Batteries Still Short-Circuit During 15-Minute Fast Charges

Automakers and battery engineers face a hard physical limit when designing the next generation of electric vehicles. They can either deliver the 15-minute fast charging that buyers demand, or they can guarantee the battery will not short-circuit, but currently, they cannot do both.

The industry has spent billions betting on solid-state batteries to solve this exact compromise. By replacing the flammable liquid inside current lithium-ion cells with a hard ceramic disc, manufacturers promised a fireproof battery that could absorb massive electrical currents.

However, testing reveals that these solid ceramics fail under the exact conditions EV owners care about most: highway fast-charging. When drivers plug into a 350-kilowatt station, the sheer volume of lithium ions rushing across the cell physically breaks the ceramic apart.[1]

This failure mechanism forces buyers to adjust their expectations for late-decade vehicle upgrades. Instead of a magical battery that charges instantly in the cold, the first solid-state cars slated for 2027 and 2028 will likely require strict charging limits to survive their warranty periods.

The Microscopic Path of Least Resistance

To understand why a solid ceramic cracks, buyers must look at how the material is manufactured. Solid electrolytes like lithium lanthanum zirconium oxide (LLZO) are not single, perfect crystals; they are made of millions of microscopic grains pressed together.[1]

The borders where these individual grains meet are called grain boundaries. While the center of a ceramic grain is incredibly dense and resists lithium penetration, the boundaries between them contain microscopic voids and structural defects.

During a slow overnight charge in a residential garage, lithium ions move gently through the ceramic and plate evenly onto the anode. The current density remains below 1 milliampere per square centimeter, which the grain boundaries can easily handle.[1]

But a 15-minute highway fast charge pushes current densities past 4 milliamperes per square centimeter. At this speed, lithium ions pile up at the grain boundaries faster than they can diffuse into the anode structure.[1]

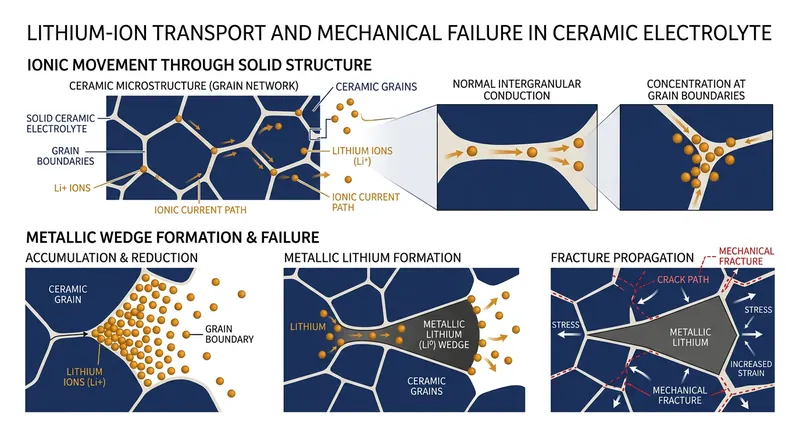

This traffic jam forces the lithium atoms to bond with each other, forming microscopic metallic spears called dendrites. Because the grain boundaries are physically weaker than the bulk ceramic, the growing dendrite wedges itself into the microscopic cracks.[2]

When Metal Wedges Split Solid Rock

Once a lithium dendrite enters a grain boundary, it acts like a tree root growing into a concrete sidewalk. As more lithium flows into the cell, the dendrite expands, exerting immense mechanical pressure on the surrounding ceramic grains.[2]

Researchers at the Massachusetts Institute of Technology measured this internal stress, finding that growing dendrites generate pressures exceeding 130 megapascals. That is more than enough force to fracture the ceramic electrolyte from the inside out.

"The lithium literally forces the ceramic grains apart," notes a 2025 materials analysis from Argonne National Laboratory. "It exploits the microscopic flaws, creating a conductive bridge straight through the separator."[2]

When that metallic bridge reaches the other side of the ceramic, it connects the positive and negative terminals. The resulting short circuit instantly kills the cell and can trigger the exact thermal runaway solid-state batteries were supposed to prevent.[2]

The Hard Limit on Highway Charging

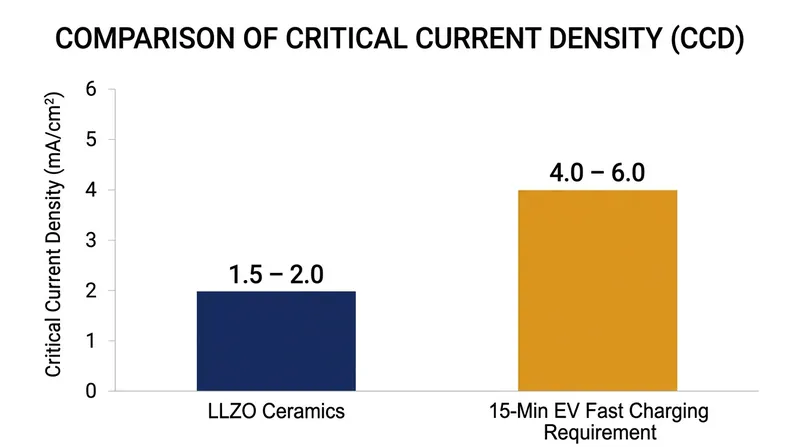

Battery engineers measure a material's resistance to this failure using a metric called critical current density (CCD). This number defines the exact charging speed at which dendrites begin to penetrate the solid electrolyte.[1]

Currently, the best LLZO ceramic electrolytes exhibit a CCD of roughly 1.5 to 2.0 milliamperes per square centimeter at room temperature. That threshold is perfectly adequate for a standard Level 2 home charger.[1]

However, matching the 15-minute charge time of a modern gas station visit requires a current density of at least 4.0 to 6.0 milliamperes per square centimeter. Pushing that much power through current ceramics guarantees grain boundary failure.[1]

For an EV buyer, this means the first generation of solid-state vehicles will likely throttle their charging speeds at public stations. A car advertised with a 500-mile range might still take 40 minutes to charge to protect its ceramic separator.

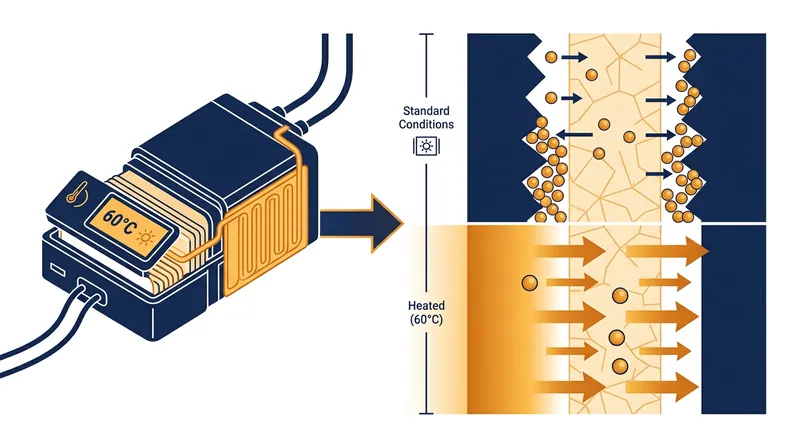

Heating the Battery to Save the Ceramic

To bridge the gap between material limits and consumer expectations, automakers are developing thermal workarounds. Because heat increases the mobility of lithium ions, raising the battery's temperature temporarily raises its critical current density.[1]

By pre-heating a solid-state battery pack to 60 degrees Celsius (140 degrees Fahrenheit) before arriving at a charger, the ions can move fast enough to avoid piling up at the grain boundaries.[1]

This thermal management strategy requires energy, slightly reducing the vehicle's effective highway range. It also means drivers living in cold climates will see significantly slower fast-charging times until the battery pack reaches its optimal temperature.

Other manufacturers are abandoning pure ceramics entirely, opting for semi-solid designs. These hybrid batteries inject a small amount of liquid or gel polymer into the ceramic grain boundaries, acting as a flexible buffer against dendrite pressure.

While these semi-solid designs charge faster and resist cracking, they reintroduce flammable materials into the pack. For the consumer, it represents a calculated compromise between the ultimate safety of a pure solid and the convenience of a 15-minute charge.

The physics of ceramic grain boundaries dictate that solid-state batteries cannot simply break the established rules of electrochemistry. Automakers must still balance charging speed against physical degradation, just as they do with liquid cells.[2][3]

The deciding factor for the next generation of electric vehicles will be how seamlessly software can manage these thermal transitions. If the car can pre-heat its ceramic separator before the driver even notices, the grain boundary limitation becomes an engineering footnote rather than a consumer bottleneck.[3]
