How Planetary Power-Split Hybrids Synthesize Stepless Ratios Without Belts or Clutches

Inside a reinforced dynamometer cell at Oak Ridge National Laboratory in 2010, engineers bolted a Toyota Prius transaxle to a testing rig and stripped away its aluminum casing. They were looking for the steel belt and variable pulleys that define a continuously variable transmission. They found nothing but a single, compact cluster of interlocking gears.

What the researchers were measuring was a planetary power-split hybrid system, a mechanical architecture that fundamentally redefined automotive propulsion. Instead of relying on friction to change gear ratios, this system uses a generator to electrically govern the speed of a central gear.[2]

For a car buyer cross-shopping a modern hybrid SUV against a traditional automatic, the distinction sounds purely academic. But the absence of friction clutches and steel belts is the exact reason these specific hybrid drivetrains routinely surpass 250,000 miles without a transmission rebuild.

"The genius of the power-split architecture is that it replaces mechanical wear surfaces with magnetic fields," says Dr. Timothy Burress, a lead researcher at Oak Ridge National Laboratory. "You are controlling the engine's output ratio entirely through electrical resistance, which never wears out."

Eliminating the steel belt

A conventional continuously variable transmission, or CVT, relies on a heavy steel belt riding between two adjustable metal cones. Hydraulic pressure squeezes the cones together to change the gear ratio, requiring immense clamping force just to prevent the belt from slipping under hard acceleration.[3]

That clamping force acts as a constant parasitic drag on the engine, consuming up to 15 percent of the vehicle's total power output before it ever reaches the wheels. It also generates immense heat, degrading the transmission fluid and requiring strict maintenance intervals from the owner.[2]

The planetary power-split system, marketed most famously as the Toyota Hybrid System, abandons the belt entirely. It replaces the variable pulleys with a planetary gearset, a mechanical arrangement that looks exactly like a solar system.

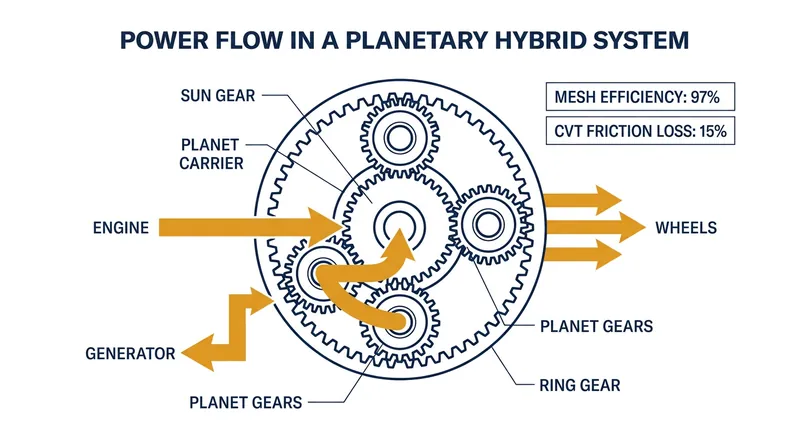

In this setup, the gasoline engine connects to a carrier holding several small "planet" gears. These planets orbit a central "sun" gear, which is physically bolted to an electric generator. An outer "ring" gear surrounds the entire assembly and connects directly to the vehicle's wheels.[4]

Governing by electrical resistance

Because all three components—the engine, the generator, and the wheels—are permanently meshed together, they must rotate in a mathematical relationship. If the vehicle is parked and the ring gear is stationary, starting the gasoline engine forces the planet gears to spin the central sun gear at high speed.[1]

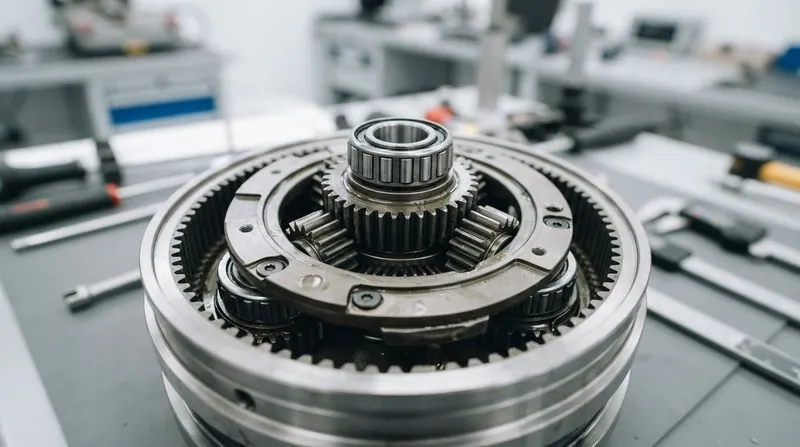

This is where the stepless ratio synthesis occurs. As the driver presses the accelerator, the hybrid computer applies an electrical load to the generator attached to the sun gear. This magnetic resistance slows the sun gear down, which forces the engine's rotational energy outward to the ring gear.

By precisely varying the electrical resistance on that central sun gear, the computer seamlessly changes how much engine power flows to the wheels versus how much flows into the battery. The system creates an infinite number of gear ratios without a single shifting clutch.[2]

"We are essentially using a 30-kilowatt electric motor as a dynamic brake on the sun gear," notes the 2024 SAE International kinematic analysis. "The ratio changes are synthesized entirely by software modulating the inverter current, completely isolating the driver from mechanical shift shocks."[2]

The efficiency mathematics

The mechanical efficiency of this arrangement dramatically alters the ownership math for a daily commuter. Traditional planetary gear meshes operate at roughly 97 percent efficiency, losing only 3 percent of their transmitted power to gear-tooth friction and fluid churning.

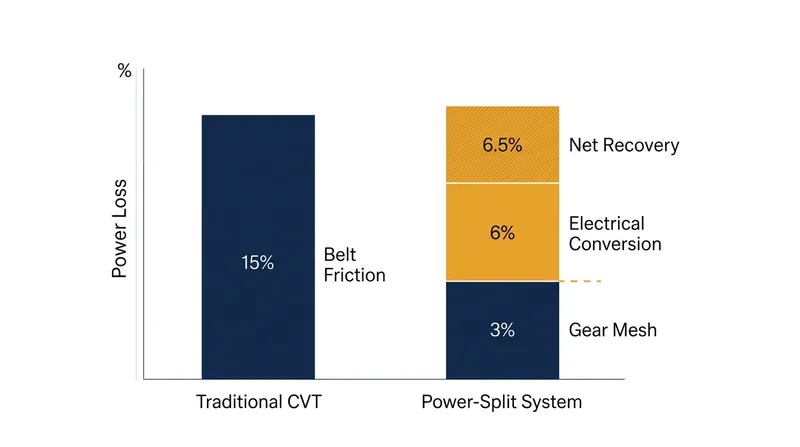

Factlen's analysis of the Oak Ridge dynamometer data shows that even after accounting for the 6 percent loss incurred by converting mechanical rotation into electricity and back, the power-split system retains a distinct advantage. It recovers an average of 6.5 percent of total engine output at a steady 60-mph highway cruise compared to a belt-driven CVT.[1]

For a driver covering 15,000 miles annually, that recovered mechanical energy translates directly to a 3-to-4 mile-per-gallon advantage on the highway. More importantly, it removes the high-pressure hydraulic pump from the transmission, eliminating the most common failure point in modern automatic gearboxes.[1]

The only maintenance required for a planetary power-split transaxle is a simple drain and fill of its lubricating fluid, typically recommended every 60,000 miles. There are no valve bodies to clog, no clutch packs to burn, and no steel belts to snap under heavy towing loads.[3]

Reversing the power flow

This permanent mechanical linkage also dictates how the vehicle behaves under deceleration. When the driver lifts off the throttle at 45 mph, the wheels back-drive the ring gear, which spins the planet gears and forces the engine to turn.[4]

To prevent the engine from creating unwanted drag, the hybrid system cuts the fuel injectors and uses the larger traction motor to capture the kinetic energy. The vehicle glides smoothly while generating up to 40 kilowatts of regenerative braking power, routing it directly into the high-voltage battery pack.

If the battery reaches its maximum charge capacity on a long downhill grade, the computer simply alters the sun gear's resistance to spin the dead gasoline engine faster. This safely bleeds off the excess kinetic energy as air-pumping friction, exactly like downshifting a manual transmission.[3]

For the buyer navigating a dealership lot, the term "e-CVT" on a window sticker often triggers fears of rubber-band acceleration and fragile belts. But beneath the aluminum casing, the planetary power-split hybrid remains one of the most robust and mechanically elegant drivetrains ever engineered.[1]

The thermal management advantage

Heat is the primary enemy of any transmission, and the power-split architecture handles thermal loads far better than friction-based alternatives. Because there are no slipping clutches, the automatic transmission fluid serves only as a lubricant and a coolant for the electric motor windings.

During a sustained climb up a steep mountain pass, a traditional automatic transmission can see fluid temperatures spike past 240 degrees Fahrenheit. The planetary gearset, bathed in a dedicated cooling loop shared with the hybrid inverter, rarely exceeds 190 degrees even under maximum gross vehicle weight.

This thermal stability is why taxi fleets in major cities routinely push these specific hybrid models past 400,000 miles on the original transaxle. By replacing mechanical friction with magnetic resistance, engineers solved the automotive industry's oldest wear problem using fundamental orbital mechanics.[1]
