The Ackermann Angle: How the Steering Trapezoid Ensures All Four Wheels Roll Without Scrubbing

For any wheeled vehicle to navigate a corner without dragging its rubber across the pavement, one geometric rule must hold: every wheel must follow a circle that shares a single common center point. If they do not, the tires fight each other, scrubbing away tread and wasting energy. In a standard passenger car navigating a grocery store parking lot, this constraint is absolute. The inner front wheel must turn at a sharper angle than the outer front wheel, simply because it is tracing a tighter circle.[1]

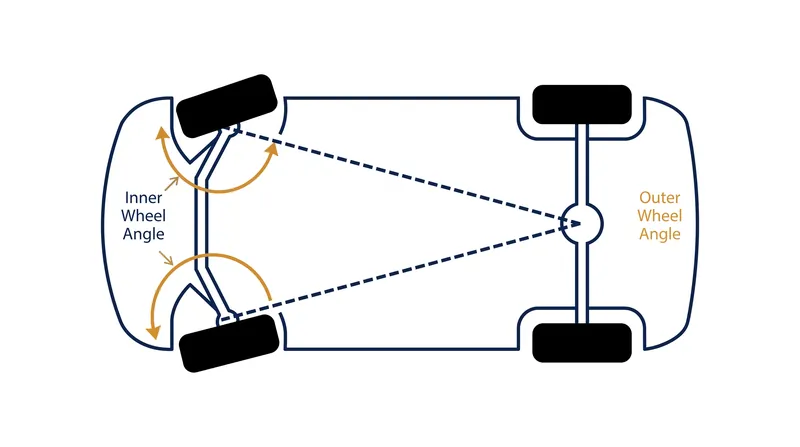

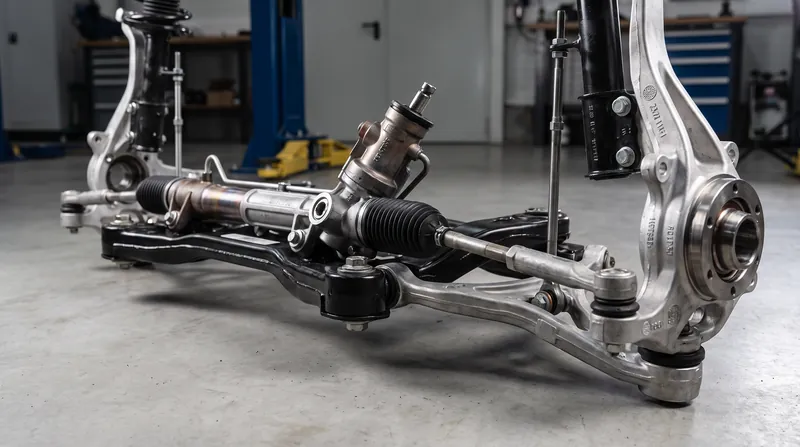

The solution to this geometric problem is a mechanical linkage known as the steering trapezoid, or Ackermann steering geometry. By angling the steering arms inward so that the tie rod connecting them is shorter than the distance between the kingpins, the mechanism naturally forces the inner wheel to pivot further than the outer wheel as the steering wheel is turned. When lines drawn through the steering arms intersect exactly at the center of the rear axle, the vehicle achieves 100 percent True Ackermann geometry.[1][4]

The history of this invention highlights its fundamental necessity. While patented in Britain in 1818 by Rudolf Ackermann, the actual design was created in 1816 by Georg Lankensperger, a German carriage builder. Lankensperger realized that horse-drawn carriages were destroying their wooden wheels by dragging them through tight city corners, creating a mechanical linkage that allowed the inner wheel to follow its naturally tighter radius.[2][3]

For the modern vehicle owner, this 1816 invention is what makes a daily commute manageable. It ensures that when pulling into a tight driveway or navigating a multi-level parking garage, the steering feels light, the tires roll silently, and the tread life extends for tens of thousands of miles. Without it, every low-speed turn would require immense physical effort at the steering wheel and leave black marks on the pavement.[1][4]

However, the physics of steering change dramatically the moment a vehicle transitions from a low-speed parking maneuver to a high-speed corner. When a car takes a corner at 60 miles per hour, the tires do not simply point in the direction of travel. They generate lateral force through a phenomenon known as slip angle—the difference between the direction the wheel is pointing and the direction the tire contact patch is actually traveling.

In a hard corner, the vehicle's weight transfers violently to the outside wheels. The outer front tire is suddenly tasked with managing the vast majority of the cornering load, while the inner tire becomes lightly loaded. "As lateral acceleration increases, the load transfer to the outside tire demands a greater slip angle to maximize grip," notes the technical analysis from Racecar Engineering, highlighting how dynamic forces override static geometry.[1]

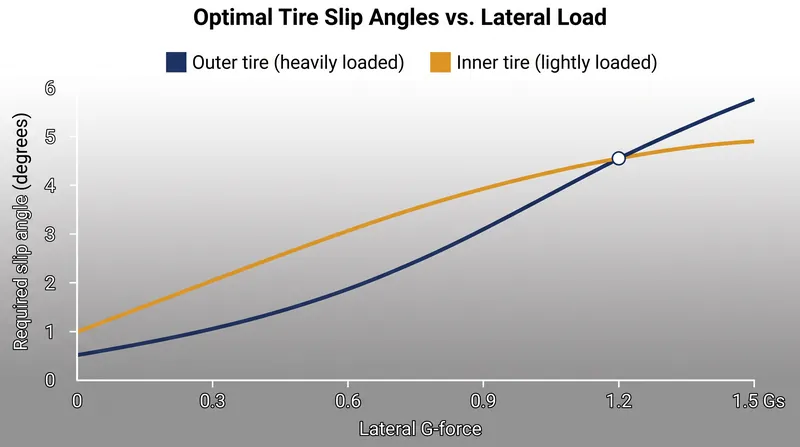

Because a heavily loaded tire requires a larger slip angle to generate its maximum grip—typically between 3 and 5 degrees for a racing slick—the geometric requirements of the steering system invert. This is where True Ackermann geometry becomes a liability for performance driving. If the inner wheel is turned sharper than the outer wheel during a high-speed corner, it will exceed its optimal slip angle, effectively dragging across the pavement and generating heat rather than grip.

To combat this, race car engineers deliberately design Anti-Ackermann, or reverse Ackermann, geometry. In an Anti-Ackermann setup, the outer wheel is actually turned slightly sharper than the inner wheel. This ensures that the heavily loaded outside tire achieves its optimal slip angle without forcing the lightly loaded inside tire to scrub. For a Formula Student race car pulling 1.2 Gs of lateral acceleration, this shift is critical for maximizing cornering speed and preventing catastrophic understeer.[1]

The trade-off is immediately apparent to anyone who has driven a dedicated track car at low speeds. Because the geometry is optimized for high-speed slip angles, navigating the pit lane or a tight paddock results in violent tire chatter, heavy steering effort, and rapid wear. The vehicle is fighting its own geometry until it reaches the speeds it was designed for, sacrificing the parking lot for the podium.[4]

For automotive engineers designing modern sports sedans, this presents a constant compromise. A vehicle must be able to park effortlessly at the grocery store while still providing confident turn-in on a canyon road. Many manufacturers settle on a modified parallel steering setup, sacrificing a small amount of low-speed efficiency to ensure the outer tire has enough bite when the driver demands performance, proving that even a 200-year-old geometric absolute has its limits.[1][4]
