How Steering Gear Architecture Dictates Vehicle Precision, Maintenance, and Capability

A 5,000-pound vehicle traveling at 70 miles per hour requires less than three pounds of lateral force at the steering wheel to change lanes, a mechanical translation measured directly at the driver's hands. For a buyer choosing between a modern crossover and a traditional body-on-frame truck in 2026, that three-pound input feels entirely different depending on whether the steering column terminates in a rack-and-pinion or a recirculating ball mechanism. The physical connection between the steering wheel and the front tires dictates the daily driving experience, the feedback felt over potholes, and the eventual maintenance bills.[6]

The automotive industry has largely standardized around two distinct steering architectures, each engineered to solve a different physical problem. As Dowway Vehicle outlines in its comprehensive 2026 design guide, the selection of a steering system is the foundational step in front-end chassis development. The decision forces engineers to prioritize either surgical road feedback for high-speed stability or heavy-duty load isolation for rugged environments, a choice that directly impacts the vehicle owner's long-term operating costs and daily driving comfort.[3]

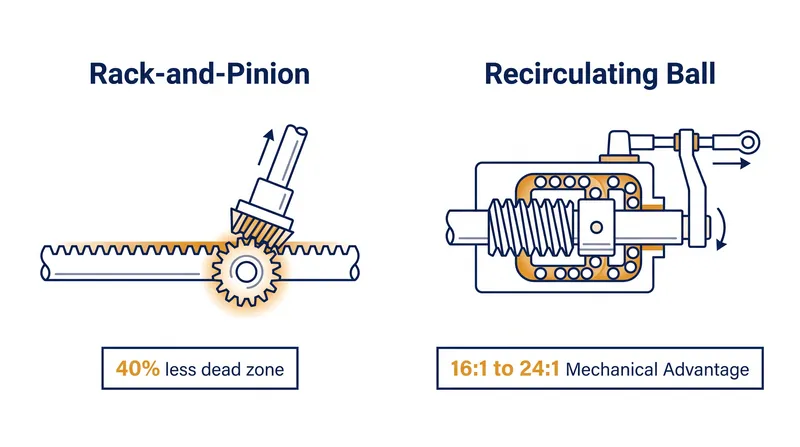

Rack-and-pinion steering represents the dominant architecture for passenger cars, crossovers, and increasingly, light-duty trucks across the global market. The mechanism is elegantly simple in its construction: a circular gear, known as the pinion, is attached directly to the steering column and engages a linear gear, the rack, which is connected to the tie rods. When the driver turns the wheel, the pinion rotates, pushing the rack left or right. This direct mechanical linkage translates to immediate response and minimal play at the steering wheel.[1][4]

"Rack and pinion steering is the most common type of steering system in cars and small trucks today," reports Detroit Axle. The design minimizes the number of moving parts between the driver's hands and the road surface. This simplicity reduces the overall weight of the steering assembly by an average of 15 to 25 pounds compared to older systems, a crucial metric for manufacturers chasing strict 2026 fuel efficiency targets and attempting to offset the heavy battery packs of modern electric vehicles.[1]

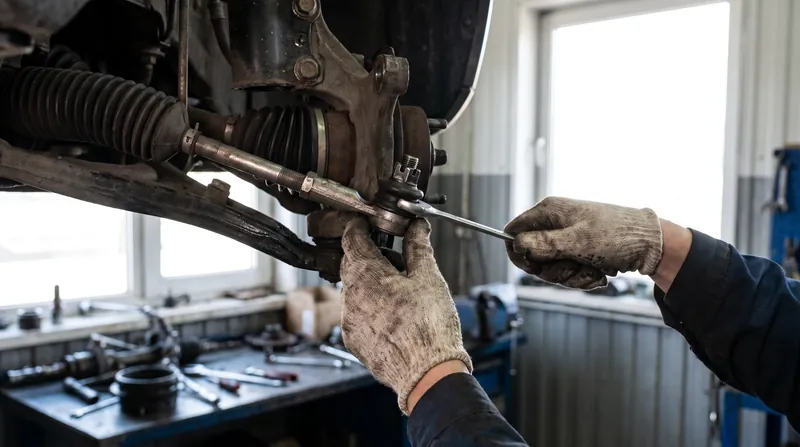

However, that direct connection comes with a specific maintenance profile for the vehicle owner. Because the rack-and-pinion system transmits road forces straight back through the steering column, the tie-rod ends and the rack seals bear the brunt of impacts from potholes and uneven pavement. For a commuter navigating deteriorating urban infrastructure, this often translates to accelerated wear on the outer tie rods, requiring replacement and a full front-end alignment around the 60,000-mile mark to prevent uneven tire degradation.[5]

In contrast, recirculating ball steering—often referred to as a steering gearbox—operates on a fundamentally different mechanical principle designed for isolation and mechanical advantage. Inside the gearbox, a worm gear on the steering column drives a block with internal threads. To eliminate friction, the threads are filled with dozens of steel ball bearings that continuously circulate as the gear turns, pushing a pitman arm that subsequently moves the heavy steering linkage connected to the front wheels.[2]

This architecture remains the standard for heavy-duty applications. "The recirculating ball steering gear is used on many trucks and heavier vehicles," notes Classic Auto Advisors in their technical breakdown. The design provides a massive mechanical advantage, typically ranging from a 16:1 to a 24:1 ratio, allowing a driver to turn the front wheels of a fully loaded 10,000-pound commercial van with minimal physical effort, even at a complete standstill when tire friction is at its absolute highest.[2][4]

For the buyer of a heavy-duty pickup or a dedicated off-road SUV, the recirculating ball system offers a distinct operational benefit: impact isolation. When a front tire strikes a deep rut or a large rock, the complex linkage and the circulating ball bearings absorb the shock, preventing the steering wheel from violently snapping in the driver's hands. This isolation is why traditional off-road vehicles and heavy commercial fleets continue to utilize the heavier, more complex gearbox design in 2026.[2][5]

The trade-off for this durability is a noticeable reduction in steering precision. Recirculating ball systems inherently possess a larger "dead zone"—the slight amount of steering wheel movement required before the tires actually begin to turn. DKM's 2024 engineering analysis highlights that "recirculating ball steering systems generally have more play in the steering wheel compared to rack and pinion systems," a characteristic that can make a heavy vehicle feel wandering or vague at highway speeds, requiring constant micro-corrections from the driver.[5]

The maintenance reality for a recirculating ball system also differs significantly from a rack-and-pinion setup. While the tie rods and linkages are generally more robust, the steering gearbox itself is a complex, sealed unit. When the internal bearings wear out or the seals begin to leak—often past the 100,000-mile threshold—the entire gearbox typically requires rebuilding or replacement, a specialized repair that can cost upwards of $1,200 at an independent shop, far exceeding the cost of a standard tie-rod replacement.[4][6]

Modern electric power steering, or EPS, has begun to blur the lines between these two traditional architectures in recent production cycles. By replacing traditional hydraulic pumps with electric motors mounted directly to the steering rack or the steering column, engineers can digitally tune the steering feel. This allows them to artificially add weight to a rack-and-pinion system at highway speeds for stability, or drastically increase the assist during low-speed parking maneuvers to mimic the effortless nature of older luxury vehicles.[3]

Yet, software cannot entirely overwrite physics. The mechanical baseline still dictates the vehicle's ultimate capability and wear patterns. Firgelli Automations explains that the physical load capacity of the recirculating ball mechanism remains unmatched for applications requiring high torque transfer without the risk of gear tooth sheer, a physical limitation that keeps the older technology highly relevant in commercial, agricultural, and heavy-duty sectors where a rack-and-pinion system would quickly fail under the immense lateral loads.[2]

For the consumer, understanding this architectural difference is crucial when evaluating a vehicle purchase. A buyer transitioning from a unibody crossover with rack-and-pinion steering to a body-on-frame SUV with a recirculating ball gearbox will immediately notice the difference in highway tracking and steering effort. The vehicle is not necessarily out of alignment or poorly designed; it is simply operating on a different mechanical paradigm built to prioritize load-bearing survival over sports-car precision.[6]

Ultimately, the choice of steering gear reflects the vehicle's intended job. Rack-and-pinion delivers the surgical precision, direct feedback, and lightweight efficiency demanded by modern commuters and performance drivers. Recirculating ball provides the brute strength and impact isolation required for towing, hauling, and navigating unpaved terrain. Recognizing which system sits behind the front bumper allows an owner to anticipate how the vehicle will drive, what front-end components will eventually wear, and how to accurately budget for its long-term maintenance.[1][4][6]
