Pacejka's Magic Formula: The Mathematics of Tire Slip Angle, Vertical Load, and Cornering Grip

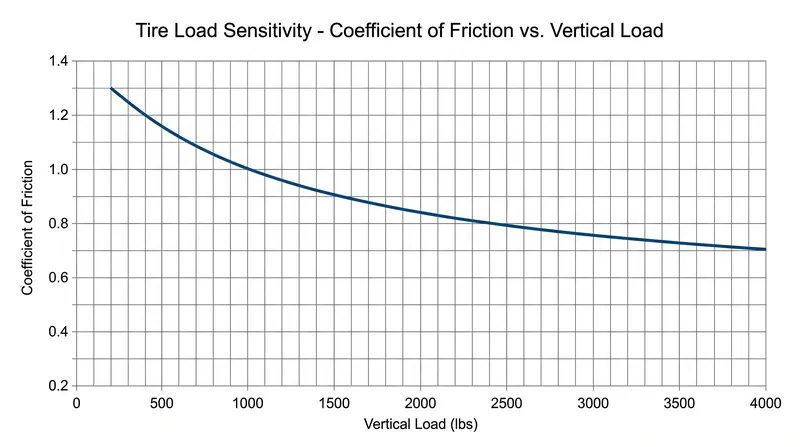

High school physics teaches a straightforward rule for friction: double the weight pressing down on an object, and you double the grip it has on the surface below. Drivers intuitively apply this linear logic to their vehicles, assuming that transferring twice the vertical load onto an outside tire during a corner yields twice the cornering force. The data proves this intuition entirely false. According to the foundational texts on vehicle dynamics, tire load sensitivity is strictly digressive. When a 3,500-pound sedan shifts its weight onto a loaded suspension, the tire's coefficient of friction actually drops, meaning the vehicle relies heavily on complex mathematical modeling to predict exactly when it will lose traction.[2][6]

Mapping exactly how that grip falls away, and how the tire behaves when it is pointed in one direction but traveling in another, is the central problem of vehicle dynamics. In 1989, Delft University of Technology professor Hans Pacejka solved it by publishing what the automotive engineering community immediately dubbed the Magic Formula. As detailed in his definitive textbook Tire and Vehicle Dynamics, the formula does not attempt to simulate the molecular friction of rubber. Instead, it uses a complex trigonometric equation to perfectly curve-fit empirical data gathered from physical tire tests.[2][5]

The core of Pacejka's model revolves around slip angle. When a driver turns the steering wheel, the wheel rim changes direction instantly, but the flexible rubber tire tread twists and deforms before the vehicle's mass follows. The difference between the direction the wheel is pointing and the direction the vehicle is actually traveling is the slip angle. The Magic Formula calculates the lateral force generated at every fraction of a degree of that slip, providing a continuous curve that defines the vehicle's handling limits.[4][5]

In everyday driving, slip angles remain incredibly small, typically between one and three degrees. In this linear zone, the tire behaves predictably. The lateral force increases in direct proportion to the slip angle, giving the driver a firm, connected feeling through the steering column. Engineers use the initial slope of the Magic Formula curve, known as cornering stiffness, to tune the everyday steering response of consumer vehicles, ensuring the car reacts proportionally to driver inputs at highway speeds.[2][4]

Push the vehicle harder, and the tire enters the transitional zone. Between roughly six and ten degrees of slip angle for a standard street tire, the rubber reaches its absolute maximum capacity for lateral grip, generating upwards of 0.9 to 1.1 Gs of lateral acceleration. This is the peak of the Magic Formula curve. If a driver hits a wet off-ramp too fast, the vehicle's Electronic Stability Control system references this exact mathematical peak to determine how much braking force it can apply to individual wheels without locking them up.[4]

Beyond that peak lies the sliding zone. If the slip angle exceeds 10 degrees, the lateral force begins to drop off sharply. The tire is now sliding across the pavement rather than gripping it. The Magic Formula's shape, featuring a steep climb, a rounded peak, and a gradual decline, is defined by four primary coefficients: B for stiffness, C for shape, D for peak, and E for curvature. By adjusting these variables, engineers can mathematically recreate the behavior of any tire in existence.[4][5]

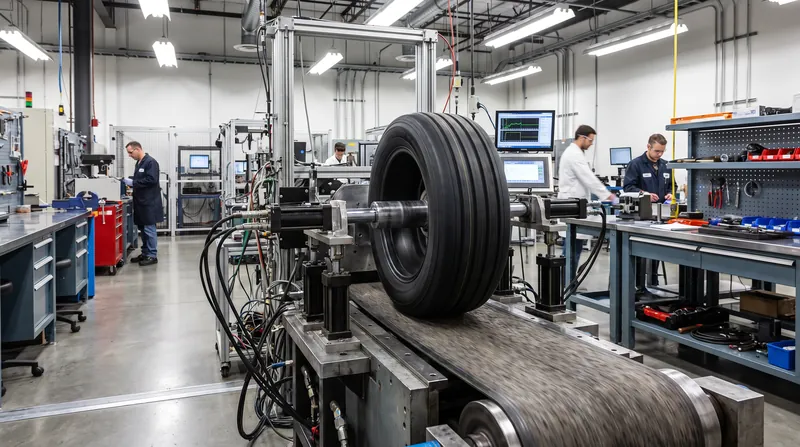

The Magic Formula tyre model with transient properties, as described in research from Eindhoven University of Technology, requires massive amounts of physical data to function. Tire manufacturers mount their products on flat-track testing machines, which are $2 million rigs that press the tire onto a moving belt covered in sandpaper-like material. The machine sweeps the tire through various slip angles, camber angles, and vertical loads, recording the forces generated at hundreds of distinct data points.[1][3]

Those data points are then fed into optimization software that calculates the 20 to 100+ coefficients required to populate a modern Pacejka model. According to Racecar Engineering's analysis of tyre model development, Formula 1 teams spend millions characterizing their tires on these rigs. Because the tires are the only part of the car touching the track, the accuracy of the team's multi-million-dollar driver-in-the-loop simulator depends entirely on the fidelity of the Magic Formula coefficients driving the physics engine.[3][5]

The formula's reliance on empirical data is both its greatest strength and its primary limitation. Because it is a curve-fitting exercise, it is incredibly computationally efficient. An automotive engine control unit can calculate the Magic Formula equations thousands of times per second, allowing an anti-lock braking module to pulse the brakes at 1,000 Hz based on real-time grip estimations. This speed is what makes modern active safety systems possible.[4]

However, because it only knows what it has been explicitly told by the flat-track tester, the standard Magic Formula struggles to predict conditions outside its dataset. If a tire overheats, degrades, or encounters a different track surface, the empirical coefficients are no longer perfectly accurate. Advanced iterations of the model, such as MF-Tyre and MF-Swift, have added thermal and transient relaxation length parameters to address this, but they still fundamentally rely on physical testing data rather than thermodynamic prediction.[1]

This limitation has sparked a quiet war in vehicle dynamics between empirical models like Pacejka's and physical brush models. Physical models attempt to calculate the actual shear stress on individual blocks of tread rubber as they pass through the contact patch. While these models can predict how a completely new, unbuilt tire compound will behave, they require immense computational power that standard vehicle processors cannot deliver in real-time.[2]

For the consumer buying a new set of all-season tires or the driver relying on automatic emergency braking, the math running in the background remains firmly rooted in Pacejka's work. Nearly forty years after its introduction, the Magic Formula remains the undisputed translator between the chaotic physical reality of rubber on asphalt and the precise digital logic of modern vehicle safety systems.[2][6]
