How Urea Injection and Thermal Chemistry Erase Nitrogen Oxides in Diesel Exhaust

The entire architecture of modern diesel emission control hinges on a single thermal constraint: the exhaust stream must reach at least 200 degrees Celsius before the system can do its job. If the exhaust is cooler than that—as it often is during short trips to the grocery store or prolonged idling—the chemical reaction that neutralizes toxic nitrogen oxides simply cannot occur. For the owner, this means the vehicle's computer will halt the injection of diesel exhaust fluid to prevent solid deposits from forming, allowing raw emissions to exit the tailpipe untreated.[1][2]

Nitrogen oxides are an unavoidable byproduct of the diesel combustion cycle. Because diesel engines run lean—meaning they compress a high ratio of air to fuel to achieve their signature torque and fuel efficiency—the combustion chamber reaches extreme temperatures. At these temperatures, the nitrogen and oxygen naturally present in the intake air fuse together, creating nitric oxide and nitrogen dioxide.[5]

These compounds are heavily regulated because they contribute directly to smog, acid rain, and respiratory illnesses. To dismantle these pollutants before they reach the atmosphere, engineers developed Selective Catalytic Reduction. Originally deployed in industrial power plants in the late 1970s, the technology was miniaturized and mandated for heavy-duty trucks in the United States starting in 2010 to meet increasingly stringent global emissions standards.[1][6]

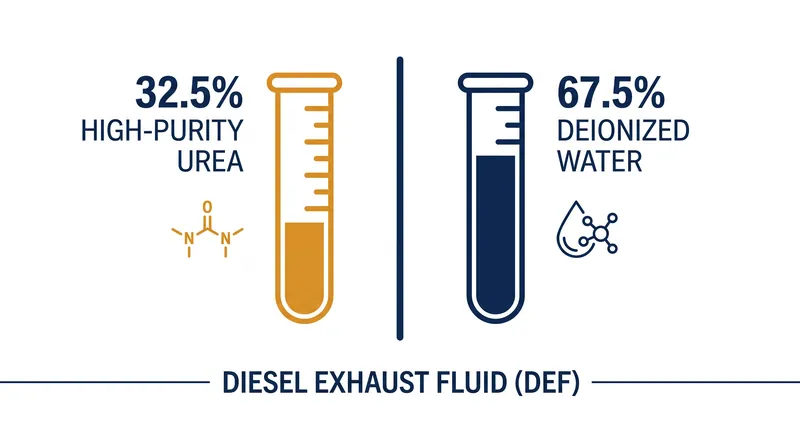

The system relies on a continuous supply of Diesel Exhaust Fluid, a standardized solution comprising exactly 32.5 percent high-purity urea and 67.5 percent deionized water. This specific concentration is chosen because it has the lowest possible freezing point for a urea-water mixture, turning to slush only when temperatures drop to minus 11 degrees Celsius.[1][5]

The chemical process begins when the vehicle's engine control unit detects nitrogen oxides leaving the engine block. A dosing module sprays a precise mist of the fluid directly into the hot exhaust stream upstream of the catalyst. As the water evaporates in the heat, the urea undergoes thermal decomposition, known as thermolysis, breaking down into ammonia and isocyanic acid.[2][3]

Immediately following thermolysis, the isocyanic acid reacts with the remaining water vapor in a process called hydrolysis. This secondary reaction produces even more ammonia and carbon dioxide. The ammonia is the critical active ingredient required for the final stage of the emissions reduction process, acting as the reducing agent.[3][7]

The exhaust gas, now thoroughly mixed with ammonia, enters the catalytic converter. This component is typically a ceramic honeycomb structure coated with active metals. Early systems relied heavily on vanadium and tungsten, while modern light-duty vehicles often use copper-zeolite or iron-zeolite coatings to handle a wider range of operating temperatures without degrading.[1][2]

As the mixture passes through the catalyst's microscopic channels, the ammonia reacts with the nitrogen oxides. The resulting chemical reaction strips the oxygen from the pollutants. What exits the tailpipe is simply diatomic nitrogen—the same harmless gas that makes up 78 percent of the Earth's atmosphere—and water vapor.[5]

When operating at optimal temperatures, a well-maintained system is remarkably efficient. Testing shows these setups can eliminate upwards of 90 percent of engine-out nitrogen oxide emissions, allowing heavy-duty trucks to run cleaner than many older gasoline vehicles. Fluid consumption typically runs at 2 to 3 percent of the vehicle's diesel fuel consumption.[5][7]

However, the system is not without operational vulnerabilities. If the dosing module injects too much urea for the current exhaust flow, the excess ammonia slips past the catalyst and exits the tailpipe. This phenomenon, known as "ammonia slip," carries its own environmental and odor concerns, forcing engineers to map injection rates with extreme precision.[2][4]

Conversely, if the exhaust is too cold, the urea does not fully decompose into ammonia. Instead, it polymerizes, crystallizing into solid compounds like cyanuric acid and melamine. These solid deposits can quickly clog the exhaust system, leading to restricted flow, reduced engine performance, and triggering dashboard fault codes.[4][6]

These physical realities dictate how modern diesel vehicles must be used. Automotive technicians consistently warn buyers that modern diesels are designed for highway towing, heavy payloads, and long-haul driving. In these scenarios, the engine works hard enough to keep the exhaust well above the 200-degree threshold, ensuring the chemistry functions as designed.[6][8]

For drivers using diesel vehicles for short urban commutes under 15 minutes, the exhaust never reaches the critical temperature. The system cannot perform its chemical reaction, and the vehicle may eventually force a "regeneration" cycle or limit engine power to protect the emissions hardware. Replacing a clogged catalyst or failed dosing valve routinely costs owners between $3,000 and $5,000.[7][8]

As emissions regulations tighten globally, manufacturers are exploring ways to overcome this thermal constraint. Solutions like close-coupled catalysts—mounted immediately adjacent to the engine block to capture heat faster—and electrically heated exhaust components are currently being tested to ensure the reduction process begins within seconds of starting the engine.[2][7]
