How Spacing Parallel-Twin Crankpins at 270 Degrees Eliminates Inertial Torque Spikes to Replicate V-Twin Traction

For decades, the 90-degree V-twin was the gold standard for motorcycle traction, delivering power in distinct pulses that let the rear tire grip the asphalt. Today, manufacturers achieve that exact mechanical rhythm using a completely different architecture.

By spacing the crankpins of a parallel-twin engine at 270 degrees, engineers can package V-twin power delivery into a cheaper, more compact straight block. The engineering challenge in any twin-cylinder engine is managing the massive kinetic energy of the pistons.[1]

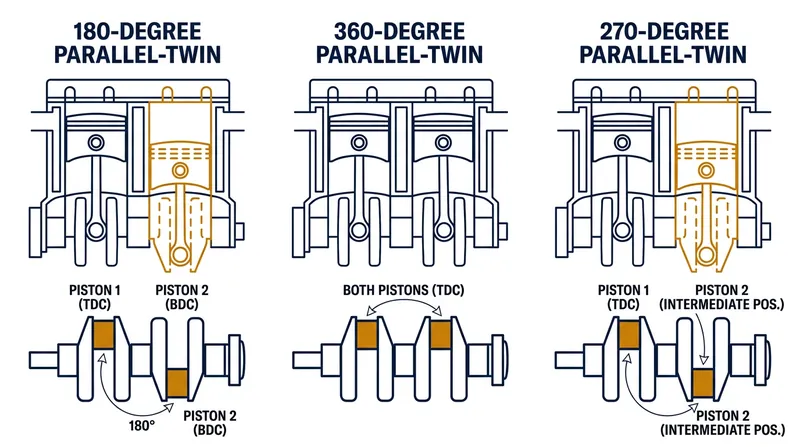

As displacement grows, these metal slugs become heavier, and their velocity at high engine speeds becomes immense. In a traditional 360-degree parallel twin, both pistons rise and fall together, acting like a giant single-cylinder engine.[1]

In a 180-degree twin, one piston rises while the other falls, providing better primary balance but an uneven firing order. While those older designs differ in how they manage vibration, they share a critical flaw at the limits of grip.[2]

In both configurations, both pistons reach the top or bottom of their stroke at the exact same moment. For a fraction of a second, all vertical piston motion stops.

The Traction Penalty of Inertial Torque

Stopping those heavy pistons requires the crankshaft to absorb their kinetic energy, and pulling them back down requires the crankshaft to supply it. This constant energy exchange causes the crankshaft to micro-accelerate and decelerate during every single revolution.[2]

Engineers call this phenomenon inertial torque, and it operates entirely independently of the engine's actual combustion power. It is a mechanical fluctuation baked into the geometry of the crankshaft.[2]

For a rider rolling on the throttle at the apex of a corner, inertial torque is a hidden enemy. These microscopic speed variations travel through the transmission, down the drive chain, and directly into the rear tire's contact patch.[2]

When a motorcycle is leaned over and the tire is already fighting for lateral grip, those sudden, invisible torque spikes can easily overwhelm the rubber and break traction. The 270-degree crankshaft solves this geometric flaw by offsetting the two crankpins by a quarter of a rotation.

When the first piston reaches top dead center and comes to a complete halt, the second piston is exactly halfway through its stroke. At that precise moment, the second piston is traveling at its maximum velocity.

The V-Twin Firing Rhythm

Because the pistons never stop simultaneously, the engine's internal kinetic energy remains nearly constant. The moving piston effectively drives the crankshaft, pulling the stopped piston through its dead zone.

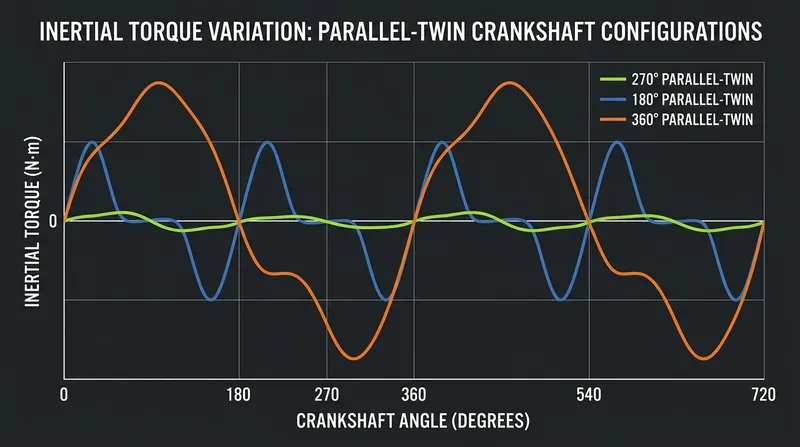

They trade kinetic energy back and forth seamlessly, acting as a mechanical flywheel for one another. This continuous energy transfer virtually eliminates inertial torque spikes at the crankshaft.

For the rider, the result is a direct, predictable connection between the throttle grip and the rear tire. The power flows to the asphalt smoothly, without the hidden micro-accelerations that trigger sudden, unpredictable slides on corner exit.[2]

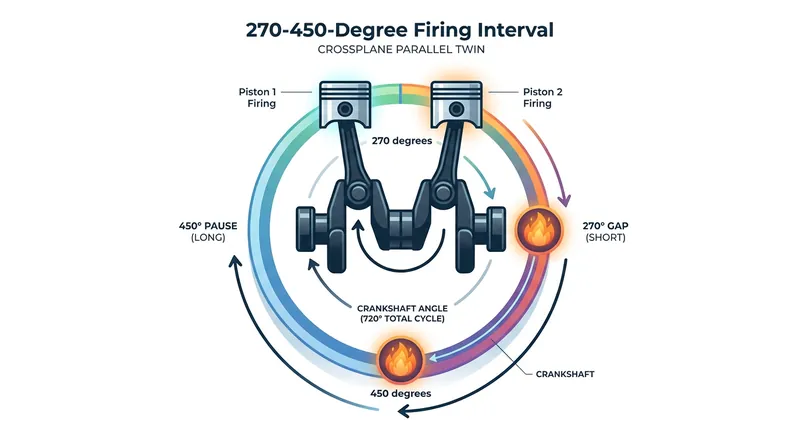

Beyond stabilizing internal kinetic energy, the 270-degree offset fundamentally changes how the engine fires. After the first cylinder ignites, the crankshaft rotates 270 degrees before the second cylinder fires.[1]

The engine must then rotate a full 450 degrees before the cycle begins again. This uneven 270-450-degree firing interval perfectly mimics the combustion rhythm of a 90-degree V-twin.[2]

Balancing the Rocking Couple

The long 450-degree pause between power pulses gives the rear tire a crucial fraction of a second to recover its shape. It allows the rubber tread blocks to bite back into the pavement before the next hit of power arrives.[2]

It also produces a distinct, syncopated exhaust note that riders actively seek out. Instead of the flat, droning hum of a 180-degree twin, the 270-degree engine delivers a deep, aggressive rumble.[2]

It sounds and feels like a premium V-twin, but requires only one cylinder head, one timing chain, and half the camshafts. The design is not without its engineering trade-offs.[2]

Pushing two heavy pistons up and down out of phase introduces a rocking couple—a side-to-side vibration caused by the offset forces trying to twist the engine block around its center of mass. Left unchecked, this vibration would quickly fatigue the rider and stress the motorcycle's frame.[1]

Manufacturers counter this rocking couple by installing a dedicated balance shaft inside the crankcase. This weighted shaft is geared directly to the crankshaft and spins in the opposite direction.[1]

The Industry Standard Shift

The counterweights are precisely timed to push back against the pistons' offset forces, canceling out the vibration before it reaches the chassis. While adding a balance shaft introduces a slight weight penalty and mechanical complexity, it is a price manufacturers gladly pay.[1]

The overall engine package remains significantly shorter front-to-back than a V-twin. This allows chassis designers to place the engine closer to the front wheel, optimizing the motorcycle's weight distribution for sharper steering.[2][3]

The compact dimensions also leave more room for modern necessities like larger airboxes, complex exhaust catalysts, and advanced electronics. A V-twin's rear cylinder often intrudes into the space where the battery and rear shock need to live, forcing compromises in suspension geometry and rider ergonomics.[2][3]

Yamaha popularized this layout with its CP2 engine, branding it the "crossplane concept" because the crankpins sit in two different planes. That 689cc engine proved so effective at delivering usable, tractable power that it spawned a massive shift across the industry.

Today, nearly every major manufacturer has adopted the layout for their middleweight platforms. Aprilia uses a 270-degree twin in its RS660 sportbike, explicitly designing it as the front half of their RSV4 V4 engine.

Accessible Traction

Suzuki abandoned its legendary SV650 V-twin in favor of a new 270-degree parallel twin for the GSX-8S. Triumph uses the configuration across its entire modern classic Bonneville line to deliver torquey, character-rich performance.[1]

For the consumer, this engineering consensus means better motorcycles at lower price points. Building a single cylinder bank with one set of throttle bodies is drastically cheaper than manufacturing two separate cylinders pointing in different directions.[2][3]

Those savings are passed down to the dealership floor, making high-performance traction accessible to everyday riders. The transition to this architecture also simplifies routine maintenance for the owner.[2][3]

With both spark plugs, all the valves, and the cam chain located in a single, easily accessible cylinder head, valve clearance checks take half the time. A mechanic no longer has to dismantle the rear half of the motorcycle just to reach a hidden rear cylinder.[2][3]

Ultimately, the 270-degree crankshaft represents a rare moment where cost-cutting and performance enhancement align perfectly. It proves that the raw character and mechanical grip of a classic engine layout can be replicated entirely through the clever manipulation of geometry and kinetic energy.[3]
