Why Overloading Roof Boxes Shifts Roll Centers and Triggers High-Speed Dynamic Rollover Instability

Loading 165 pounds of camping gear into the trunk of a crossover barely changes how the vehicle drives. Bolting that exact same 165 pounds inside a plastic box on the roof, however, fundamentally rewrites the vehicle's suspension geometry. The difference lies entirely in where that mass sits relative to the road.[3]

For a family packing for a summer road trip, a roof box feels like a harmless expansion of cargo space. It keeps wet tents and bulky sleeping bags out of the cabin, preserving legroom for the passengers. But from a physics perspective, that elevated weight acts as a lever against the vehicle's stability.

Modern sport utility vehicles are already compromised by their tall stance, requiring heavy battery packs or low-slung engines to keep their mass near the pavement. When a driver adds a loaded box to the roof rails, they undo years of careful engineering. The vehicle becomes top-heavy, altering how it responds to steering inputs.

The consequences rarely manifest during straight-line highway cruising, lulling drivers into a false sense of security. The danger emerges suddenly during evasive maneuvers, such as swerving to avoid a deer or navigating a decreasing-radius off-ramp. In those split seconds, the altered geometry can trigger dynamic rollover instability.

The Physics of the Roll Moment Arm

To understand why a roof box is so disruptive, one must look at the vehicle's roll center. The roll center is the theoretical point in the transverse plane around which the vehicle's body leans when subjected to cornering forces. It is determined entirely by the geometry of the suspension links.[2]

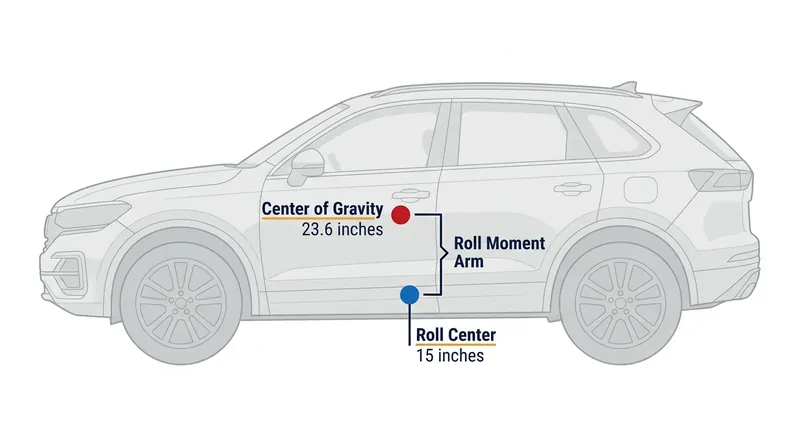

Independent of the roll center is the vehicle's center of gravity, the point where its total mass is concentrated. In a typical mid-size SUV, the center of gravity sits roughly 23.6 inches above the road surface. The suspension's roll center usually sits much lower, around 15 inches off the ground.[2][3]

The vertical distance between these two points is known as the roll moment arm. This distance acts exactly like a wrench turning a bolt: the longer the handle, the more leverage is applied. Cornering forces push against the center of gravity, using the roll moment arm to twist the vehicle's body.[2]

Adding a 165-pound loaded roof box to a 4,000-pound SUV raises the overall center of gravity by nearly two inches. Because the suspension's roll center remains fixed, this seemingly small shift extends the roll moment arm by over 21 percent. The vehicle's body now has drastically more leverage over its own suspension.[4]

"The center of mass is the unique point where the weighted relative position of the distributed mass sums to zero," standard physics definitions state. "This is the point to which a force may be applied to cause a linear acceleration without an angular acceleration."[3]

Dynamic Weight Transfer and Tire Load

When a driver yanks the steering wheel at 65 miles per hour, the extended roll moment arm multiplies the lateral weight transfer. The vehicle's mass violently shifts toward the outside of the turn. The suspension springs compress deeply on one side while unloading completely on the other.[3]

This severe weight transfer overwhelms the outside tires, pushing them past their maximum threshold for lateral grip. Automotive engineers design tires to handle specific load ratings, but a top-heavy vehicle spikes that load instantaneously. The rubber either breaks traction and slides, or it bites into the pavement and acts as a pivot.[3]

If the outside tires grip the road while the vehicle's momentum continues sideways, the inside wheels lift off the tarmac. This phenomenon, known as tip-up, is the first stage of a dynamic rollover. Once the inside wheels leave the ground, the driver loses almost all ability to correct the slide.

Electronic stability control systems attempt to prevent this by braking individual wheels to counteract the yaw rate. However, these software systems are calibrated for the vehicle's factory center of gravity. They cannot rewrite the laws of physics when a massive lever is bolted to the roof rails.[4]

The Insurance Institute for Highway Safety tracks the fatal consequences of these dynamics in its 2025 fatality reports. Their data consistently shows that taller vehicles suffer higher rates of rollover fatalities compared to sedans. Adding a roof box effectively turns a modern, stable crossover into an older, highly susceptible truck.

The Static Stability Factor

The National Highway Traffic Safety Administration quantifies this risk using a metric called the Static Stability Factor. This formula divides the vehicle's track width by twice the height of its center of gravity. A higher number indicates a wider, lower vehicle that is inherently resistant to tipping over.[1]

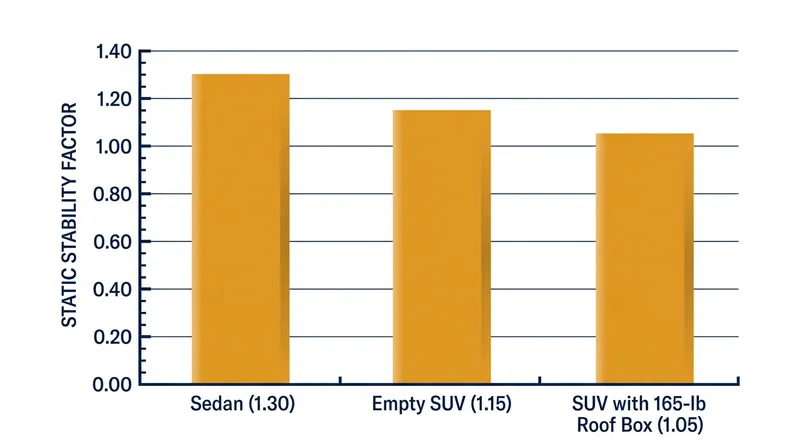

Passenger cars typically score around 1.30 or higher, while SUVs and pickup trucks often score between 1.00 and 1.20. When a family mounts a heavy cargo box on their roof, they actively lower their vehicle's Static Stability Factor. The mathematical margin of safety shrinks before the engine even starts.[1]

"A wider stance and a lower center of gravity generally improve rollover resistance," the National Highway Traffic Safety Administration explains in its consumer guidelines. "Roof-mounted cargo raises the vehicle's center of gravity, making it more unstable in sharp turns or high-speed situations."[1]

This metric explains why manufacturers impose strict dynamic weight limits on roof racks, often capping them between 100 and 165 pounds. These limits are not about the structural strength of the steel roof panels. They are calculated thresholds designed to keep the Static Stability Factor within survivable limits during evasive swerves.[1]

Real-World Road Trip Implications

For the everyday driver, these physics dictate a mandatory shift in driving behavior when carrying roof cargo. Highway speeds must be reduced, and following distances must be extended to minimize the need for sudden lane changes. The vehicle simply cannot execute the emergency maneuvers it could manage while empty.

Crosswinds add another layer of instability to the overloaded roof. The cargo box acts as a sail, catching lateral gusts that push against the elevated center of gravity. This wind force compounds the roll moment arm, requiring constant, exhausting steering corrections from the driver to maintain a straight lane.

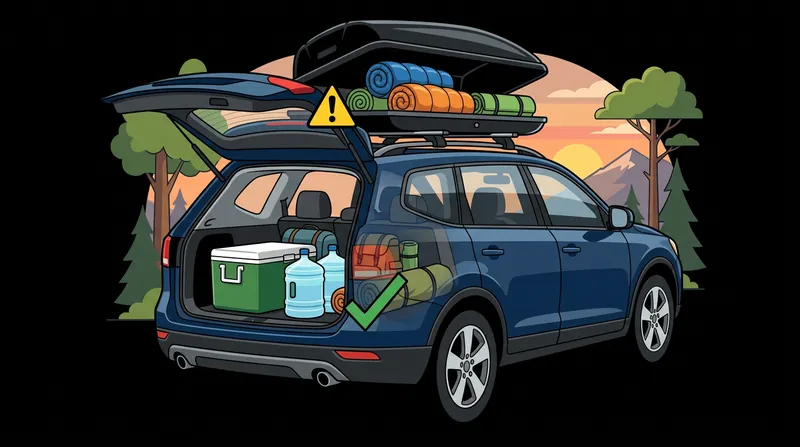

Packing strategy becomes a critical safety exercise rather than just a game of spatial tetris. Dense, heavy items like water jugs, canned food, and tools must be placed on the vehicle floor, as close to the axles as possible. The roof box should be reserved exclusively for lightweight, bulky items like sleeping bags.
