The 25 Percent Threshold: How Federal Standard 138 Dictates When Your Car's Tire Pressure Light Illuminates

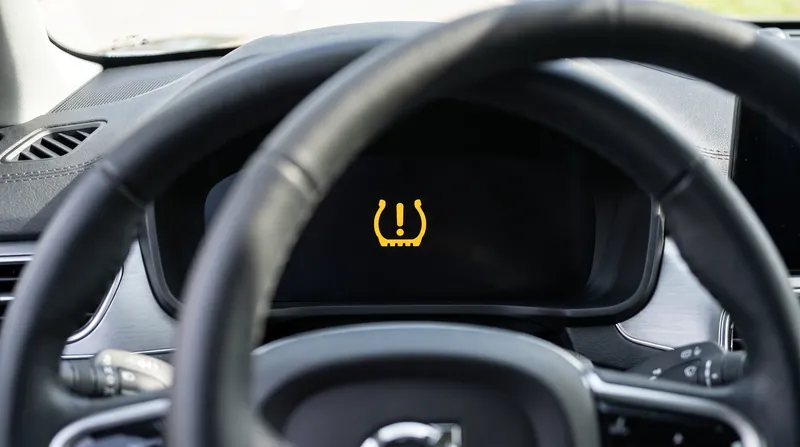

A dashboard warning light can only protect a driver if the sensor triggering it agrees with the physical reality of the road. In the case of tire pressure, that agreement is governed by a specific regulatory floor: the tire must lose exactly one-quarter of its recommended air before the vehicle is legally required to say anything. When a driver walks out to their driveway and sees a tire that looks slightly soft, they might expect the dashboard to light up. But it often remains dark. That silence is not a malfunction; it is a compliance standard.[8]

The standard in question is Federal Motor Vehicle Safety Standard (FMVSS) No. 138. Enacted by the National Highway Traffic Safety Administration (NHTSA) following the TREAD Act of 2000, it mandates that all new light vehicles under 10,000 pounds sold in the United States must include a Tire Pressure Monitoring System (TPMS). The regulation was a direct response to a series of high-profile rollover crashes in the late 1990s, which were linked to severe tire underinflation and tread separation.[2][3]

The core of FMVSS 138 is a specific threshold. According to the eCFR text, the system must "illuminate a low tire pressure warning telltale not more than 20 minutes after the inflation pressure in one or more of the vehicle's tires... is equal to or less than either the pressure 25 percent below the vehicle manufacturer's recommended cold inflation pressure, or the minimum activation pressure... whichever is higher."[1]

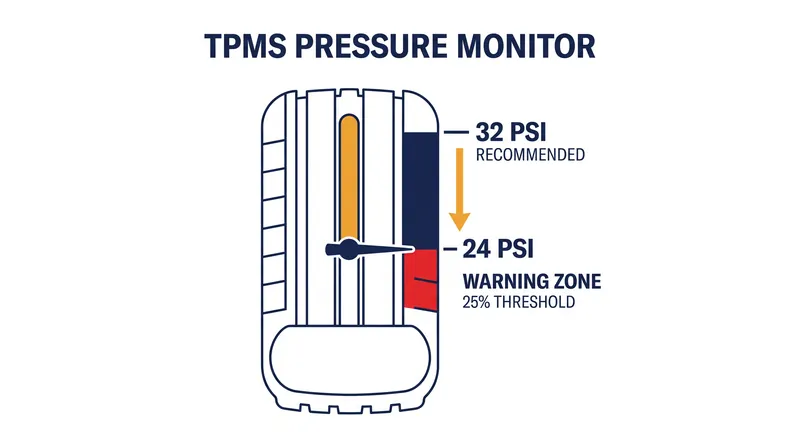

For a driver whose door placard recommends 32 psi, a 25 percent drop means the tire must fall to 24 psi before the light comes on. That 8-psi gap is the difference between a tire that handles crisply on a highway off-ramp and one that rolls sluggishly, generating excess heat. A tire operating at 26 psi is actively degrading its own sidewall and reducing the vehicle's fuel economy, yet it remains completely invisible to the baseline TPMS warning.[6]

The NHTSA established this 25 percent figure after extensive evaluation during the 2005 rulemaking process. Regulators were forced to balance the need for early warning against the risk of nuisance alarms. Tire pressure naturally fluctuates with ambient temperature, dropping roughly 1 psi for every 10-degree Fahrenheit decrease.[2][3]

If the threshold were set at a tighter 10 percent margin, normal temperature fluctuations—like a cold morning in November—would trigger millions of false warnings across the country. A false warning is a behavioral hazard. If a driver sees the TPMS light illuminate every time the temperature drops, they learn to ignore it, defeating the purpose of the mandate.[2]

However, this regulatory compromise leaves a significant gray area for the vehicle owner. According to NHTSA's own evaluations of TPMS effectiveness, underinflated tires increase stopping distances, impair steering response, and significantly increase the risk of a blowout due to heat buildup.[4]

This gap has drawn sharp criticism from safety advocates. The Crash Report, an editorial safety watchdog, notes that the system warns drivers "after the damage is done," pointing out that roughly 600 tire-related fatalities still occur annually despite the universal mandate. They argue that the 25 percent threshold allows drivers to operate vehicles in a compromised state for weeks or months before receiving an alert.[5]

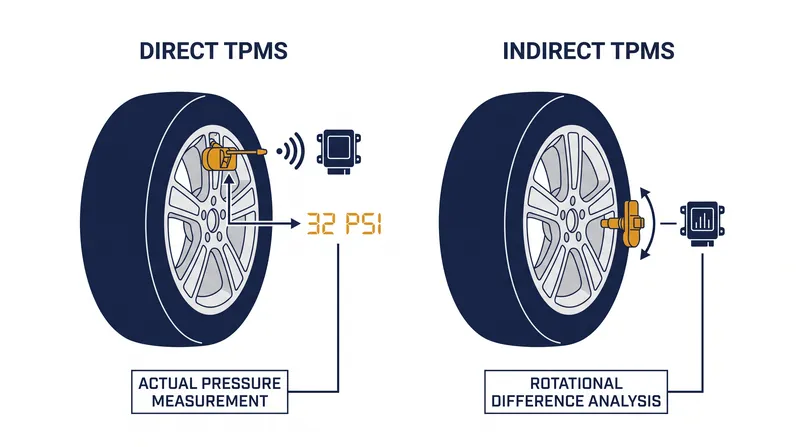

The mechanics of the warning depend heavily on the type of system installed by the manufacturer. Direct TPMS uses physical pressure sensors mounted inside each wheel, transmitting real-time psi data to the vehicle's computer via radio frequency. These systems are precise and can often display the exact pressure of each tire on the dashboard, allowing a proactive driver to see a 10 percent drop before the idiot light ever triggers.[6]

Indirect TPMS, conversely, uses the vehicle's antilock braking system (ABS) wheel speed sensors. Because an underinflated tire has a slightly smaller diameter, it must rotate faster than a fully inflated tire to cover the same distance. The computer detects this rotational difference and triggers the warning.[6]

Indirect systems are cheaper to manufacture and require no internal battery-powered sensors, but they are inherently comparative. If all four tires lose pressure equally over a year of driving, an early indirect system might struggle to detect the drop, though modern software algorithms have improved significantly to meet the FMVSS 138 requirement.[6]

For the everyday driver loading up for a road trip, the takeaway is that the TPMS is a safety net, not a maintenance tool. The Ontario Tire Dealers Association emphasizes that the TREAD Act was meant to prevent catastrophic blowouts, not to replace routine maintenance.[7]

The 25 percent threshold remains the law of the land. While automakers are free to design systems that warn drivers earlier—and some luxury marques do—the federal floor ensures that the baseline warning only arrives when the situation has transitioned from suboptimal to actively dangerous. Relying solely on the dashboard light means accepting that the tires are already failing by the time the vehicle asks for help.[8]
