Why Highway Breakdown Lanes Use Corrugated Rumble Strips Instead of Continuous Asphalt Shoulders

In 1993, along a desolate stretch of the Pennsylvania Turnpike, highway engineers measured a terrifying phenomenon. Drivers drifting out of their lanes at 65 miles per hour were crossing onto the smooth, continuous asphalt shoulder without ever waking up or adjusting their steering. The seamless transition offered zero physical feedback.[9]

For a driver navigating a long road trip, a perfectly paved breakdown lane feels like a safety net. It provides a wide margin for error and a clean surface for emergency stops. But that same smooth asphalt is aerodynamically and acoustically silent, allowing a drifting vehicle to travel hundreds of feet off-course undetected.[1][2]

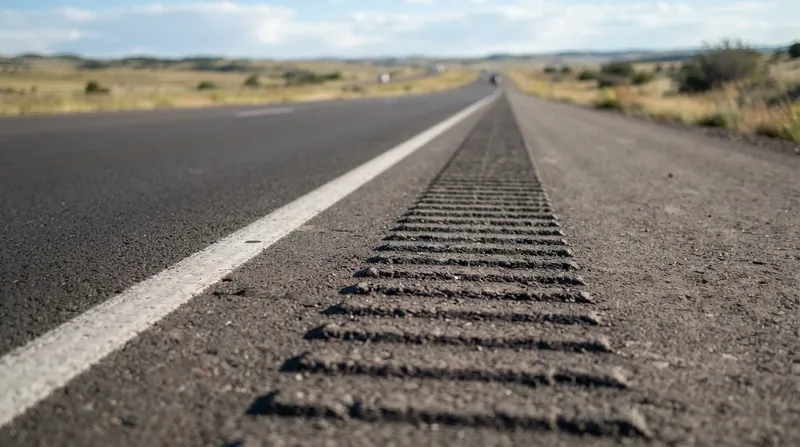

To solve this, the Federal Highway Administration and state departments of transportation fundamentally changed how they pave road edges. They abandoned the continuous smooth shoulder in favor of corrugated rumble strips. These intentional defects are milled directly into the asphalt, creating a violent sensory interruption.[1][8]

"Continuous shoulder rumble strips are one of the most cost-effective safety countermeasures available to highway engineers," the Federal Highway Administration notes in its Technical Advisory. The agency found that the strips jolt inattentive drivers back to reality before their tires ever touch the dirt.[1]

The physics of the milled groove

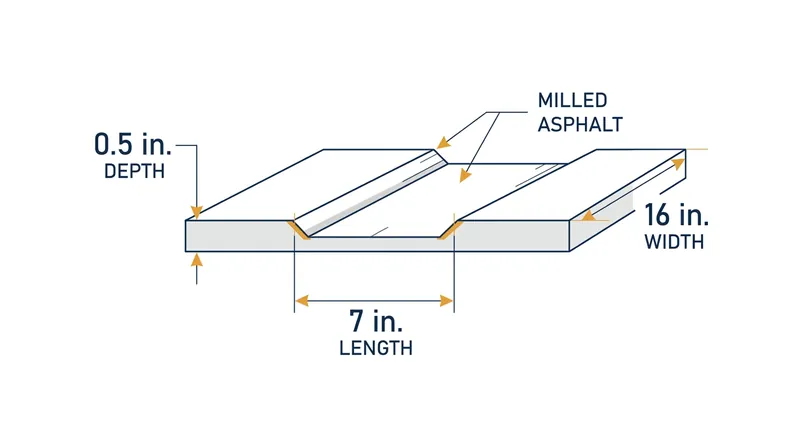

The modern rumble strip is not a bump added to the road, but a depression carved into it. A specialized milling machine cuts a series of grooves into the finished asphalt, typically measuring seven inches long, sixteen inches wide, and exactly half an inch deep.[3]

This specific half-inch depth is an engineering sweet spot discovered through decades of pavement trials. When a vehicle's tire drops into the milled depression, the suspension compresses and rebounds rapidly. At highway speeds, this rapid oscillation sends a distinct, low-frequency vibration directly through the steering column.[2][3]

The physical vibration is paired with a sudden acoustic shock. As the tire treads slap against the corrugated ridges, the trapped air compresses and escapes, generating a loud, buzzing frequency. The Transportation Research Board measures this acoustic spike at 10 to 15 decibels above ambient cabin noise.[2]

That decibel jump is critical for modern road trips. Today's passenger vehicles feature extensive sound deadening, acoustic glass, and active noise cancellation that isolate the driver from the road. The half-inch milled strip is specifically calibrated to pierce that acoustic armor and break highway hypnosis.[2][9]

Measuring the safety impact

The statistical impact of replacing smooth shoulders with corrugated strips is massive. According to the Washington State Department of Transportation, run-off-road collisions account for a third of all fatal highway crashes. A drifting car traveling at 70 miles per hour covers 102 feet every single second.[4]

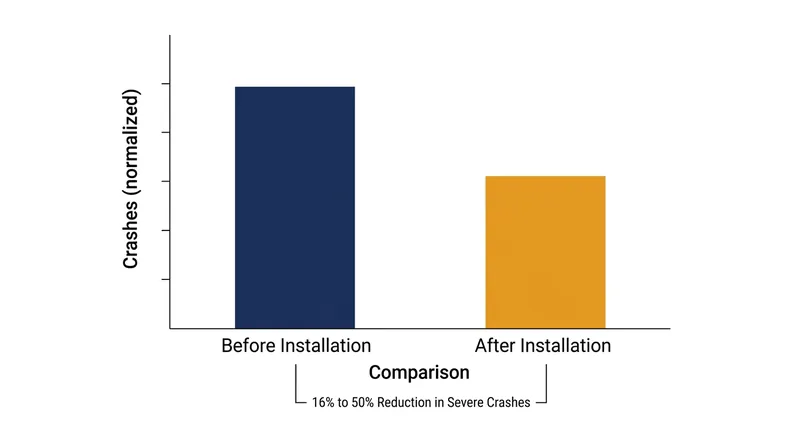

Without a sensory warning, a driver who falls asleep at the wheel will cross a standard ten-foot breakdown lane in less than two seconds. The rumble strip interrupts that drift almost instantly. The Federal Highway Administration reports a 16 to 50 percent reduction in severe run-off-road crashes where strips are installed.[1][8]

The Missouri Department of Transportation tracks similar success rates across its rural highway network. Their engineering guidelines mandate edge line rumble strips on all major routes with paved shoulders wider than two feet. The tactile warning gives a startled driver the crucial fraction of a second needed to correct their steering.

"Rumble strips keep drivers on the road," Asphalt Magazine reported in a 2013 technical review of the paving practice. The publication highlighted that the milled grooves are vastly superior to older rolled strips, which were pressed into hot asphalt and often failed to generate enough noise.[6]

The motorcycle and bicycle compromise

While deeper grooves would generate even louder warnings, highway engineers must balance the needs of all road users. A rumble strip deeper than 0.625 inches becomes a severe hazard for motorcycles. The aggressive edge can catch a narrow front tire, destabilizing the bike at high speeds.[2][3]

The California Department of Transportation explicitly caps milling depth at 0.5 inches in its Traffic Safety Bulletin 21-01. This depth provides enough vibration to wake a sleeping truck driver while allowing a motorcyclist to safely cross the strip during an emergency evasive maneuver.[3]

Bicyclists face an even greater challenge when navigating corrugated shoulders. To accommodate them, state agencies like the Arizona Department of Transportation implement a skipped pattern. They mill the strips in 40-foot continuous blocks, followed by a 12-foot smooth gap, allowing cyclists to enter and exit the shoulder safely.[5]

This gap pattern ensures that a cyclist riding on the shoulder does not have to bounce over the corrugations to avoid road debris. It represents a vital compromise between preventing catastrophic vehicle lane departures and maintaining a navigable surface for vulnerable two-wheeled traffic.[5][7]

The evolution of the rumble stripe

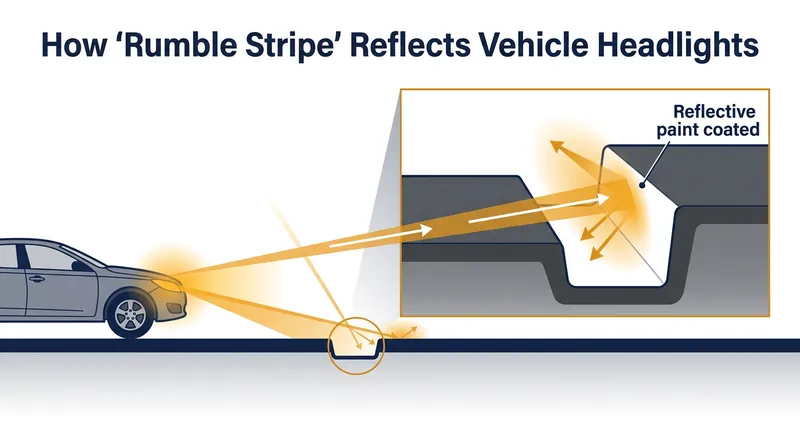

The latest iteration of this highway technology solves a secondary road trip hazard: wet weather visibility. Traditional painted edge lines disappear under heavy rain or glare. To combat this, engineers developed the "rumble stripe," which applies the white reflective paint directly over the milled grooves.[8]

Painting inside the corrugation protects the reflective glass beads from snowplow blades and heavy truck tires. More importantly, the vertical back wall of the milled groove catches the driver's headlights. This creates a highly visible, illuminated edge line that shines brightly even when the flat pavement is flooded.[1][8]

The British Columbia Ministry of Transportation documented this visibility upgrade in a 2012 infrastructure review. They found that combining the tactile warning with enhanced optical guidance provides a dual-layer defense against driver fatigue and poor weather conditions during long-haul journeys.[7]

For the everyday driver, the corrugated shoulder is an invisible guardian. It sits silently on the periphery of the road trip, waiting for a moment of inattention. When that moment arrives, the sudden roar of the tires provides the cheapest, most effective crash avoidance system ever built.[9]

Retrofitting older highway networks

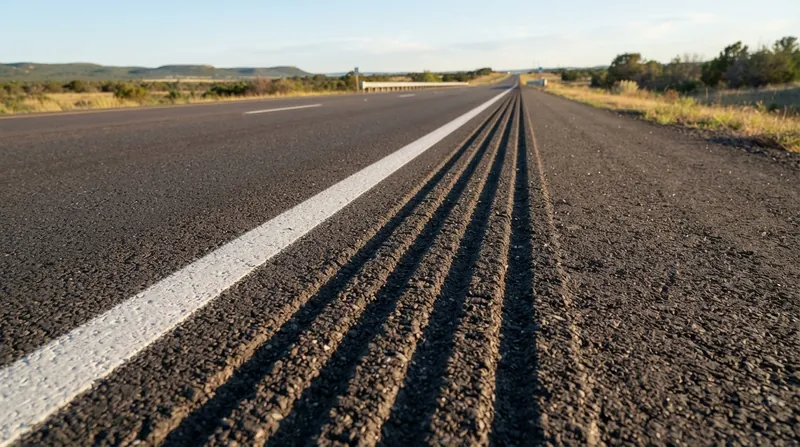

The installation process itself is remarkably efficient. A modern milling machine can carve these continuous patterns into existing asphalt at a rate of several miles per day. This allows transportation departments to retrofit older highways without requiring a complete, expensive repaving project.[6]

The transition away from perfectly smooth breakdown lanes represents a fundamental shift in highway design philosophy. Engineers no longer trust the driver to maintain perfect vigilance over hundreds of miles. Instead, they build the alarm clock directly into the pavement, ensuring the road itself intervenes when human attention fails.[1][9]
