The 5-to-1 Ratio: How Tire Aspect Ratio Dictates Cornering Stiffness and Ride Comfort

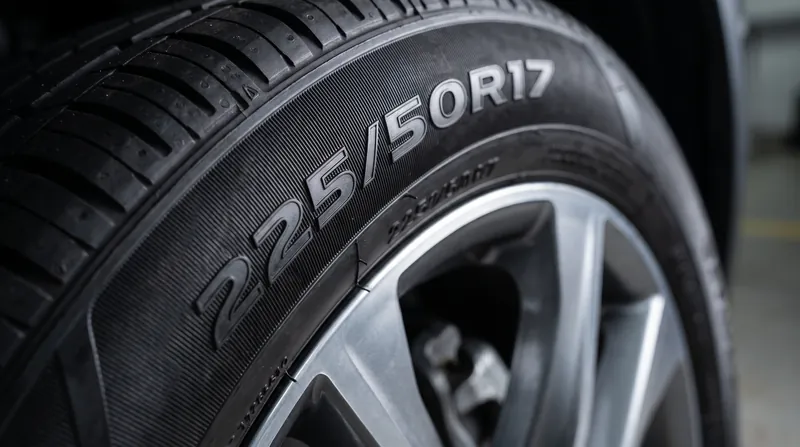

A driver pulling into a local tire shop in 2026 to replace the rubber on a standard Honda Accord will likely encounter a sequence of numbers stamped into the sidewall, such as 225/50R17. While most buyers focus on the brand name or the 17-inch wheel diameter, it is that middle number—the 50—that dictates the daily reality of driving the car. This metric is the aspect ratio, and it governs a strict physical trade-off between how a vehicle absorbs a pothole and how it holds a corner.

The aspect ratio represents the sidewall height as a direct percentage of the tire's tread width. For a 225-millimeter wide tire, a 50-series aspect ratio means the sidewall is exactly 112.5 millimeters tall from the edge of the wheel rim to the tread. This physical dimension acts as the primary pneumatic spring between the road surface and the vehicle's mechanical suspension, compressing and rebounding thousands of times per mile to isolate the cabin from asphalt imperfections.[5][7]

According to technical data published by Auburn University's mechanical engineering department, the variables affecting a tire's cornering stiffness are heavily dependent on this specific sidewall geometry. When a driver turns the steering wheel, the metal wheel rim moves first, but the tire tread touching the road follows only after a microscopic delay as the rubber sidewall flexes laterally. The taller the sidewall, the more pronounced this delay becomes, creating a sensation of sluggish steering response.[1]

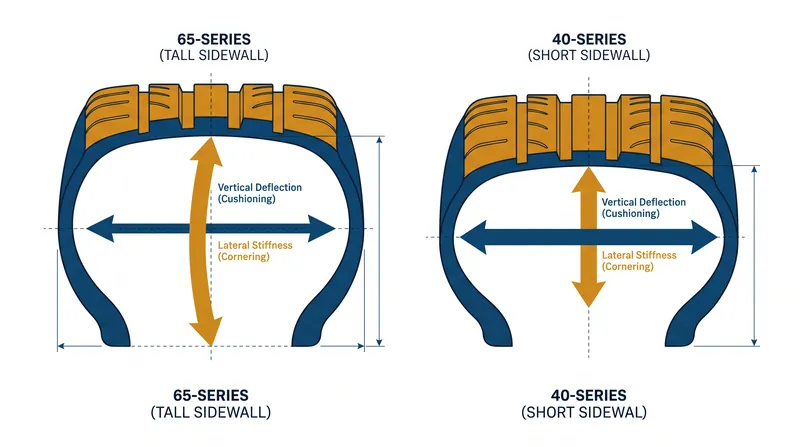

A taller sidewall—such as a 65-series tire commonly equipped on commuter SUVs and family minivans—has significantly more rubber available to flex under load. This structural flexibility creates a larger slip angle, which engineers define as the difference between the direction the wheel is pointing and the direction the tire tread is actually traveling across the pavement. While this flex absorbs bumps beautifully, it forces the driver to input more steering angle to achieve the desired turning radius.[4]

Researchers at the University of Huddersfield, in their detailed analysis of cornering stiffness estimation, demonstrate that reducing this sidewall height directly and dramatically increases lateral stiffness. A shorter sidewall physically cannot flex as much under heavy cornering loads, meaning that steering inputs from the driver translate almost instantly to the contact patch on the road. This instantaneous response is exactly what gives sports cars their characteristic dart-like handling and precise road feel.[2]

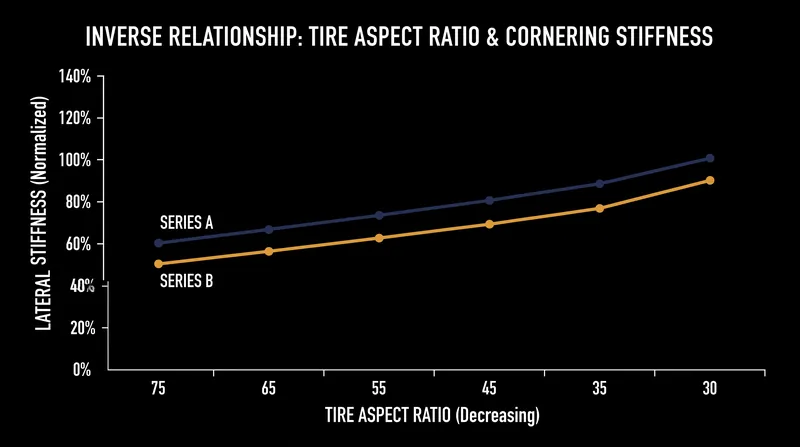

This mechanical reality brings us to the 5-to-1 ratio, a general engineering threshold where the trade-offs of low-profile tires become starkly apparent to the average driver. Dropping from a standard 65-series touring tire to a low-profile 40-series tire can increase lateral cornering stiffness by roughly 40 percent. For a driving enthusiast navigating a winding mountain road, this transforms the steering response of the vehicle, making it feel significantly more planted and predictable.[9]

However, that same reduction in sidewall height eliminates nearly half of the tire's vertical deflection capacity, fundamentally altering the ride comfort. The sidewall is the vehicle's first and most important line of defense against road imperfections, absorbing high-frequency impacts like expansion joints and small rocks before the mechanical suspension dampers even register that an impact has occurred. Removing that pneumatic cushion forces the metal suspension components to handle forces they were not necessarily tuned to absorb.[9]

"The aspect ratio is the height of the tire's cross-section expressed as a percentage of its width," notes the consumer guide from SimpleTire, emphasizing that lower numbers inherently mean shorter, stiffer sidewalls. When that sidewall shrinks to 40 percent or less of the tread width, the volume of compressed air available to cushion a blow is drastically reduced. The tire becomes a rigid band of rubber rather than a flexible balloon, transmitting every crack in the pavement directly into the cabin.[5]

For a local buyer navigating pothole-ridden city streets or frost-heaved northern highways, this physical reality hits hard—literally and financially. A 40-series tire transferring a sharp, sudden impact to the rim is significantly more likely to result in a bent aluminum wheel or a catastrophic pinch-flat than a 60-series tire hitting the exact same pothole at the exact same speed. The taller tire simply has the physical room to compress without allowing the road surface to strike the metal rim.[8]

Tire manufacturers like Yokohama and Vredestein engineer their entire product lines around managing this exact compromise between grip and comfort. High-performance summer tires intended for track use or aggressive street driving are almost exclusively manufactured in low aspect ratios—often 35, 30, or even 25-series—to maximize the stability of the contact patch under extreme lateral G-forces. In these applications, the harsh ride is considered an acceptable penalty for the massive gains in cornering grip.[4]

Conversely, off-road vehicles and heavy-duty trucks rely on massive aspect ratios to survive their operating environments. Industry resources like Dually Wheels highlight that commercial and towing setups prioritize absolute load-bearing capacity and impact absorption above steering feel. These vehicles often utilize 70 or 75-series tires to manage the immense vertical forces of a loaded trailer, relying on the tall, heavily reinforced sidewalls to act as secondary suspension components when navigating rutted job sites or broken pavement.[6]

The Levenberg–Marquardt approach to cornering stiffness, detailed in the IOP Conference Series materials science journal, mathematically models these exact deformation characteristics across different tire profiles. The complex algorithms confirm what everyday drivers feel through the steering wheel: stiffness in the lateral plane simply cannot be decoupled from stiffness in the vertical plane using standard pneumatic tire construction. If you want the tire to resist folding over in a corner, you must accept that it will also resist compressing over a bump.[3]

Modern automakers attempt to mask this inherent trade-off using highly sophisticated adaptive dampers, magnetorheological fluid shocks, and multi-chamber air suspension systems. By dramatically softening the mechanical suspension components in their comfort modes, engineers can equip luxury sedans and SUVs with aesthetically pleasing 20-inch wheels and 35-series tires without entirely destroying the ride quality for the occupants. It is a technological workaround designed to satisfy consumer demand for large wheels without suffering the full penalty of the short sidewalls.

Yet, despite billions of dollars in suspension development, the fundamental physics of the pneumatic tire remain completely unchanged. The tire is the only component of the vehicle actually touching the road, and its sidewall deflection rate dictates the absolute baseline harshness of the ride. No computer-controlled damper can react fast enough to completely erase the harsh impact of a low-profile tire striking a sharp bridge expansion joint at highway speeds.

For the consumer standing at the parts counter, the decision ultimately comes down to an honest assessment of the vehicle's primary use case. Upgrading to a larger wheel size for aesthetic reasons necessitates choosing a lower aspect ratio to maintain the overall rolling diameter of the tire—a common aftermarket process known as plus-sizing. While the larger wheels fill the fender gaps beautifully, the buyer must understand they are permanently altering the vehicle's dynamic character.[7]

This plus-sizing directly and unavoidably trades vertical compliance for lateral stiffness, shifting the vehicle's balance away from comfort and toward performance. A driver who values a plush, isolated highway ride over canyon-carving steering precision is almost always better served by ignoring the large-wheel trend entirely. Retaining the smallest wheel diameter and tallest aspect ratio that safely clears the vehicle's brake calipers remains the single most effective way to guarantee a comfortable commute.
