The Mechanics of Towing: Understanding GVWR, GCWR, Tongue Weight, and the Physics of Trailer Sway

You are standing on a dealership lot, staring at the window sticker of a new half-ton pickup. The brochure proudly advertises a 10,000-pound maximum towing capacity, which seems more than enough for the 7,500-pound travel trailer you plan to take cross-country. But that headline number is a dangerous oversimplification. If you hitch that trailer to this specific truck, load up your family, and throw a cooler in the bed, you are almost certainly violating federal safety ratings and putting your vehicle at risk of catastrophic highway sway.[8]

The disconnect between marketing claims and mechanical reality lies in the physics of weight distribution. Towing safely is not just about whether an engine has the torque to pull a mass forward; it is about whether the vehicle's suspension, brakes, and chassis can manage the complex dynamic forces that mass exerts when turning, stopping, or encountering a crosswind.[8]

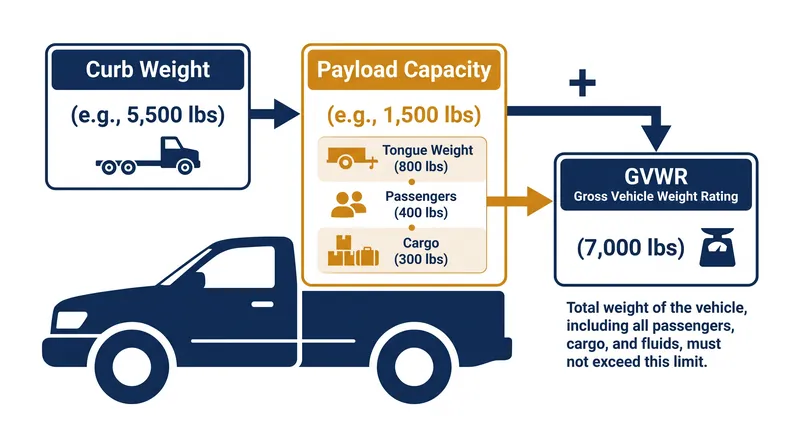

To understand what your vehicle can actually handle, you have to decode the alphabet soup of federal weight ratings. The most critical, and most frequently exceeded, is the Gross Vehicle Weight Rating (GVWR). This is the absolute maximum your tow vehicle can weigh when fully loaded. It includes the curb weight of the truck itself, the fuel, the passengers, the cargo in the bed, and crucially, the downward force exerted by the trailer on the hitch.[6]

This downward force is known as tongue weight, and it is the linchpin of towing stability. Industry standards dictate that for a conventional bumper-pull trailer, between 10 and 15 percent of the trailer's total loaded weight must rest on the hitch. If your trailer weighs 7,500 pounds, it will exert roughly 750 to 1,125 pounds of downward force directly onto the rear axle of your tow vehicle.

This is where the math catches most buyers off guard. If your truck has a payload capacity—the difference between its curb weight and its GVWR—of 1,400 pounds, a 1,000-pound tongue weight leaves you with just 400 pounds for passengers and gear. Two adults, two children, and a full tank of gas will easily exceed that limit, meaning the truck is illegally overloaded before you even put a suitcase in the bed, despite the trailer being 2,500 pounds under the "max towing" limit.[4][8]

The consequences of ignoring these limits are not merely legal; they are intensely physical. When a vehicle exceeds its GVWR, the rear suspension compresses beyond its engineered geometry. This unloads the front tires, reducing their contact patch with the road. The immediate result is compromised steering response and significantly extended braking distances, as the front brakes—which handle up to 70 percent of a vehicle's stopping power—lose their grip on the pavement.[2]

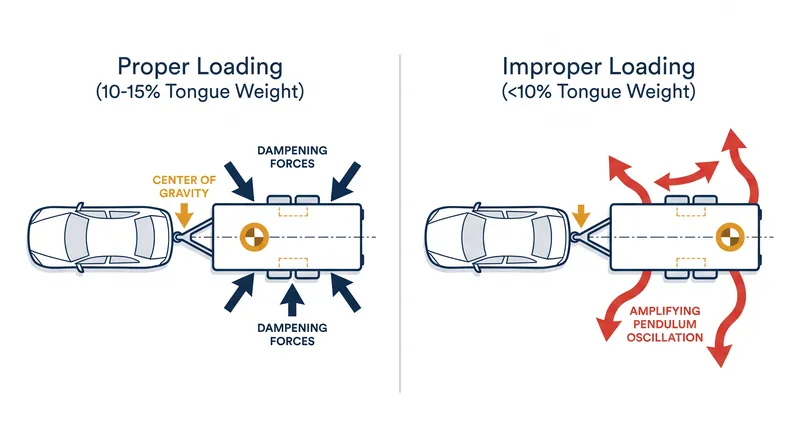

But the most terrifying consequence of improper weight distribution happens behind the bumper. Trailer sway is a pendulum effect that occurs when the center of gravity of the trailer is too far rearward. If the tongue weight drops below the critical 10 percent threshold, the trailer acts like a pendulum with the pivot point at the hitch.[3]

At highway speeds, a passing semi-truck or a sudden gust of wind can initiate a slight lateral movement in the trailer. If the trailer is properly loaded with sufficient tongue weight, its center of mass is forward of its axles, and the lateral movement naturally dampens out, pulling the trailer back into a straight line.[3][8]

If the trailer is tail-heavy, however, the physics invert. The lateral movement amplifies with each oscillation. The trailer swings left, pulling the rear of the tow vehicle right, which forces the front of the tow vehicle left. The driver instinctively corrects, often exacerbating the pendulum effect. Within seconds, this harmonic oscillation can violently flip both the trailer and the tow vehicle.[3]

To standardize how manufacturers calculate these limits and prevent these scenarios, the Society of Automotive Engineers introduced the SAE J2807 standard. Before this standard, automakers used proprietary, often highly optimistic, internal testing to generate marketing numbers. Today, J2807 requires vehicles to pass a grueling suite of standardized dynamic tests to claim a specific tow rating.[1]

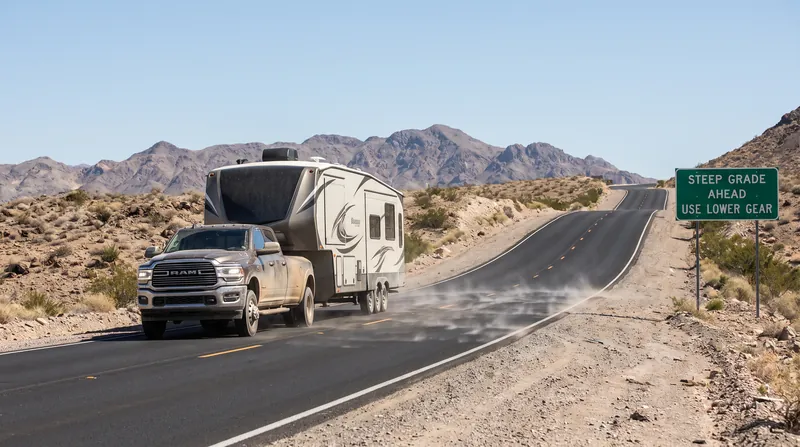

The most famous of these is the Highway Gradeability test, modeled after the Davis Dam grade in Arizona. A vehicle must pull its maximum rated trailer weight up an 11.4-mile stretch of highway with a 5 percent grade, in ambient temperatures of 100 degrees Fahrenheit, without the engine or transmission overheating, and while maintaining a minimum speed of 40 mph.[5]

The standard also mandates rigorous braking tests. A tow vehicle and trailer combination must be able to stop from 20 mph within 35 feet, and the vehicle's parking brake must hold the entire combined weight on a 12 percent grade facing both uphill and downhill. These tests ensure that the Gross Combined Weight Rating (GCWR)—the maximum allowable weight of the fully loaded tow vehicle and the fully loaded trailer together—is based on thermal and mechanical reality, not marketing.[1][4]

For buyers navigating these numbers, the National Highway Traffic Safety Administration (NHTSA) provides strict interpretations of how manufacturers must label vehicles. NHTSA regulations require that the GVWR and axle weight ratings be permanently affixed to the driver's door jamb, providing a legally binding limit that supersedes any brochure or dealership promise.[7]

When outfitting a vehicle for a heavy load, many owners turn to weight-distribution hitches. These mechanical systems use spring bars to lever some of the tongue weight off the tow vehicle's rear axle and distribute it forward to the tow vehicle's front axle, and rearward to the trailer's axles, restoring a level ride.

While weight-distribution hitches are essential for restoring steering geometry and front-wheel braking traction, they do not increase a vehicle's GVWR or payload capacity. The total mass remains the same; the hitch merely changes how that mass leverages the tow vehicle's chassis. Understanding this distinction is the final, crucial step in ensuring your next road trip ends safely in a campground, rather than dangerously on the shoulder.[8]
