The Mechanics of Electronic Stability Control: How Yaw Sensors and Individual Braking Prevent Skids

Drivers heading into a snowy road trip often place their faith in all-wheel drive, assuming that sending power to all four wheels will keep them from spinning out on a slick curve. But all-wheel drive only helps a vehicle accelerate; it does absolutely nothing to help it turn or stop. The technology actually saving families from winter highway ditches is electronic stability control (ESC), a silent, background system that actively steers the car out of a skid by braking individual wheels.[4]

To understand how electronic stability control works, a driver must first understand the limits of human reaction. When a vehicle hits a patch of black ice and the rear end begins to slide outward—a condition known as oversteer—the average driver either freezes or overcorrects. By the time the human brain processes the yaw and inputs counter-steering, the vehicle's momentum has often already exceeded the tires' available grip.[7]

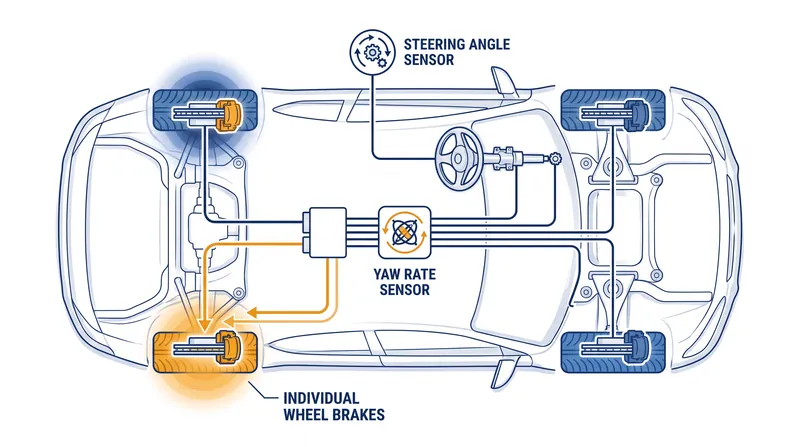

Electronic stability control operates in the milliseconds before human panic sets in. The system relies on a continuous conversation between two primary sensors. The steering angle sensor monitors exactly where the driver is pointing the wheel, representing the intended path. Simultaneously, a yaw rate sensor and lateral accelerometer measure the vehicle's actual physical rotation and sideways movement.[7]

When the intended path and the actual path diverge, the ESC computer recognizes that the vehicle is skidding. Its response is instantaneous and physically impossible for a human driver to replicate. Because a human only has one brake pedal that applies stopping force to all four wheels simultaneously, they cannot selectively brake a single corner of the car to correct a spin.[5]

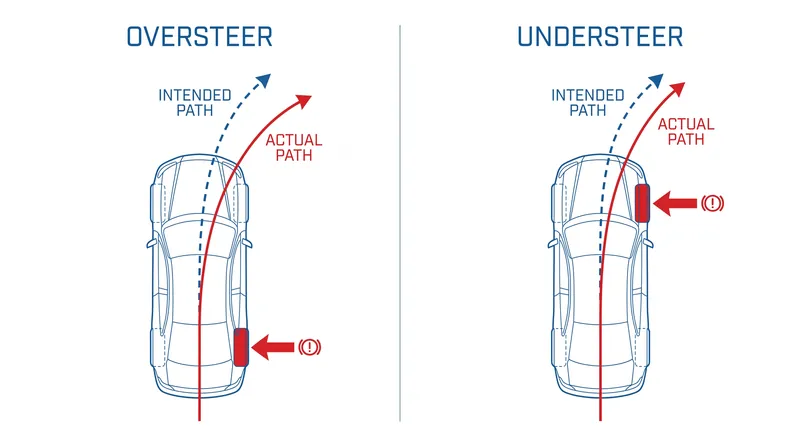

The ESC system, however, taps into the vehicle's anti-lock braking system (ABS) hardware to apply intense, targeted braking to individual wheels. If the car is oversteering, the system typically applies the brake to the outside front wheel. This creates an immediate pivot point that pulls the rear end back into line with the steering wheel.[7]

Conversely, if the vehicle is understeering—plowing forward in a straight line despite the driver turning the wheel—the system applies the brake to the inside rear wheel. This drags the nose of the vehicle into the turn. Simultaneously, the ESC system will often cut engine power, overriding the driver's foot on the accelerator to reduce speed and restore tire grip.[8]

For a family buying a used SUV or planning a long-distance road trip, the presence of ESC is non-negotiable. According to the National Highway Traffic Safety Administration (NHTSA), the introduction of electronic stability control has been the most significant automotive safety breakthrough since the invention of the seatbelt.[1]

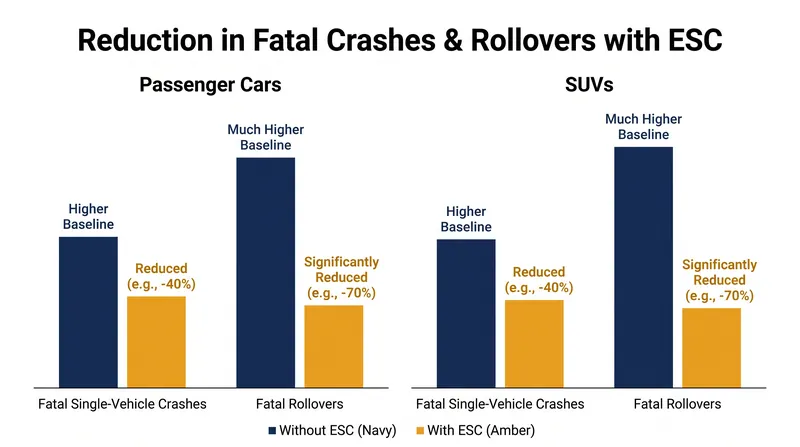

The data backing this claim is overwhelming. NHTSA evaluations have consistently shown that ESC reduces fatal single-vehicle crashes by nearly 50 percent for passenger cars. For top-heavy vehicles like SUVs and vans, which are inherently more prone to tipping over when sliding sideways into soft dirt or curbs, the reduction in fatal single-vehicle crashes jumps to over 70 percent.[2]

The Insurance Institute for Highway Safety (IIHS) corroborates these massive safety gains. Their ongoing tracking of crash data indicates that the life-saving benefits of ESC continue to accrue as older, non-equipped vehicles age out of the national fleet. The IIHS notes that ESC is particularly effective in preventing the exact type of loss-of-control scenarios that lead to catastrophic rollovers on rural highways.[4]

Despite its proven effectiveness, the transition to universal ESC adoption took time. While luxury automakers began introducing early versions of the technology in the late 1990s, it remained an expensive option on mainstream vehicles for over a decade. It wasn't until the federal government mandated ESC on all new passenger vehicles under 10,000 pounds, effective for the 2012 model year, that the technology became ubiquitous.[3]

This timeline is critical for buyers navigating the used car market today. A 2010 model year vehicle might look identical to its 2012 counterpart, but it may lack the single most effective crash-avoidance technology ever invented. Checking the dashboard for the distinct sliding car ESC icon during startup is a mandatory step for any used vehicle inspection.[6]

The engineering foundation laid by ESC is now enabling the next generation of advanced driver assistance systems. Because ESC requires the vehicle to have electronic control over the brakes and engine torque, it serves as the hardware prerequisite for features like automatic emergency braking, adaptive cruise control, and active lane-keeping assist.[8]

As vehicles transition to electric powertrains, stability control is becoming even more sophisticated. Electric motors can adjust torque output in milliseconds—far faster than internal combustion engines can cut throttle. This allows modern ESC systems in electric vehicles to manage wheel slip with unprecedented precision, further enhancing road trip safety in adverse conditions.[5]

Ultimately, the true value of electronic stability control lies in its invisibility. Most drivers will never know the system saved them; they will simply perceive that their vehicle handled a slippery curve exceptionally well. But beneath the floorboards, a complex network of sensors and hydraulic valves is constantly calculating the physics of the drive, ready to intervene the moment ambition exceeds traction.[7]

As the Factlen Editorial Team notes in our analysis of modern vehicle safety architectures, the commoditization of yaw sensors and automated braking has fundamentally shifted the burden of crash avoidance. It has moved the responsibility from the unpredictable reflexes of a startled human driver to the cold, mathematical precision of the vehicle's software.[9]
