How Platinum, Palladium, and Rhodium Drive the Three-Way Catalytic Converter

On August 31, 2026, the U.S. National Science Foundation announced funding for research aimed at reducing the volume of precious metals required in automotive exhaust systems. For a vehicle owner, the outcome of that research directly impacts the daily cost of ownership.

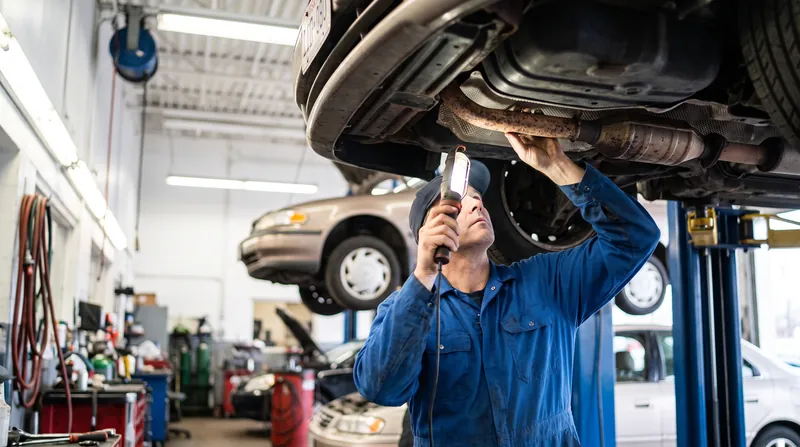

The sudden $1,500 to $2,500 replacement bill that follows a failed emissions test or a late-night driveway theft is driven almost entirely by what sits inside the steel housing beneath the floorboards: a ceramic honeycomb coated in platinum, palladium, and rhodium. Because these elements trade at prices often exceeding gold, their presence turns a standard emissions control device into a high-value target.[2][3]

First introduced in the mid-1970s, these three platinum-group metals act as a chemical filter, intercepting the toxic byproducts of internal combustion before they reach the tailpipe. An engine burning gasoline does not achieve perfect combustion, leaving three primary pollutants—carbon monoxide (CO), unburned hydrocarbons (HC), and nitrogen oxides (NOx)—in the exhaust stream.

The Association for Emissions Control by Catalyst (AECC) notes that "Three-Way Catalysts (TWC) are the main technology used to control emissions from positive ignition engines, for example: gasoline, natural gas and Liquified Petroleum Gas (LPG) engines." Without this intervention, the raw exhaust would push severe pollutants directly into the local atmosphere, failing modern environmental standards.[1][4]

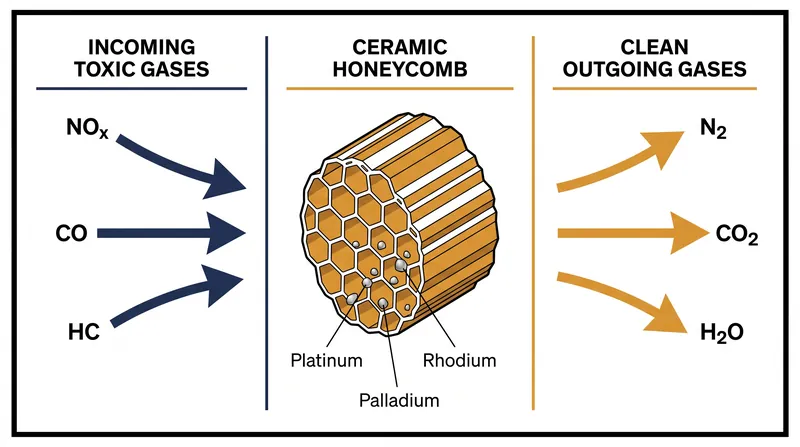

The "three-way" designation refers to the three simultaneous chemical reactions the device facilitates to neutralize those specific pollutants. The first stage targets nitrogen oxides, which are primary contributors to urban smog and acid rain. Rhodium serves as the primary reduction catalyst in this phase.

When NOx molecules pass over the rhodium-coated substrate at high temperatures, the metal strips the oxygen atoms away from the nitrogen. This leaves harmless nitrogen gas (N2) to exit the exhaust, while the freed oxygen is held for the next phase of the process. Rhodium is highly effective for this specific task, but it is also the most expensive of the three metals.[4]

The second stage handles the carbon monoxide and unburned hydrocarbons through an oxidation process. Platinum and palladium serve as the primary oxidation catalysts here. They force the toxic carbon monoxide and the residual hydrocarbons to react with the remaining oxygen in the exhaust stream, converting them into carbon dioxide (CO2) and water vapor.

The AECC explains that the catalyst can "simultaneously oxidise carbon monoxide and hydrocarbons to carbon dioxide and water, while reducing NOx to nitrogen." Palladium is particularly reactive and excels at hydrocarbon oxidation, making it a staple in modern gasoline vehicle converters.[1]

For these reduction and oxidation reactions to occur simultaneously and efficiently, the vehicle's engine control unit must maintain a precise stoichiometric air-fuel ratio. Nett Technologies states that "in order to achieve high simultaneous conversions of CO and NOx, their concentrations in the exhaust must be in stoichiometric proportion."

If the engine runs too lean, meaning there is too much air in the mixture, the rhodium cannot effectively reduce the nitrogen oxides. Conversely, if the engine runs too rich with too much fuel, the platinum and palladium lack the oxygen necessary to oxidize the carbon monoxide. Oxygen sensors placed before and after the converter constantly monitor this balance.[4]

The physical architecture of the converter is engineered to maximize the exhaust gas's contact with these precious metals without restricting engine flow. The interior consists of a ceramic honeycomb structure coated with a washcoat of aluminum oxide, which creates a massive, porous surface area.

The platinum, palladium, and rhodium are embedded directly into this washcoat, designed to maintain high surface area even at temperatures around 1000°C. A typical small passenger car requires roughly 1.5 to 2 grams of these platinum-group metals to function, while a large commercial truck can require up to 15 grams. By spreading a tiny amount of metal over a vast microscopic surface, engineers ensure that nearly 98 percent of the harmful fumes interact with the catalyst before exiting the tailpipe.[1][3]

Because these specific metals are highly resistant to high-temperature corrosion and oxidation, they survive the extreme, hostile environment of the exhaust system for the entire lifespan of the vehicle. However, their durability and absolute scarcity make them highly valuable on the secondary commodities market.

This intrinsic value drives the persistent wave of exhaust thefts that plague residential neighborhoods, fleet yards, and dealership lots. When a converter is cut from a vehicle, the thief is not stealing a car part; they are mining the platinum, palladium, and rhodium inside to sell to illicit metal recyclers.[3][5]

The National Science Foundation's ongoing funding push seeks to alter this fundamental economic reality. If materials scientists can engineer synthetic catalysts or significantly reduce the required platinum-group metal loading without sacrificing conversion efficiency, the baseline cost of manufacturing—and replacing—a catalytic converter will fall. Until a breakthrough reaches commercial production and is adopted by major automakers to meet 100,000-mile federal emissions warranties, vehicle owners remain tethered to the global commodities market for platinum, palladium, and rhodium every time an oxygen sensor triggers a check-engine light or a replacement is needed.[2]
