The Primary and Secondary Force Balance: How Engine Layout Dictates Inherent Vibration and the Need for Balance Shafts

In 1907, British engineer Frederick W. Lanchester secured a patent for a mechanism containing two eccentric weights spinning in opposite directions. He was not attempting to increase horsepower or improve fuel economy. He was trying to solve a mechanical reality that threatened to shake early automobiles apart. The inline-four engine, the most common layout in automotive history, possesses a geometric flaw that generates violent vibrations at high speeds. Lanchester’s invention, the balance shaft, became the invisible countermeasure that allows modern four-cylinder vehicles to idle smoothly at a traffic light.[1][4]

For a vehicle owner, engine vibration is usually perceived as a buzzing steering wheel, a rattling dashboard, or a drone that permeates the cabin at highway speeds. But inside the engine block, that vibration represents thousands of pounds of force acting on metal components. When a mechanic diagnoses a worn balance shaft gear or a snapped balance shaft belt, they are pointing to the failure of a system designed specifically to hide the inherent imbalance of the engine's layout.

To understand why a balance shaft is necessary, one must look at the primary forces inside an inline-four engine. In this configuration, the four pistons are arranged in a straight line. The crankshaft is designed so that when the two outer pistons (cylinders one and four) are at the top of their stroke, the two inner pistons (cylinders two and three) are at the bottom. As the engine runs, the primary upward momentum of the outer pistons is perfectly canceled by the downward momentum of the inner pistons.[2]

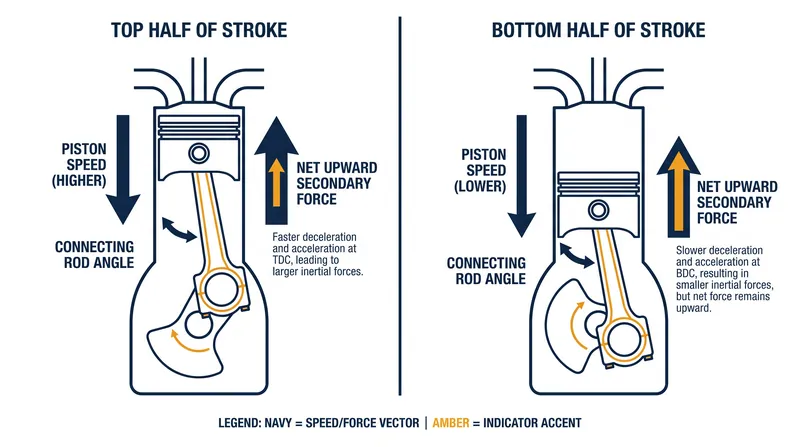

If primary forces were the only factor, an inline-four would be perfectly smooth. However, the mechanical linkage between the piston and the crankshaft introduces a hidden complication. As Jalopnik explains, "Balance shafts work to mitigate secondary imbalances: The vibrations that are caused as pistons travel the length of their stroke within a cylinder." Because the connecting rod tilts side-to-side as the crankshaft rotates, the piston does not travel at a constant speed. It moves significantly faster through the top half of its stroke than it does through the bottom half.[4]

This difference in piston speed creates a mathematical imbalance. When the two outer pistons are racing toward the top of the cylinder, they generate a massive upward force. The two inner pistons are moving downward, but because they are in the slower bottom half of their stroke, their downward force is weaker. The result is a net upward force. Ninety degrees of rotation later, the situation reverses, creating another net upward force. This happens twice per crankshaft revolution, generating a high-frequency vertical vibration known as a second-order or secondary vibration.[2][4]

As engine displacement increases, the pistons get heavier and the stroke gets longer, magnifying these secondary forces quadratically. A small 1.5-liter engine might produce a tolerable buzz, but a large 2.5-liter inline-four would vibrate violently enough to fatigue engine mounts and exhaust the driver. This is where Lanchester’s 1907 patent comes into play.[4]

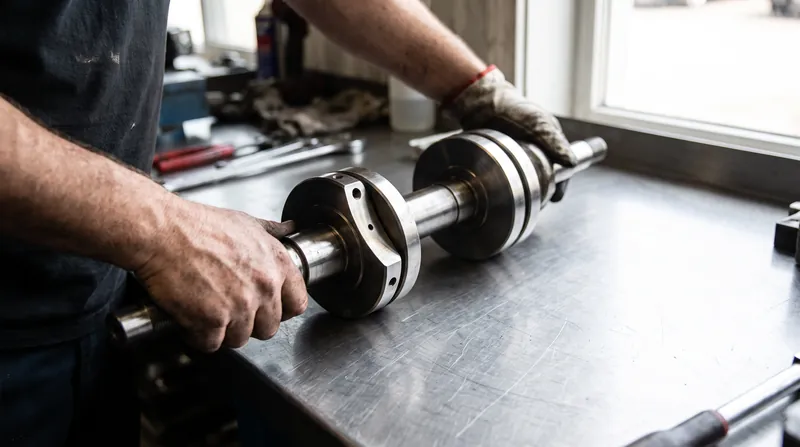

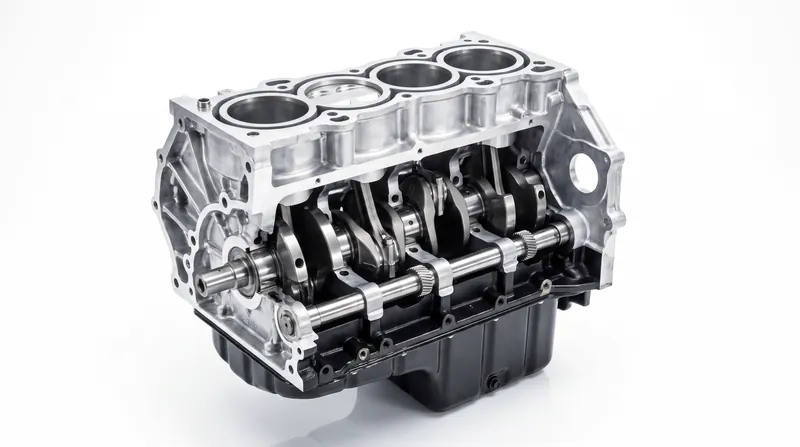

A balance shaft system typically consists of two heavy, eccentric steel shafts housed inside the engine block. As Wikipedia's engineering summary notes, "The operating principle of a balance shaft system is that two shafts carrying identical eccentric weights rotate in opposite directions at twice the engine speed." If the engine is idling at 1,000 RPM, the balance shafts are spinning at 2,000 RPM.[4]

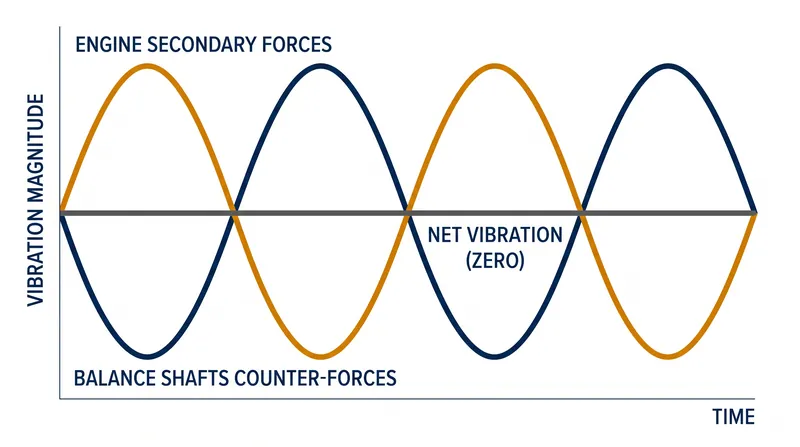

The two shafts rotate in opposite directions. As they spin, their heavy counterweights generate their own violent forces. Because they spin opposite one another, their horizontal forces cancel each other out. But their vertical forces combine, creating a net force that pushes down exactly when the engine's secondary forces push up. The two opposing forces neutralize each other, erasing the vibration before it ever reaches the chassis.[1][4]

While Lanchester invented the concept, it was Japanese automaker Mitsubishi that perfected its modern automotive application. In the 1970s, Mitsubishi introduced the "Silent Shaft" system in its Astron 80 engine, locating one balance shaft slightly higher than the other to counteract the rolling torque of the engine. The design was so effective at mimicking the smoothness of a heavier V8 engine that other automakers took notice.[4]

When Porsche was developing the massive 2.5-liter inline-four for the 944 sports car in the 1980s, engineers realized the secondary vibrations would be unacceptable for a luxury vehicle. Rather than engineer a workaround, Porsche licensed the balance shaft technology directly from Mitsubishi. The inclusion of these counter-rotating shafts allowed the 944 to deliver the torque of a large four-cylinder without the penalty of a rattling cabin.[3][4]

For today's car buyer, the presence of a balance shaft is dictated entirely by the engine layout under the hood. Buyers opting for a flat-four "boxer" engine—commonly found in Subaru vehicles and Porsche sports cars—do not need balance shafts. In a boxer engine, the pistons punch outward horizontally, naturally canceling both primary and secondary forces against one another. Similarly, inline-six engines are inherently balanced by their firing order and geometry.

However, buyers of large inline-fours or V6 engines are relying heavily on balance shafts. A V6 engine, essentially two three-cylinder banks joined together, suffers from a primary end-to-end rocking motion. A single balance shaft is often employed in the valley of the V6 to counteract this rocking couple, ensuring the engine feels refined from the driver's seat.[4]

This refinement comes with a maintenance reality. Balance shafts add rotating mass, internal friction, and complexity to an engine. They require their own bearings, lubrication, and drive belts. If a balance shaft belt snaps, the engine will suddenly vibrate harshly. Worse, in some engine designs, a broken balance shaft belt can become entangled in the main timing belt, leading to catastrophic engine failure.[3]

Because of this parasitic drag and weight, performance enthusiasts sometimes install "balance shaft delete" kits. By removing the shafts and plugging the oil galleys, builders can reduce the engine's rotational mass, allowing it to rev faster and freeing up a small amount of horsepower. The trade-off is a return to the raw, unmitigated secondary vibrations that Frederick Lanchester sought to eliminate over a century ago.[3]
