Internal Carbon Oxidation Degrades Ceramic Brake Rotors by Mass Rather Than Thickness, Making Precision Scales the Only Valid Wear Gauge

Carbon-ceramic brake rotors do not wear out by getting thinner; they wear out by getting lighter. When subjected to extreme track temperatures, the internal carbon fibers oxidize and burn away. This means the only valid way to check their remaining life is to weigh them on a precision scale.[1][5]

For decades, mechanics and car owners have judged brake health with a simple micrometer. If an iron rotor is too thin, it gets thrown out. But applying that same logic to a carbon-ceramic system on a Porsche 911 GT3 or a Chevrolet Corvette is a costly and dangerous mistake.[1]

Because ceramic composite rotors are incredibly hard, their physical dimensions barely change over 100,000 miles of street driving. A rotor that has reached the end of its structural life will often measure the exact same thickness as it did the day it left the factory assembly line.[1][2]

This creates a dangerous trap for the second-hand supercar buyer. A visual inspection or a quick caliper measurement might suggest the brakes are perfectly healthy, masking the fact that the internal structure is severely degraded and prone to failure under heavy loads.[3]

Replacing a full set of carbon-ceramic brakes can easily exceed $20,000 at a dealership. Relying on the wrong measurement tool can turn a seemingly great deal on a used track car into an immediate financial nightmare for the unsuspecting new owner.[2]

The Mechanics of Internal Oxidation

To understand why these rotors lose mass, you have to look at how they are manufactured. Companies like Brembo build them using a dense carbon-fiber matrix that is infiltrated with liquid silicon at extreme temperatures exceeding 1,400 degrees Celsius.[2]

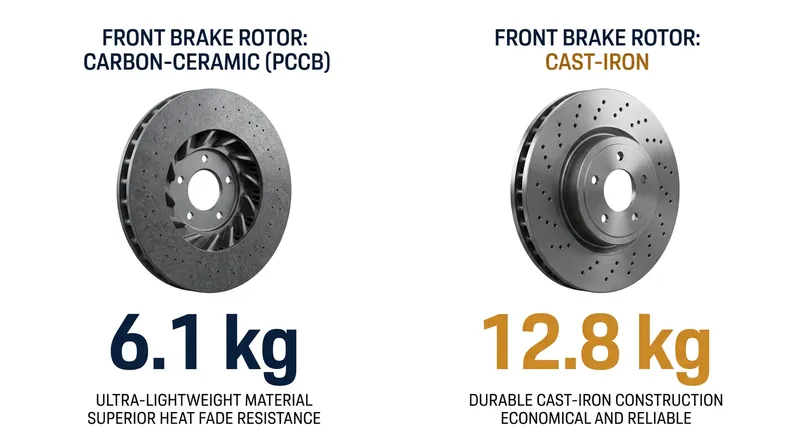

This creates silicon carbide, a material with exceptional hardness that weighs about half as much as an equivalent iron disc. For example, the massive 408-millimeter front rotors on a Porsche 992 GT3 weigh just 6.1 kilograms each, drastically reducing unsprung mass.[2]

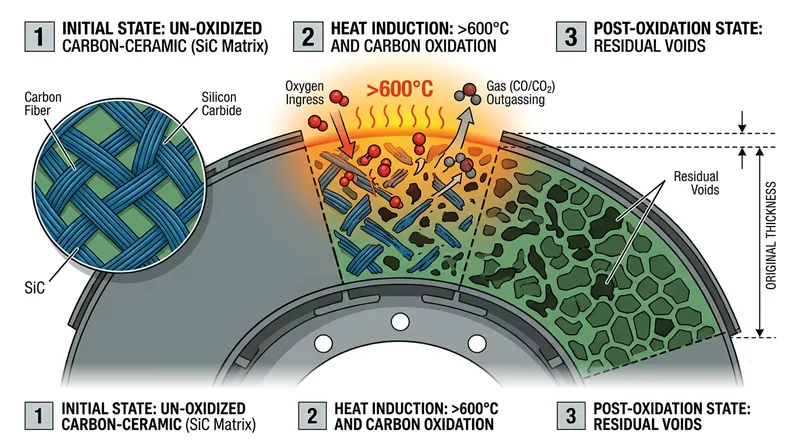

However, that lightweight structure has a specific vulnerability to sustained, extreme heat. When track driving pushes the rotor temperatures past 600 degrees Celsius, the carbon fibers trapped inside the silicon carbide matrix begin to chemically break down and degrade.[1][5]

This process is known as outgassing or internal oxidation. The carbon literally burns off and escapes as a gas, leaving microscopic voids inside the rotor core while the outer dimensions and friction surface remain entirely unchanged.[1]

As these voids multiply, the rotor loses its ability to absorb and dissipate heat effectively. The structural integrity of the disc drops significantly, even though the outer ceramic friction surface remains completely intact and flush to the touch.[3]

The Precision Scale Protocol

Because the wear is entirely internal, the automotive industry had to develop a completely different diagnostic standard. Every carbon-ceramic rotor leaves the factory with a specific minimum weight stamped directly onto its aluminum center hat for future reference.[1][4]

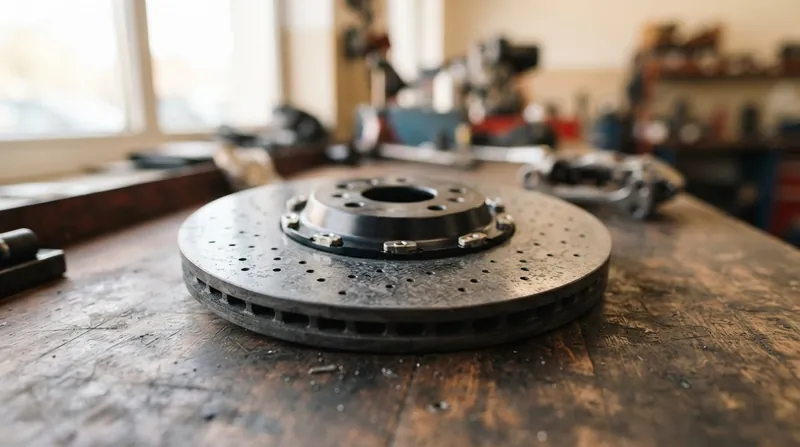

When a technician suspects wear, they must completely remove the rotor from the vehicle and meticulously clean out all the ventilation holes. They then place the disc on a highly calibrated digital scale to check the exact remaining mass.[4]

"The scale used to measure the disc must have the ability to measure ± 1 gram and the range that it needs to be able to weigh must be between 0 and 12 kilograms," explains a technical guide published by Pelican Parts.[4]

The tolerances for this mass loss are shockingly tight. A front rotor that weighs 6 kilograms brand new might have a minimum weight limit that allows for just 212 grams of total mass loss before it is considered unsafe.[6]

Once the scale shows the rotor has dropped below that stamped minimum weight, it is officially condemned. It does not matter if the surface looks pristine or if the car stops perfectly; the internal matrix is compromised and cannot be repaired.[1]

Some modern dealerships bypass the scale by using an inductive electronic tool, such as the Proceq Carboteq. This device measures the density of the material electromagnetically, instantly revealing how much internal oxidation has occurred without requiring the technician to remove the wheel.[1]

Visual Cues and Pad Management

While scales and inductive scanners are the only definitive tests, manufacturers do build in a few visual warning signs. Most carbon-ceramic rotors feature three to five circular wear indicators embedded directly into the friction face to help gauge surface health.[1][4]

When the rotor is healthy, these circles blend in smoothly with the surrounding material. As oxidation takes hold, these specific spots will begin to look dark, pitted, or rough to the touch, signaling that a formal weigh-in is absolutely necessary.[1]

Owners can significantly extend the life of their expensive rotors by managing their brake pads correctly. Iron-rotor pads are typically run down to a few millimeters, but doing that on a ceramic system is highly destructive to the rotor core.[1]

Technicians strongly advise replacing carbon-ceramic brake pads when they reach 50 percent wear. Thinner pads lose their ability to act as a thermal barrier, transferring massive amounts of heat directly into the rotor and rapidly accelerating the oxidation process.[1]

The Financial Stakes for Buyers

For the average driver who only uses their supercar for weekend cruising, a set of carbon-ceramic brakes will likely outlast the car itself. But for the track enthusiast, understanding the difference between thickness and mass is critical to managing costs.[1]

The shift from thickness to mass fundamentally changes how high-end vehicles are appraised. A pre-purchase inspection that fails to document the exact gram weight of all four rotors is essentially incomplete and leaves the buyer exposed to massive hidden liabilities.[4]

Buyers looking at track-focused models must demand these specific weight figures before negotiating a final price. A car with heavily oxidized rotors is effectively worth thousands of dollars less than its asking price, regardless of its cosmetic condition.[1]

Ultimately, carbon-ceramic technology offers incredible performance and zero brake dust, but it demands a specialized approach to ownership. Knowing how to weigh the evidence—literally—protects both the driver on the track and their maintenance budget in the garage.[7]
