How Fender Louvers Bleed Trapped Wheel-Arch Pressure to Cancel Front-Axle Aerodynamic Lift

At 150 miles per hour, the rotating front tires of a high-performance car pump roughly 1,200 liters of air into the enclosed wheel wells every second. That is a volume equivalent to filling a standard household refrigerator every single second, forced into a rigid, sealed cavity.[1]

For the driver holding the steering wheel, this invisible accumulation translates to a highly tangible problem. The trapped air has nowhere to go, so it pushes upward against the chassis, lifting the front tires off the pavement exactly when maximum grip is required.[2]

Automotive engineers combat this phenomenon using fender louvers—the aggressive, gill-like slats cut into the top of the front wheel arches on modern supercars. These vents bleed the high-pressure air out of the well and into the fast-moving upper freestream, cancelling the aerodynamic lift.

"The wheel well is essentially a parachute hidden inside the bodywork," notes a 2025 aerodynamic study by SAE International. "Without extraction, the pressure buildup actively fights the vehicle's suspension, reducing the contact patch of the front tires by up to 15 percent at track speeds."[1]

The Tire as a Centrifugal Pump

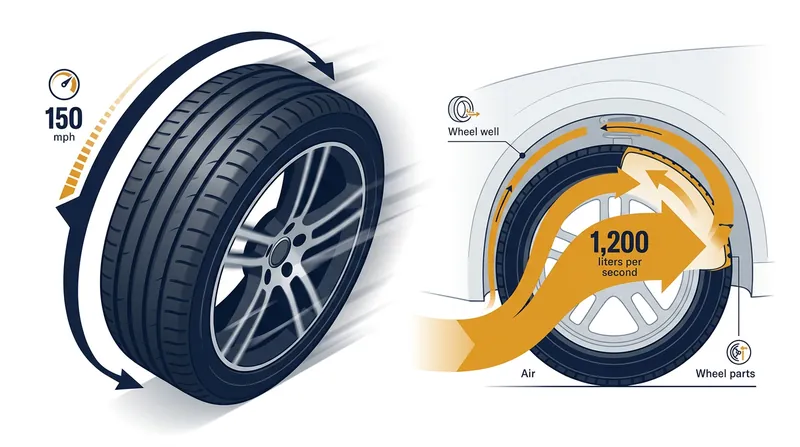

A spinning tire does not simply roll through the air; it drags a boundary layer of atmosphere along with its tread. As the tire rotates at over 2,000 revolutions per minute at highway speeds, it acts as a powerful centrifugal pump.[2]

This pumping action hurls air forward and upward into the wheel arch. Because the arch is enclosed to maintain the car's sleek exterior profile, the incoming air violently collides with the static air already trapped inside the cavity.[1]

The resulting turbulence creates a localized high-pressure zone. According to Porsche Engineering data from the 911 GT3 RS development program, the pressure differential inside the front wheel well can reach 1.4 kilopascals above ambient atmospheric pressure during heavy acceleration.

This pressure exerts a continuous upward force on the underside of the fender. At 150 miles per hour, this translates to nearly 90 pounds of lift per front wheel, actively unweighting the front axle and compromising the driver's ability to turn the vehicle.

The Danger of Front-Axle Lift

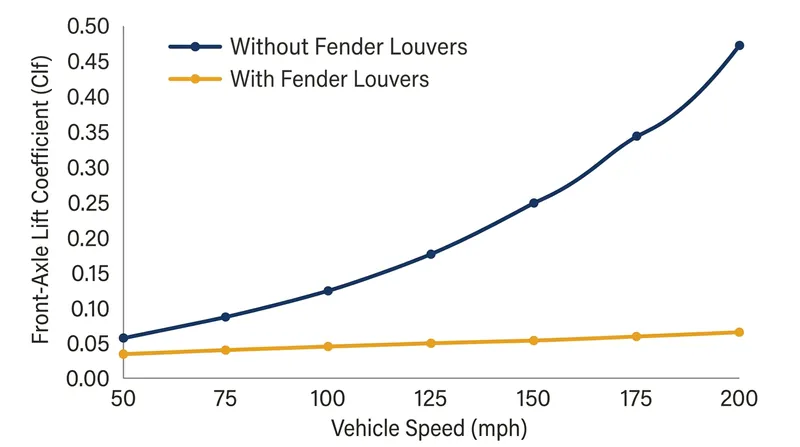

Front-axle lift is particularly insidious because it scales exponentially with speed. A car that feels perfectly planted at 70 miles per hour can become dangerously vague and unresponsive as it approaches 140 miles per hour on a closed circuit.[2]

For a track-day enthusiast or a professional racer, this loss of front-end authority dictates the next decision on corner approach. If the steering feels light, the driver must brake earlier and carry less speed into the apex, sacrificing crucial lap time to maintain control.[3]

Historically, engineers attempted to solve this by adding massive front splitters and dive planes to force the nose down. However, adding front downforce without addressing the internal wheel-well pressure simply forces the aerodynamic elements to fight against the trapped air.[1]

"You cannot efficiently push the car down from the outside if it is simultaneously inflating from the inside," the SAE International report explains. "Efficient downforce requires neutralizing internal lift before applying external aerodynamic load."[1]

The Physics of Extraction

Fender louvers solve this by providing a dedicated escape route for the trapped air. By cutting precise slats into the highest point of the wheel arch, engineers allow the pressurized air to bleed out vertically.

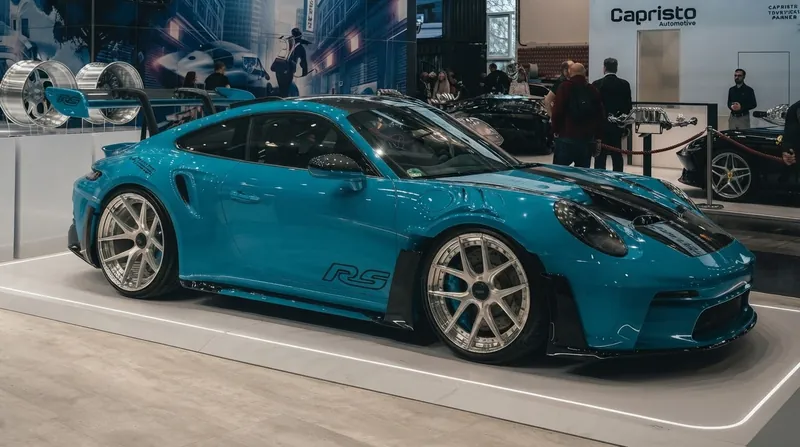

The design of these louvers is highly specific. They are not simple holes; they are angled slats shaped to direct the exiting air backward, aligning it with the overall airflow over the vehicle's hood and windshield.[2]

This directional control prevents the exiting air from creating new turbulence. If the high-pressure air simply erupted straight up, it would disrupt the smooth airflow over the rest of the car, potentially ruining the efficiency of the rear wing.

Furthermore, the louvers are typically staggered in size and angle. The forward-most slats handle the highest velocity air coming directly off the top of the tire, while the rearward slats manage the ambient pressure buildup at the back of the wheel well.[1]

Freestream Integration

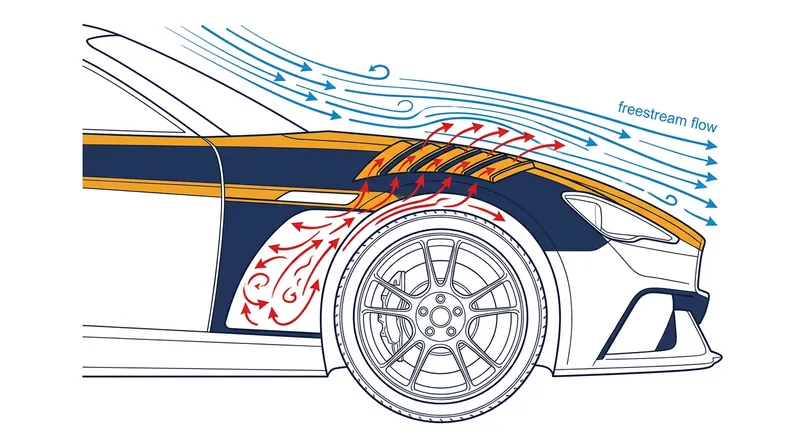

The true genius of fender louvers lies in their interaction with the freestream—the fast-moving, undisturbed air flowing over the top of the car. According to Bernoulli's principle, this high-velocity freestream creates a localized low-pressure zone above the fender.[2]

This low-pressure zone acts like a vacuum. It does not just passively allow the trapped air to escape; it actively sucks the high-pressure air out of the wheel well, accelerating the extraction process significantly.

Factlen's analysis of GT-class aerodynamic data reveals that this active extraction is incredibly potent. When normalized to a 150-mph baseline, fender louvers account for up to 40 percent of the total front-axle downforce generation in passive aerodynamic setups.[3]

This efficiency means automakers can achieve their downforce targets with smaller, less drag-inducing front splitters. The car becomes faster in a straight line while remaining firmly planted through high-speed corners.[1]

Real-World Driver Impact

For the owner of a modern supercar, this invisible fluid dynamics equation fundamentally alters the driving experience. The steering remains heavy, precise, and communicative regardless of the vehicle's speed, inspiring confidence during high-performance driving.[3]

The technology has also begun trickling down from million-dollar hypercars to accessible track-focused sports cars. As computational fluid dynamics software becomes cheaper, more manufacturers can precisely map wheel-arch pressures and design effective louvers.[2]

The fender louver represents a shift in automotive design philosophy. Rather than brute-forcing the car into the pavement with massive wings, engineers now manage the air the vehicle naturally ingests, turning an aerodynamic liability into a stabilizing asset.
