How Inverting Cylinder Head Flow to Position Turbochargers Inside the Engine Valley Eliminates Turbo Lag

Buyers of modern high-performance V8s now experience peak torque almost the instant they press the accelerator, erasing the delayed power surge that defined 20th-century turbocharging. For the driver, this immediate response is not the result of better software, but a fundamental inversion of the engine's physical breathing architecture. By flipping the cylinder heads backward, engineers have eliminated the empty space where exhaust gas velocity used to die.[4]

In a traditional V-configuration engine, fresh air enters through a central intake manifold nestled in the valley between the cylinder banks. After combustion, the spent gases are pushed outward to exhaust manifolds bolted to the exterior margins of the engine block. If the engine is turbocharged, the turbos must be mounted on the outside, requiring long, winding exhaust piping to connect the cylinder heads to the turbines.[2]

That distance creates a critical volumetric penalty. Exhaust gas must fill the entire volume of those outboard runners and pressurize them before it can spin the turbocharger's turbine wheel. This expansion slows the gas velocity and bleeds off thermal energy, creating the hesitation between throttle input and acceleration known as turbo lag.[1][3][4]

To solve this, automotive engineers developed the "Hot V" configuration, completely reversing the engine's airflow. The cylinder heads are rotated 180 degrees, placing the intake manifolds on the outside of the engine block and dumping the exhaust directly into the center valley. The turbochargers are then mounted directly inside that valley, sitting mere inches from the exhaust valves.[1]

Moving the intake manifolds to the outside of the cylinder banks also yields a secondary thermal benefit. The fresh, compressed air entering the engine is kept far away from the searing heat of the exhaust, reducing the intercoolers' cooling load and increasing the density of the oxygen charge.[2][4]

Minimizing runner volume

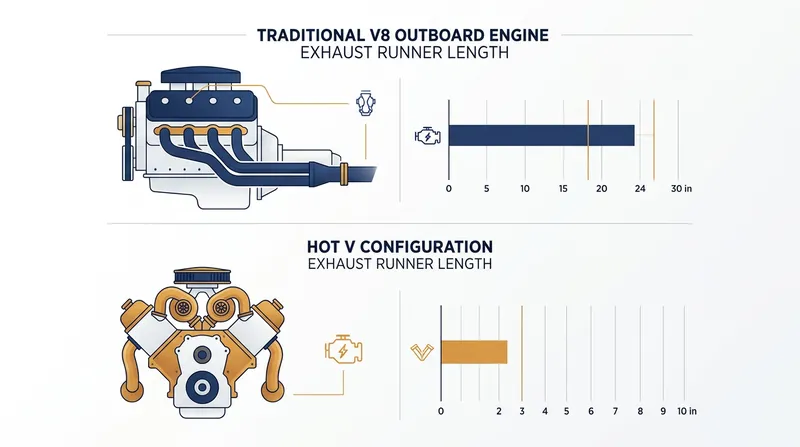

The primary advantage of the Hot V design is the drastic reduction in exhaust runner volume. Instead of traveling through 18 to 24 inches of cast iron or tubular steel piping, the exhaust gas travels less than four inches before striking the turbine blades. This tight packaging preserves the kinetic and thermal energy of the blowdown pulse.[1][2][4]

"The engine suffers from far less lag as the short path for the exhaust gases and the heat mean energy is used more efficiently, which keeps the turbos on boost," notes automotive engineering analyst Jeff Glucker. Because the gas does not have room to expand and slow down, it strikes the turbine wheel with maximum force.[1]

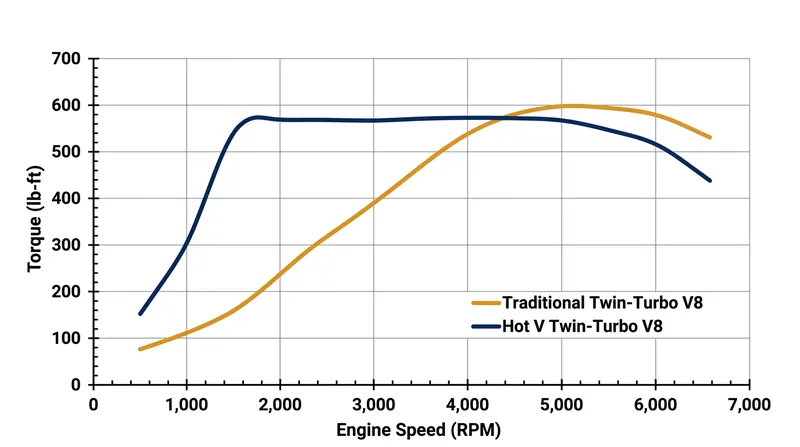

Mercedes-AMG capitalized on this physics principle with its handcrafted 4.0-liter M177 biturbo V8, introduced in 2015. By nesting the twin turbos inside the valley, the engine achieves a peak torque of 465 lb-ft at just 1,700 rpm. The high-pressure turbos can spool up to 186,000 rpm almost instantaneously.[1]

The manufacturer explicitly credits the architecture for this responsiveness. "For better performance and packaging, the AMG V8's twin turbos are placed inside the 'V' of the engine," Mercedes-Benz states in its technical documentation. "It sends the compressed charge from each turbo to its bank of cylinders via an extremely short path, with near-zero pressure loss or turbo lag."[1][4]

The scavenging effect

Beyond simple distance, the Hot V layout allows for highly optimized exhaust scavenging. When runner paths are kept short and equal in length, the exhaust pulse from one cylinder creates a low-pressure wake that helps pull the residual burnt gas out of the next cylinder in the firing order.[3]

Aftermarket engineering firms have further refined this geometry using computational fluid dynamics. By 3D-printing manifolds from 316L stainless steel, developers can create continuous wall paths and tight-radius crossings without the weld seams that disrupt flow. A 46-millimeter turbo entry sized exactly to the turbine's limit ensures pulses remain separated.[3]

Raw volume alone actually harms performance by allowing pulses to collide and reverse back into the exhaust port. Tuned runner paths in a Hot V keep the gas moving in one direction, resulting in cleaner cylinder evacuation and allowing more fresh air to enter during the intake stroke.[3]

When exhaust gas is forced through a large, unoptimized volume, the pressure waves bounce off the manifold walls and disrupt the flow of the next cylinder's exhaust stroke. By keeping the runner volume strictly matched to the cylinder's displacement, the Hot V ensures that each pulse exits cleanly.[3][4]

This efficiency translates directly to the dynamometer. Optimized Hot V manifolds can increase output by 66 wheel horsepower at 5,200 rpm while bringing full boost online up to 800 rpm sooner than a traditional outboard setup. The result is a broad, usable powerband rather than a narrow top-end spike.[3]

Thermal management challenges

Concentrating the exhaust manifolds and twin turbochargers inside the engine valley creates an immense localized thermal load. While retaining heat in the exhaust gas improves turbine efficiency, it also subjects the surrounding engine components to extreme operating temperatures that traditional layouts avoid.[2]

BMW was the first manufacturer to bring a production Hot V petrol engine to market with the 4.4-liter N63 V8 in 2008, fundamentally changing what buyers expected from a luxury sedan. While the architecture delivered 408 horsepower and exceptional response, early iterations struggled with the concentrated heat. The high temperatures accelerated the degradation of rubber valve stem seals and coolant lines, creating a known liability for second-hand buyers.[2][4]

Over time, the hardened seals lost their ability to retain oil, leading to visible blue smoke on cold starts and increased oil consumption that owners had to manage. BMW engineers continuously refined the design, and the later S63 variants received upgraded seal materials and improved cooling circuits to protect owners from the valley's harsh environment.[4]

To mitigate heat soak, modern Hot V engines utilize complex liquid-cooled intercoolers and run lower-temperature oil cooler thermostats. Some owners and specialists even recommend running a 70 percent distilled water coolant mix to better dissipate the extreme heat generated by the nested turbos.[1][4]

Industry standardization

Despite the thermal engineering hurdles, the packaging and performance benefits have made the Hot V the default architecture for modern high-performance V8s. By moving the bulky turbochargers inward from the margins, the overall physical width of the engine block is significantly reduced.[2]

This narrower footprint allows automakers to mount the engine much lower in the chassis, improving the vehicle's center of gravity and overall handling dynamics. It also provides crucial clearance for complex double-wishbone front suspension geometries and steering shafts in tight engine bays.[2]

Following BMW's lead, Audi and Porsche adopted the layout for their shared 4.0-liter twin-turbo V8, powering everything from the Audi RS6 Avant to the Porsche Panamera. Cadillac also utilized a Hot V design for its 4.2-liter Blackwing V8, cementing the architecture's status as a global engineering standard.[1]

The inversion of cylinder head flow represents a triumph of physics over traditional packaging constraints. By eliminating the dead volume in the exhaust runners, engineers transformed the turbocharged V8 from a delayed brute into a precision instrument that reacts at the speed of thought.[4]

The transition required a complete reimagining of thermal shielding and fluid routing, but the performance dividends justified the complexity. Today, a driver pressing the throttle in a modern grand tourer commands an immediate surge of torque that earlier generations of turbocharged engines simply could not physically produce.[4]

As the automotive industry shifts toward electrification, the Hot V stands as one of the final major mechanical evolutions of the internal combustion engine. It maximized the efficiency of exhaust gas energy recovery, proving that sometimes the best way to move forward is to turn the airflow inside out.[4]
