The Mechanics of V8 Crankshafts: Why Flat-Plane and Cross-Plane Designs Dictate Supercar Character

Everyone thinks a Ferrari sounds different from a Corvette because of the exhaust system. They assume the screaming, high-pitched wail of an Italian supercar is the result of exotic mufflers, while the deep, rhythmic burble of an American muscle car comes from wide exhaust pipes. The truth lies much deeper inside the engine block. For a prospective supercar buyer weighing a half-million-dollar purchase, understanding the engine's crankshaft geometry is the single most important factor in predicting what the car will actually feel like to own and drive on a daily basis.[1][3]

The crankshaft is the backbone of any internal combustion engine. It is the rotating centerpiece that converts the violent, linear motion of the pistons into the rotational force that ultimately drives the wheels. In a V8 engine, the geometry of how the connecting rods attach to this shaft fundamentally defines the engine's behavior. For nearly a century, engineers have been split between two distinct architectural paths: the cross-plane crankshaft and the flat-plane crankshaft. Knowing which one sits in your garage dictates your maintenance schedule, your driving experience, and the long-term structural integrity of the vehicle.[2][5]

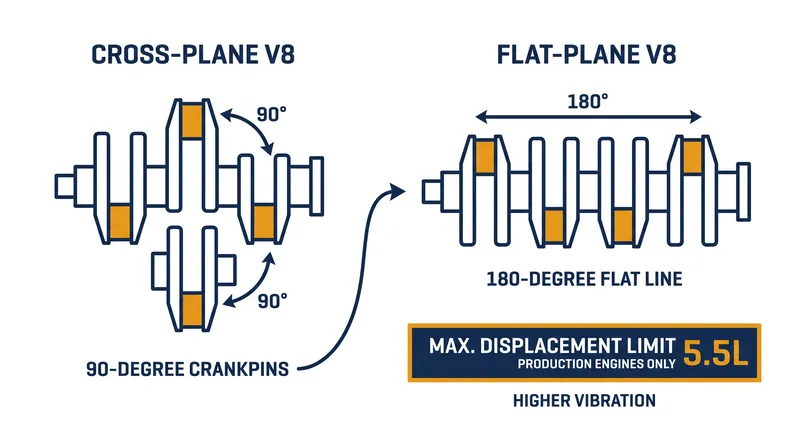

The cross-plane crankshaft is the traditional standard for the American V8. If you were to pull a cross-plane crank out of an engine block and look at it from the front, the crank pins—the journals where the piston rods attach—are arranged 90 degrees apart. They form the shape of a cross, or a plus sign. This 90-degree offset was pioneered in the early 20th century to solve a specific problem that every daily driver cares about: vibration.[2][4]

A V8 engine is essentially two inline-four engines mated together at a 90-degree angle. In an inline-four, the pistons moving up and down create secondary vibrations—upward shaking forces that are not perfectly canceled out by the downward-moving pistons. By arranging the crank pins at 90-degree intervals, the cross-plane design allows the pistons to rise and fall in a staggered, irregular fashion. This perfectly balances the primary and secondary forces, resulting in a remarkably smooth-running engine that won't rattle your teeth or loosen the interior trim panels during a morning commute.[2][4]

However, this smoothness comes with a severe performance penalty. To maintain that perfect balance, a cross-plane crankshaft requires massive, heavy counterweights forged directly into the steel. This added mass creates immense rotational inertia. It takes more energy to get a heavy crankshaft spinning, and it takes more energy to slow it down. For the owner, this means the engine produces massive low-end torque for effortless highway passing, but it hits a physical wall at higher RPMs, lacking the frantic, race-car acceleration that many buyers expect at this price point.[2][5]

This is where the flat-plane crankshaft enters the equation. Look at a flat-plane crank from the front, and the pins are arranged 180 degrees apart. They sit perfectly flat, in a single line. This is the exact same geometry used in almost every four-cylinder engine on the planet. Because the pins are opposed at 180 degrees, the pistons going up and down always alternate perfectly from one side of the engine to the other.[1][3]

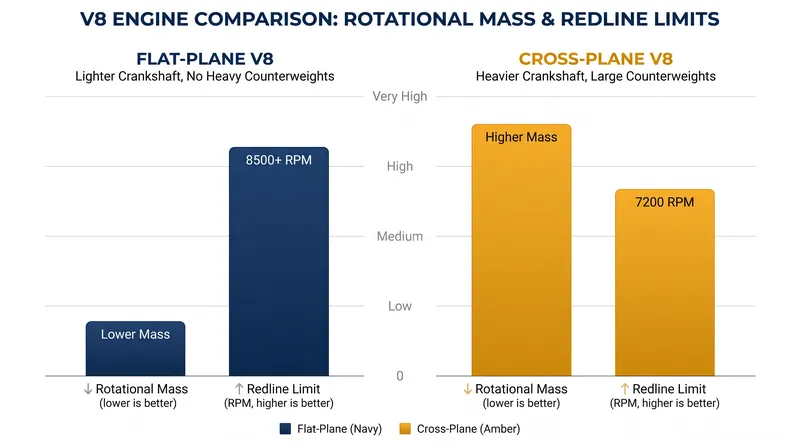

The flat-plane design is inherently balanced from end to end, meaning it does not require the massive, heavy counterweights of a cross-plane crank. Without those weights, the crankshaft is drastically lighter. The reduction in rotational mass allows the engine to rev with lightning-fast throttle response. While a traditional cross-plane V8 might redline at 6,500 RPM, a flat-plane V8 can easily scream past 8,500 RPM. For the buyer, this translates to an incredibly aggressive, high-strung driving experience that demands constant gear shifts to keep the engine in its optimal power band.[1][4]

The flat-plane architecture also fundamentally changes how the engine breathes. Because the crank pins are spaced 180 degrees apart, the engine fires in a perfect right-left-right-left alternating pattern between the two cylinder banks. This creates perfectly spaced exhaust pulses. As one pulse of hot exhaust gas rushes down the manifold, it creates a vacuum that literally sucks the exhaust gas out of the next cylinder—a phenomenon known as exhaust scavenging.[1][3]

In a cross-plane V8, the 90-degree offset forces the engine to fire two cylinders on the same bank in rapid succession. This irregular firing order causes exhaust pulses to crash into each other, creating backpressure and inefficiency at high RPMs. It is this exact crash of uneven exhaust pulses that creates the iconic, rumbling burble of an American muscle car. The flat-plane V8, with its perfectly spaced pulses, produces a smooth, high-pitched wail instead—an acoustic signature that immediately broadcasts the vehicle's exotic pedigree to everyone in the neighborhood.[1][2]

If the flat-plane crankshaft is lighter, faster-revving, and breathes better, why isn't it used in every V8? The answer is secondary vibration, and it is the primary reason prospective owners need to test-drive these vehicles extensively. While the flat-plane design is balanced end-to-end, it acts exactly like two inline-four engines running simultaneously. The upward shaking forces of the pistons stack on top of each other, creating a violent, high-frequency vibration that shakes the entire engine block at exactly twice the speed of the crankshaft.[1][4]

In a small-displacement engine, this vibration is manageable. But vibration forces increase exponentially with the size of the pistons and the length of their stroke. For decades, engineers believed that a flat-plane V8 could not exceed 4.5 liters of displacement without shaking itself to pieces. Ferrari mastered the design in smaller engines, but building a massive, high-displacement flat-plane V8 was considered an engineering impossibility that would simply destroy the car's chassis over a few years of ownership.[1][6]

That ceiling was finally shattered by modern material science. By utilizing ultra-lightweight titanium connecting rods, forged aluminum pistons, and highly advanced harmonic balancers, automakers have managed to push the boundaries of the flat-plane architecture. The 2023 Chevrolet Corvette Z06 achieved a historic milestone by debuting a 5.5-liter flat-plane V8—the largest ever installed in a production car. It represents the absolute physical limit of the design, proving that with enough engineering precision, the exotic scream of a flat-plane crank can be scaled up to American proportions without rattling the owner's investment to pieces.[1][3]
