The Brake Mean Effective Pressure (BMEP): How the Average Pressure on the Piston Defines an Engine's Power Density

The displacement camp argues that expanding the cylinder bore and stroke is the only durable way to generate torque, insisting that large, naturally aspirated blocks provide linear power without thermal catastrophe. The forced-induction camp counters that pressurizing a compact footprint yields vastly superior power density, rendering massive engine blocks an inefficient waste of chassis space.

Neither side is debating horsepower; they are arguing over Brake Mean Effective Pressure. BMEP is the theoretical average pressure applied to a piston during its power stroke to produce a measured torque output, stripping away variables like engine size and rotational speed to reveal how hard the internal components are actually working.[1][4]

EngineLabs described the metric in a January 2022 technical breakdown as "a highly effective yardstick for comparing the performance of one engine to another." By removing displacement from the equation, engineers can evaluate a 2.0-liter four-cylinder against a 6.2-liter V8 on a level playing field.[3]

For a buyer evaluating a high-performance vehicle, BMEP translates directly to the mechanical stress the engine block must endure. A high BMEP figure indicates an engine operating near its structural limits, requiring rigorous maintenance, premium fuels, and robust cooling systems to survive daily driving.

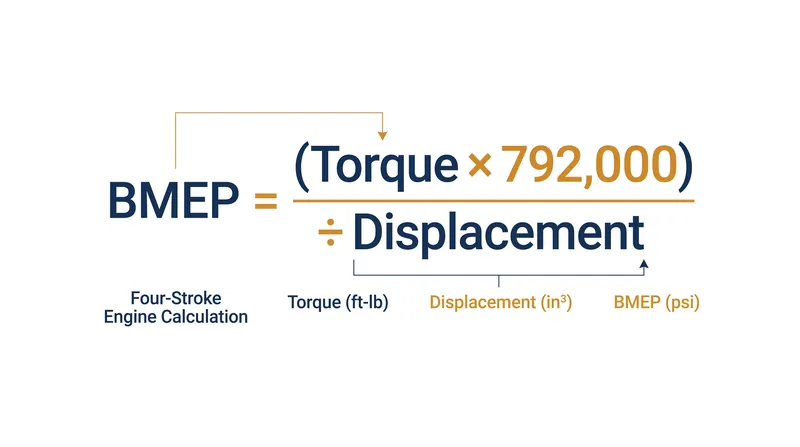

The calculation relies on measured torque rather than advertised horsepower. For a four-stroke engine, the standard formula multiplies the torque output in pound-feet by a constant of 792,000, then divides that product by the engine's displacement in cubic inches.[1][5]

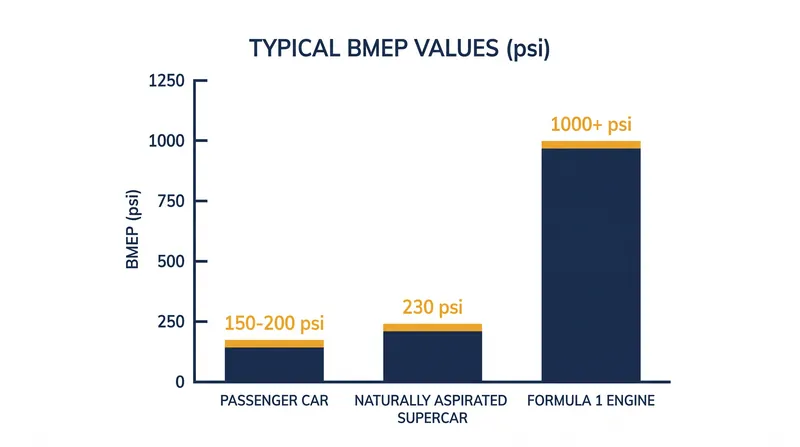

The resulting figure, expressed in pounds per square inch (psi), reveals the internal reality of the combustion chamber. According to engineering data published by EPI Inc., a standard passenger car engine typically operates with a BMEP between 150 and 200 psi at peak torque.[1]

Supercars and racing applications push those boundaries significantly higher. High-performance naturally aspirated engines, constrained by atmospheric pressure, generally hit a ceiling around 230 psi, as they can only draw in a limited volume of air per cycle.[1]

Forced induction shatters that ceiling. By forcing compressed air into the cylinders, modern turbocharged engines routinely exceed 300 psi. EPI Inc. notes that specialized racing applications, such as Formula 1 engines, can achieve a BMEP exceeding 1,000 psi during qualifying trims.[1]

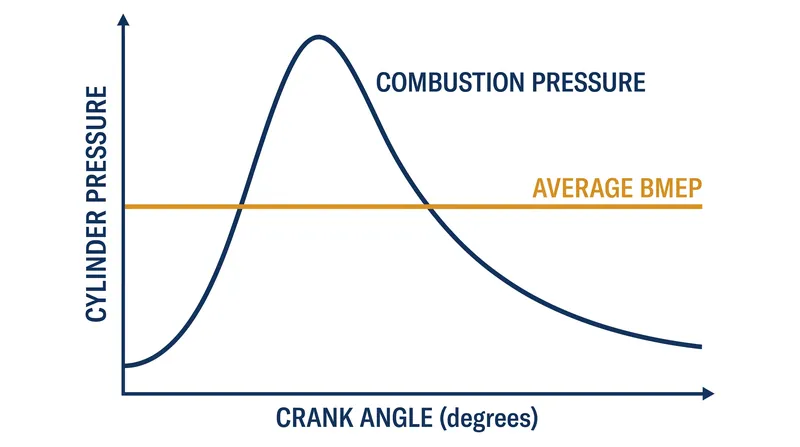

"It is the average effective pressure that does the work," notes Britannica in its reference materials on thermodynamics. This average is crucial because the actual pressure inside a cylinder is volatile, spiking violently immediately after ignition before dropping as the piston descends.[4]

BMEP smooths that violent curve into a constant value, providing a workable metric for engine builders. Mac's Motor City Garage highlighted in an April 2020 analysis that understanding this average is essential for diagnosing why two engines with identical displacement can have wildly different power outputs.[2]

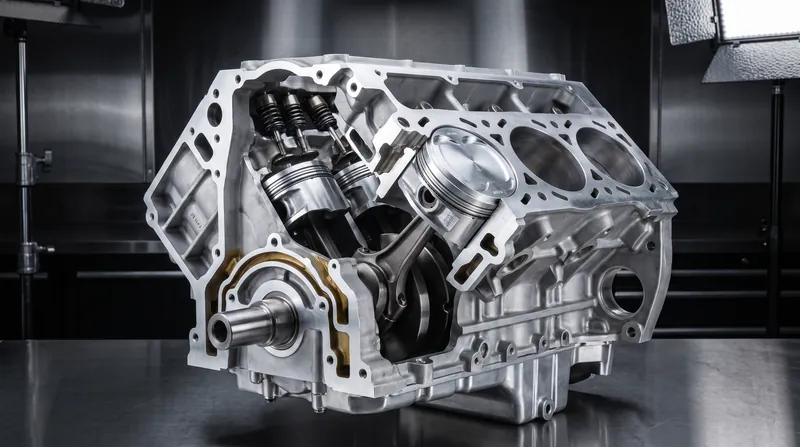

The pursuit of higher BMEP dictates the physical architecture of modern supercars. To withstand average pressures above 300 psi, manufacturers must utilize forged internals, closed-deck block designs, and advanced metallurgy like compacted graphite iron.[3]

This structural reinforcement adds weight, which engineers must offset by shrinking the engine's overall footprint. The result is the current industry trend: replacing large-displacement V12s with compact, heavily turbocharged V6 and V8 engines that deliver higher torque through massive cylinder pressure.

For the owner, this shift changes the ownership proposition. An engine generating 400 psi of BMEP requires precise thermal management; a failure in the cooling system or a drop in fuel octane can lead to catastrophic detonation much faster than in a low-BMEP, large-displacement block.

The metric also exposes the limits of current internal combustion technology. As BMEP rises, the diminishing returns of thermal efficiency become apparent, with more energy lost to heat rejection than converted to mechanical work at the crankshaft.[1][5]

The next frontier for power density relies on managing that heat. Until materials science delivers a breakthrough in thermal resistance, the BMEP of production engines will remain capped not by airflow, but by the melting point of the pistons themselves.
