How Cross-Linked Hydraulic Dampers Eliminate the Need for Mechanical Anti-Roll Bars

You hit a pothole with the left front wheel, and the impact stays exactly there. The right wheel does not violently shudder, and the cabin remains perfectly level. Yet, when you throw that same vehicle into a sharp corner, the body stays entirely flat, resisting the immense lateral forces that would normally cause it to lean.

This is the physical reality of driving a vehicle equipped with cross-linked hydraulic dampers. By replacing the traditional steel anti-roll bar with an interconnected network of fluid lines and nitrogen accumulators, automotive engineers have solved one of the oldest compromises in vehicle dynamics.

The system effectively decouples a vehicle's roll stiffness from its single-wheel bump harshness. It allows a luxury cruiser to glide over broken pavement like a hovercraft, while cornering with the rigid discipline of a track-focused supercar.

The Mechanical Compromise

To understand the modern breakthrough, one must first look at the limitation it replaces. Since the early 20th century, automakers have relied on mechanical anti-roll bars—essentially large steel torsion springs—to keep cars flat in corners.[1]

An anti-roll bar connects the left and right suspension arms across the chassis. When lateral acceleration forces the outside of the car to compress during a turn, the bar twists, forcing the inside wheel to compress as well. This mechanical linkage successfully resists body roll, keeping the tire contact patches flat against the asphalt.[1]

However, this shared connection creates a severe penalty during straight-line driving. If the left tire strikes a raised bump, the suspension compresses, and the anti-roll bar immediately transfers up to 50 percent of that violent upward force to the right tire.[1]

The stiffer the anti-roll bar is made to improve cornering, the harsher the ride becomes over uneven surfaces. Engineers are forced to choose: install a thick bar for flat handling but suffer a punishing ride, or use a thin bar for comfort and accept a wallowing, imprecise cornering experience.[1]

"While anti-roll bars improve handling by reducing body roll, excessively stiff anti-roll bars can lead to a harsher ride," notes the engineering team at Track Titan. "This is because they can transfer more road imperfections from one side of the vehicle to the other."

Replacing Steel With Fluid

Cross-linked hydraulic dampers eliminate this compromise entirely by discarding the physical connection. Instead of a solid steel bar linking the wheels, the system uses incompressible hydraulic fluid routed through a network of high-pressure lines. This fluid dictates exactly how the suspension behaves under different loads.

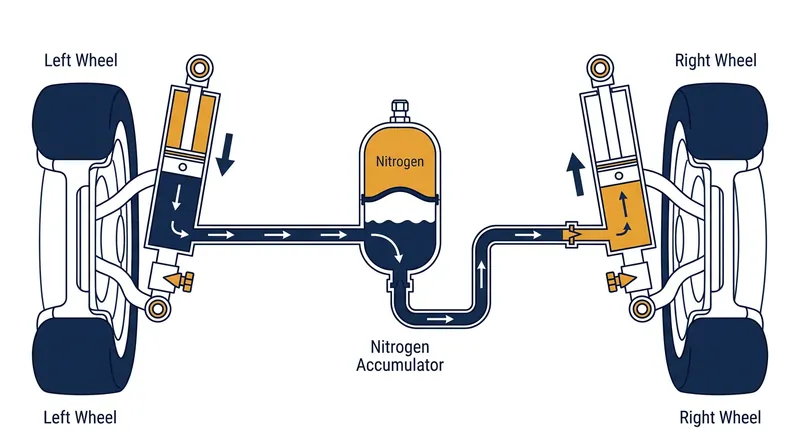

In systems like McLaren's Proactive Chassis Control or Tenneco's Kinetic setup, the compression chamber of the damper on one side of the axle is hydraulically linked to the rebound chamber of the damper on the opposite side.[3]

These fluid lines intersect at central accumulators, which are metal spheres separated by a flexible membrane. One side holds the hydraulic fluid, while the other contains nitrogen gas typically pressurized to between 40 and 60 bar to act as a progressive spring.

Because fluid cannot be compressed, its routing ensures that the system reacts entirely differently depending on the road surface. The suspension mathematically distinguishes between the vehicle rolling into a corner and striking a single-wheel obstacle.

The Roll Scenario

When a heavy vehicle enters a sharp corner, weight transfers heavily to the outside wheels. The outside suspension compresses, pushing hydraulic fluid out of the dampers, while the inside suspension attempts to extend, or rebound.

Because of the cross-linked routing, the fluid from both the compressing outside wheel and the rebounding inside wheel is forced into the same nitrogen accumulator simultaneously. The fluid hits a hydraulic bottleneck inside the sphere.

The nitrogen gas inside the accumulator compresses under the immense pressure, acting as an incredibly stiff spring that aggressively resists the fluid flow. This resistance locks the dampers in place, preventing the chassis from leaning.

The vehicle achieves massive roll stiffness, keeping the body perfectly flat and maximizing aerodynamic efficiency. It accomplishes this impressive feat without relying on a single piece of transverse steel to link the wheels.

The Bump Scenario

The brilliance of the hydraulic cross-link reveals itself when the vehicle is driving straight and strikes a pothole. In this scenario, only one wheel compresses rapidly, while the opposite wheel remains level on the pavement.

The compressing damper pushes fluid through the lines, but because the opposite wheel is not rebounding, the fluid is not forced into a high-pressure conflict at the accumulator. Instead, the fluid flows freely through the system.

This unobstructed flow allows the single wheel to articulate upward and absorb the sudden impact independently. The harshness is completely isolated to the affected corner, leaving the rest of the chassis and the passengers undisturbed.

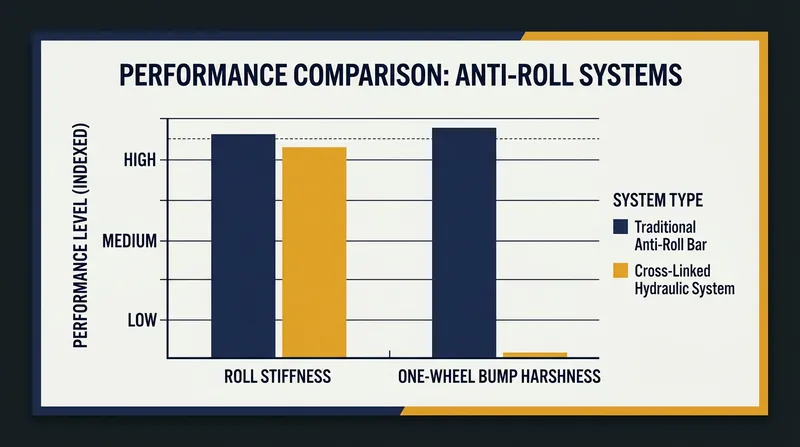

The spring rate penalty that defines a mechanical anti-roll bar simply does not exist here. The vehicle glides over the imperfection, maintaining a plush ride in the cabin while retaining the capacity to instantly stiffen the moment the steering wheel is turned.

From Supercars to Off-Roaders

Initially developed for the World Rally Championship and later popularized by McLaren's 720S supercars, this technology has rapidly migrated to heavy, high-riding vehicles. The roll-versus-ride compromise is even more pronounced in these massive platforms, which often struggle with efficiency and weight.[7]

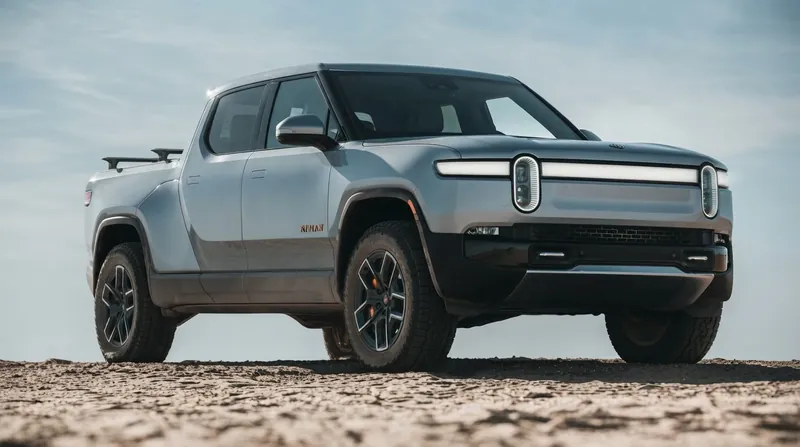

Electric trucks like the Rivian R1T utilize the Tenneco Kinetic system to manage their immense battery weight. The hydraulic cross-linking allows the heavy truck to corner flat on the highway, while permitting extreme, independent wheel articulation when crawling over boulders off-road.

Similarly, the 2025 Mercedes-Benz G-Class and updated GLE models have adopted variations of this fluid-based roll control. By ditching the mechanical sway bars, these heavy luxury SUVs can drop their ride height and corner like sports cars.[5]

They can then immediately soften their hydraulic valving to absorb punishing urban streets. As automakers push ultra-luxury EVs with massive battery weights, the hydraulic decoupling of roll and bump stiffness is poised to become the definitive standard for premium vehicle dynamics.[6][8]

Active Valving and Electronic Control

Modern cross-linked systems enhance this passive hydraulic logic with active electronic valving. McLaren's Proactive Chassis Control II system monitors road conditions using 21 distinct sensors, allowing the computer to adjust damping restrictions in just two milliseconds.[3]

If the onboard computers detect a sudden evasive maneuver, the valves instantly clamp down to maximize roll stiffness. When the sensors read a sustained stretch of broken highway, the valves open fully to prioritize maximum fluid flow and comfort.

This electronic oversight allows the suspension to change its fundamental character at the push of a button. A driver can toggle from a compliant touring mode to a rigid track setting without altering any physical hardware on the chassis.

The elimination of the physical anti-roll bar also removes a significant packaging constraint for automotive designers. Without a thick steel bar traversing the undercarriage, engineers gain valuable space for larger battery packs, complex exhaust routing, or aerodynamic diffusers.

While the hydraulic lines and nitrogen accumulators add their own complexity, the overall weight of the system is often lower than the heavy steel components it replaces. This weight reduction further improves the vehicle's unsprung mass and dynamic response.
