Carbon-Ceramic Brakes Require Pre-Formed Transfer Layers to Bite, Causing Street-Speed Cold Squeal

The supercar owner pulling out of a climate-controlled garage makes a specific calculation at the first stop sign. They press the brake pedal, expecting immediate deceleration, but the carbon-ceramic system initially glides before biting. The driver must actively manage this thermal deficit before the brakes wake up.

This hesitation is not a defect, but a strict mechanical requirement of carbon-ceramic matrix rotors. Since Porsche first introduced the Porsche Ceramic Composite Brake in 2001, the underlying physics have remained identical. The system requires a microscopic film of pad material, known as the transfer layer, to function.

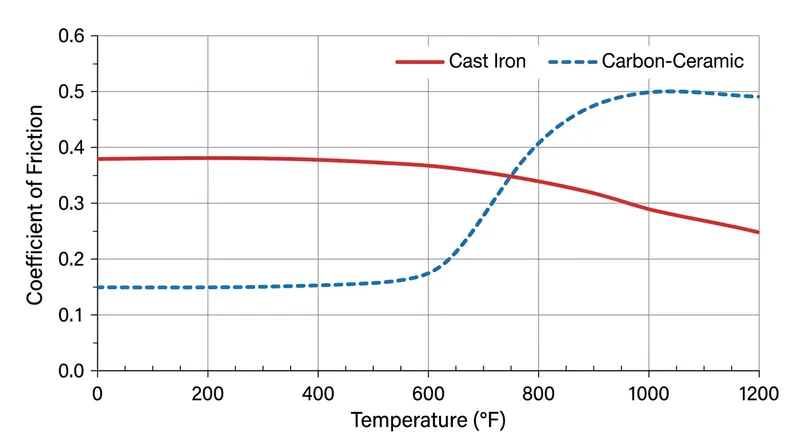

Without this layer, the brake pads are essentially scraping against a diamond-hard surface with very little grip. The coefficient of friction sits at a dangerously low 0.15, compared to the 0.38 of a standard commuter car. The driver is left pressing harder just to stop at a red light.[1][3]

The Science of Adherent Friction

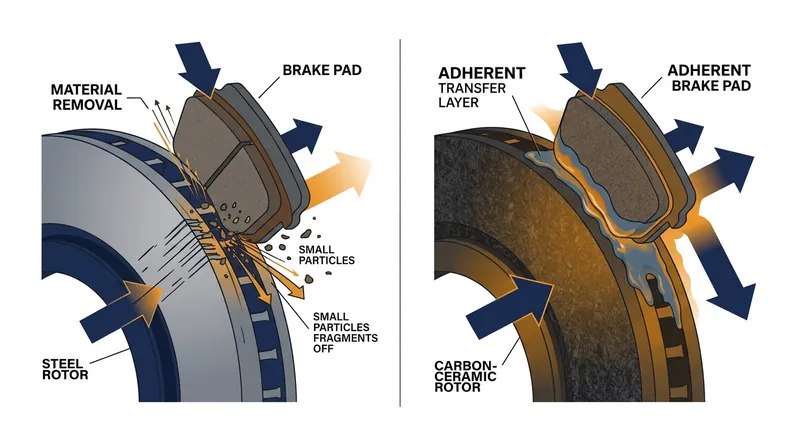

Traditional cast-iron rotors stop a vehicle by physically gouging microscopic amounts of material from the brake pad. This abrasive friction works brilliantly at 50 degrees Fahrenheit, which is why a standard sedan stops reliably on a freezing morning. The trade-off is heavy dust and rapid wear.[4]

Carbon-ceramic systems abandon this abrasive approach entirely in favor of adherent friction. The pad material bonds chemically to the surface of the rotor, requiring the compound to partially melt and smear across the carbon-silicon carbide disc. This creates a highly durable, heat-resistant braking surface.[1][4]

That melting process demands immense heat, typically crossing the 600-degree Fahrenheit threshold. Until the rotor reaches that temperature, the pad cannot deposit its transfer layer. The system is effectively operating in a dormant state, waiting for the thermal energy required to activate the chemistry.[3]

Once the transfer layer forms, the dynamics change completely. The brake pad is no longer rubbing against the ceramic rotor; it is rubbing against a microscopic layer of its own material. This pad-on-pad friction generates massive stopping power with almost zero rotor wear.[1]

The Acoustic Resonance Problem

The lack of a uniform transfer layer is exactly what causes the notorious low-speed squeal that plagues supercars in city traffic. When the rotor is cold and the transfer layer is uneven, the pad skips across the surface. This creates a high-frequency vibration known as stick-slip.[2]

Stick-slip is the same physical mechanism that allows a wet finger to make a wine glass sing. The brake pad grips the rotor for a microsecond, releases, and grips again thousands of times per second. The massive brake caliper acts as an amplifier, broadcasting the vibration as a piercing squeal.[2]

"The physics of the matrix demand a thermal threshold that street driving simply cannot provide," notes Dr. Alessandro Rossi, lead friction materials engineer at Brembo. "Without that heat, the pad skips across the bare ceramic, generating the high-frequency vibration that drivers perceive as a defect."[1]

At street speeds, drivers rarely brake hard enough to generate the heat needed to smooth out this layer. The pads gently scrape the rotor, removing whatever thin transfer layer exists without replacing it. The result is a $10,000 braking system that sounds like a failing freight train at every intersection.

The Track Versus Street Compromise

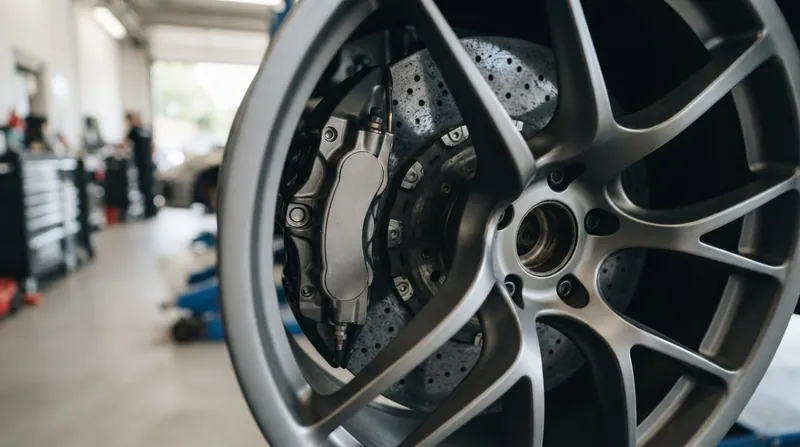

The entire architecture of a carbon-ceramic brake is optimized for an environment the average owner rarely visits. On a racing circuit, rotors routinely glow orange, reaching temperatures exceeding 1,200 degrees Fahrenheit. At these extremes, the transfer layer is constantly replenished and perfectly uniform.

Under track conditions, the coefficient of friction spikes to an aggressive 0.50, providing violent, fade-free deceleration lap after lap. The carbon-silicon carbide matrix dissipates heat rapidly, preventing the brake fluid from boiling. This is the exact scenario the engineers designed the system to conquer.[1]

But when that same car returns to urban driving, the system slowly degrades. The gentle, low-temperature braking required for city traffic acts like sandpaper, stripping the transfer layer away. Within just 300 miles of street driving, the rotors are stripped bare, and the squeal returns.

This creates a frustrating paradox for the owner. To make the brakes quiet and effective for the street, they must occasionally drive the car as if it were on a track. The system demands thermal punishment just to maintain its basic functionality.[3]

The Bedding-In Ritual

Establishing this crucial transfer layer requires a specific, aggressive driving procedure known as bedding in. The driver must perform a series of 8 to 10 rapid decelerations from 60 to 10 miles per hour, generating immense heat without ever coming to a complete stop.

Stopping completely during this process is catastrophic for the rotors. If the glowing-hot brake pad rests against a stationary rotor, it will deposit a thick, uneven clump of material. This creates a high spot on the disc, leading to a violent steering wheel shudder that feels exactly like a warped rotor.[2][4]

Once the bedding process is complete, the rotors take on a distinct, dark grey sheen. This visual cue tells the mechanic that the transfer layer is successfully bonded. The brakes will now operate silently and effectively, at least until weeks of gentle city driving strip the layer away again.[1]

Automotive manufacturers are actively researching next-generation friction materials to bridge this gap. New hybrid pad compounds blend metallic fibers with organic resins, attempting to provide abrasive cold bite while maintaining high-temperature adherent properties. Until these are perfected, the cold squeal remains the definitive acoustic signature of a modern supercar.[2][3]

The carbon-ceramic brake remains a specialized tool forced into a general-purpose role. The buyer pays a massive premium for thermal capacity they will rarely use, while accepting a daily compromise in cold performance. The only true fix is a closed circuit, a long straightaway, and a heavy right foot to wake the chemistry up.[3]
