How Pushrod Bellcranks Balance Supercar Aerodynamic Downforce With Low-Speed Ride Compliance

At 177 miles per hour, the air flowing over a modern track-focused supercar pushes down with the weight of a Clydesdale horse—roughly 2,200 pounds of invisible mass. That aerodynamic load glues the tires to the tarmac, allowing cornering speeds that would otherwise throw the vehicle into the barriers.[3][5]

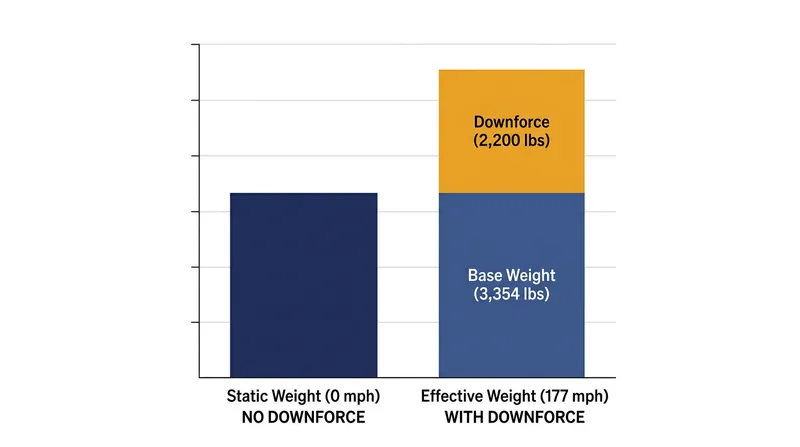

But that immense pressure creates a profound engineering dilemma. If a car weighs 3,350 pounds at a standstill, the suspension must support that static mass while remaining compliant enough to absorb bumps. When downforce adds another 2,200 pounds at top speed, the total effective weight increases by 65 percent.[3][6]

If engineers fit standard linear springs stiff enough to support 5,500 pounds without bottoming out, the car becomes undrivable at city speeds. Without the aerodynamic load pushing it down, the over-stiffened suspension skips over imperfections, shattering the driver's spine and completely destroying low-speed mechanical grip.[4]

Before the widespread adoption of active aerodynamics and inboard suspension, a buyer had to choose between a grand tourer that rode well on the street and a track special that required a trailer. Today, automotive engineers solve this contradiction using a mechanism borrowed directly from Formula 1: the pushrod suspension and its mathematically precise bellcrank.[1][2]

Moving Components Inboard

In a conventional MacPherson strut or double-wishbone setup, a coil spring and damper sit upright, directly above or adjacent to the wheel hub. This places bulky components directly in the turbulent airflow behind the front splitter, creating aerodynamic drag and limiting the size of the aerodynamic tunnels.[4]

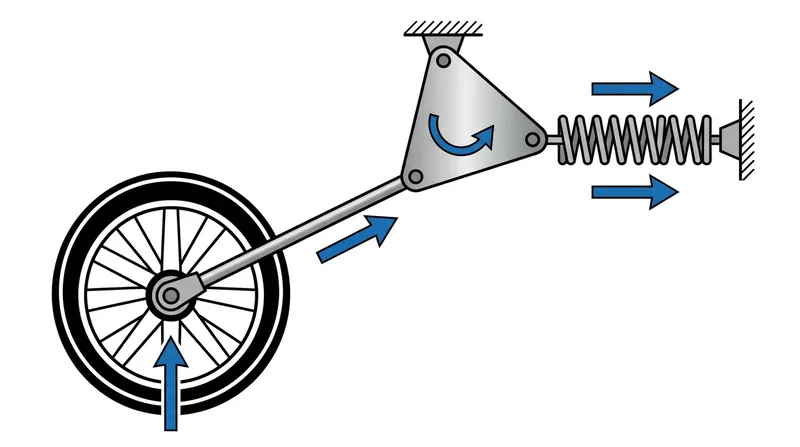

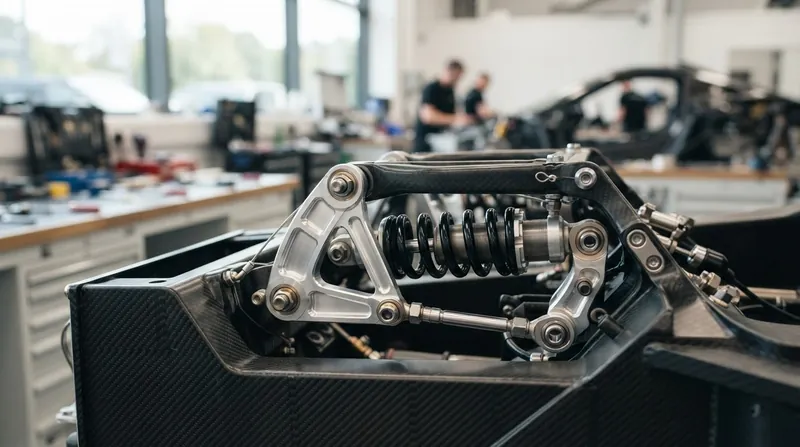

A pushrod system relocates these components entirely. Instead of an upright spring, a sleek, aerodynamic diagonal rod connects the wheel hub to a pivoting lever inside the chassis. This lever, known as a bellcrank, translates the vertical motion of the wheel into horizontal motion, compressing an inboard spring.[1][2]

By utilizing a pushrod system with a bellcrank, engineers can mount the non-aerodynamic springs and dampers entirely inside the bodywork panels.[1]

This clears the turbulent airflow from the wheel wells, allowing it to travel undisturbed through the suspension arms to the radiators and underbody diffusers. The 2017 Ford GT famously utilized this layout to maximize its aerodynamic efficiency.[6]

By moving the suspension inboard, Ford engineers were able to carve massive aerodynamic channels through the carbon-fiber bodywork, helping the 3,354-pound supercar generate immense downforce while maintaining a sleek frontal area.[6]

The Geometry of a Rising Rate

"A typical 180-degree bellcrank consists of a straight bar that pivots at or near its center," notes the encyclopedic definition of the mechanism. "When one rod is pulled or pushed, the bar rotates around the pivot point, pulling or pushing on the other rod."[2]

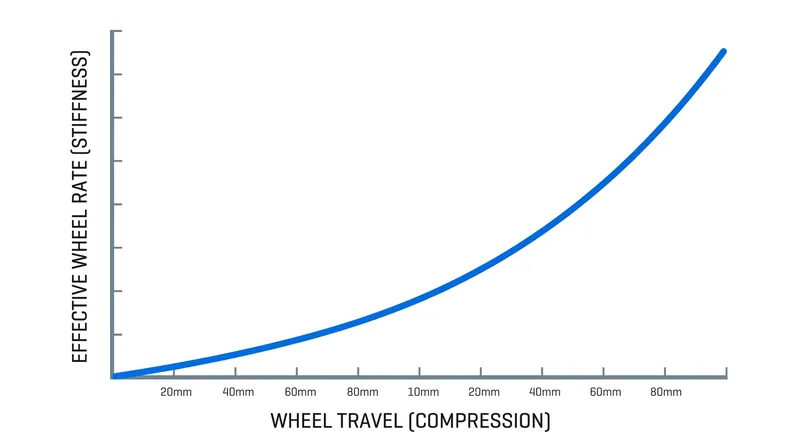

By designing the specific angles at which the pushrod and the shock absorber attach to this pivot, engineers create what is known as a "rising rate" suspension. As the suspension compresses, the mechanical advantage of the lever changes, effectively altering how stiff the spring feels to the wheel.[1][2]

When the car is driving at 30 miles per hour, there is virtually no aerodynamic downforce. The suspension sits near the top of its travel, and the bellcrank geometry provides high leverage against the spring. The wheel moves easily over potholes, providing the compliance a buyer expects on public roads.[4]

The physics behind the relative forces and displacements generated by the bellcrank require precise mathematical modeling.[2]

Engineers tune this mechanical leverage based on target wheel rates for the vehicle's maximum velocity, ensuring the aerodynamic platform remains perfectly stable under extreme loads.[2][3]

Track-Day Adjustability

Beyond the rising rate, the bellcrank offers unparalleled adjustability for track-day enthusiasts. Because the pivot points are easily accessible under the hood or engine cover, owners can change the suspension's baseline characteristics without having to remove the wheels or dismantle the entire shock assembly.[1][2]

Academic engineering studies consistently highlight this exact benefit, noting that pushrod designs provide unparalleled ease of adjustability because the suspension motion ratios can be changed without replacing components.[1]

By simply moving the pushrod mounting bolt to a different hole on the bellcrank, a mechanic can instantly alter the motion ratio. This allows a driver to stiffen the entire platform for a smooth, high-speed circuit like Monza, or soften it for a bumpy, low-speed track like Sebring.[1][2]

Linear Springs, Progressive Leverage

Some manufacturers attempt to solve the downforce problem using progressive-rate coil springs, which are wound tighter at one end so they stiffen as they compress. While cheaper to manufacture, these springs can introduce unpredictable handling dynamics when the car is pushed to its absolute limits on a circuit.[4]

A rising rate bellcrank allows engineers to use a high-quality linear spring, which behaves exactly the same way under all conditions. The progression comes entirely from the geometry of the lever, providing the driver with a much more consistent and predictable pedal feel when balancing the car through a corner.[2][4]

For extreme track variants, the loads are staggering. The Porsche 911 GT3 RS equipped with the Manthey Kit produces over 1,000 kilograms of downforce at 285 kilometers per hour. Supporting that invisible mass requires a suspension that can seamlessly transition from road-going compliance to race-car rigidity.[5]

Firming Up Under Pressure

As the supercar accelerates past 100 miles per hour, aerodynamic downforce begins to push the chassis toward the ground. This compresses the suspension, rotating the bellcrank and fundamentally changing the angle between the pushrod and the shock absorber.[2][3]

With this rotation, the mechanical advantage drops sharply. It now takes exponentially more force from the wheel to compress the spring any further. The suspension has effectively stiffened itself without any electronic intervention or changes to the physical coil spring, perfectly matching the rising aerodynamic load.[1][2]

This rising rate geometry prevents the car from bottoming out at top speed. Maintaining a consistent ride height under heavy downforce is critical, as any sudden change in the underbody clearance can stall the rear diffuser, instantly stripping the car of its aerodynamic grip and causing a high-speed spin.[3]

What This Means for the Buyer

For the actual owner writing a check for a modern supercar, this geometry fundamentally changes the ownership experience. It anchors the abstract physics of motion ratios into a tangible reality: a vehicle that can genuinely serve two entirely different purposes without requiring a compromise in either.[7]

Without a rising rate bellcrank, a buyer would have to manually adjust their coilover springs before every track day, or suffer through a bone-rattling commute. The mechanical lever eliminates this chore, automatically providing the exact wheel rate required for the specific speed and aerodynamic load of the moment.[7]

Manufacturers are increasingly pairing this mechanical geometry with adaptive electronic dampers. Lamborghini introduced this hybrid approach on the Aventador Superveloce, combining a pushrod suspension with magneto-rheological shocks that adjust individual wheel damping during cornering to suppress body roll.[7]

The pushrod bellcrank represents a triumph of mechanical engineering over brute force. By simply altering the angle of a pivot, engineers allow a 3,300-pound machine to carry the weight of a second vehicle on its roof at 170 miles per hour, while still driving comfortably to the grocery store.[7]
