Why Wider Tires Reshape the Contact Patch Without Increasing Total Rubber on the Road

When a driver walks into a tire shop to replace a worn set, the most common upgrade they consider is moving to a wider size. The assumption is straightforward: a wider tire means more rubber touching the road, which should translate to more grip. But when the new tires are mounted, the physics of the footprint is entirely different.

The total amount of rubber in contact with the pavement is not determined by the physical width of the tread block. Since the widespread adoption of radial tires in the 1970s, it has been governed by the vehicle's weight and the air pressure. If a driver installs a wider tire but keeps the same pressure, the total surface area remains exactly the same.[1][2]

The Physics of the Footprint

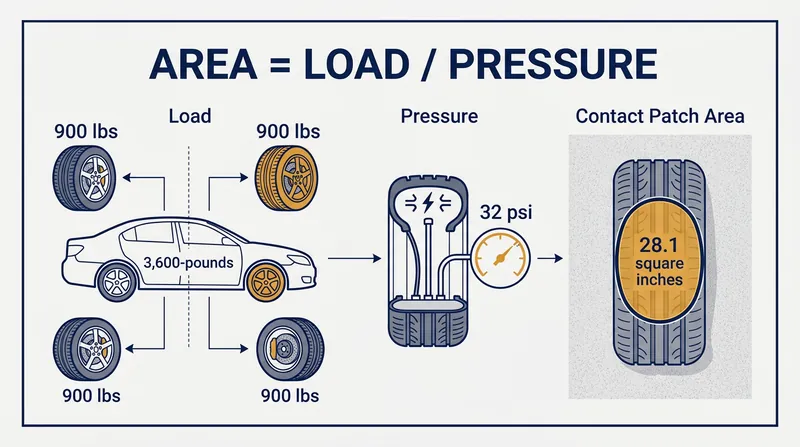

The relationship is defined by a simple equation: contact area equals the load divided by the inflation pressure. For a typical 3,600-pound passenger car carrying 900 pounds on a single corner and inflated to 32 pounds per square inch, the tire will flatten until exactly 28.1 square inches of rubber are supporting the weight.

Changing the physical dimensions of the tire does not change that fundamental math. Whether the tire is a standard 205/55R16 or an upgraded 255/40R18, the 32 psi of air pressure and the 900-pound load demand the same 28.1 square inches of contact area. What the wider tire actually does is change the shape of that area.

While pneumatic air pressure dictates the vast majority of the contact patch size, the stiffness of the tire's internal carcass plays a minor secondary role. A heavy-duty truck tire inflated to 80 psi will support a small fraction of the vehicle's weight structurally. However, for standard passenger car tires, the air pressure remains the dominant variable.[1]

Trading Length for Width

A standard, narrower tire creates a contact patch that is long longitudinally and narrow laterally. As the tire rolls, a long strip of tread stays in contact with the road from front to back. When a driver upgrades to a wider tire, that 30-square-inch footprint is forced to stretch outward toward the shoulders.[2][3]

Because the total area cannot increase without dropping the air pressure or adding weight to the car, the patch must shrink in the other direction. The footprint becomes wider side-to-side, but significantly shorter front-to-back. The driver has not bought more rubber on the road; they have simply rotated the shape of the rubber they already had.[2]

This geometric shift fundamentally alters how the car handles different forces. A long, narrow contact patch excels at longitudinal grip. The extended front-to-back footprint provides a longer sheer plane for the tread blocks to bite into the asphalt during hard acceleration and straight-line panic braking.[2]

The Grip Compromise

Conversely, a short, wide contact patch sacrifices some of that straight-line braking length to maximize lateral grip. When a car enters a fast corner, the sideways forces attempt to push the tire off its intended path, creating a slip angle. A wider lateral footprint resists these forces more effectively, keeping the car stable.[3]

The slip angle is the difference between the direction the wheel is pointing and the direction the tire is actually traveling as the rubber deforms. A wider contact patch generates its peak lateral force at a smaller slip angle than a narrow tire. This makes the steering feel sharper and more responsive to driver inputs.[1][4]

However, the transition past that peak grip can be more abrupt. A long, narrow contact patch breaks traction gradually, giving the driver a progressive warning as the car begins to slide. A short, wide patch holds on tenaciously but can let go suddenly when the lateral forces finally overcome the rubber's friction limit.[4]

Suspension Geometry and Camber

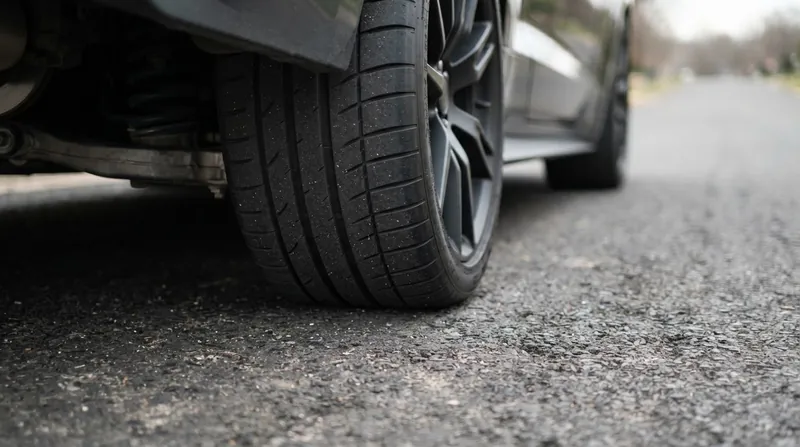

The shape of the contact patch also dictates how the tire interacts with the car's suspension geometry, particularly the camber angle. Camber is the inward or outward tilt of the wheel relative to the vertical axis. Performance cars often run negative camber, tilting the top of the tire inward to compensate for body roll.[4]

A wider tire is far more sensitive to these camber adjustments than a narrow one. Because the contact patch is stretched laterally, excessive negative camber will lift the outer edge of the footprint off the pavement when driving in a straight line. This concentrates the vehicle's weight on the inner shoulder, causing rapid wear.[4]

A narrow tire, with its longer and thinner footprint, tolerates aggressive camber angles much better. The longitudinal shape ensures that a larger percentage of the rubber remains in contact with the road even when the wheel is tilted. This maintains straight-line stability and braking performance without destroying the inner tread blocks.[4]

Heat and Wear Dynamics

The wider shape also changes how the tire manages extreme temperatures. During aggressive cornering, the friction generates intense heat that can quickly degrade the rubber compound. A wider contact patch distributes that thermal load across a broader section of the tread, preventing any single rib from overheating and blistering.[3][4]

This heat management is why high-performance sports cars and track vehicles universally adopt wide tires. Even though they are not putting more total square inches of rubber on the road, the wider lateral spread ensures the tire can survive sustained thermal abuse. It prevents the outer shoulder from melting or chunking under heavy loads.[3]

Secondary Effects on the Commute

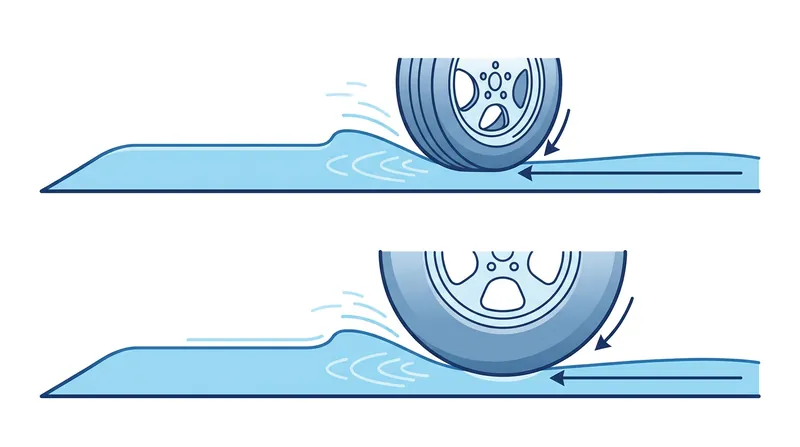

For a daily commuter, the differences in absolute grip are often imperceptible, but the secondary effects of a wider tire are real and immediate. A wider tire is more prone to hydroplaning in wet conditions. Its broad leading edge has to push significantly more standing water out of the way to reach the pavement.[2]

Furthermore, the shorter longitudinal patch gives the tread grooves less time to evacuate that water before the rubber is lifted off the road. Narrower tires slice through puddles more effectively. This is why winter tires designed for snow and slush are traditionally 10 to 20 millimeters narrower than summer performance tires.[2]

Rolling resistance and aerodynamic drag also increase with tire width. The broader frontal area catches more wind, and the wider lateral deformation requires more energy to roll forward. Electric vehicle designers often specify narrow 195-millimeter tires to minimize these parasitic losses, which can extend highway driving range by up to 5 percent.[4]

Ultimately, choosing a tire size is an exercise in allocating a fixed budget of surface area. As the TireCalculatorHub Editorial Team notes in their 2026 analysis, "Understanding contact patch size helps you optimize tire pressure for maximum grip, diagnose handling issues, choose the right tire width, and make better decisions." Unless a driver lowers their tire pressure, they cannot buy a larger footprint.
