Why Your Brake Rotors Are Not Actually Warped (And What Causes That Pedal Shake)

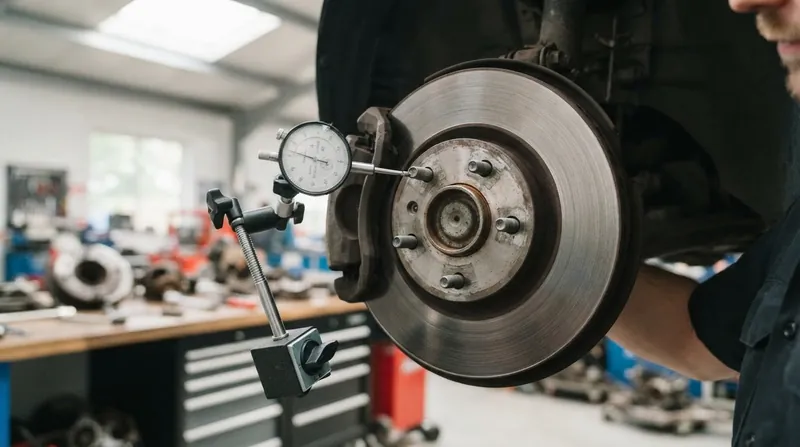

Inside the NVH testing cell at a major automotive supplier, a technician clamps a magnetic dial indicator to a steering knuckle. As the cast iron brake rotor spins, the needle sweeps across the dial, registering a microscopic fluctuation of just 0.0006 inches.

To the naked eye, the heavy metal disc looks perfectly flat, but that tiny variance is enough to send a violent shudder through a steering wheel at highway speeds. For decades, service advisors at local repair shops have told drivers this sensation means their rotors are warped.

That diagnosis usually results in a $600 repair bill for new discs and pads, leaving the vehicle owner convinced they braked too hard on a steep hill. However, automotive tribologists have proven that physical distortion of the iron is almost never the culprit.[2]

Instead, the pulsation stems from a chemical and mechanical process called Disc Thickness Variation. Understanding how this invisible unevenness forms can save drivers hundreds of dollars and fundamentally change how they handle their vehicle at the end of a highway off-ramp.

The Myth of Bending Metal

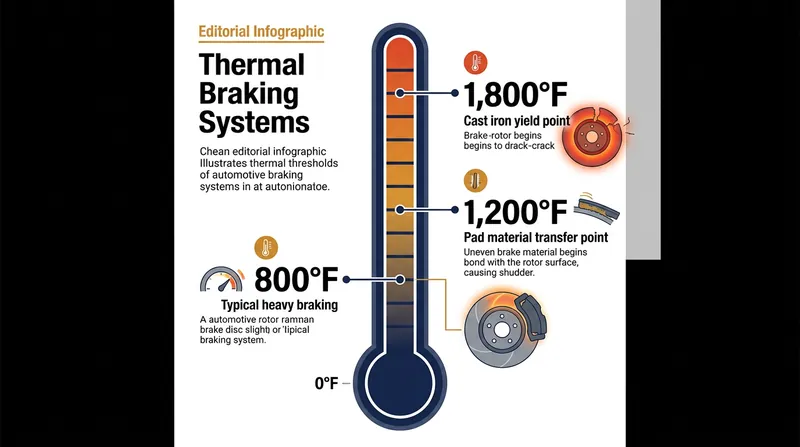

The concept of a warped rotor makes intuitive sense to anyone who has watched thin metal buckle in a hot oven. When a 4,000-pound SUV slows from 70 mph, the kinetic energy converted into thermal energy easily pushes brake temperatures past 800 degrees Fahrenheit.

But standard automotive brake rotors are cast from gray iron, a dense, heavily alloyed material engineered specifically for immense thermal stability. According to metallurgical data, gray cast iron does not begin to yield or permanently deform until it reaches temperatures exceeding 1,800 degrees Fahrenheit.[3]

Reaching that threshold on a public road is virtually impossible without dragging the brakes down a mountain pass while towing a heavy trailer. Long before the iron gets hot enough to physically warp, the organic resins binding the brake pads together would completely incinerate.[3]

"The term warped rotor is the most persistent myth in automotive service," explains the Factlen Editorial Team's engineering review. "Mechanics feel the pulsation, measure the runout, and assume the disc has buckled like a potato chip, completely misinterpreting what the dial indicator is actually showing them."[4]

What the tool actually measures is not a bent disc, but a disc that has grown microscopically thicker in certain spots. This thickness variation means the brake pads are constantly squeezed together and pushed apart as the rotor spins between them.

How Friction Material Bakes On

The true cause of that thickness variation begins the moment a driver brings a hot vehicle to a complete, stationary halt. When brakes are applied heavily, such as during a sudden stop at a red light, the pads and rotors get exceptionally hot.

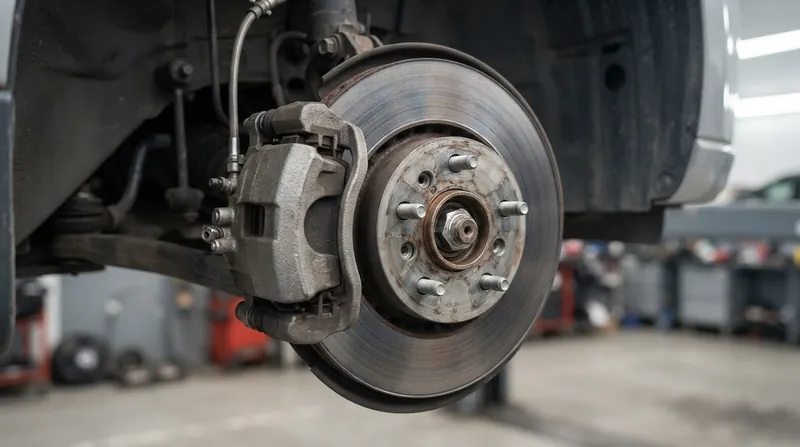

If the driver keeps their foot firmly pressed on the brake pedal while waiting for the light to change, the stationary pad remains clamped against the scorching iron. The intense localized heat bakes a microscopic layer of the pad's friction material directly onto that specific footprint.[1]

"When the rotor reaches 1,200 degrees Fahrenheit, the pad material transfers unevenly to the stationary disc," notes a 2000 SAE International paper on brake judder. This transfer creates a raised spot on the surface that is often less than a ten-thousandth of an inch thick.[1]

As the driver continues to use the vehicle over the next several weeks, the raised spot catches the brake pad slightly harder during every rotation. This localized friction generates even more heat in that exact location, causing the cast iron underneath to undergo a structural change.[2]

The intense heat transforms the gray iron into a harder compound called cementite. Because cementite is significantly harder than the surrounding metal, it wears down at a much slower rate as the brake pads drag across it, leaving the hard spots standing proud of the surface.[2]

The Threshold of Human Perception

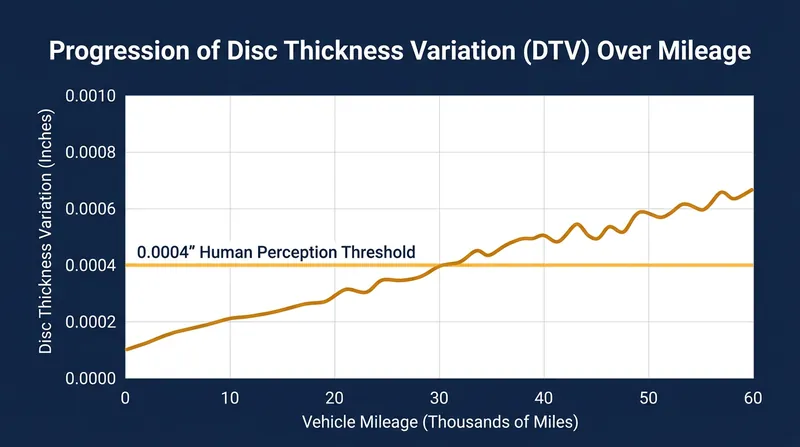

Once those high spots reach a height difference of just 0.0004 inches, roughly one-tenth the thickness of a human hair, the driver will begin to feel it. The hydraulic fluid in the brake lines transmits that mechanical pulsing directly back to the driver's foot.[5]

If the thickness variation occurs on the front wheels, the pulsing also travels through the steering linkage, causing the steering wheel to shake violently side to side. The severity of the vibration scales directly with vehicle speed, feeling most aggressive during moderate braking from 60 mph.[5]

Many drivers assume their suspension is failing or their tires are dangerously out of balance, prompting an immediate trip to the local service center. A 2024 Bosch NVH analysis notes that mechanics routinely mount a dial indicator, see the fluctuating surface, and incorrectly declare the rotor warped.

The traditional fix has always been to mount the rotor on a brake lathe and machine a thin layer of iron off the entire surface until it is flat again. While this temporarily cures the pulsation, it removes valuable thermal mass from the disc.

Breaking the Deposition Cycle

Preventing Disc Thickness Variation requires a slight adjustment to how a vehicle owner manages their momentum in heavy traffic. The most effective strategy is to avoid keeping the brake pedal firmly depressed immediately after a high-speed, high-heat deceleration event.

When stopping at the bottom of a long hill or a highway ramp, drivers should leave enough space to let the vehicle creep forward slightly while waiting. Allowing the wheels to rotate even a few inches prevents the hot pads from baking their resins onto one spot.

For drivers who have already developed a mild pulsation, a series of aggressive, controlled stops can sometimes scrub the uneven deposits off before they harden. This process involves braking firmly from 60 mph to 10 mph several times in a row without coming to a complete stop.

However, once the localized heat has transformed the iron into cementite, the hard spots extend deep into the crystalline structure of the metal. Machining the surface flat will only hide the problem temporarily, as the harder spots will simply emerge again as the softer iron wears away.[2]

In those advanced cases, replacing the rotors is the only permanent solution to restore a smooth pedal feel. Knowing that the new discs will not physically warp gives the buyer the confidence to protect their investment simply by letting the car roll at the next red light.
