The P, B, C, and U Framework: How the First Digit of a Diagnostic Trouble Code Identifies the Vehicle System

When a check engine light illuminates on a modern dashboard, the vehicle has already isolated the fault to one of four primary physical domains before a mechanic ever opens the hood. The amber warning is merely the front end of a highly structured diagnostic framework. By the time the light appears, the vehicle's onboard computer has generated a five-character alphanumeric sequence, permanently logging whether the issue lies in the engine, the airbags, the anti-lock brakes, or the internal communication network.[3]

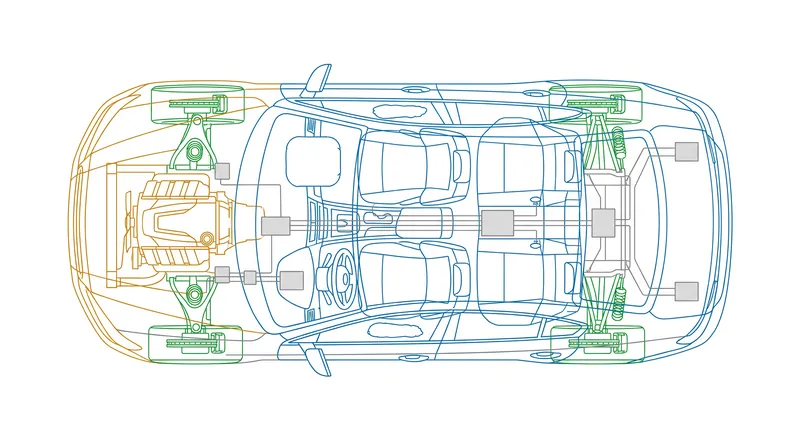

This system, standardized globally under the SAE J2012 protocol, divides the entire automobile into four distinct operational silos. The first character of every Diagnostic Trouble Code (DTC) is a letter—P, B, C, or U—that immediately directs a technician or owner to the correct subsystem. This rigid categorization ensures that a mechanic in Tokyo and a dealership in Detroit interpret the fundamental nature of a vehicle's fault identically.[1][7]

Powertrain codes, designated by the letter 'P', are the most common and the most critical for vehicle operation and emissions. A code beginning with 'P' indicates a fault in the engine, transmission, fuel system, or ignition. Because the On-Board Diagnostics II (OBD-II) standard was originally mandated by environmental regulators in 1996 to monitor emissions, P-codes form the vast majority of standardized faults.[4][5][6]

Body codes, marked by the letter 'B', cover the systems inside the passenger compartment. This domain includes airbags, climate control, power seating, and infotainment systems. While a B-code rarely leaves a driver stranded on the side of the road, it often points to safety restraints or comfort features that require specialized diagnostic tools beyond a basic code reader to properly reset.[2][7]

Chassis codes, beginning with 'C', govern the mechanical systems outside the engine bay that control movement and stopping. Anti-lock braking systems (ABS), electronic stability control, electronic power steering, and tire pressure monitoring systems all fall under the C-code umbrella. A fault in this category directly impacts the vehicle's physical handling characteristics and often triggers secondary dashboard warnings, such as the ABS or traction control lights.[3][7]

Network codes, or User Network codes designated by 'U', represent the nervous system of the modern vehicle. As cars have transitioned into rolling computers, the various modules—from the engine control unit to the door locks—must communicate over the Controller Area Network (CAN) bus. As Snap-on notes in its diagnostic guidance, "U-codes indicate a communication issue between modules," meaning a component is either offline, experiencing voltage drops, or sending corrupted data.[2][5]

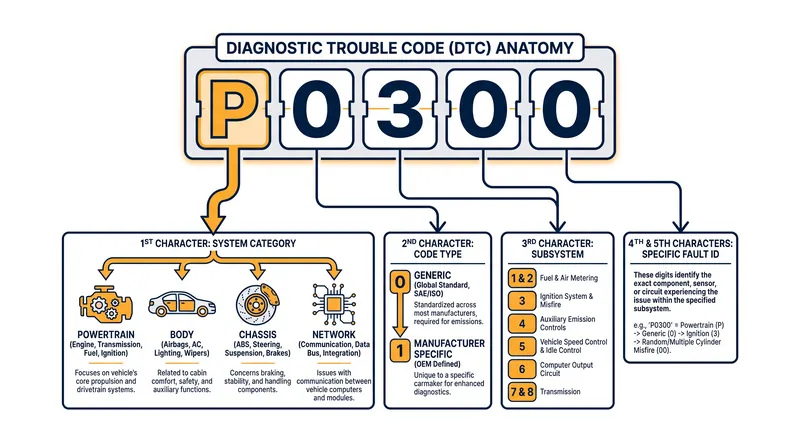

The structure of the code extends beyond the first letter to provide increasing specificity. The second character, a zero or a one, distinguishes between a generic, government-mandated code (0) and a manufacturer-specific code (1). A P0300 is a generic random misfire recognized by every automaker, while a P1xxx code might indicate a specific hybrid inverter fault unique to a Toyota or a Ford.[4][6]

The third character narrows the fault down to a specific subsystem within the primary domain. In the powertrain family, a '3' indicates an ignition system or misfire issue, while a '4' points to auxiliary emission controls like the exhaust gas recirculation (EGR) valve or the catalytic converter. This allows technicians to immediately locate the general area of the engine bay requiring attention.[5][7]

The final two digits provide the exact fault designation. They identify the specific cylinder that is misfiring, the exact sensor that is reading out of range, or the precise valve that is stuck open. Together, the five characters form a complete diagnostic sentence, translating a vague dashboard light into a specific mechanical or electrical failure.[3]

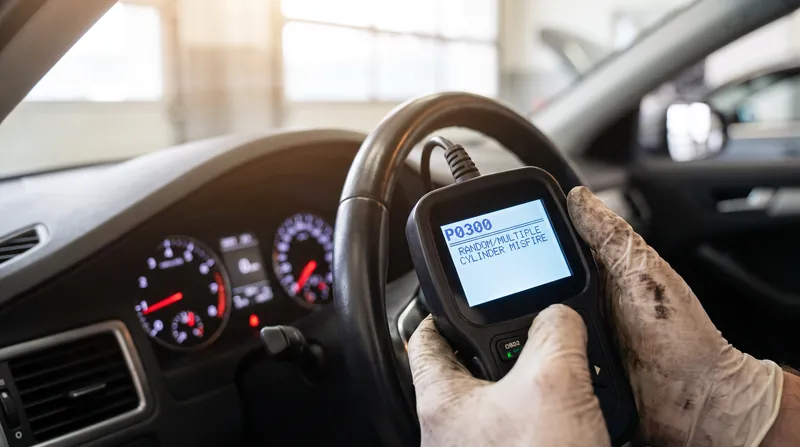

Understanding this framework changes the economics of vehicle ownership. Instead of relying entirely on a dealership's diagnostic fee, owners equipped with an inexpensive Bluetooth OBD-II scanner can read the code, identify the system, and determine the severity of the issue. A P-code for a loose gas cap can be addressed in the driveway, while a C-code for a failing brake module dictates an immediate repair.[3][8]

However, a DTC is not a parts-replacement directive; it is a starting point. A P0171 code indicates the engine is running lean—meaning there is too much air and not enough fuel—but it does not specify whether the cause is a vacuum leak, a failing mass airflow sensor, or a weak fuel pump. The code identifies the symptom, not the root cause, requiring mechanical deduction to finalize the repair.[5][8]

As vehicles move toward full electrification and software-defined architectures, the balance of these codes is shifting. While P-codes dominated the internal combustion era, modern electric vehicles generate a significantly higher volume of U-codes and B-codes, reflecting the complexity of battery management systems and advanced driver assistance networks that rely on constant module-to-module communication.[2][8]
