How Spark Plug Heat Ranges Use Ceramic Insulator Length to Prevent Engine Pre-Ignition and Carbon Fouling

On a dynamometer run in a tuning shop, when a technician unthreads a spark plug from a modified engine, they immediately inspect the white ceramic insulator nose. If that ceramic is blistered and chalky white, the cylinder has been running dangerously close to pre-ignition. If it is coated in black soot, the plug is fouling.[1][2]

For a vehicle owner trying to resolve a persistent engine knock or a commuter tired of poor fuel economy, the solution often lies in that ceramic nose. The difference between a clean plug and a ruined engine comes down to the spark plug's heat range. It is a metric that measures thermal dissipation, not the temperature of the electrical spark.[4]

The terminology itself misleads many drivers and amateur mechanics. A "hot" or "cold" spark plug does not produce a hotter or colder electrical arc. Instead, the rating describes how effectively the plug acts as a miniature heat exchanger, pulling thermal energy away from the combustion chamber and transferring it to the engine's cooling system.[1][3]

When a buyer purchases a used car that idles roughly, they might assume the ignition coils are failing. Often, the previous owner simply installed a spark plug with the wrong heat range. Understanding this thermal dynamic is the first step in diagnosing engine health without spending thousands of dollars on unnecessary replacement parts.[4]

The Thermal Operating Window

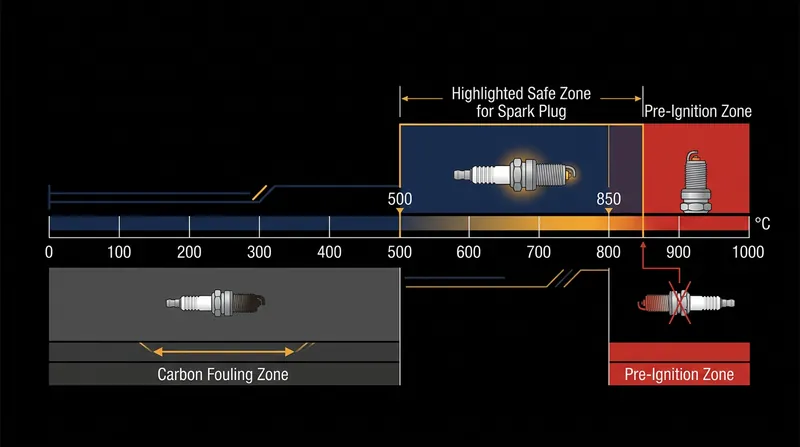

To function correctly, a spark plug must maintain a strict thermal equilibrium regardless of how the vehicle is driven. Industry standards from manufacturers like NGK and Denso dictate that the optimum combustion chamber temperature for the firing end of a spark plug sits between 500 and 850 degrees Celsius.[1][2]

Within this specific 350-degree window, the plug operates safely and efficiently. It remains hot enough to burn off combustion byproducts, yet cool enough to avoid becoming an unintended ignition source. For a daily driver, keeping the plug within this zone is what allows modern spark plugs to last upwards of 100,000 miles.[1]

The lower boundary of 500 degrees Celsius is known as the self-cleaning threshold. If a commuter takes only short, low-speed trips to the grocery store, the engine may never reach this temperature. This allows conductive carbon deposits from unburned fuel to accumulate rapidly on the ceramic insulator nose.[1][2]

Once enough soot builds up, the electrical current takes the path of least resistance. It leaks down the carbon-coated insulator to the metal shell rather than jumping the gap to create a spark. For the owner, this manifests as a frustrating misfire, a flashing check-engine light, and a sudden drop in fuel economy.[1]

The upper boundary of 850 degrees Celsius represents the dangerous pre-ignition threshold. If an owner tows a heavy trailer up a steep grade, cylinder temperatures spike dramatically. If the spark plug cannot shed that excess heat fast enough, the ceramic tip begins to glow like a hot coal inside the cylinder.[1][2]

This glowing ceramic ignites the incoming air-fuel mixture before the ignition coil actually fires the spark. This premature explosion fights the upward momentum of the piston, creating a violent knocking sound. Left unchecked, pre-ignition can shatter pistons and bend connecting rods, turning a simple maintenance oversight into a catastrophic engine failure.[1][3]

How Ceramic Length Controls Heat

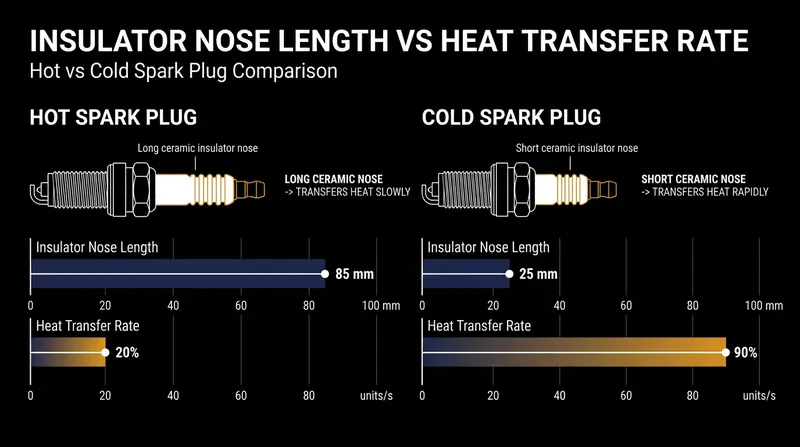

The physical mechanism that controls this critical heat transfer is the length of the ceramic insulator nose inside the plug. A "hot" spark plug features a longer insulator nose, which forces the heat to travel a greater distance before it can escape into the metal shell and the surrounding cylinder head.[1][2]

This longer path traps heat at the tip, allowing the plug to reach the 500-degree self-cleaning threshold quickly even at low engine speeds. For a standard passenger car used primarily for stop-and-go city driving, a hot plug prevents carbon fouling and keeps the engine running smoothly over years of ownership.[1]

Conversely, a "cold" spark plug utilizes a much shorter insulator nose. The reduced distance allows thermal energy to dissipate rapidly into the cylinder head and the engine's water jackets. This rapid heat transfer is mandatory to keep the tip below the dangerous 850-degree limit during periods of high engine load.[1][2]

For a buyer who has purchased a high-performance vehicle, a turbocharged hatchback, or a heavy-duty truck, cold plugs are non-negotiable. These engines generate massive amounts of combustion heat, and a cold plug acts as a thermal safety valve, ensuring the firing end never becomes a source of pre-ignition.[1]

The Margin for Error

Selecting the correct heat range is a precise calculation, not a guessing game for the parts counter. A single step on the heat range scale alters the plug's ability to remove heat by 70 to 100 degrees Celsius. Moving just one step changes the tip temperature significantly under the exact same engine load.[1]

Because the entire safe operating window spans only 350 degrees, a single heat range step consumes between 20 and 28 percent of that margin. A vehicle owner who accidentally installs a plug that is two steps too hot mathematically guarantees that their engine will suffer pre-ignition under heavy load.[4]

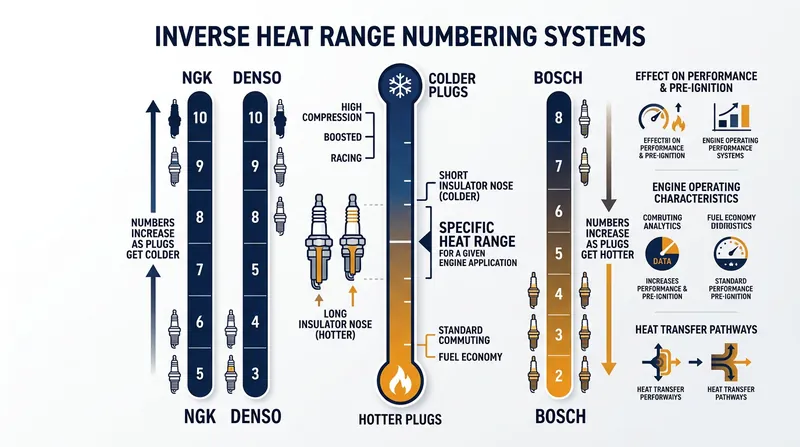

Manufacturers do not use a universal numbering system for these ranges, adding a dangerous layer of complexity for consumers. While brands like Bosch use higher numbers to indicate hotter plugs, companies such as NGK and Denso use higher numbers to designate colder plugs.[1][3]

This lack of standardization means that a buyer cannot simply transfer a heat range number from one brand to another. A "10" in a Champion plug behaves entirely differently than a "10" in an NGK plug. Owners must consult specific manufacturer cross-reference charts rather than assuming a number means the same thing across the industry.[1][3]

Adapting to Engine Modifications

An unaltered factory engine will run perfectly within the optimum temperature range using the manufacturer-specified spark plug. The engineers have already calculated the thermal loads for standard driving conditions. However, the math changes the moment an owner modifies their vehicle to extract more power.[1][2]

Adding a supercharger, increasing the mechanical compression ratio, or advancing the ignition timing raises the baseline combustion temperatures dramatically. A standard industry rule of thumb dictates that an owner should move one heat range colder for every 75 to 100 horsepower added to the engine.[1]

This adjustment ensures that the spark plug can shed the additional thermal load, protecting the financial investment the buyer has made in their modified powertrain. Failing to step down to a colder plug after a major tune is one of the most common causes of blown engines in the aftermarket community.[1][4]

Even changes in fuel type require a reevaluation of the heat range. Switching a vehicle to run on E85 ethanol or methanol alters the burn rate and the cooling dynamics inside the cylinder. Owners running alternative fuels often have to experiment with different heat ranges to find the new thermal equilibrium.[1][2]

Ultimately, reading the physical spark plug remains the most reliable diagnostic tool available to an owner. By understanding that the heat range dictates thermal dissipation rather than spark intensity, drivers can select the exact plug needed to balance carbon fouling resistance against the severe risks of pre-ignition.[4]
