The 12.6 Volt Minimum: How Open-Circuit Voltage Indicates a Lead-Acid Battery's State of Charge

A 12-volt lead-acid battery is only fully charged when its resting open-circuit voltage reads at least 12.6 volts. Anything less means the battery is partially depleted, and a reading of 12.0 volts or lower indicates it is effectively empty and at risk of permanent damage. For a car owner standing in a driveway with a multimeter, that 12.6-volt threshold is the definitive line between a reliable start and a call for a tow truck.[1][2]

The term "12-volt battery" is actually a misnomer that causes widespread confusion among drivers. A standard automotive lead-acid battery does not contain a single 12-volt reservoir; rather, it is constructed from six individual cells wired in series. Each of these cells has a nominal voltage of 2.0 volts, but when fully saturated with a charge, a healthy cell rests at exactly 2.1 volts. Multiplying those six cells by 2.1 volts yields the 12.6-volt minimum that defines a 100 percent state of charge.[1]

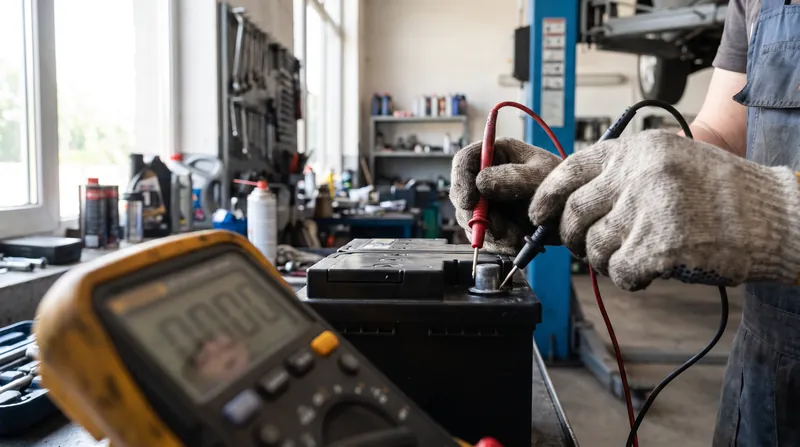

To get an accurate reading, the battery must be tested in a state known as open-circuit voltage (OCV). As technical documentation from EcoFlow explains, "Open circuit voltage is the voltage across a battery's terminals when nothing is connected. No load pulling current, no charger pushing it in. Just the battery sitting there by itself."

The moment a vehicle's alternator pushes current into the battery, the terminal voltage spikes to between 13.8 and 14.4 volts. Conversely, if a load is applied, the internal resistance of the battery drags the measured voltage down, masking its true chemical state.[2]

Measuring the open-circuit voltage requires patience. When a vehicle is first turned off, the battery retains a "surface charge" that artificially inflates the voltage reading, often showing well over 13.0 volts.

According to testing standards published by Battery University, "To get accurate readings, the battery needs to rest in the open circuit state for at least four hours; battery manufacturers recommend 24 hours for lead acid." For a driver trying to diagnose a slow crank, the most accurate reading will come first thing in the morning, before the key is turned in the ignition.[1]

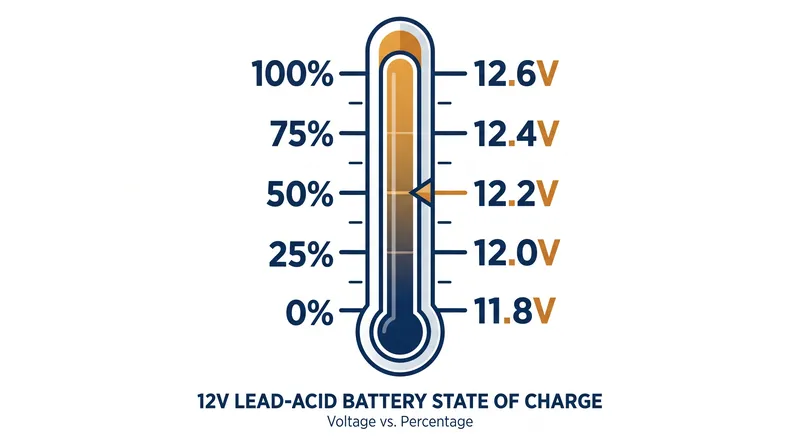

The operational window for a lead-acid battery is remarkably narrow. While 12.6 volts represents a full charge, a reading of 12.2 volts indicates the battery is hovering at roughly 50 percent capacity. By the time the multimeter reads 11.8 volts, the battery is entirely depleted. This means that a drop of just one-tenth of a volt equates to a 10 to 15 percent loss in available energy. Understanding this tight margin helps owners realize that a battery reading 12.0 volts is not "almost full"—it is completely dead.[1]

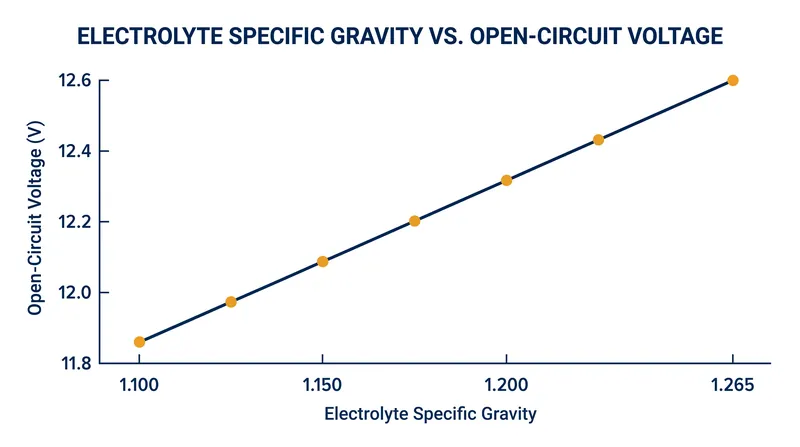

The science behind this voltage drop is tied directly to the specific gravity of the battery's electrolyte. As a lead-acid battery discharges, the sulfuric acid in the fluid reacts with the lead plates to form lead sulfate and water. This chemical reaction dilutes the acid, which directly reduces the electromotive force, or voltage, generated by each cell. When the battery is recharged, the process reverses, driving the sulfate back into the fluid and restoring the acid's concentration and the battery's voltage.[1]

Failing to maintain that 12.6-volt minimum has severe financial consequences for vehicle owners. When a battery is left in a discharged state—typically below 12.4 volts—for extended periods, the soft lead sulfate crystals on the plates begin to harden. This process, known as permanent sulfation, chokes off the battery's ability to accept or deliver a charge. Once sulfation sets in, no amount of driving or time on a charger will restore the battery to its original capacity, forcing a premature replacement.[1]

Modern battery technologies have slightly shifted these baselines, though the underlying principles remain identical. Absorbed Glass Mat (AGM) batteries and those utilizing calcium-alloy plates often feature a slightly higher resting voltage, typically reaching 12.8 volts when fully charged.

However, temperature also plays a critical role; cold weather depresses the chemical reaction, slightly lowering the open-circuit voltage, while extreme heat can artificially raise it. Regardless of the specific chemistry, treating 12.6 volts as the absolute floor for a healthy, fully charged battery remains the most reliable rule of thumb for any driver.[1]

For the average consumer, this means that preventative maintenance is no longer just about cleaning corrosion off the terminals. In 2026, modern vehicles draw a constant parasitic load to keep security systems, keyless entry modules, and telematics awake.

If a car sits unused for a week, that slow drain can easily pull the battery below the 12.4-volt danger zone. Using a smart trickle charger to hold the battery at a float voltage of 13.2 volts prevents this silent degradation, ensuring the open-circuit voltage remains at a healthy 12.6 volts when the charger is finally removed.[3]
