Engine Control Modules Use Crankshaft Speed Fluctuations to Pinpoint Cylinder Misfires

A flashing check engine light now sends a vehicle owner straight to a specific spark plug or ignition coil, bypassing hours of diagnostic guesswork. When a modern dashboard illuminates with a P0304 diagnostic trouble code, the engine control module has already determined that cylinder number four is failing to contribute its share of rotational force. This precision prevents mechanics from throwing expensive parts at a rough idle, turning a potentially open-ended repair bill into a targeted, single-component replacement.[5]

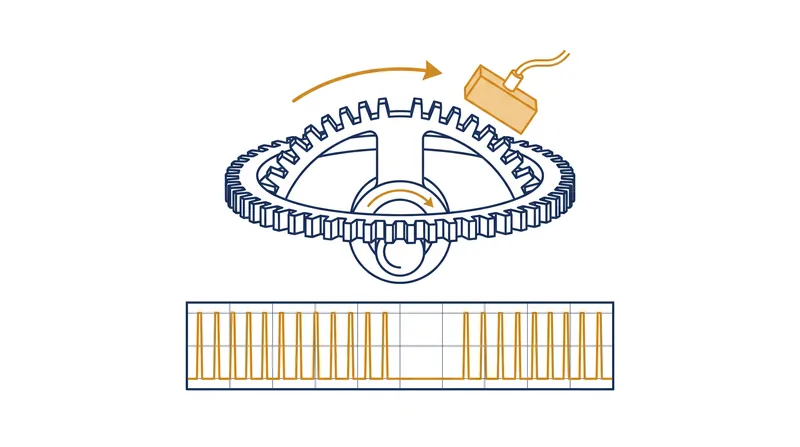

The mechanism behind this exactitude relies entirely on the crankshaft position sensor, a magnetic or Hall-effect pickup mounted near the bottom of the engine block. As the engine runs, a reluctor wheel attached to the crankshaft spins past this sensor. Most modern vehicles use a 60-2 tooth wheel configuration, meaning it features 58 evenly spaced teeth and a two-tooth gap that serves as a fixed reference point for top dead center.[4]

Every time a spark plug ignites a compressed air-fuel mixture, the resulting explosion drives the piston downward, physically accelerating the heavy steel crankshaft. Between these power strokes, the rotational speed naturally decays as the engine compresses the next cylinder's charge. The engine control module measures the time it takes for each individual tooth on the reluctor wheel to pass the sensor, calculating the angular velocity in microseconds.[1]

If cylinder four misfires—whether due to a dead ignition coil, a clogged fuel injector, or a loss of compression—that expected microsecond acceleration never arrives. The crankshaft actually slows down during the exact window when cylinder four should have been pushing it. By mapping this deceleration against the firing order, the computer identifies exactly which cylinder dropped the ball.[5]

"The misfire monitor evaluates engine misfires that can cause catalyst damage or emissions to exceed 1.5 times the applicable standard," according to the New York Vehicle Inspection Program's diagnostic guidelines. This is not merely a convenience feature for mechanics; it is a strict federal emissions requirement. Unburned fuel from a misfiring cylinder travels directly into the exhaust system, where it ignites inside the catalytic converter, rapidly melting the internal ceramic honeycomb.[3]

To prevent this catastrophic damage, the diagnostic software categorizes misfires into two distinct severity levels. A Type A misfire is severe enough to melt the catalyst. The computer evaluates this over a rolling 200-revolution window. If the misfire rate exceeds the threshold within those 200 revolutions, the system immediately flashes the check engine light, warning the driver to shut the engine down before a $2,000 exhaust repair becomes necessary.[3]

A Type B misfire is less severe—it increases tailpipe emissions but does not immediately threaten the catalytic converter. The engine control module evaluates Type B misfires over a longer 1,000-revolution window. If the failure rate crosses the threshold during this period, the system illuminates the check engine light solidly, indicating that the vehicle needs service but can still be driven home safely.[3]

Detecting these speed variations becomes exponentially more difficult at highway speeds. At 6,000 revolutions per minute, the entire power stroke occurs in a fraction of a millisecond. Furthermore, driving over a pothole or a rough gravel road sends mechanical shocks through the drivetrain, causing the crankshaft to momentarily accelerate or decelerate in ways that perfectly mimic a misfire.[1]

Early onboard diagnostic systems struggled with this mechanical noise. The foundational 1995 patent for linear detection of crankshaft angular speed, filed during the rollout of the OBD-II standard, detailed complex filtering algorithms designed to isolate genuine combustion failures from rough-road vibrations. If the anti-lock braking system detects wheel speed variations consistent with a bumpy road, modern engine computers temporarily suspend the misfire monitor to prevent false P0300 codes.[4]

The diagnostic strategy changes when the computer cannot isolate a single cylinder. If the crankshaft speed fluctuates randomly across the entire firing order, the system sets a P0300 code, indicating a random or multiple cylinder misfire. For an owner or mechanic, this shifts the diagnostic focus away from individual ignition coils and toward systemic issues that affect the entire engine, such as a failing fuel pump, a massive vacuum leak, or a contaminated tank of gasoline.[5]

The engineering behind this detection continues to evolve away from rigid mechanical thresholds. A 2022 study published in the journal Applied Sciences demonstrated that replacing traditional threshold-based logic with Long Short-Term Memory recurrent neural networks dramatically improves detection accuracy under varying loads.[2]

By training these neural networks on massive datasets of crankshaft speed variations, engineers achieved a 99.8 percent classification accuracy for single-cylinder misfires. The algorithmic approach allows the engine control module to recognize the complex, non-linear vibration signatures of a failing spark plug long before the misfire becomes severe enough to trigger a traditional 200-revolution Type A failure.[2]

AI

For the person holding the steering wheel, this invisible mathematics translates directly into financial predictability. When a mechanic pulls a P0304 code, standard diagnostic procedure dictates swapping the ignition coil from cylinder four to cylinder two, clearing the codes, and test driving the vehicle to see if the fault migrates.[5]

If the misfire follows the coil and the computer subsequently registers a P0302 code, the diagnosis is absolute. The owner purchases a single $60 ignition coil rather than authorizing hours of exploratory teardown. The ability to measure a microsecond delay in a spinning block of steel has fundamentally democratized engine repair, putting dealership-level diagnostic certainty into the hands of anyone with a twenty-dollar code reader.[5]
