Pure Ethylene Glycol Freezes at Minus 13 Celsius: How Water Creates a Eutectic Mixture

Many car owners assume that if a standard half-and-half mix of antifreeze and water protects an engine during winter, pouring in 100 percent pure antifreeze will provide the ultimate defense against a deep freeze. This intuition dominates driveway maintenance, where drivers routinely top off their radiators with undiluted coolant to prepare for January.

The chemistry of automotive coolants directly contradicts that logic. Pure ethylene glycol, the active ingredient in nearly all conventional antifreeze, actually freezes solid at minus 12.9 degrees Celsius, or about 9 degrees Fahrenheit.[2]

A vehicle filled entirely with pure antifreeze would suffer a cracked engine block in a mild Chicago winter. It is only by diluting the chemical with water that the mixture achieves its extreme cold-weather resilience.[6]

When mixed at a precise ratio, the two liquids form a eutectic mixture, a unique chemical state where the combined fluid freezes at a lower temperature than either of its individual components. Water freezes at zero degrees Celsius, and pure glycol at minus 13.[1][2]

Together, however, they can protect an engine down to minus 68 degrees Celsius. This dramatic temperature depression relies entirely on the molecular interference between the two distinct substances.[3]

The Mechanics of Molecular Interference

Water molecules naturally want to align into a rigid crystalline lattice as temperatures drop, which is exactly how ice forms. Ethylene glycol molecules also attempt to organize into their own solid structure when the ambient temperature falls below minus 13 degrees Celsius.[1][2]

Because both molecules contain oxygen and hydrogen atoms, they form strong hydrogen bonds with one another. These cross-species bonds are powerful enough to physically block both the water and the glycol from organizing into their respective solid states.[1]

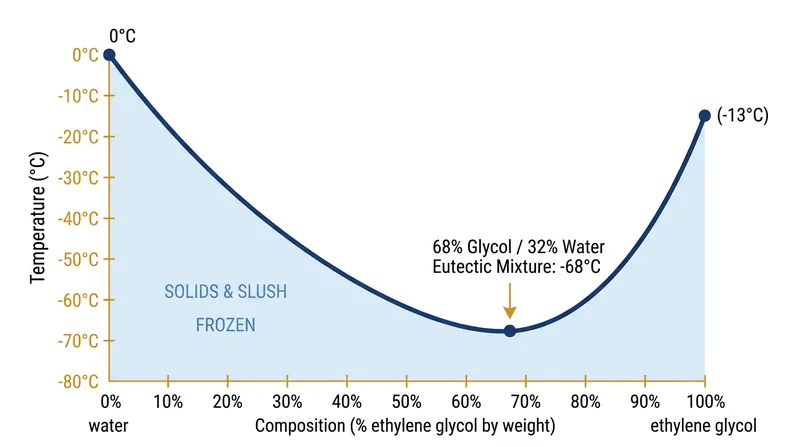

"The lowest freezing point for ethylene glycol and water mixtures occurs at approximately 68 percent ethylene glycol by mass," notes the Engineering ToolBox in its fluid dynamics reference guide.[3]

At this exact 68-to-32 ratio, the fluid reaches its eutectic point. The molecules are so thoroughly entangled that they cannot separate to form crystals until the temperature plunges to minus 68 degrees Celsius.[3]

Why Heat Transfer Requires Dilution

For a vehicle owner standing in an auto parts store, this chemistry dictates exactly which jug to buy. While pre-mixed 50/50 coolant is convenient, buyers purchasing concentrated antifreeze must measure their dilution carefully to ensure the engine survives the winter.[6]

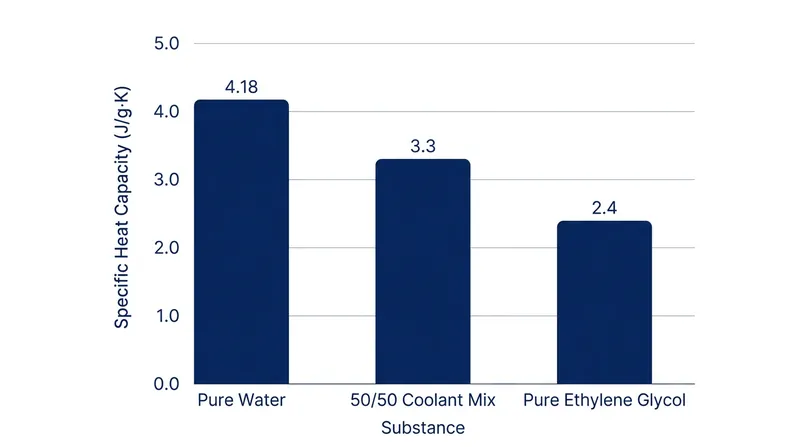

Beyond freezing protection, water is essential for the engine's thermal management during operation. Pure ethylene glycol has a specific heat capacity of just 2.4 joules per gram per degree Kelvin, making it highly inefficient at absorbing heat from the engine block.[3]

Water, by contrast, boasts a specific heat capacity of 4.18 joules, making it one of the most effective heat-transfer fluids on earth. The 50/50 mixture balances the extreme temperature protection of the glycol with the thermal efficiency of the water.[3]

The Danger of the Pure Pour

Drivers who pour pure concentrated antifreeze into their radiators inadvertently create two distinct mechanical risks. In the winter, the fluid will freeze prematurely, potentially expanding and fracturing the aluminum or cast-iron engine block.[6]

In the summer, the lack of water prevents the radiator from shedding heat fast enough. The engine will rapidly overheat under heavy loads, even though the pure glycol itself will not boil until it reaches 197 degrees Celsius.[2][6]

Furthermore, pure ethylene glycol is a highly viscous, syrupy liquid. A vehicle's water pump is engineered to circulate a fluid with the viscosity of a 50/50 mix, and forcing pure glycol through the system strains the pump bearings and reduces flow rates.[3][4]

Corrosion and the Chemical Lifespan

Modern antifreeze contains more than just ethylene glycol; it carries a precisely engineered package of silicates, phosphates, and organic acid corrosion inhibitors. These additives are specifically designed to activate in the presence of water.[1]

Without sufficient water to act as a solvent, these chemical inhibitors cannot properly coat the internal passages of the cooling system. The result is accelerated galvanic corrosion between the dissimilar metals in the engine block and the radiator.[1][6]

According to the Environmental Protection Agency's chemical safety profile, "Ethylene glycol is a clear, colorless, syrupy liquid... that lowers the freezing point of water," but it requires that aqueous environment to function as a protective agent.[4]

Finding the Optimal Balance

For most North American and European drivers, a 50/50 mixture remains the universal standard. This ratio provides freezing protection down to minus 37 degrees Celsius, which is sufficient for all but the most extreme Arctic environments.[3]

In regions like northern Alaska or the Canadian Yukon, mechanics adjust the ratio closer to 60 percent glycol and 40 percent water. This pushes the freezing point down to minus 52 degrees Celsius while retaining enough water to cool the engine in summer.[3][6]

Pushing the mixture to the 68 percent eutectic point is rarely done in passenger vehicles, as the loss in heat-transfer efficiency outweighs the benefit of minus 68 degree protection. At 70 percent glycol and above, the freezing point actually begins to rise again.[3]

The chemistry of automotive coolants proves that maximum concentration does not equal maximum protection. By relying on the hydrogen bonds between two distinct molecules, a properly diluted cooling system achieves a resilience that neither chemical could manage alone.[6]
