The CdA Metric: Why Frontal Area, Not Just Drag Coefficient, Dictates Vehicle Range

The binding constraint for vehicle efficiency is the physical wall of air it must push out of the way, a condition that only dominates energy consumption once a vehicle surpasses 40 miles per hour. For the average highway commuter in 2026, this condition holds every single day. Yet, when buyers evaluate a new electric vehicle, they are often sold on a single, incomplete number: the drag coefficient, or Cd.

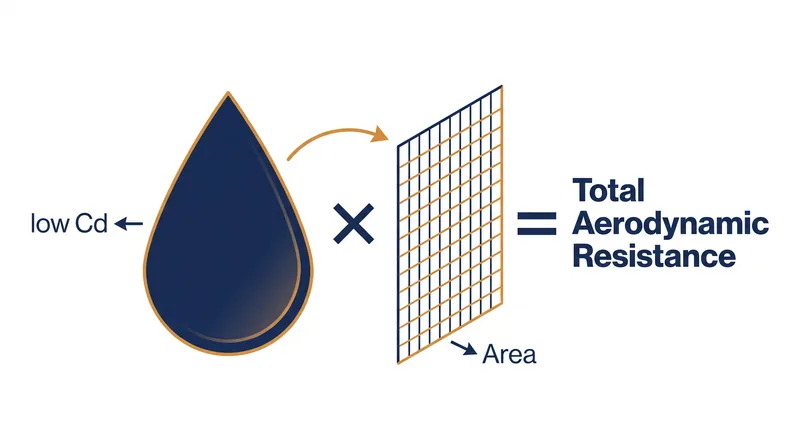

The drag coefficient measures how slippery a shape is, but it completely ignores how large that shape is. To understand the actual energy required to move a vehicle down the interstate, engineers use CdA—the coefficient of drag multiplied by the frontal area. This combined metric is the single determinant of total aerodynamic resistance.[1][9]

As the engineering documentation from Race Technology explicitly states, "The aerodynamic drag is proportional to the product of the frontal area and the drag coefficient." If a buyer purchases a massive electric SUV with a highly optimized Cd, they are still pushing a massive wall of air, requiring immense battery power to maintain speed.[1]

Consider the Tesla Model S, which Green Car Reports noted "achieved a highly competitive drag coefficient of 0.24" during its wind tunnel testing. That slippery, teardrop shape allows the sedan to conserve battery life effectively at 70 mph, setting a benchmark for the industry.[2]

However, if an automaker applies a similar 0.24 drag coefficient to a modern electric pickup truck that is twice as tall and significantly wider, the total CdA doubles. The vehicle's battery must work twice as hard to maintain the exact same highway speed, directly impacting the owner's charging frequency and electricity bill.[9]

According to the Petroleum Service Company's analysis of automotive aerodynamics, the push for better fuel economy and extended EV range has made aerodynamic optimization the primary focus of modern vehicle design. But physics dictates a harsh reality: a smaller, less aerodynamic car can still outperform a highly aerodynamic large truck simply because its frontal area is smaller.[3]

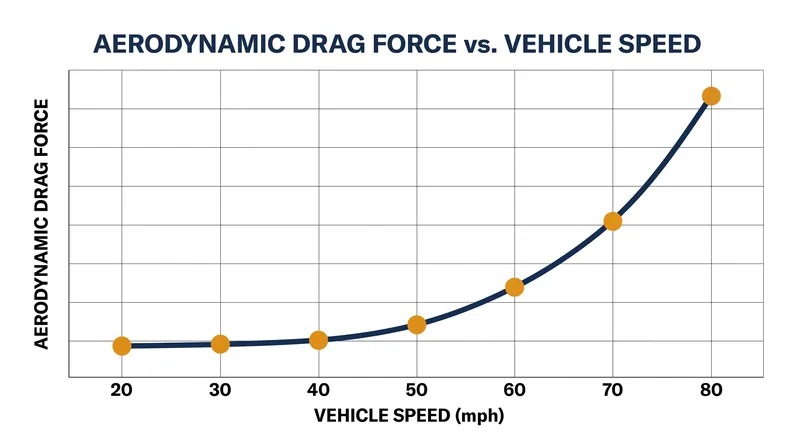

Mecaflux, a fluid mechanics reference standard, details that the aerodynamic resistance force increases with the square of the vehicle's speed. This means that at 80 mph, the energy penalty of a large frontal area is four times greater than it is at 40 mph. For a family planning a cross-country road trip, this exponential increase is the difference between reaching the next charging station and calling a tow truck.[4]

The HandWiki database of automobile drag coefficients, updated in April 2026, lists historical and modern vehicles, showing how shapes have evolved from the boxy sedans of the 1980s—which often carried a Cd above 0.40—to modern teardrop EVs. Yet, because modern vehicles have grown significantly wider and taller to accommodate safety structures and consumer preferences, the total CdA has not dropped as dramatically as the Cd alone.[5]

SAE International research on the aerodynamic effect on vehicle handling highlights that reducing drag often involves managing airflow under the vehicle and around the wheels. These underbody optimizations lower the Cd, but they cannot shrink the physical footprint of a 5,000-pound, three-row SUV pushing through the atmosphere.[6]

In the commercial sector, the financial stakes of CdA are even higher. A study published in ScienceDirect on the aerodynamic and rolling resistances of heavy-duty vehicles found that aerodynamic drag accounts for a massive portion of a truck's fuel consumption at highway speeds. Fleet operators do not look at Cd in isolation; they calculate total CdA to project annual fuel costs across thousands of miles.[7]

"Model-based estimation of vehicle aerodynamic drag and rolling resistance," a paper from ResearchGate, demonstrates how real-world driving conditions—like crosswinds and varying air density—interact with a vehicle's CdA. The larger the frontal area, the more susceptible the vehicle is to these environmental variables, further degrading real-world efficiency compared to pristine wind tunnel numbers.[8]

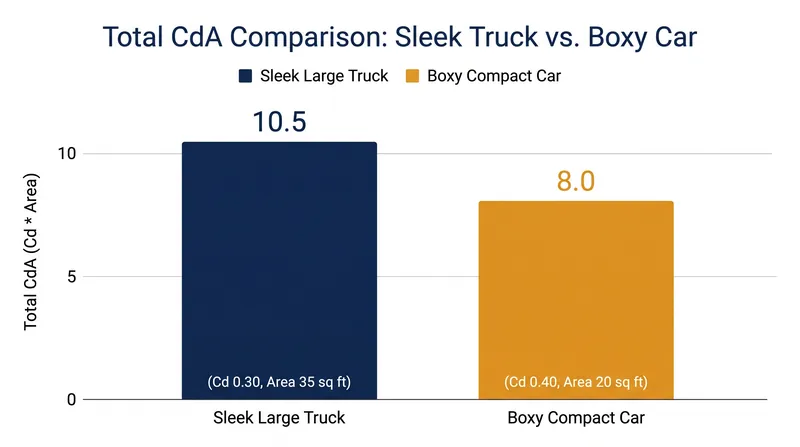

For the everyday buyer, this means looking past the marketing brochure. A sleek, highly aerodynamic electric truck might boast a Cd of 0.30, but if its frontal area is 35 square feet, its CdA is 10.5. A boxy older compact car with a poor Cd of 0.40 but a frontal area of only 20 square feet has a CdA of 8.0—making it fundamentally more efficient at highway speeds.[9]

The transition to electric vehicles has exposed the unyielding physics of aerodynamic resistance. Batteries remain heavy and expensive, and using them to push a massive, albeit slippery, shape through the air is an inefficient use of grid resources. Buyers navigating the 2026 market must weigh their desire for interior space against the hidden, ongoing cost of a large frontal area.[9]
