Comparing Bus Rapid Transit and Light Rail: What the Evidence Says About Cost, Capacity, and Speed

A multi-billion-dollar transit bond on a local ballot usually boils down to a single, highly contested choice: rubber tires or steel rails. For the commuter waiting in the rain and the homeowner watching their property tax assessment, the difference between Bus Rapid Transit (BRT) and Light Rail Transit (LRT) dictates the future of their city's mobility and their own wallet.[10]

The debate often devolves into tribalism, with rail purists dismissing buses as glorified traffic and fiscal hawks balking at the staggering price tags of track installation. Yet, when stripped of political rhetoric and public perception gaps, the choice between BRT and LRT is a rigorous engineering and economic calculation.[9]

To understand the comparison, one must first define the terms. True Bus Rapid Transit is not simply a standard city bus with a painted lane. According to global transit standards, a gold-standard BRT system features physically separated right-of-ways, off-board fare collection, platform-level boarding, and transit signal priority at intersections.[6]

Light Rail Transit, conversely, utilizes electric rail cars operating on steel tracks, often powered by overhead catenary wires. LRT can operate in mixed traffic, but like BRT, it achieves its highest efficiency, speed, and safety metrics when given a dedicated, grade-separated corridor.[7]

The most immediate and striking divergence between the two modes is the upfront capital expenditure. Building any high-capacity transit corridor requires acquiring land, moving underground utilities, and pouring concrete—but laying steel track and building electrical substations adds a massive premium to the final bill.[3]

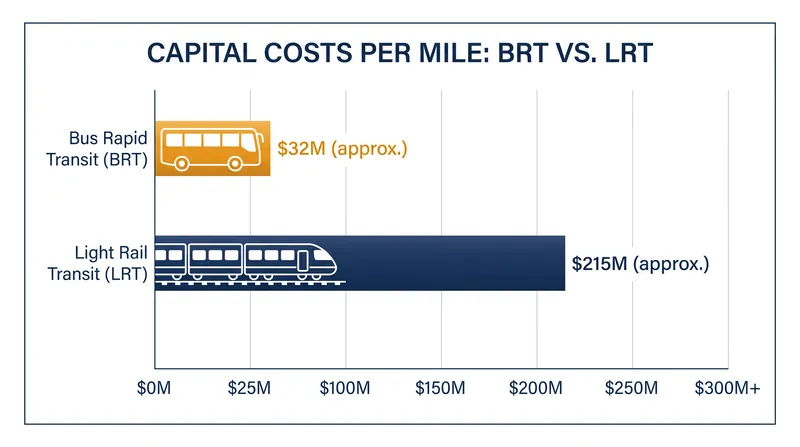

Data from global transit deployments reveals that BRT consistently requires a fraction of the capital cost of LRT. Depending on the region and the complexity of the right-of-way, a mile of BRT can be constructed for significantly less than a comparable mile of light rail, allowing cities to build extensive, multi-line networks rather than single, isolated rail corridors.[8]

However, this upfront discount can be deceptive if a city must purchase expensive urban real estate to widen roads for dedicated bus lanes. When right-of-way acquisition costs dominate the project budget, the capital cost gap between BRT and LRT begins to narrow, though rail almost always remains the more expensive initial investment.[1]

The financial narrative shifts dramatically when planners look past the ribbon-cutting ceremony and analyze decades of operating costs. Transit is a fundamentally labor-intensive industry, and the cost of paying drivers and operators represents the largest ongoing expense for any municipal agency.[2]

This is where light rail's physical geometry provides a structural advantage. A single light rail operator can drive a multi-car train carrying upwards of 300 to 400 passengers at a time. A BRT driver, even operating a massive articulated bus, is physically capped at roughly 100 to 120 passengers.[7]

Consequently, as ridership volumes scale, the operating cost per passenger for BRT begins to outpace LRT. Parametric cost models indicate that once a corridor exceeds a specific threshold of peak passengers per hour, the labor efficiencies of light rail completely offset its higher initial construction costs over a thirty-year lifespan.[2]

Capacity itself is the ultimate ceiling for any transit mode. While a world-class BRT system like Bogotá’s TransMilenio can move staggering numbers of people through passing lanes and massive stations, most North American and European BRT corridors max out well before their rail counterparts.[1]

When a corridor demands moving more than 10,000 passengers per hour per direction, light rail becomes not just an option, but an engineering necessity to prevent vehicle bunching, platform overcrowding, and systemic delays.[10]

Beyond pure mathematics, transit planners must grapple with human psychology and the well-documented phenomenon of "rail bias." Studies exploring comparative ridership drivers consistently show that, all else being equal, passengers express a preference for trains over buses, often viewing rail as a more premium service.[4]

However, deeper analysis suggests this bias is often a proxy for speed, reliability, and legibility. When a BRT system is designed with the same permanence, distinct branding, and dedicated right-of-way as a train, the ridership gap between the two modes shrinks considerably, proving that commuters value time above vehicle type.[4]

Environmental impact is another critical vector in the modern transit equation. Historically, light rail’s reliance on electric overhead wires gave it a massive emissions advantage over traditional diesel-powered BRT fleets.[5]

Today, the rapid maturation of battery-electric buses is closing that gap. While electric BRT eliminates tailpipe emissions entirely, LRT still maintains a slight edge in overall energy efficiency due to the lower rolling resistance of steel wheels on steel tracks compared to rubber tires on asphalt.[5]

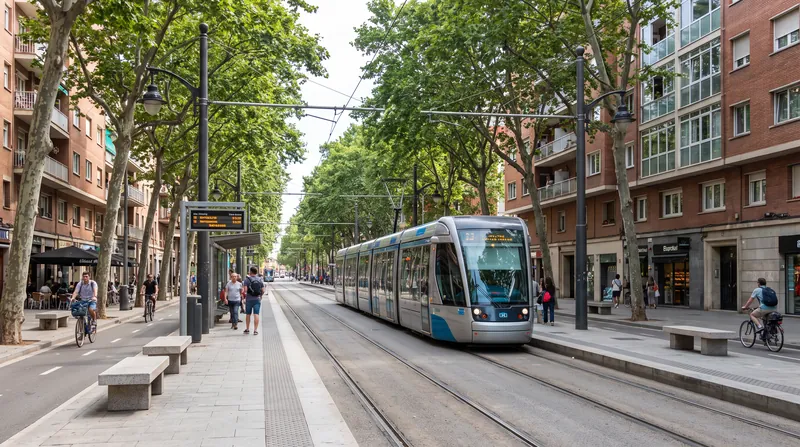

The permanence of infrastructure also dictates land use and economic development. Real estate developers are historically more willing to invest in high-density housing and retail around a light rail station, trusting that the steel tracks cannot be easily rerouted by a future city council.[1]

To combat this perception, modern BRT implementations invest heavily in substantial, permanent station architecture to signal long-term commitment to developers, though rail still commands a premium in transit-oriented development metrics.[6]

Real-world applications require balancing these competing factors. In a recent high-capacity transit screening for Columbus, Ohio, planners weighed BRT against LRT for a major east-west corridor, ultimately analyzing capital costs, travel times, and economic development potential to find the right fit for the city's specific density profile.

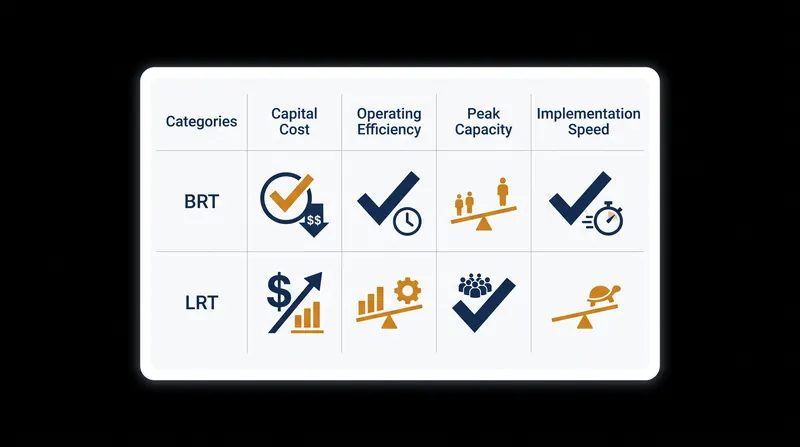

Ultimately, neither mode is universally superior. BRT offers the flexibility and low capital barrier necessary to blanket a sprawling city with high-quality transit, while LRT provides the high-capacity, labor-efficient heavy lifting required for dense, mature urban corridors.[10]
