Megacasting Emerges as Structural Cost Lever, Replacing Hundreds of Stamped Parts in North American Auto Manufacturing

Most people assume that the high cost of modern electric vehicles comes entirely from the battery pack. But the hidden culprit inflating the sticker price of a new car—and the repair bill after a fender bender—is the sheer complexity of its skeleton. For decades, a vehicle's chassis has been built by stamping hundreds of individual steel parts and laboriously welding, riveting, and gluing them together. Now, a manufacturing shift known as megacasting is rewriting that equation. By injecting molten aluminum into massive, house-sized presses, automakers are replacing hundreds of stamped components with a single structural piece.[2][4]

The traditional process of building a car's body-in-white is a logistical marathon. It requires sprawling supply chains to deliver hundreds of distinct metal brackets, flanges, and panels to the assembly line. Once there, fleets of robotic arms perform thousands of spot welds to stitch the pieces into a rigid frame. This method is highly flexible, allowing automakers to use the same stamping presses for multiple vehicle models, but it is incredibly labor-intensive and requires massive factory floor space.[1]

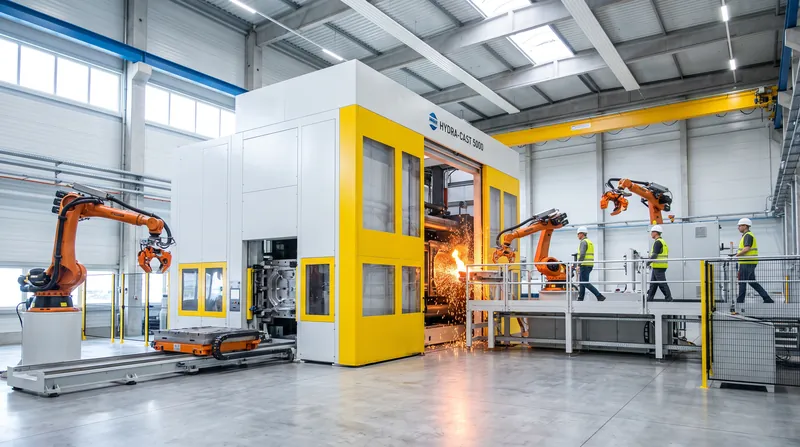

Megacasting, sometimes referred to as gigacasting, flips this script by utilizing high-pressure die casting on an unprecedented scale. Giant machines, often weighing over 400 tonnes and capable of exerting between 6,000 and 12,000 tonnes of clamping force, inject molten aluminum alloy into a massive mold in milliseconds. The result is a single, continuous casting that forms an entire front or rear underbody structure. What once took hours of welding across dozens of workstations is now accomplished in a single shot.[1][3]

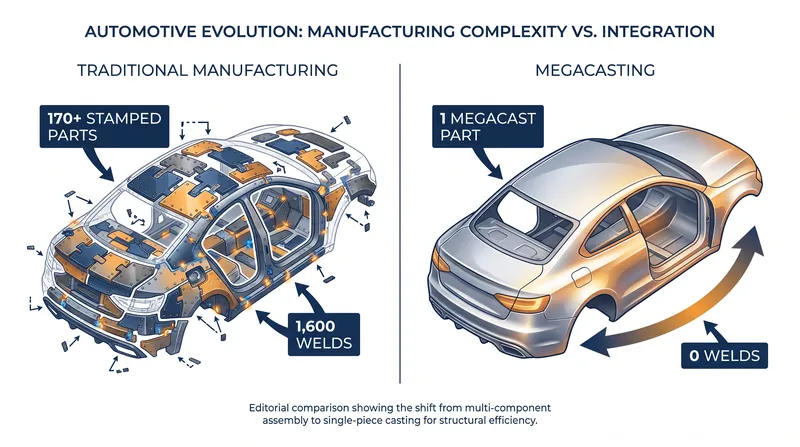

The economic implications of this transition are already reshaping the North American automotive landscape. Industry analysts note that large-scale castings enable original equipment manufacturers to remove labor, tooling, and assembly complexity from the cost stack. For example, replacing a rear structure that previously required over 170 separate metal pieces and 1,600 welds with just two cast parts drastically reduces the need for factory floor space and robotic welding stations.[4]

Automakers are aggressively pursuing this production minimalism to offset input-cost inflation and the heavy capital requirements of electric vehicle development. Ford's leadership has posited that next-generation manufacturing approaches leveraging large unicast components could enable approximately 20 percent fewer parts, 25 percent fewer fasteners, and 40 percent fewer workstations relative to a typical vehicle. This translates to a 15 percent faster assembly time, a critical lever for bringing affordable electric vehicles to the mass market.[1]

The environmental footprint of megacasting presents a complex trade-off. Aluminum production is highly energy-intensive, meaning the raw material carries a larger initial carbon footprint than traditional steel. However, the megacasting process achieves exceptional material utilization. Because the scrap produced during the casting process can be immediately remelted in-house, manufacturers can achieve up to 95 percent material utilization, eliminating the massive waste associated with stamping steel blanks.[4]

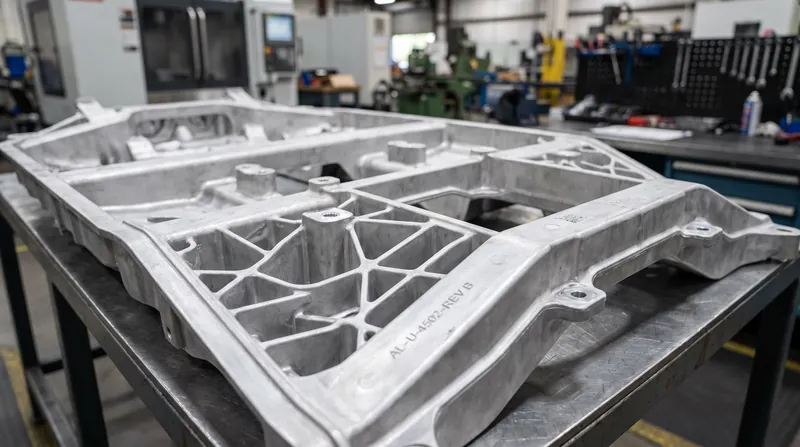

Furthermore, the resulting aluminum structures are significantly lighter than their steel counterparts. This weight reduction is crucial for electric vehicles, as it helps offset the massive weight of the battery pack, thereby improving the vehicle's overall range and efficiency. The ability to cast intricate geometries also allows engineers to integrate mounting points for suspension, batteries, and motors directly into the frame, further reducing the need for heavy add-on brackets.[1][2]

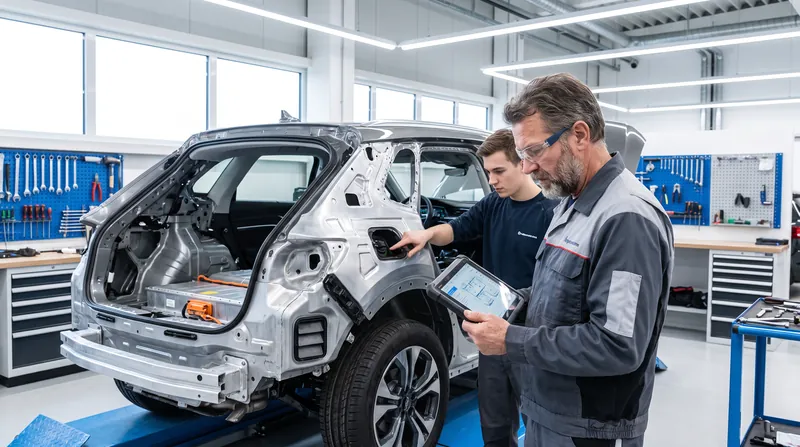

Despite the manufacturing efficiencies, the shift to megacasting introduces significant uncertainty for the collision repair industry and local body shops. A traditional steel frame can often be repaired in sections; if a rear quarter panel or a specific bracket is damaged in a collision, a technician can cut out the damaged section and weld in a replacement. A megacast structure, however, is a single, continuous piece of cast aluminum.[2][4]

Cast aluminum behaves differently than stamped steel under stress. It is more brittle and cannot simply be hammered out or easily welded back together without compromising its structural integrity. If a vehicle with a megacast rear underbody suffers a moderate rear-end collision that cracks the casting, the entire structural component may be compromised. Because replacing the entire rear underbody of a fully assembled car is often economically unfeasible, insurers may be forced to total vehicles that would have been repairable under traditional manufacturing methods.[2][4]

This dynamic creates a tension between the upfront cost of the vehicle and its long-term cost of ownership. While megacasting promises to lower the initial purchase price of electric vehicles by slashing manufacturing costs, those savings could be offset by higher insurance premiums if minor accidents routinely result in total losses. Automakers are currently working to develop repair procedures, such as specialized structural adhesives and partial replacement sections, but the long-term repairability of these massive castings remains largely untested in the real world.[2][4]

The barrier to entry for megacasting is also extraordinarily high. A single Giga Press can cost upwards of $20 million, and the specialized molds required for each part can exceed $12 million. Because these molds are inflexible—meaning a $12 million die can only produce one specific part exactly as designed—the economics only make sense at massive production volumes. This capital intensity is driving consolidation among automotive suppliers, favoring those with the balance sheet strength to deploy these massive machines.

Ultimately, megacasting represents a fundamental rethinking of how cars are built. By prioritizing manufacturing simplicity and weight reduction, automakers are betting that the efficiencies of the factory floor will outweigh the complexities of the repair shop. For the consumer, this manufacturing revolution will likely dictate the price tags and insurance premiums of the next decade of electric vehicles, marking one of the most significant shifts in automotive design since the introduction of the unibody chassis.[2][4]
