How Pressure Loss Stops 14,000-Ton Freight Trains: The Fail-Safe Engineering of Railway Air Brakes
Modern rail networks rely on an inverted pneumatic system where a loss of air pressure—rather than an increase—forces brake shoes against the wheels. This 150-year-old fail-safe ensures that any rupture in the train's brake pipe automatically brings the entire consist to a halt.
- Regulatory Agencies
- Focus on codifying fail-safe minimums and ensuring that all operating consists default to a stopped state during any mechanical failure.
- Rail Engineers
- Prioritize the practical management of air pressure on long descents to prevent reservoir depletion and maintain stopping power.
- Pneumatic System Researchers
- Analyze the propagation speed of pressure drops to optimize stopping distances and integrate electronic overlays.
Perspectives this story doesn't cover
- Local Municipalities Near Rail Lines
- Train Dispatchers
Key terms
- Triple Valve
- The central control valve on each railcar that monitors brake pipe pressure and directs air between the main line, the auxiliary reservoir, and the brake cylinder.
- Brake Pipe
- The continuous pneumatic line running the entire length of the train, carrying compressed air from the locomotive to every connected car.
- Auxiliary Reservoir
- A localized air tank on each individual railcar that stores the compressed air used to physically push the brake shoes against the wheels.
- Fail-Safe
- An engineering design principle where a system defaults to a safe condition (in this case, fully braked) in the event of a mechanical or power failure.
Key points
- Railway air brakes operate on an inverted principle where continuous air pressure keeps the brakes released.
- A drop in brake pipe pressure automatically forces localized air reservoirs to apply the brake shoes.
- The fail-safe design ensures that any mechanical separation or compressor failure results in an immediate stop.
- Modern federal regulations mandate this pneumatic baseline even as electronic overlays are introduced.
A fully loaded 100-car freight train weighs roughly 14,000 tons—the equivalent of 8,500 passenger sedans rolling down a track at 50 miles per hour. Bringing that immense mass to a halt requires dissipating a staggering amount of kinetic energy, and doing so safely across a mile of connected cars relies on a counterintuitive engineering principle. Instead of applying force to stop the vehicle, the system constantly applies force to allow the vehicle to move. The brakes apply automatically when the system loses power, not when it gains it, ensuring that any mechanical failure defaults to a safe, stopped state.[1]
In a standard passenger vehicle, pressing the brake pedal pushes hydraulic fluid through the lines to clamp the brake pads against the rotors. If the fluid leaks or the line severs, the brakes fail entirely, leaving the driver unable to stop. Railway air brakes invert this logic completely to protect the massive scale of the consist. The system uses continuous compressed air to keep the brakes released and held away from the wheels. If a pipe bursts, a car detaches from the train, or the locomotive's compressor fails, the sudden drop in air pressure automatically forces the brake shoes against the wheels, halting the train without any human intervention.[2]
This fail-safe architecture dates back to 1872, when engineer George Westinghouse filed US Patent 124404 for the triple-valve automatic air brake. Westinghouse recognized that relying on a locomotive to send positive pressure down a mile-long train was inherently dangerous and practically flawed. If the train separated on a steep grade, the rear cars would have no way to receive the braking signal and would become a runaway hazard. By redesigning the system so that the locomotive constantly pumps air to hold the brakes off, Westinghouse ensured that any mechanical failure would result in an immediate stop.
The genius of the design lay in placing a localized power source on every single car. 'The improvement consists in the construction and arrangement of the air-reservoirs, pipes, and valves,' Westinghouse wrote in his patent, detailing how a localized reservoir on each car would store the compressed air needed to apply the brakes if the main line failed. This meant that the stopping power was distributed evenly across the entire length of the train, rather than relying solely on the locomotive at the front to arrest the momentum of thousands of trailing tons.
Today, that exact same principle governs the 1.4 million freight cars operating across North America. Under Title 49, Part 232.103 of the Code of Federal Regulations, the Federal Railroad Administration mandates strict performance baselines for these systems. The regulation requires that all train brake systems must be capable of stopping the train from its maximum operating speed, and crucially, that the system must automatically apply if the brake pipe pressure drops. This legal requirement ensures that the 19th-century fail-safe remains the non-negotiable foundation of modern rail safety.[3]
The mechanism relies on three main components installed on every railcar: a continuous brake pipe running the length of the train, an auxiliary air reservoir, and the critical triple valve. When the train is running normally, the locomotive's heavy-duty air compressor maintains a steady pneumatic pressure—typically 90 pounds per square inch for freight operations and 110 pounds per square inch for passenger trains—throughout the entire length of the brake pipe. This continuous flow of air is the lifeblood of the consist, acting as both the control signal and the energy source that keeps the massive steel wheels rolling freely along the track.[1][2]
This 90-psi pressure pushes against the internal diaphragm of the triple valve, keeping the connection between the auxiliary reservoir and the brake cylinder closed, while simultaneously charging the reservoir with fresh air. As long as the pipe remains fully pressurized, the brake shoes are held away from the wheel treads. The system is essentially coiled and waiting; the energy required to stop the train is already stored in the auxiliary reservoirs on each car, held back only by the continuous pressure from the locomotive's compressor.[2]
As long as the pipe remains fully pressurized, the brake shoes are held away from the wheel treads.
When the engineer wants to slow down for a curve or a station approach, they vent a specific, controlled amount of air from the brake pipe, dropping the pressure from 90 psi to perhaps 80 psi. The triple valve instantly senses this pressure differential. It slides over, opening a port that allows air from the localized auxiliary reservoir to flow directly into the brake cylinder. This localized air pressure pushes the brake shoes against the wheel tread, applying stopping force proportionally to the amount of air vented from the main line.[1][5]

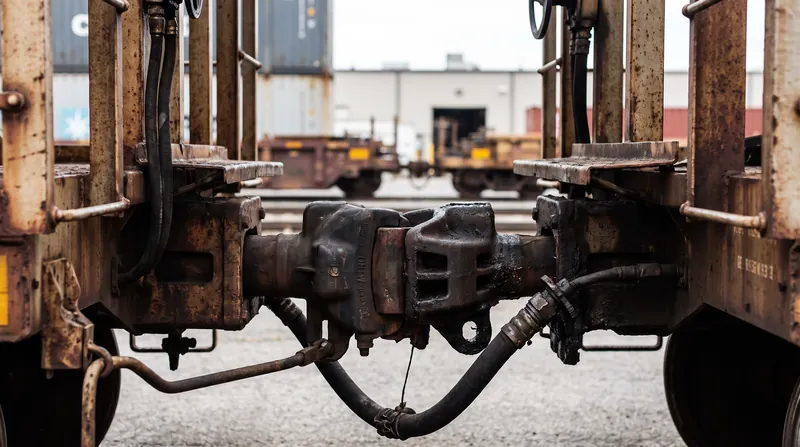

Because the system operates entirely on pressure differentials rather than absolute positive pressure, it responds instantly to any catastrophic breach. If a steel coupling breaks and the train snaps in half, the flexible air hoses connecting the cars sever, venting all 90 psi to the atmosphere in a matter of seconds. The triple valves on every single car immediately detect the total loss of pipe pressure and dump the full force of their auxiliary reservoirs into the brake cylinders, triggering an uncommanded emergency stop across both halves of the separated train.[1]
Modern regulatory standards enforce strict performance metrics for these pneumatic systems to ensure they function flawlessly under immense stress. The Federal Register's 2021 amendments to brake system safety standards emphasize the integration of electronic overlays, which use digital signals to vent the air faster, but the underlying pneumatic fail-safe remains the mandatory baseline. Regulators refuse to allow software to entirely replace the physical guarantee of compressed air, ensuring that a total electrical failure does not compromise the train's ability to stop.
Researchers analyzing passenger train braking dynamics note that while electronic controls speed up the signal transmission, the physical stopping force still relies entirely on the fluid dynamics of air. A 2023 pneumatic model published in ResearchGate demonstrated that the propagation rate of the pressure drop along the brake pipe dictates the stopping distance. The air signal travels at nearly the speed of sound through the pipe, meaning that on a mile-long train, the rear cars begin braking just seconds after the locomotive initiates the drop in pressure.[4]
For a community living near a major freight corridor, this means that the physical safety of the neighborhood does not depend on a software algorithm, a continuous electrical connection, or a flawless wireless signal. It depends on the reliable, unbreakable physics of compressed air. If a train derails and severs its lines, the system does not need a computer to tell it to stop; the absence of air pressure makes continuing physically impossible, anchoring the abstract concept of rail safety into a tangible, mechanical guarantee for the towns the trains pass through.[2][3][6]
International standards mirror this exact approach, demonstrating the universal reliability of the design across different operating environments. The International Union of Railways standard brake system, used extensively across Europe and Asia, employs the same continuous automatic air brake principle. This ensures interoperability and consistent fail-safe behavior across international borders, allowing freight and passenger consists to cross between different national rail networks without compromising the fundamental safety architecture that protects the public. Whether a train is navigating the Swiss Alps or the American Midwest, the physics of the pressure drop remain the ultimate safeguard.[5]
The system is not without operational limitations that engineers must carefully manage. Because it relies on localized air reservoirs, repeated heavy braking on a long downhill grade can deplete the auxiliary air faster than the locomotive can recharge the main pipe. If the reservoirs run empty, the train loses its braking power entirely. This scenario requires strict speed management and the use of dynamic braking from the locomotive's electric traction motors to manage descents safely, ensuring the pneumatic reserves are preserved for when they are truly needed.[1]
The persistence of the Westinghouse air brake stands as a rare example of 19th-century mechanical engineering that remains the legal and practical standard in the 21st century. While the specific valves have been refined with modern materials, and electronic sensors now monitor the pressure differentials in real-time, the core fail-safe logic remains untouched. The principle that a broken system must automatically default to a stopped system continues to secure the global rail network, proving that sometimes the most advanced safety feature is the simplest application of physics.
Frequently asked
What happens if a train's air compressor breaks?
If the locomotive's compressor fails and cannot maintain pressure in the brake pipe, the pressure drop automatically triggers the triple valves on every car to apply the brakes, safely stopping the train.
How does the system know when the train has separated?
When cars separate, the physical air hoses connecting them snap apart. This instantly vents all the compressed air in the brake pipe to the atmosphere, causing an immediate, full-force emergency brake application.
Can a train run out of air for its brakes?
Yes. If an engineer repeatedly applies and releases the brakes on a long downhill grade without allowing time for the system to recharge, the localized auxiliary reservoirs can deplete, resulting in a loss of braking power.
Why this matters
For a community living near a major rail corridor, the physical safety of millions of tons of moving freight depends entirely on this inverted pressure principle. Understanding how these systems default to a stopped state explains why train separations result in immediate halts rather than runaway disasters.
