How a $2 Microcontroller and a LoRa Radio Build an Off-Grid Texting Network

The moment an off-grid communication network actually forms is when two radios are configured with the exact same frequency preset and encryption key. That alignment is what allows a $2 ESP32 microcontroller and a LoRa radio module to bypass cellular towers entirely and establish a private, peer-to-peer mesh. For under $30 in hardware, users can now self-host their own text-messaging infrastructure that requires no internet, no SIM card, and no monthly subscription.[1]

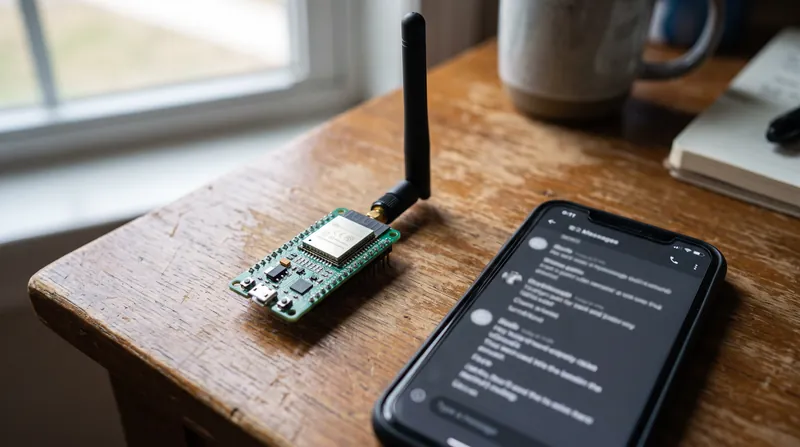

The system relies on Meshtastic, an open-source firmware project that has gained significant traction among makers and emergency responders in 2026. The setup requires an ESP32 development board equipped with a LoRa (Long Range) transceiver, such as the Heltec V3 or the Seeed Studio XIAO ESP32S3. Once the firmware is flashed via a USB connection, the board pairs with a standard iOS or Android smartphone over Bluetooth.[2][4][5]

"It is like self-hosting your own private cellphone towers," notes How-To Geek, which highlighted the growing appeal of the technology for users preparing for cellular outages. The phone provides the screen and the keyboard through the Meshtastic app, while the ESP32 handles the cryptographic routing and the LoRa module executes the physical radio transmission.[1][5]

The underlying LoRa technology was designed for the Internet of Things (IoT) to prioritize range and battery life over bandwidth. When a user hits send, the Meshtastic app encrypts the text using an AES-256 shared key. The radio then modulates that data into a chirp spread spectrum signal—a technique that sweeps across a frequency band to resist interference and noise.[2][3][6]

Because the transmission occurs in the unlicensed Industrial, Scientific, and Medical (ISM) radio bands, users do not need an amateur radio license to operate the devices. However, the hardware must be tuned to the correct regional parameters defined by the LoRa Alliance. In the United States, devices operate in the 902 to 928 MHz band under FCC Part 15 regulations, which permit a maximum transmit power of 1 watt. In Europe, the standard is 868 MHz, which carries strict duty-cycle limits that restrict how often a device can transmit.[2][3][5]

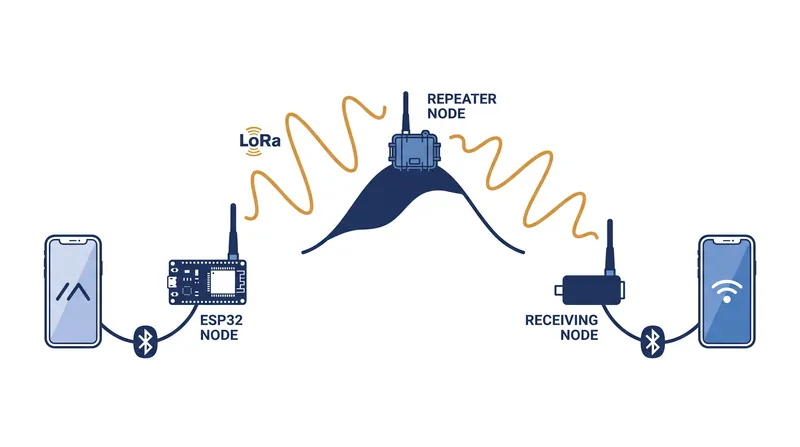

The defining feature of the Meshtastic protocol is its decentralized mesh architecture. Unlike a traditional walkie-talkie that requires a direct line of sight between two users, every Meshtastic node can act as a repeater. If a packet from Node A cannot reach Node C directly, Node B will automatically receive, validate, and rebroadcast the encrypted packet until it reaches its destination or hits its maximum hop limit.[2][6]

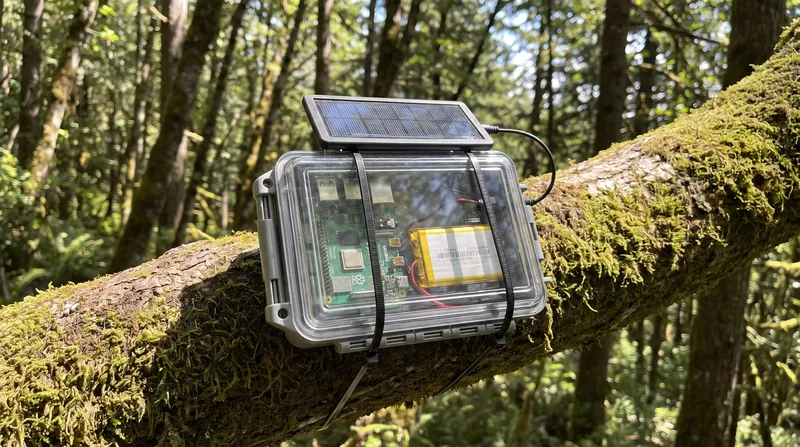

This rebroadcasting capability allows communities to build resilient local networks by placing solar-powered repeater nodes on rooftops, towers, or hillsides. Because the ESP32 and LoRa modules consume very little power, a standard 2,000 mAh lithium-ion battery can keep a node operational for several days. A small 5-watt solar panel is often enough to keep a repeater running indefinitely.[4][5]

The primary trade-off for this range and resilience is bandwidth. LoRa data rates typically range from 0.3 kilobits per second to 50 kbps. The network cannot transmit voice audio, photographs, or video. It is strictly limited to short text payloads, GPS coordinate updates, and basic telemetry data.[2][3][4]

Range is also heavily dependent on the physical environment. While a LoRa signal can travel 50 miles or more between two mountain peaks with a clear line of sight, dense urban environments with concrete and steel buildings can reduce the effective range to less than a mile. "Never power on your radio without the antenna," warns hardware documentation, as transmitting without a load can instantly destroy the radio amplifier.[1][2][4]

Adoption has accelerated throughout 2025 and 2026 as extreme weather events and infrastructure outages highlight the fragility of centralized cellular networks. By relying on a protocol that operates entirely independently of the public internet, users guarantee that their ability to communicate remains intact exactly when commercial networks fail.[1][4][6]
