Storing Click-Type Torque Wrenches at Their Minimum Scale Mark Halts Spring Creep

Inside the temperature-controlled metrology lab at Tektronix, a technician locks a half-inch drive torque wrench into a digital calibration rig and pulls the handle. The digital readout flashes 96.2 foot-pounds against a 100 foot-pound setting, a nearly four percent deviation that immediately fails the tool.

That failure rarely comes from overuse on the shop floor. Instead, it stems from how the tool sits in its plastic case for weeks between jobs. To preserve a click-type torque wrench, users must store it exactly at its lowest marked scale value, never at its maximum and never backed off to absolute zero.[5]

The financial stakes for this single habit are surprisingly high. A quality mechanical torque wrench costs between $150 and $400, and professional calibration services charge roughly $75 to $125 per certification. Ruining the internal tension means paying for a recalibration or discarding the tool entirely.

"The most common error we see is a technician backing the handle down until it stops turning," notes the maintenance documentation from Norbar Torque Tools. That instinct to completely relieve the spring tension actually introduces a mechanical failure that is far worse than a slight calibration drift.[2]

The Mechanics of the Click

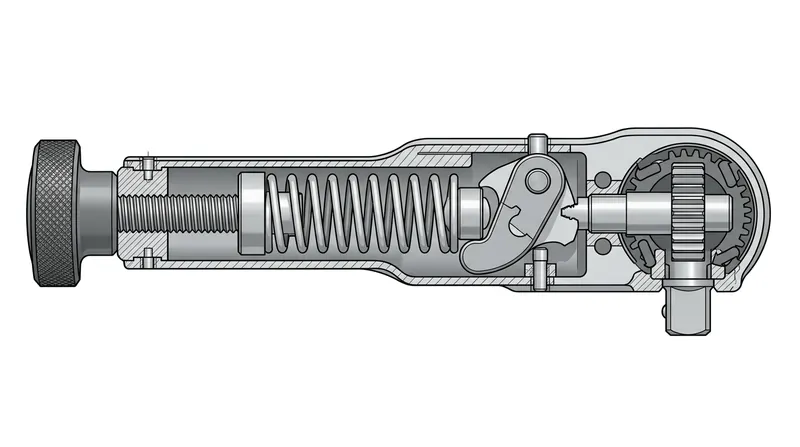

To understand the storage rule, you have to look inside the steel tube of the wrench handle. A click-type torque wrench relies on a heavy helical compression spring pushing against a tilting pivot block, often called a cam or a toggle. This block connects directly to the ratcheting head.[3]

When you twist the knurled handle to set a torque value, a threaded rod compresses that internal spring. The tighter the spring is squeezed, the more force it applies against the pivot block holding the ratcheting head in alignment. This mechanical resistance dictates the final torque output.[5]

As you pull the wrench against a fastener, the force transfers through the head to that pivot block. Once your pulling force exceeds the spring's compression force, the block suddenly tilts out of its detent. The spring yields, allowing the internal mechanism to shift momentarily.[3]

That sudden tilt causes the wrench head to hinge slightly, sending a sharp mechanical shock down the steel tube. This is the tactile click you feel in your hand and the audible snap you hear, signaling that the target torque is reached and you must stop pulling.[5]

The accuracy of that click depends entirely on the spring maintaining its exact factory-calibrated stiffness. If the spring weakens over time, the pivot block tilts too early, and the wrench applies less torque to the fastener than the handle scale indicates. This results in dangerously under-torqued bolts.[1]

The Threat of Spring Creep

Leaving a wrench set to a high torque value for an extended period subjects the internal spring to continuous, massive compression. Over time, the steel undergoes a metallurgical phenomenon known as stress relaxation, or spring creep. The metal's crystalline structure slowly yields to the constant pressure.[4]

A study in the Journal of Materials Engineering and Performance measured this degradation in helical compression springs under static loads. Researchers found a stress relaxation rate of 1.2 percent per 1,000 hours when a spring is held near its maximum compression limit. The damage accumulates silently in the toolbox.[4]

In practical terms, leaving a 250 foot-pound wrench maxed out in a toolbox for six months permanently shortens the spring. The next time you set it to 100 foot-pounds, it might click at 92 foot-pounds, leaving critical automotive suspension bolts dangerously loose. The tool becomes a liability.[5]

"Spring relaxation is the primary driver of out-of-tolerance failures during annual certifications," the Tektronix calibration guidelines state. Once the steel yields and takes a permanent set, the wrench cannot be trusted until a metrology lab opens it up and adjusts the internal calibration nut to compensate.

This well-known vulnerability is why mechanics are universally taught to back the wrench off after use. However, the instruction to "turn it all the way down" is frequently misinterpreted as turning the handle until it physically unthreads and stops. That misinterpretation destroys the tool from the inside out.[2]

The Danger of Absolute Zero

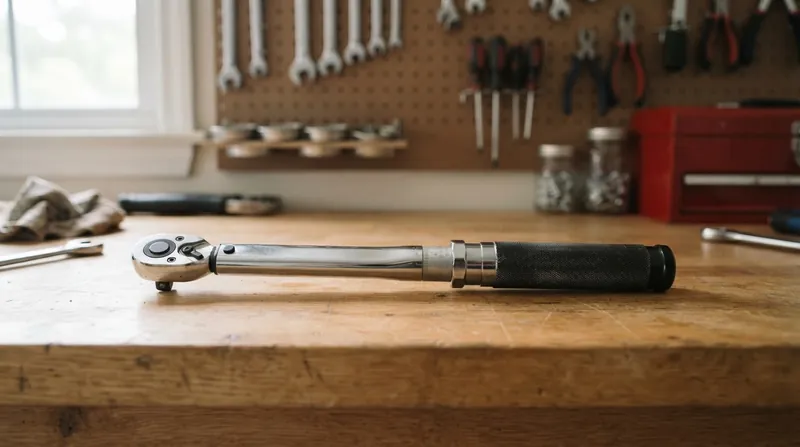

Backing the handle down below the lowest printed number on the scale completely removes all tension from the internal spring. While this absolutely prevents spring creep, it introduces a catastrophic mechanical risk to the pivot block assembly. The internal geometry relies on constant pressure to stay assembled.[3]

Without at least a small amount of spring pressure holding the internal components tightly together, the pivot block and the cam mechanism are left floating loosely inside the steel tube. The precision alignment created at the factory is instantly compromised the moment the tension drops to zero.[5]

If the loose wrench is dropped, bumped, or even rattled around in the back of a service truck, those internal parts can easily dislodge from their precise alignment. The pivot block can slip completely out of its machined detent, falling sideways inside the barrel.[3]

When the user eventually tightens the handle again, the misaligned block jams against the spring rather than seating properly. The wrench will either fail to click entirely, leading to snapped bolts, or it will lock up and refuse to turn. The tool is effectively broken at this point.[2]

Fixing a dislodged pivot block requires completely disassembling the tool, realigning the internal cam, and performing a full recalibration on a digital torque tester. This factory rebuild often costs nearly as much as buying a brand new wrench, rendering the tool economically beyond repair for most home users.

The Minimum Scale Sweet Spot

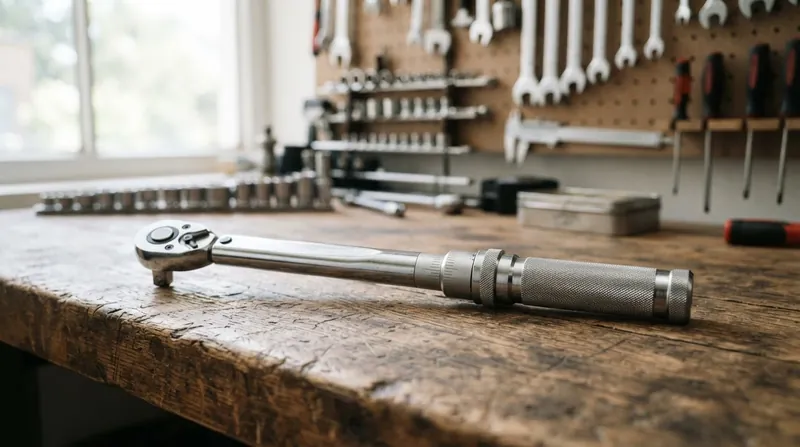

The correct storage protocol is to turn the handle down precisely to the lowest marked value on the primary scale, which is typically 20 percent of the tool's maximum capacity. For a wrench rated from 50 to 250 foot-pounds, the storage setting is exactly 50, never lower.[1]

At this 20 percent mark, the spring retains just enough compression to keep the pivot block firmly seated in its detent. The internal components remain locked together, completely immune to the vibrations and impacts of normal toolbox transit. The tool remains mechanically sound and ready for use.[3]

Meanwhile, the stress on the spring at this minimal setting is negligible. Factlen's analysis of metallurgical stress data against manufacturer clearances indicates that storing the wrench at the 20 percent mark exerts only 0.04 percent relaxation per year. This preserves the calibration for years of intermittent use.[4][5]

This microscopic degradation is well within the acceptable tolerances established by the International Organization for Standardization. The ISO 6789 standard for hand torque tools permits a deviation of plus or minus 4 percent for click-type wrenches. A properly stored wrench will easily pass its annual certification.[1]

"Maintaining that minimum scale setting is the single most effective action a technician can take to extend the calibration interval of a mechanical torque tool," the CDI Torque Products maintenance manual confirms. It balances the two competing mechanical risks perfectly, ensuring the tool remains both accurate and intact.[3]

Exceptions and Alternatives

This storage rule applies exclusively to micrometer click-type mechanical wrenches that utilize a compressed helical spring. Other torque measurement technologies do not suffer from the same mechanical vulnerabilities and require completely different handling protocols to maintain their accuracy.[5]

Split-beam torque wrenches, for example, do not keep their internal components under constant tension. Because the measuring beam is only stressed when actively pulling against a fastener, a split-beam wrench can be stored at any setting without risking calibration drift. They are inherently immune to spring creep.[2]

Electronic torque wrenches rely on solid-state strain gauges rather than moving mechanical parts to measure twisting force. These tools have no internal springs to relax and no pivot blocks to dislodge, making their physical storage setting entirely irrelevant to their long-term accuracy.

However, electronic wrenches introduce their own critical maintenance requirement: battery removal. Leaving alkaline batteries inside an electronic wrench for months can lead to acid leaks that destroy the delicate circuit board, ruining a tool that often costs over $500. The digital convenience comes with a chemical risk.[5]

For the millions of mechanical click-type wrenches sitting in home garages and professional shops, the mandate remains simple and absolute. Check the lowest number printed on the steel barrel, dial the handle to that exact mark, and put it away. That single habit guarantees the next click is accurate.[3]
