Thermal Paste Conducts Heat 50-Fold Worse Than Copper: Why Heatsinks Require Micron-Thin Layers

Novice PC builders and DIY enthusiasts often assume that thermal paste is a highly conductive cooling agent. This leads to the common belief that applying a thicker layer of the compound will cool a processor more effectively. The physical evidence contradicts this directly.

A high-quality thermal paste conducts heat about 50 times worse than the copper heatsink it sits beneath. Its only mechanical purpose is to displace something even worse: the microscopic pockets of insulating air trapped between two seemingly flat metal surfaces.[2][6]

The Microscopic Reality

When a semiconductor chip and a copper heat spreader are brought into direct contact, they do not form a perfect seal. Even a precision-machined integrated heat spreader that looks mirror-smooth to the naked eye is covered in microscopic ridges and valleys.[1]

Under a microscope, these topographical variations typically range from 5 to 50 microns in depth. Because of this inherent surface roughness, the two metal plates only physically touch across a tiny fraction of their apparent area, often accounting for less than two percent of the surface.[2]

The remaining 98 percent of the interface is filled with ambient air. As engineers at Magna-Power note, "Without gap filling, air will fill the voids, which will restrict thermal energy transfer as a poor thermal conductor (0.026 W/mK)."[4]

Those trapped air pockets act like a thermal blanket, forcing heat to bottleneck at the interface. Without an effective thermal interface material to fill these voids, the processor cannot shed its waste heat, causing a rapid spike in the silicon's temperature.[1]

This sudden increase in temperature leads directly to thermal throttling, a self-preservation mechanism where the processor artificially slows its clock speed to survive. Left unmitigated, this bottleneck causes severe system instability and a significantly shortened component lifespan.[1]

The Conductivity Mathematics

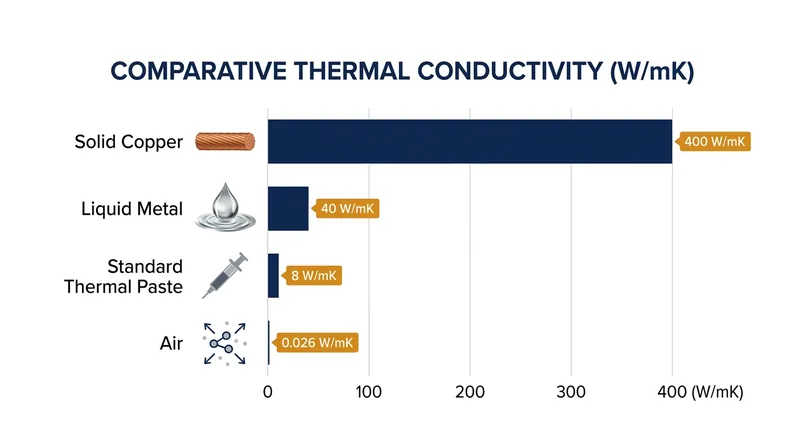

To understand why thermal paste must be applied in a razor-thin layer, one must look at the raw thermal conductivity numbers. Copper, the standard material for high-performance heatsink bases, boasts an impressive thermal conductivity of approximately 400 W/mK.[2]

Air conducts heat roughly 15,000 times worse than the copper it separates. In a 2025 technical brief, hardware manufacturer GameMax PC explains, "Thermal paste is not a highly efficient heat-conducting material (with a thermal conductivity of approximately 5–15 W/mK, far lower than copper's 401 W/mK)."[2]

This mathematical reality means that thermal paste conducts heat roughly 200 to 300 times better than the insulating air it displaces. However, it still conducts heat 40 to 80 times worse than the solid copper heatsink itself.[2][6]

Because the paste is a significantly poorer conductor than the metal, any paste that sits between two pieces of copper that could have touched directly is actively degrading the cooling performance. The goal is to fill the valleys without separating the peaks.[1][6]

The Bond-Line Thickness

In thermal engineering, the physical distance between the heat source and the heatsink is called the bond-line thickness. According to materials manufacturer Sheen Thermal, the "ideal BLT for most CPU/GPU applications: 20–60 μm."[3]

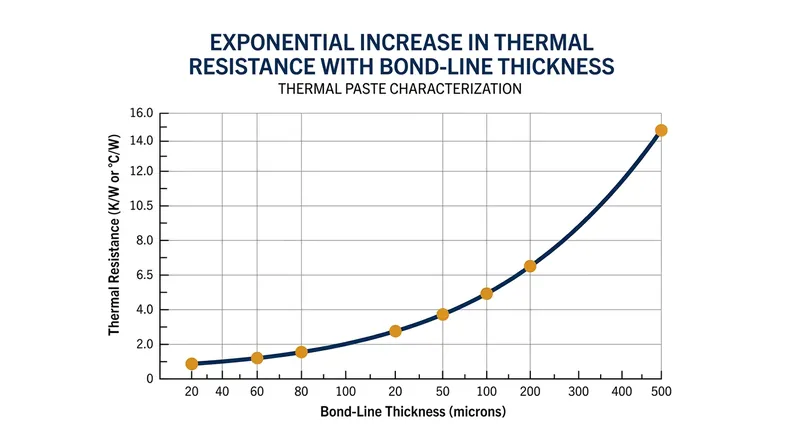

If the thermal paste layer is applied too thickly, it becomes a thermal barrier in its own right. Practical test data demonstrates that when the paste thickness exceeds 0.5 millimeters, the thermal resistance of the joint increases exponentially.[2]

This is why the recommended application volume for a mainstream desktop processor is incredibly small. A single pea-sized drop, measuring roughly 0.01 to 0.02 milliliters, provides more than enough volume to fill the microscopic voids across a standard heat spreader.[2]

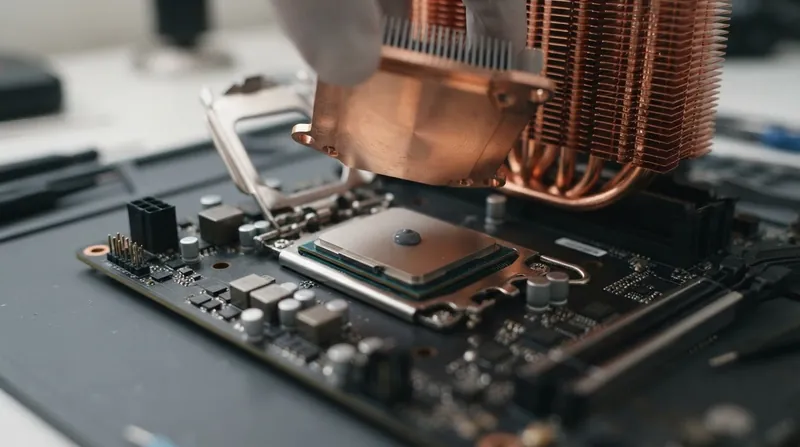

Applying the correct volume is only half the equation; the cooler must also be mounted with the correct pressure. A typical processor cooler requires 0.4 to 0.6 Newton-meters of mounting torque to properly compress the paste and squeeze out the excess.[3]

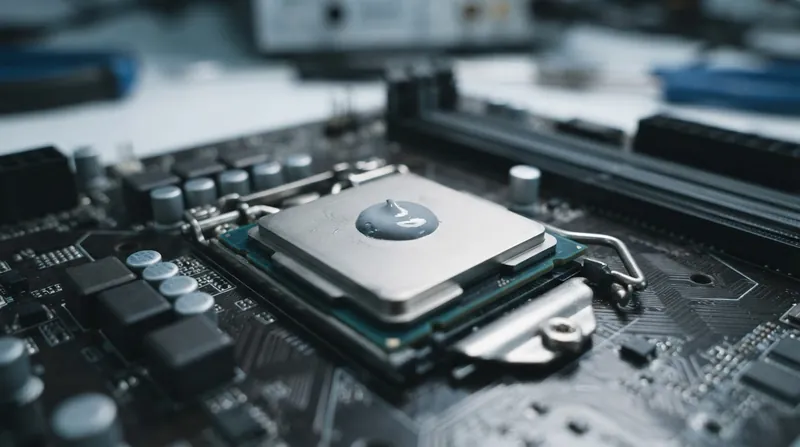

When the heatsink is tightened down, the mechanical pressure forces the viscous paste into the microscopic valleys and pushes the surplus out the sides. Excessive application leads to significant squeeze-out, which can contaminate the motherboard socket and create an insulating perimeter.[2][4]

In mass production environments, manufacturers cannot rely on the manual pea-sized drop method. Instead, they use chemically etched stainless steel stencils to deposit precise, uniform grids of thermal paste onto heatsinks, ensuring a consistent bond-line thickness across thousands of units.[4]

Viscosity and Pump-Out

Thermal paste must maintain a delicate balance of viscosity. It needs to be fluid enough to spread into 5-micron crevices under pressure, but thick enough to stay in place once the heatsink is fully mounted and the system begins operating.[4]

As a computer operates, the processor heats up under heavy load and cools down when idle. This continuous thermal cycling causes the metal heat spreader and the heatsink to expand and contract at slightly different rates, creating a mechanical shearing force.[3]

Over months and years, this microscopic shifting can cause a phenomenon known as pump-out, where the thermal paste is physically pushed out of the gap. As the paste vacates the interface, insulating air creeps back in, and operating temperatures slowly climb.[6]

To combat pump-out, industrial manufacturers often use phase-change materials. These specialized compounds remain solid at room temperature but soften into a semi-liquid state when the hardware reaches 50 to 80 degrees Celsius, flowing into gaps before re-solidifying.[7]

Liquid Metal Alternatives

For extreme overclockers seeking the absolute lowest thermal resistance, liquid metal thermal compounds offer a high-risk, high-reward alternative. These specialized pastes are formulated from gallium alloys and boast exceptional thermal conductivities ranging from 35 to 80 W/mK.[1]

While liquid metal conducts heat significantly better than traditional silicone pastes, it is also highly electrically conductive. A single stray drop squeezed onto the motherboard's surface-mounted capacitors can cause an immediate and catastrophic short circuit, destroying the hardware.[3]

Furthermore, gallium is highly reactive with aluminum, causing the metal to quickly become brittle and crumble. Liquid metal compounds can only be used safely with pure copper or nickel-plated heatsinks, strictly limiting their application in budget-oriented cooling solutions.[1]

For applications where a large, measurable gap exists, engineers use compliant thermal pads instead of paste. While pads conduct heat less efficiently than a razor-thin layer of paste, their mechanical structure allows them to bridge millimeter-scale gaps without leaking over time.[1]

Industrial Power Electronics

The physics of thermal interfaces extend far beyond desktop computers. In power electronics, electric vehicle batteries, and commercial lighting, the quality of the thermal interface material is often the true determinant of hardware longevity and return on investment.[5]

In a high-bay industrial LED fixture, for example, the primary function of the thermal paste is to eliminate air gaps between the circuit board and the aluminum housing. Even with a cold-forged heatsink, a 25-micron air gap can cause severe localized hotspots.[5]

Thermal resistance modeling demonstrates that a failure in the thermal paste layer can raise the junction temperature by 20 degrees Celsius. This temperature spike accelerates the degradation of the diodes, potentially reducing the fixture's useful life from 60,000 hours to just 15,000 hours.[5]

Whether cooling a 200-watt gaming processor or a commercial lighting array, the engineering principle remains identical. The thermal paste is not the primary cooling agent; it is a necessary compromise to bridge the microscopic imperfections of the physical world.[6]
