Thermal Relief Valves Vent Trapped Pipeline Liquid to Counter Solar Thermal Expansion Induced Rupture

A single degree Celsius of temperature rise inside a blocked water pipe generates up to 64 pounds per square inch of internal pressure. That magnitude, measured against the yield strength of standard industrial steel, means a mild sunny morning can easily burst a sealed pipeline. The culprit is the near-incompressibility of liquid.[1]

When operators close two isolation valves on a liquid-filled pipe, they create a closed thermodynamic system. The fluid trapped inside has nowhere to go. If the pipe sits outdoors, solar radiation begins transferring heat through the metal wall and into the liquid.[4]

As the liquid warms, its molecules move faster and demand more physical space. This volumetric thermal expansion is a fundamental property of all fluids. Water expands by roughly 0.02 percent for every degree Celsius it warms, while industrial chemicals like ethylene glycol expand even faster.[1][4]

Gases absorb expansion by simply compressing into a smaller volume, but liquids lack that elasticity. Their bulk modulus—the measure of resistance to compression—is exceptionally high. Because the liquid cannot compress, it exerts immense outward force against the pipe walls and the closed valve seals.[1]

The Race Between Pipe and Fluid

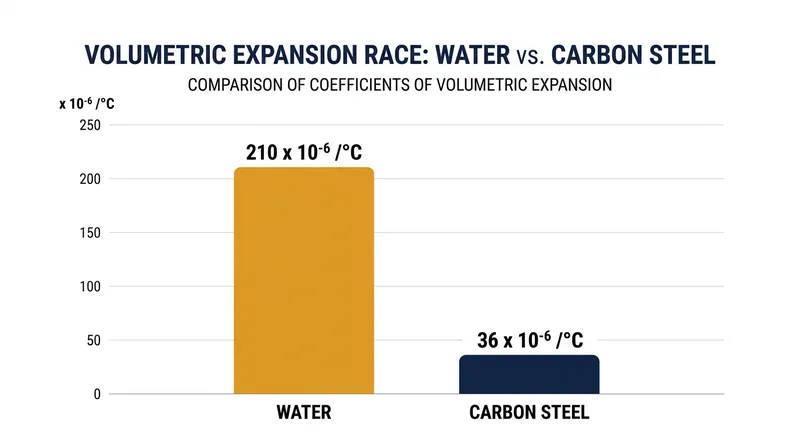

The pipe itself also expands as it heats up, which theoretically creates more room for the fluid. However, the volumetric expansion coefficient of carbon steel is only about 36 parts per million per degree Celsius, roughly one-sixth that of water. The liquid outpaces the metal's ability to accommodate it.[1]

The resulting pressure spike is governed by the American Petroleum Institute's API 521 standard. The calculation subtracts the pipe's expansion from the fluid's expansion, then divides the result by the fluid's compressibility. The math reveals a steep, unforgiving curve.[3][4]

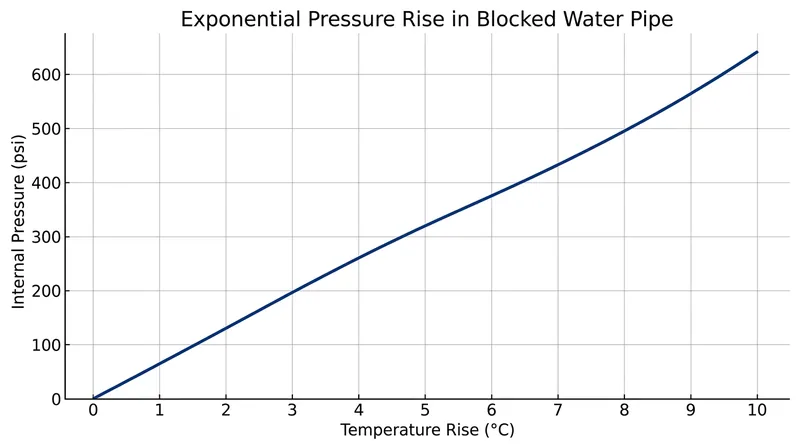

In a rigid carbon steel container, water pressure increases by approximately 4.4 bar (64 psi) for every single degree Celsius of warming. A 10-degree swing from dawn to midday generates over 600 psi of new pressure. That is enough force to rupture standard Schedule 40 piping.[1]

The length of the blocked pipe does not change the pressure reached. A ten-foot section of trapped pipe will hit 600 psi just as quickly as a mile-long pipeline under the same solar exposure. The only difference is the total volume of fluid involved.[2]

The Mechanism of Thermal Relief

To prevent catastrophic ruptures, engineers install thermal relief valves on any piping segment that can be isolated while full of liquid. These specialized safety devices sit between the block valves and monitor internal pressure. They act as a deliberate, controlled weak point in the system.[4]

"The oil trapped between the block valves will expand with an input of heat and cause the pressure to increase almost exponentially and very quickly," notes chemical engineer Art Montemayor in a technical review. "That's the reason a thermal relief valve is installed."[2]

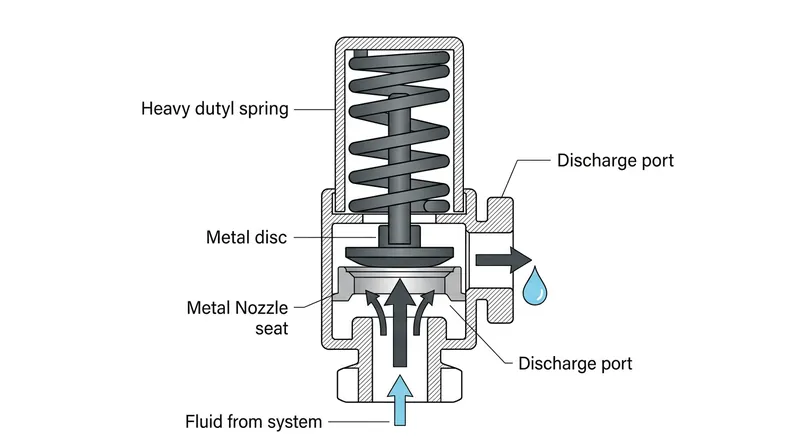

A thermal relief valve operates using a simple spring-loaded mechanism. A heavy internal spring holds a metal disc tightly against a nozzle, keeping the fluid contained. The spring tension is calibrated to match the maximum allowable working pressure of the pipe.[5]

When solar heating drives the internal pressure above that setpoint, the fluid force overcomes the spring tension. The disc lifts slightly off the nozzle. This tiny movement creates a microscopic escape path for the expanding liquid.[5]

Because liquids are incompressible, venting a minuscule amount of fluid instantly collapses the pressure spike. A thermal relief valve often needs to release only a few drops, or a fraction of a gallon, to return the entire pipe segment to a safe pressure.[4]

Once the pressure drops below the setpoint, the spring snaps the disc back against the nozzle, resealing the system. This cycle repeats continuously throughout the day as the sun beats down on the pipe, producing a characteristic intermittent hissing sound. The valve protects the pipe without operator intervention.[5]

Sizing and Specification Rules

Unlike standard pressure relief valves designed to handle massive process upsets or fires, thermal relief valves are remarkably small. They typically feature a 0.75-inch inlet and a 1-inch outlet. Their internal flow orifices are often sized at just 0.11 square inches. This tiny size reflects their highly specialized function.[4]

The required relief capacity is calculated based on the total heat input from solar radiation and the fluid's expansion rate. API 521 assumes a standard solar heat flux of 250 British thermal units per hour per square foot of projected pipe surface area. Engineers use this baseline to determine the maximum possible expansion rate.[3]

For most short piping runs, the required volumetric flow rate is less than one gallon per minute. The challenge is not moving a large volume of fluid, but rather ensuring the valve reacts instantly to the pressure threshold before the pipe wall yields. The valve must open precisely on time.[4]

The discharged fluid cannot simply be dumped onto the ground, especially in chemical or hydrocarbon service. Thermal relief valves are typically piped back into a low-pressure slop system, a storage tank, or a dedicated flare header to safely capture the vented drops. This closed-loop approach prevents hazardous environmental spills.[4]

The Danger of Valve Leakage Assumptions

Historically, some operators assumed that standard isolation valves would naturally leak enough fluid past their seats to relieve thermal expansion. While it is true that many older gate valves weep under high pressure, relying on accidental leakage is a severe safety violation. Modern safety standards reject this unpredictable approach entirely.[2]

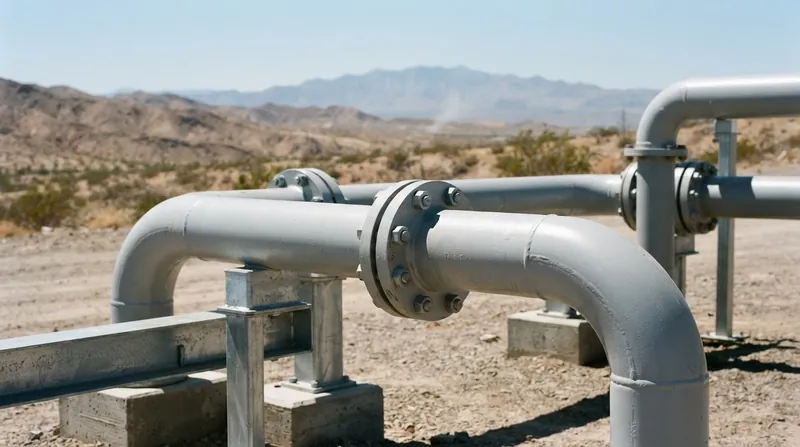

Modern industrial facilities increasingly use bubble-tight shutoff valves, such as Teflon-seated ball valves. These components are designed to provide a perfect seal. If a bubble-tight valve is closed on a liquid-filled line, no fluid can escape, guaranteeing a pressure spike.[3]

API 521 explicitly forbids taking credit for valve leakage if bubble-tight shutoff valves are specified on the blocked-in section. The code mandates a dedicated relief path. Ignoring this rule transforms a standard pipe manifold into a hydraulic bomb waiting for the afternoon sun.[3]

In some non-hazardous water systems, engineers might drill a tiny 0.25-inch bypass hole through the gate of one isolation valve. This ensures the trapped segment always communicates with the larger, unblocked system, bleeding off expansion pressure without requiring a separate mechanical valve. This passive method works well for simple utility lines.[2]

Vaporization and Extreme Hazards

The standard thermal relief calculation assumes the fluid remains a liquid. However, if the trapped liquid is heated above its bubble-point temperature at the relief set pressure, the physics change entirely. The fluid begins to boil and vaporize while still contained.[3]

Vaporization requires a significantly larger relief valve. When a liquid turns to gas, it expands by hundreds of times its original volume. A small thermal relief valve sized only for liquid expansion will be instantly overwhelmed by vapor generation, leading to a rupture.[3]

An even more severe hazard occurs if the fluid reaches its superheat limit temperature. At this extreme threshold, the liquid undergoes instantaneous, explosive vaporization. This triggers a boiling liquid expanding vapor explosion, destroying the equipment and endangering nearby personnel. This catastrophic event can level an entire process unit.[3]

To prevent these phase-change disasters, engineers must verify the fluid's boiling point against the maximum expected solar temperature. If the sun can boil the trapped liquid, the system requires a full-sized pressure relief valve, not just a thermal expansion device. Thermal relief alone cannot handle phase changes.[3]

Operational Best Practices

The most effective way to manage thermal expansion is to avoid trapping liquids in the first place. Operating procedures should dictate that pipes are drained or blown clear with nitrogen before being isolated for extended periods. An empty pipe cannot suffer hydraulic overpressure.[3]

When draining is impossible, administrative controls can supplement mechanical valves. Operators can physically lock or car-seal one isolation valve in the open position, ensuring the fluid always has an expansion path back to a vented storage tank. This guarantees the pressure can safely dissipate elsewhere.[3]

Ultimately, the installation of a thermal relief valve removes the human element from the safety equation. By automatically venting the excess volume, these small devices quietly absorb the daily thermal cycles of the sun, keeping the steel infrastructure intact and the facility running safely. They are the silent guardians of the pipeline network.[4]
