Why Differential Pressure Flowmeters Apply Square-Root Extraction to Measure Volumetric Rate

A novice technician looking at a differential pressure flowmeter might assume a simple, linear rule: if the pressure drop across the pipe restriction doubles, the fluid must be moving twice as fast. The evidence from fluid dynamics dictates the exact opposite.[2]

According to Bernoulli's principle, doubling the flow rate actually quadruples the pressure drop. This means the raw sensor data is mathematically useless for process control until a specific conversion is applied. Without square-root extraction, a 50 percent pressure reading would falsely report a 71 percent flow rate.[1][3]

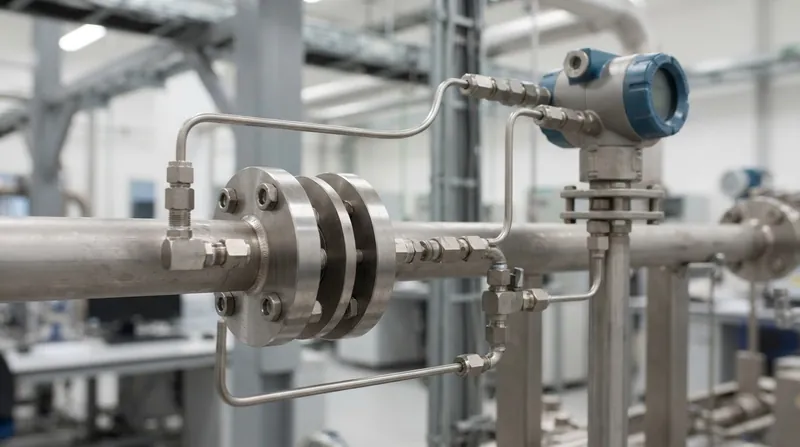

Understanding why this extraction is mandatory requires looking inside the pipe at the primary element. Whether the installation uses an orifice plate, a Venturi tube, or a flow nozzle, this component intentionally restricts the fluid's path. As the fluid squeezes through the narrower opening, its velocity increases dramatically.[1]

This sudden acceleration is the foundation of the measurement. Bernoulli's principle dictates that the total energy in a steadily flowing fluid remains constant. When the fluid speeds up to pass through the restriction, its kinetic energy spikes, forcing its potential energy—measured as static pressure—to drop proportionally.[1]

The Physics of the Pipe Restriction

The pressure difference between the upstream fluid and the low-pressure zone immediately after the restriction is what the meter actually measures. This differential pressure is the raw signal that industrial transmitters capture. However, the relationship between that pressure drop and the fluid's velocity is not a straight line.

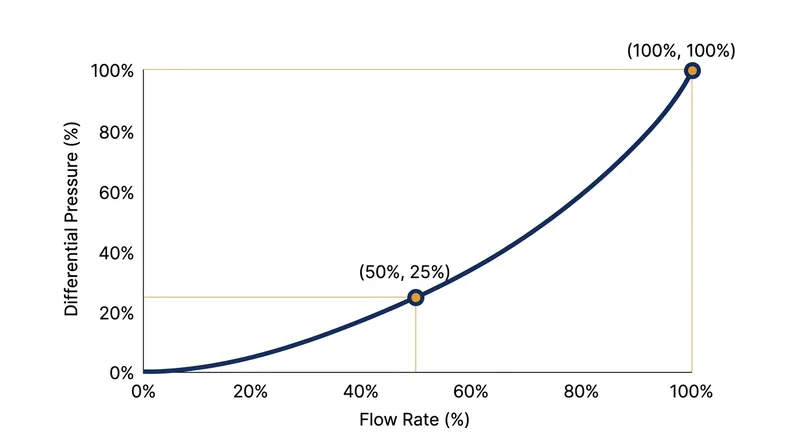

Because kinetic energy is calculated using the square of velocity, the pressure drop created by the restriction grows exponentially as the fluid speeds up. If a pipeline operator increases the flow rate by a factor of three, the differential pressure across the orifice plate increases by a factor of nine.

This quadratic relationship is a fundamental law of physics, not a quirk of the instrument design. It means that the raw pressure signal is heavily skewed toward the top end of the meter's capacity. A massive change in pressure is required to register a modest increase in high-speed flow.[1]

To turn that skewed pressure reading back into a usable volumetric flow rate, the system must reverse the physics. This is where the square-root extraction comes in. By taking the square root of the differential pressure, the instrument flattens the exponential curve back into a linear scale.[3]

The standard flow equation expresses this as Q = k √ΔP, where Q is the volumetric flow rate and ΔP is the differential pressure. The constant k accounts for the pipe diameter, fluid density, and the specific geometry of the restriction. Once extracted, the output matches the actual volume moving through the pipe.

The Low-Flow Penalty and Turndown Ratios

While square-root extraction perfectly linearizes the output, it creates a severe mechanical disadvantage at the bottom of the scale. Because the math works in both directions, cutting the flow rate in half reduces the differential pressure to just one-quarter of its original value.[2]

This signal compression becomes extreme as the flow slows down further. At 25 percent of the meter's maximum flow capacity, the differential pressure drops to a mere 6.25 percent of the full-scale range. The transmitter is forced to read a tiny pressure difference to calculate a quarter of the flow.[2][4]

If the flow drops to 10 percent of the maximum rate, the differential pressure plummets to exactly 1 percent. At this level, the physical pressure difference is often smaller than the ambient noise in the pipeline. Vibrations, minor density shifts, or slight pump pulsations can easily overwhelm the actual signal.[4]

This extreme signal-to-noise degradation at low flows limits the turndown ratio of standard differential pressure flowmeters. The turndown ratio defines the range between the maximum and minimum flow rates a meter can accurately measure. For most orifice-plate meters, the practical turndown ratio is strictly limited to roughly 4:1.[2]

A 4:1 ratio means the meter cannot produce reliable readings below 25 percent of its full-scale capacity. If a chemical plant needs to measure a flow that varies between 100 gallons per minute and 10 gallons per minute, a single standard orifice plate will fail to read the lowest flows accurately.[2]

Where the Extraction Happens

In the early days of industrial automation, square-root extraction was performed mechanically. Pneumatic relays used complex arrangements of levers and diaphragms to approximate the square-root curve. These mechanical extractors were notoriously difficult to calibrate and prone to drifting out of alignment over time.[3]

Today, the math is handled digitally, but engineers still must decide where the calculation takes place. The most common approach is to perform the extraction directly inside the differential pressure transmitter. These smart transmitters measure the raw pressure, calculate the square root internally, and output a linear 4-20 milliamp signal.[3]

When the transmitter handles the math, a 12-milliamp output—exactly halfway between 4 and 20—represents exactly 50 percent of the maximum flow. The programmable logic controller receiving the signal can simply read it as a direct flow value without doing any further arithmetic in the control room.[4]

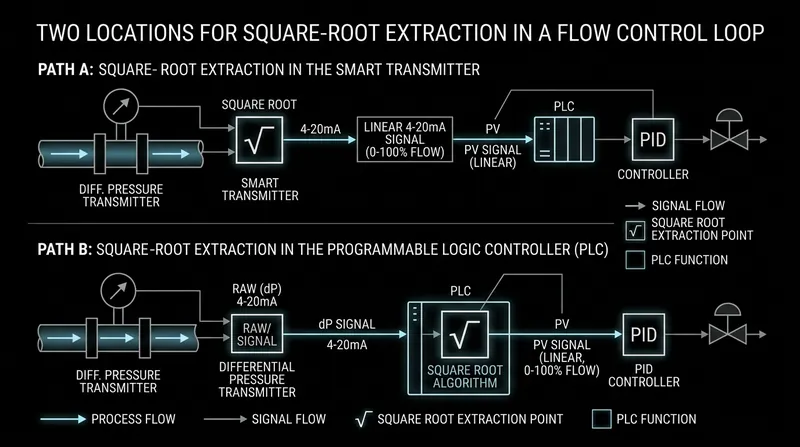

Alternatively, some facilities prefer to send the raw, non-linear pressure signal back to the central system. In this setup, the transmitter outputs a signal proportional to the differential pressure, and the central programmable logic controller performs the square-root extraction in its software logic.[3]

Passing the raw signal to the controller allows engineers to apply dynamic compensation for changes in fluid temperature before extracting the square root. However, plant-wide directives usually mandate one strict standard. Performing the extraction twice—once in the transmitter and again in the controller—is a classic commissioning error that severely distorts readings.[3]

Overcoming the Turndown Limit

When a process requires a wider measurement range than a standard 4:1 turndown can provide, engineers must work around the square-root limitation. One traditional method is stacking transmitters. This involves plumbing two different differential pressure transmitters to the exact same orifice plate.

In a stacked setup, one transmitter is calibrated to read the full pressure range for high flows, while a second, highly sensitive transmitter is calibrated only for the bottom 20 percent of the pressure drop. The control system seamlessly switches to the sensitive transmitter when the flow drops, extending the turndown ratio.[4]

Other primary elements also alter the math slightly to improve low-flow performance. Venturi tubes and specialized wedge meters create smoother flow profiles than sharp-edged orifice plates. While they still rely on Bernoulli's principle and square-root extraction, their improved signal stability can push the turndown ratio closer to 6:1.

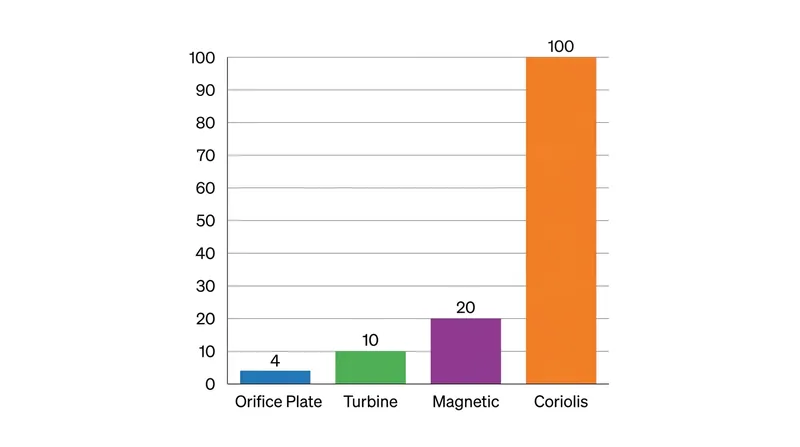

For applications demanding extreme turndown ratios, facilities often abandon differential pressure entirely. Coriolis and ultrasonic flowmeters measure flow linearly from the start, bypassing the square-root penalty entirely and achieving ratios of 100:1. However, these technologies cost significantly more and cannot withstand the extreme temperatures that simple metal orifice plates endure.

Despite the mathematical hurdles at low flows, differential pressure remains the most widely used flow measurement technology in the world. The primary elements contain no moving parts, can be machined from exotic alloys to survive corrosive acids, and can be verified mathematically without removing them from the pipe.

Because the relationship between pressure, velocity, and pipe geometry is so thoroughly documented in international standards, an orifice plate can be calibrated entirely on paper. As long as the square-root extraction is applied correctly, the physics guarantees the result without requiring a wet calibration rig.[1]

The Role of Density and Discharge Coefficients

The basic square-root equation assumes that the fluid's density remains perfectly constant. For liquids like water, this assumption holds true under most normal operating conditions. Liquid density barely shifts even when the pipeline pressure fluctuates wildly, keeping the math straightforward.[1]

Gases and steam, however, are highly compressible. If the static pressure inside a gas pipeline drops, the gas expands, and its density decreases. Because the flowmeter is actually measuring kinetic energy, a drop in density means the fluid must move faster to create the same differential pressure.

To maintain accuracy in gas applications, modern flow computers continuously measure the static pressure and temperature alongside the differential pressure. The system calculates the real-time density of the gas and feeds it into the square-root equation, dynamically correcting the volumetric flow rate before it reaches the operator.[4]

The math must also account for the friction and turbulence created by the restriction itself. This is represented by the discharge coefficient, a dimensionless number that corrects for the fact that no pipe restriction is perfectly efficient. A Venturi tube has a high discharge coefficient of around 0.95, meaning very little energy is lost.[1]

A standard orifice plate, by contrast, has a discharge coefficient closer to 0.60. The sharp edge of the plate creates violent eddies immediately downstream, permanently destroying up to half of the pressure drop. This permanent pressure loss is the hidden energy cost of using an orifice plate to measure flow.[1]

Ultimately, the square-root extraction is what makes this entire branch of fluid mechanics useful to industry. By understanding that pressure grows exponentially with speed, engineers can turn a simple piece of metal with a hole in it into a precision instrument that runs the world's refineries.[3]
