Double-Ended Shear Web Designs Prevent Cantilever Deflection in Heavy-Duty Torque Wrenches

When industrial technicians apply upwards of 1,000 foot-pounds to a heavy-duty fastener, the torque wrench itself physically bends. This microscopic flexing, known as cantilever deflection, quietly alters the effective length of the lever arm. It introduces friction into the tool's internal mechanism, resulting in missed specifications and compromised structural assemblies.[5]

Standard click-type and beam wrenches operate as simple cantilever beams anchored at the fastener. As force is applied to the handle, the steel body deflects. This bending moment causes the internal components to shift out of alignment, corrupting the precise relationship between the applied force and the actual torque delivered.[5]

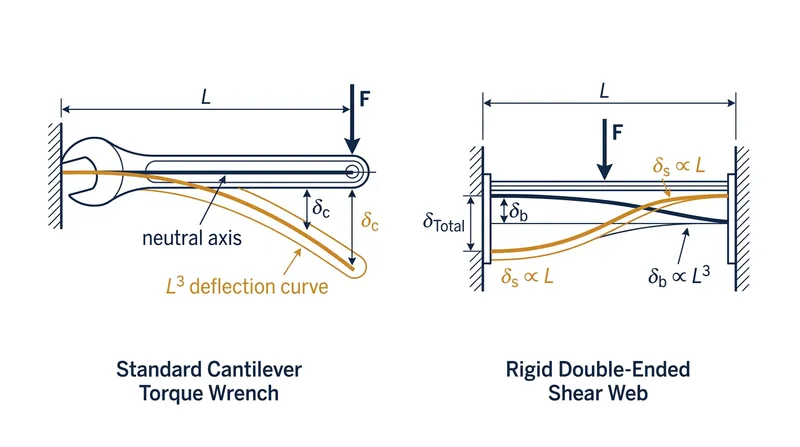

The physics of this bending are governed by the cantilever deflection equation. Deflection equals the load multiplied by the length cubed, divided by three times the elastic modulus and the moment of inertia. Because the error scales with the cube of the length, long heavy-duty wrenches are disproportionately vulnerable to bending-induced inaccuracies.[3]

This deflection creates destructive off-axis loads. If a technician pushes down at a slight angle rather than perfectly perpendicular to the handle, the tool registers that lateral force as a false reading. The wrench's accuracy drifts, and the calibration fails because the bending stress masks the true rotational force.[5]

In standard mechanical wrenches, this bending binds the internal springs and pawls. The click block, which relies on precise spring tension to release at a specific torque, experiences lateral friction. This causes the wrench to click inconsistently—either too early or too late—leaving the operator blind to the actual fastener tension.[5]

The Mechanics of the Shear Web

To solve this fundamental flaw, high-capacity torque transducers and heavy-duty electronic wrenches utilize a double-ended shear web design. Instead of a single beam anchored at one end, the sensor is rigidly supported at both ends. The mechanical load is applied directly to a central threaded hub.[4]

Inside this central hub, the solid metal is precision-machined to form a thin, recessed web. Foil strain gauges are bonded directly to the sides of this web at exact 45-degree angles. This specific placement is the mechanical secret that isolates the torque measurement from the tool's physical bending.[1]

Crucially, these strain gauges are positioned perfectly at the neutral axis of the beam. In structural mechanics, the neutral axis is the plane within a bending beam where the material is neither in tension nor compression. Because the bending stress here is mathematically zero, the gauges ignore the cantilever deflection entirely.[1]

"However, if the strain gages are placed on the sides of the beam at the neutral axis where the bending stress is zero, the state of stress on the beam side in one of pure shear," explains the engineering team at PCB Load & Torque. "Acting in the vertical and horizontal direction."[1]

By neutralizing the bending stress, the gauges only measure pure shear strain. The vertical shear force remains constant throughout the entire length of the beam. This means the transducer's electrical output is completely independent of where the load is applied along the tool's axis, eliminating the lever-arm length error.[1]

Canceling Extraneous Forces

This internal geometry mechanically cancels out side loads and twisting moments. The dual-ended design distributes the applied force symmetrically across two matched shear webs. This isolates the sensitive measurement elements from the destructive torsional shear that plagues standard single-ended cantilever tools.[4]

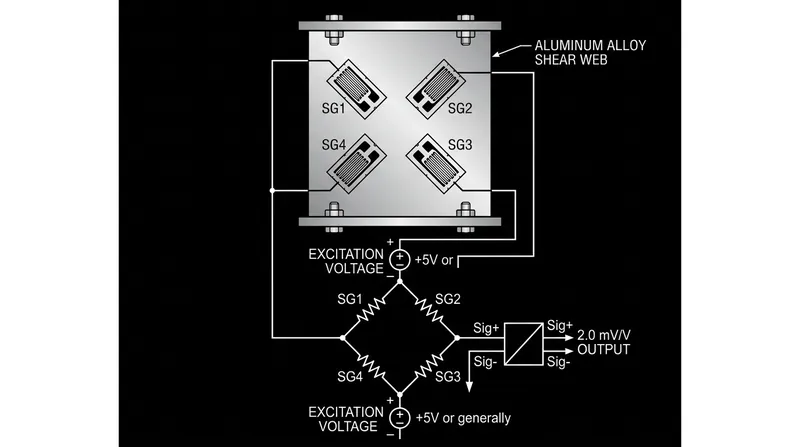

The strain gauges themselves are wired into a full Wheatstone bridge circuit. This four-arm electrical network acts as an adding and subtracting system. As the shear web deforms, the gauges in tension increase in resistance, while those in compression decrease, unbalancing the bridge to produce a measurable voltage.[1]

This ratio-metric electrical signal is highly stable. It typically outputs 2.0 to 3.0 millivolts per volt (mV/V) of excitation. A regulated 5 to 20-volt direct current excites the bridge, and the resulting micro-voltage translates the pure shear force into an exact, digitized torque value on the tool's display.[1]

The Wheatstone bridge configuration also provides automatic temperature compensation. Because the four gauges share the same thermal environment on the shear web, any resistance changes caused by ambient temperature fluctuations cancel each other out across the bridge. This prevents thermal drift during outdoor industrial operations.[1]

The physical construction of these double-ended shear webs requires extreme metallurgical precision. Manufacturers like Interface Force typically machine them from heat-treated 17-4 PH stainless steel or 42CrMo alloy steel. These materials offer high stiffness, low mechanical hysteresis, and excellent resistance to chemical corrosion in harsh environments.[4]

Material Science and Fatigue Life

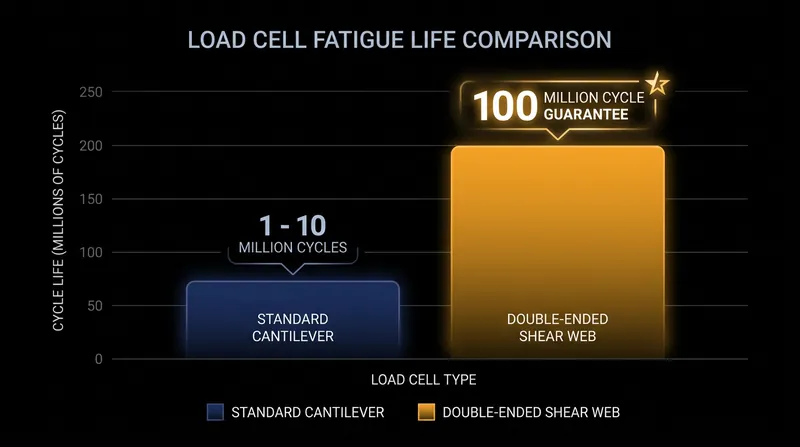

Because the structural deflection of the shear web is minimized by the dual-supported design, these heavy-duty sensors boast immense fatigue life. The surface strain along the top of the beam remains exceptionally low. This prevents the metal from reaching its yield point even under repeated maximum-capacity loading.[1]

Consequently, manufacturers such as PCB Load & Torque frequently rate double-ended shear web load cells for up to 100 million fully reversed cycles. This unparalleled durability makes them the standard not just for heavy-duty torque wrenches, but for industrial weighbridges, aerospace structural testing, and precision torque calibration machines.[1]

In contrast, standard single-ended shear beams are mounted at one point and free at the other. While useful for limited-space applications, they cannot match the side-load rejection of the double-ended design. The symmetrical support of the double-ended web provides the ultimate defense against off-center moments.[4]

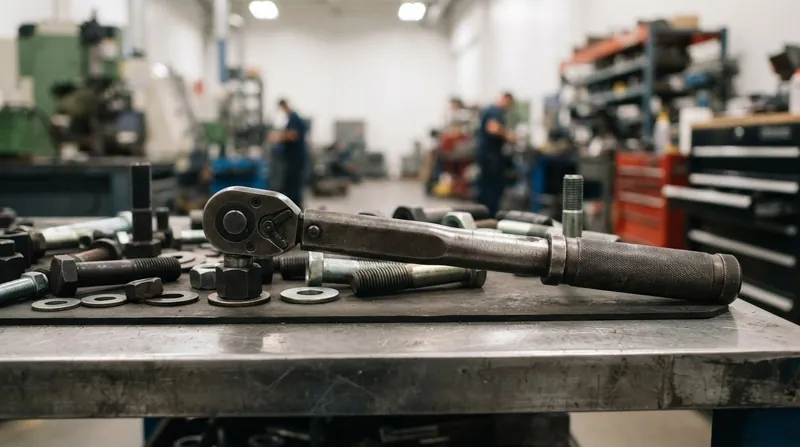

Despite their internal immunity to bending, shear web designs remain highly sensitive to improper mechanical installation. The central threaded adapter, which connects the torque application point to the sensor hub, must be locked perfectly in place to prevent the threads from shifting under load.[2]

Manufacturers require this adapter to be secured with a heavy-duty jam nut, often tightened to 140 percent of the sensor's rated capacity. This extreme pre-load locks the threads together, keeping the internal ring in pure shear and preventing microscopic movements that would introduce unwanted bending strains.[2]

The Thread Engagement Vulnerability

"The optimum performance of the Morehouse Ultra Precision and Precision Shear web load cells is maximized when the threaded adapter is locked into place," notes the calibration team at Morehouse Instrument Company. "Reducing bending strains that can cause damage to the load cell."[2]

Tightening this jam nut requires a strict dual-wrench protocol. A technician must place one wrench on the sensor's eye and a second on the jam nut, applying equal and opposing force. Pulling the jam nut without counter-holding the sensor transmits destructive torsional shear directly through the fragile internal web.[2]

If an alignment plug or rod end is not seated flush, leaving even one or two threads exposed, the mechanical load transfers through the internal threads rather than the solid base. This bypasses the shear web's geometric isolation, reintroducing the very bending strains the tool was designed to eliminate.[2]

In 2026, metrology laboratories documented that this specific thread-depth error can cause a 0.012 percent calibration shift in precision shear web cells. While this sounds microscopic, in the context of aerospace fasteners or heavy industrial turbines, that deviation is enough to fail a critical safety audit.[2]

Environmental factors also dictate the performance of these precision instruments. Exposure to extreme heat, humidity, or chemical vapors can degrade the protective potting compounds covering the strain gauges. High-quality shear web transducers are hermetically sealed and carry IP68 ingress protection ratings to survive submersion and industrial washdowns.[1]

Calibration and Verification

To verify the integrity of the shear web, technicians perform regular shunt calibrations. This process stimulates the mechanical input by placing a fixed resistor in parallel with one leg of the Wheatstone bridge. It unbalances the circuit artificially, confirming the electronics read accurately without applying physical torque.[1]

For physical verification, the tool must be tested on a dedicated torque wrench calibration machine. These machines use master double-ended shear web transducers to measure the tool's output against NIST-traceable deadweights. The calibration ensures the tool's internal strain gauges have not permanently deformed from accidental overloading.[2]

Ultimately, the double-ended shear web represents a triumph of mechanical geometry over brute force. By moving the measurement to the neutral axis and supporting the load symmetrically, engineers mathematically erased the cantilever deflection that limits standard tools, bringing laboratory-grade precision to the heaviest industrial environments.[6]
