Why Refrigeration Expansion Valves Use Superheat Control to Shield Compressors From Liquid Slugging

A technician clamps a digital temperature probe onto the cold copper suction line just inches from a commercial air conditioning compressor. The manifold gauge reads a pressure corresponding to a 40°F boiling point, but the pipe itself measures 52°F. That 12-degree difference is not an accident.[1]

Known in the HVAC industry as superheat, this thermal buffer is the only mechanism standing between a smoothly running refrigeration cycle and a catastrophic mechanical failure. It guarantees that the refrigerant has completely boiled into a vapor before it enters the compressor.[1]

Compressors are engineered to pump gas, not liquid. When liquid refrigerant breaches the compressor cylinder—a destructive event known as liquid slugging—the machine attempts to compress an incompressible fluid. The resulting hydraulic shock can destroy a system in milliseconds.

To prevent this, modern air conditioning and refrigeration systems rely on a thermostatic expansion valve (TXV). This precision metering device constantly monitors the superheat level, throttling the flow of liquid refrigerant to ensure the evaporator coil never overfeeds.[1]

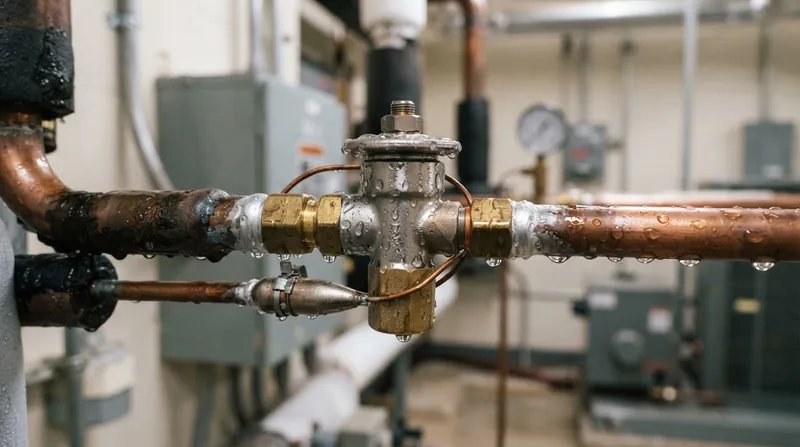

Understanding how superheat shields the compressor requires looking closely inside the cylinder during a slugging event. The extreme hydraulic forces involved explain exactly why a single malfunctioning expansion valve can mandate a complete, highly expensive system replacement.[2]

The Physics of Liquid Slugging

During a normal cooling cycle, the compressor draws in low-pressure refrigerant vapor and squeezes it into a high-pressure, high-temperature gas. Vapor is highly accommodating. Under standard operating pressures, gaseous refrigerant has a compressibility rate of 30 to 50 percent per 100 pounds per square inch (psi).

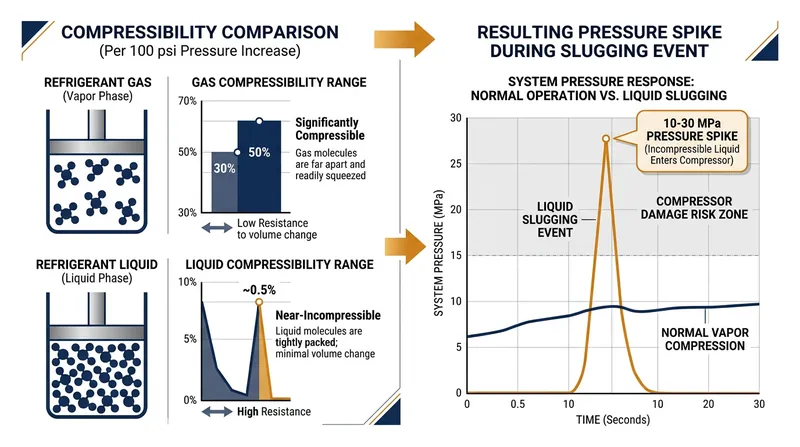

Liquid refrigerant, however, behaves entirely differently inside a confined cylinder. Its compressibility is roughly 0.5 percent per 100 psi. When a liquid slug enters the compression chamber, the piston rises against a fluid that refuses to yield, transforming mechanical power into a violent hydraulic shockwave.

"Vapor can be compressed; liquid is effectively incompressible under the same operating conditions," notes FreonOnline in its technical breakdown of compressor failures. "When a large quantity of liquid enters the compression chamber, it creates extreme hydraulic forces."

The internal pressure spikes instantaneously. While a commercial compressor might be designed to handle standard discharge pressures, a liquid slug can generate impact pressures of 10 to 30 megapascals (MPa)—roughly 1,450 to 4,350 psi. This is three to five times higher than pure vapor conditions.

These extreme forces easily exceed the tensile strength of the internal metallurgy. The discharge valves, which are thin metal reeds designed to flutter open and closed, are often the first components to shatter. The broken steel fragments then fall directly into the cylinder.

As the piston continues to cycle at thousands of revolutions per minute, it drives those steel fragments into the cylinder head. This secondary impact punches holes through the piston crown, bends the thick steel connecting rods, and can ultimately crack the heavy cast-iron crankcase.

How Superheat Acts as a Buffer

To keep liquid out of the compressor, the system must ensure the refrigerant fully evaporates inside the indoor coil. Refrigerant enters the evaporator as a cold liquid and absorbs heat from the surrounding air, boiling at a constant saturation temperature.[1]

Once the last drop of liquid boils into vapor, the refrigerant continues to travel through the coil. Because it is now a gas, any additional heat it absorbs from the air raises its actual temperature above its boiling point. This specific temperature increase is the superheat.[1]

Measuring superheat provides absolute proof of the refrigerant's physical state. If the boiling point is 40°F and the vapor exits the coil at 40°F, liquid is likely still present. If the vapor exits at 52°F, the technician knows the refrigerant absorbed 12 degrees of sensible heat after fully vaporizing.[1][2]

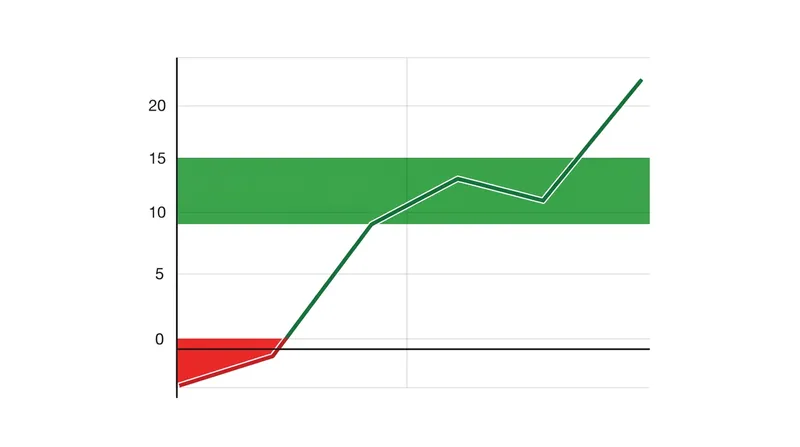

Manufacturers typically specify a target superheat range of 8 to 15°F for systems equipped with a TXV. This specific window is wide enough to guarantee no liquid escapes the evaporator, but narrow enough to ensure the cool vapor adequately chills the compressor motor as it flows over the windings.[1]

If the superheat climbs too high—say, 25°F—the compressor runs too hot, risking an electrical burnout. If it drops toward zero, the thermal insurance policy is gone, and liquid slugging becomes imminent. The system requires constant, active regulation to stay within this narrow band.[1]

The Mechanics of the Expansion Valve

The thermostatic expansion valve is the mechanical brain responsible for maintaining this delicate balance. Installed just before the evaporator coil, the TXV acts as a dynamic throttle, continuously adjusting the volume of liquid refrigerant entering the coil to match the heat load of the building.[1]

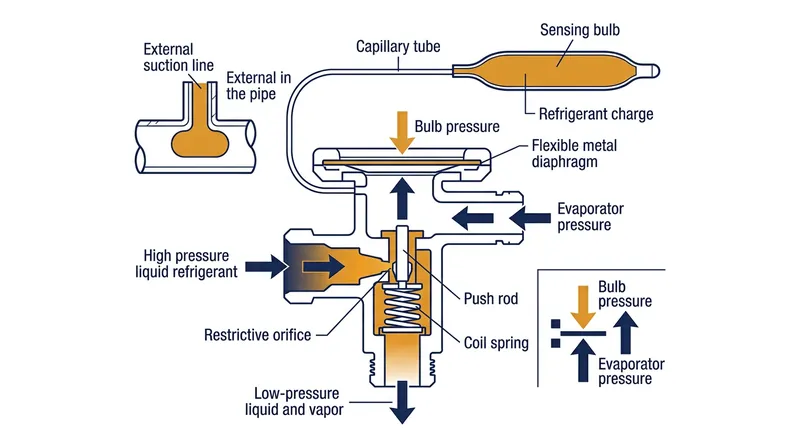

The valve operates by balancing three competing physical forces. Inside the valve body, a heavy spring pushes upward, attempting to force the valve closed. Simultaneously, the actual pressure of the evaporator pushes against a diaphragm, also working to close the valve.[2]

The counteracting force comes from a sensing bulb tightly strapped to the suction line near the evaporator outlet. This bulb contains a small charge of refrigerant. As the suction line warms up, the gas inside the bulb expands, pushing down on the diaphragm to open the valve.[1][2]

When the heat load in the building is high, the refrigerant boils off quickly, causing the superheat to rise. The sensing bulb detects this warmer pipe, increases its internal pressure, and forces the TXV to open wider. This feeds more liquid into the coil, maximizing cooling capacity.[1]

Conversely, if the building cools down or airflow drops, the refrigerant takes longer to boil. The superheat shrinks, the suction line cools, and the pressure inside the sensing bulb drops. The internal spring takes over, throttling the valve closed to prevent liquid from spilling into the suction line.[1][2]

When the Buffer Fails

Despite its precision, the TXV cannot protect the compressor if the system's fundamental operating conditions fall too far out of specification. The most common cause of liquid slugging is not a failed valve, but a severe restriction in airflow across the evaporator coil.

If an air filter becomes completely clogged, or the indoor blower motor fails, the liquid refrigerant lacks the ambient heat required to boil. The TXV will throttle down to its minimum position, but it cannot stop the flow entirely. Liquid eventually floods the coil and travels down the suction line.

Another frequent cause is an overcharged system. If an inexperienced technician adds too much refrigerant, the condenser backs up, and the liquid pressure forces excessive volume past the expansion valve. The evaporator becomes overwhelmed, erasing the superheat buffer entirely and flooding the compressor.[1]

Sometimes, the valve itself fails. If the sensing bulb loses its thermal contact with the copper pipe, or if the capillary tube connecting the bulb to the valve head rubs against a vibrating panel and loses its internal charge, the valve loses its ability to track superheat accurately.[2]

A TXV stuck in the open position is a guaranteed compressor killer. It blindly dumps high-pressure liquid into the low-pressure evaporator, flooding the suction line. Technicians observing frost forming on the suction line all the way back to the compressor know to shut the system down immediately.

The Hidden Danger of Oil Washout

While catastrophic hydraulic shock is the most dramatic consequence of liquid slugging, a chronic, low-level floodback condition destroys the compressor through a quieter mechanism: oil washout. Compressors rely on a specific volume of synthetic oil in the crankcase to lubricate the bearings and crankshaft.

Refrigerant is a highly effective solvent. When liquid refrigerant continuously trickles into the compressor, it mixes with the lubricating oil, drastically reducing its viscosity. The thinned oil loses its ability to maintain a protective hydrodynamic film between the heavy, fast-moving metal components.

Furthermore, when the compressor cycles off, liquid refrigerant can migrate and pool in the cold crankcase. When the system restarts, the sudden drop in pressure causes the liquid refrigerant to violently boil out of the oil. This flooded start creates a frothy foam that gets pumped out of the compressor.

Without adequate lubrication, the internal bearings score and overheat. The friction generates microscopic metal shavings that circulate through the system, clogging the filter drier and the microscopic ports inside the expansion valve. The mechanical wear accelerates until the compressor seizes entirely.

Replacing a slugged compressor is one of the most expensive repairs in the HVAC industry. Because the failure scatters metal debris and acidic, contaminated oil throughout the sealed copper piping, a technician cannot simply drop in a new compressor. The entire system must be flushed and purged with nitrogen.[2]

Preventing these failures requires strict adherence to baseline diagnostics. By measuring superheat and subcooling rather than just relying on pressure gauges, technicians can verify that the expansion valve is actively shielding the compressor, ensuring the system compresses vapor, and only vapor, for its entire operational lifespan.[1][2]
