How Low-Dead-Space Syringes Bypass Residual Volume Trapping to Extract Extra Doses

Pharmaceutical manufacturers insist that a ten-dose vial contains exactly ten doses, arguing that any extra fluid is a strict safety margin meant to offset inevitable mechanical waste. Conversely, frontline clinicians argue that this overfill is perfectly viable medication, and discarding it during a shortage is an unacceptable administrative failure.[3]

The conflict centers entirely on the physical limitations of the tools used to extract the fluid. When a standard syringe completes an injection, the plunger bottoms out against the barrel, but liquid remains trapped in the needle hub and the bore itself.[1]

This trapped fluid is known as dead space, and it represents a structural inefficiency built into conventional hypodermic designs since the mass production of plastic syringes in 1961. The volume left behind is small per injection, but it accumulates rapidly across multiple draws.[1]

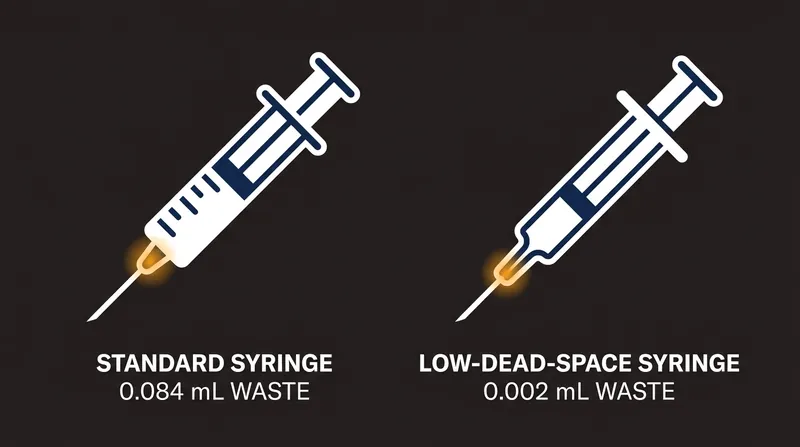

Standard syringe models can retain up to 0.084 milliliters of residual fluid post-injection. When drawing from a multi-dose vial, that mechanical loss occurs with every single dose extracted, steadily draining the manufacturer's built-in overfill.[1]

The Geometry of Residual Volume

The standard luer-lock syringe features a flat plunger that stops at the base of the syringe nozzle. Because the needle attaches externally, a hollow cavity exists between the end of the plunger and the start of the needle shaft.[1]

Fluid fills this cavity during the draw, but the plunger cannot physically reach into the neck to push it out during administration. As a result, the medication sitting in the hub is drawn from the vial but never enters the patient, ending up in the sharps bin instead.

"Syringe dead space is the volume of residual fluid that remains within the syringe after the plunger is fully depressed," explains Defy Medical Store. This structural void forces manufacturers to overfill vials just to guarantee that the stated number of doses can actually be delivered.

For a vaccine requiring a 0.5-milliliter dose, manufacturers routinely add about 0.60 milliliters of extra fluid to a ten-dose vial. This specific buffer compensates for the hub loss anticipated across ten standard injections.[2][3]

The Mathematics of the Extra Dose

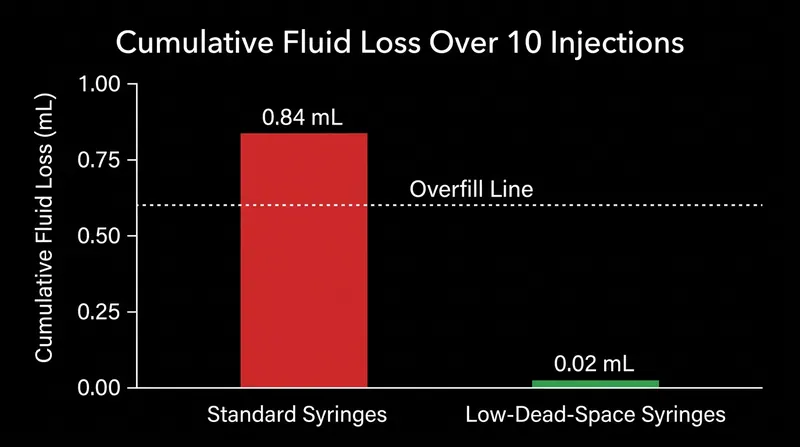

The mathematical reality of standard dead space explains why that overfill is necessary. If a clinician uses a conventional syringe losing 0.084 milliliters per draw, extracting ten doses wastes a cumulative 0.84 milliliters of fluid.[1][3]

That total mechanical loss exceeds the manufacturer's 0.60-milliliter overfill allowance. Without perfect technique, a clinician using standard syringes might actually find the vial running dry before the tenth dose can be fully drawn, validating the manufacturer's caution.[3]

However, swapping the extraction tool completely alters the vial's yield. A low-dead-space syringe reduces the residual volume to as little as 0.002 milliliters per draw, cutting the cumulative waste across ten injections to a negligible 0.02 milliliters.[1][3]

That mechanical efficiency leaves 0.58 milliliters of the original overfill sitting in the vial after the tenth dose is administered. Because the required dose is only 0.5 milliliters, the low-dead-space design mathematically unlocks a full eleventh dose without requiring any additional manufacturing.[3]

Engineering the Extended Plunger

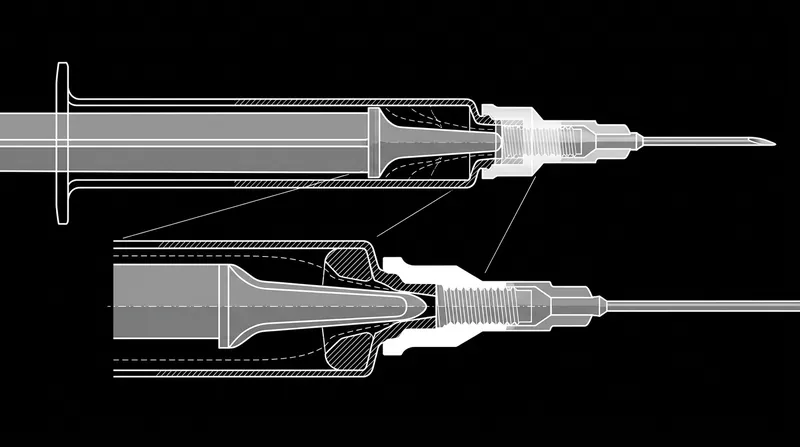

Eliminating the hub void requires a physical redesign of the plunger itself. Instead of a flat rubber stopper, low-dead-space models feature an extended piston tip that protrudes directly into the syringe nozzle.[1]

When the clinician depresses the plunger, this extended tip displaces the fluid that would normally sit in the neck, pushing it through the needle. The design physically occupies the dead space, ensuring that nearly every drop drawn into the barrel is successfully expelled.[1]

Some designs achieve this by permanently bonding the needle to the barrel, completely eliminating the detachable hub. These fixed-needle syringes, commonly used for insulin, offer the lowest possible dead space but sacrifice the flexibility of swapping needles between the draw and the injection.[1]

For applications requiring detachable needles, engineers have developed specialized low-dead-space luer-lock hubs. These modified hubs minimize the internal cavity while still allowing clinicians to use a larger gauge needle to puncture the vial stopper before switching to a finer gauge for patient administration.

Navigating the Overfill Allowance

The ability to extract extra doses relies entirely on the presence of the manufacturer's overfill. Because this extra fluid is technically unlisted on the label, regulatory bodies have had to issue specific guidance on its use during public health emergencies.[2]

Global health guidelines explicitly permit the practice, stating that if a clinician can withdraw an additional accurate dose after the listed doses are exhausted, they can administer it. The agencies stress that the dose must be full and accurate.[2]

To prevent contamination risks and dosing errors, protocols strictly prohibit pooling residual medication from different vials to create a single full dose. Every patient must receive the exact required volume of the active compound from a single continuous draw.[2]

During the COVID-19 pandemic, the use of low-dead-space syringes became a critical global strategy to stretch limited vaccine supplies. The ability to routinely extract extra doses effectively increased the available global supply overnight without altering production lines.

The Cost of Cumulative Waste

Beyond vaccine shortages, residual volume trapping represents a massive financial drain in routine clinical practice. High-cost biologics, specialized peptides, and targeted therapies are frequently packaged in multi-dose formats where every microliter carries a significant price tag.

A clinical analysis published in the British Columbia Medical Journal noted that with standard injection methods, "the fluid left in the dead space amounts to about 14% being discarded." For small-volume pediatric or specialized doses, this percentage of waste climbs even higher.

When dealing with medications that cost thousands of dollars per vial, losing 14 percent of the active product to the sharps bin fundamentally alters the cost-effectiveness of the treatment. Multiplying that waste across hundreds of daily injections yields substantial financial losses for hospital pharmacies.[3]

The reduction in trapped fluid also minimizes the risk of accidental exposure to hazardous drugs. When less residual medication remains in the discarded syringe, environmental services and waste management personnel face a lower risk of chemical exposure during disposal.[2]

Standardizing the Low-Dead-Space Shift

Despite the clear mathematical and financial advantages, standard high-dead-space syringes remain the default tool in many healthcare settings. The conventional designs are cheaper to manufacture, universally stocked, and deeply ingrained in standard procurement contracts.[1]

Transitioning a health system to low-dead-space models requires updating supply chains and retraining staff to trust the new volume dynamics. Clinicians accustomed to drawing slightly past the line to account for hub loss must adjust their technique, as the extended plunger already accounts for the displacement.

"Measuring with a low dead space syringe is exactly like measuring with a standard syringe," explains Air-Tite Products. The graduations marked on the barrel are calibrated to include the extended tip, meaning no manual adjustments to dosing calculations are required.

As global health authorities continue to emphasize resource conservation, the physical design of the syringe is shifting from an afterthought to a central pillar of medication management. By simply filling the empty space in the hub, engineers have found a way to generate millions of extra doses from the exact same vials.[2][3]
