Domestic Water Heaters Require 60°C Storage to Kill Legionella and Mixing Valves to Prevent Scalds

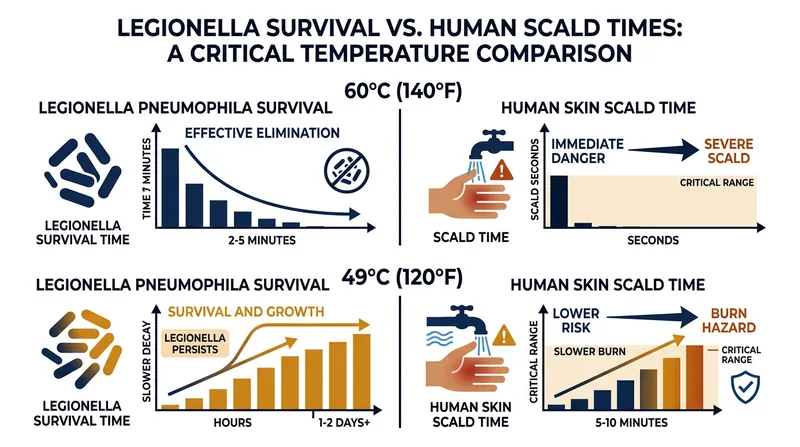

When public health investigators sample the water inside a residential storage tank, they look for a specific thermal boundary. Below 50°C (122°F), the stagnant water near the bottom of the cylinder becomes an ideal breeding ground for Legionella pneumophila, the bacteria responsible for Legionnaires' disease. To pasteurize the tank, the heating element must maintain the water at 60°C (140°F).[1][2]

At that temperature, the biological threat is neutralized, but a physical hazard replaces it. Water at 60°C will inflict a third-degree burn on adult skin in exactly six seconds. For a child, whose epidermis is significantly thinner, the same severe scald occurs in under three seconds.[3]

This creates a fundamental engineering conflict for domestic plumbing. The water must be stored hot enough to kill bacteria, but it must be delivered cool enough to prevent catastrophic injury. The mechanical solution to this biological problem is the thermostatic mixing valve.[5]

The Biological Imperative

Legionella bacteria thrive in warm, stagnant water, multiplying most rapidly between 25°C and 45°C (77°F to 113°F). A standard water heater set to 49°C (120°F) to prevent scalding inadvertently creates a massive incubator for the pathogen. The bacteria colonize the biofilm on the tank walls and multiply inside free-living amoebae.[1]

According to the World Health Organization, water leaving the heating unit must be at or above 60°C. At this threshold, the thermal energy destroys the bacteria's cellular structure by denaturing its proteins and melting its lipid membranes. Laboratory tests demonstrate that it takes approximately 32 minutes at 60°C to achieve a 100 percent kill rate for Legionella.[1]

Because residential storage tanks hold water for hours before peak demand, they provide the necessary exposure time for this thermal disinfection. The thermal dynamics inside the tank create three operationally distinct zones: a hot upper stratum near the heat source, a cooler lower stratum near the cold inlet, and a thermocline boundary between them.

If the overall thermostat is lowered, the bottom of the tank drops directly into the optimal growth range. The bacteria survive and are eventually pushed through the distribution piping. When they reach a showerhead, they are aerosolized into fine droplets and inhaled deep into the lungs, triggering severe pneumonia.[1]

The Physics of Scalding

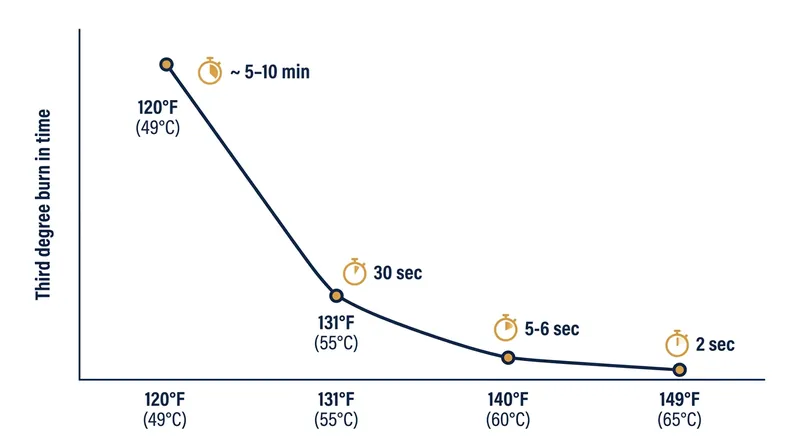

While 60°C is lethal to bacteria, it is equally destructive to human tissue. The Consumer Product Safety Commission tracks tap water scalds, which account for thousands of hospital admissions and roughly 100 deaths annually in the United States. The severity of a burn is a strict mathematical function of both temperature and exposure time.[3]

At 49°C (120°F), it takes roughly five minutes of continuous exposure for an adult to suffer a third-degree burn, which destroys the full thickness of the skin down to the subcutaneous tissue. This extended window provides ample time for a person to react, feel the pain, and pull away from the water stream.[3]

When the temperature rises to 60°C, that reaction window collapses to just six seconds. The danger is particularly acute for vulnerable populations. The elderly, who may have slower reaction times, reduced mobility, or peripheral neuropathy that dulls temperature sensation, cannot escape the water fast enough.[3]

Infants, who cannot remove themselves from a bathtub, suffer the vast majority of severe tap water scalds. Because infant skin is physically thinner than adult skin, the thermal energy penetrates deeper and faster. A temperature that causes a mild first-degree burn on an adult can cause a full-thickness third-degree burn on a toddler in the exact same timeframe.[3]

Mechanical Decoupling

To reconcile the 60°C storage requirement with the 49°C delivery safety limit, modern plumbing codes mandate the use of thermostatic mixing valves. These devices are installed either directly at the water heater output, known as ASSE 1017 master mixing valves, or at the point of use, such as behind a shower wall, classified as ASSE 1070 valves.[4]

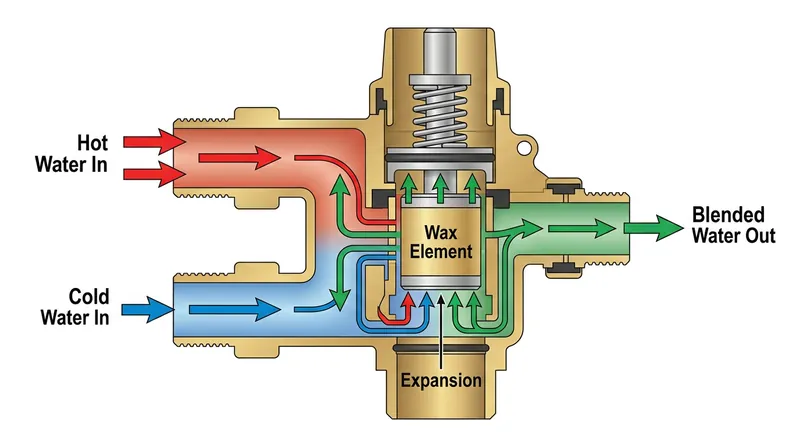

A thermostatic mixing valve contains a highly calibrated temperature-sensitive element, typically a wax thermostatic motor. As the hot and cold water flow over the copper housing of the motor, the specialized wax inside physically expands and contracts. This phase change from solid to liquid wax creates a massive volumetric expansion.[5]

That expansion drives a stainless steel piston with significant force. The movement of the piston continuously adjusts a proportional valve, blending the 60°C hot water from the tank with cold water from the main supply. The valve dynamically balances the two streams to output a constant, safe 49°C flow into the home's distribution piping.[5]

If the cold water supply suddenly drops—for instance, when a toilet is flushed elsewhere in the house—the wax element instantly reacts to the temperature spike. It expands rapidly, driving the piston to restrict the hot water flow within milliseconds. This prevents a sudden surge of 60°C water that would otherwise scald the user in the shower.[5]

Resolving Regulatory Conflicts

For decades, safety agencies issued conflicting advice that left homeowners trapped between two hazards. In 1988, the Consumer Product Safety Commission successfully urged manufacturers to voluntarily adopt a 120°F factory preset for new water heaters to prevent burns. Meanwhile, health agencies like the CDC warned that such temperatures invite Legionella colonization.[2][3]

The adoption of mandatory mixing valves in the Uniform Plumbing Code and the International Plumbing Code resolved this contradiction. By decoupling the storage temperature from the delivery temperature, the plumbing system satisfies both biological and physical safety requirements simultaneously.[4]

Commercial and institutional buildings face even stricter requirements. The American Society of Heating, Refrigerating and Air-Conditioning Engineers dictates that hot water must be stored at 60°C and delivered through the building's recirculation loops at no less than 51°C (124°F) to suppress bacterial growth in the pipes.[4]

However, millions of older residential homes lack these master mixing valves. In these legacy systems, homeowners are forced to choose between the invisible risk of bacterial pneumonia and the immediate physical risk of a severe scald. Public health experts strongly advise retrofitting modern thermostatic controls rather than compromising on tank temperature.[5]

The Tankless Exception

The biological calculus changes entirely when a home utilizes an instantaneous, or tankless, water heater. Because these units heat water on demand as it flows through a copper heat exchanger, they do not store a large volume of stagnant water. Without a reservoir, the primary breeding ground for Legionella is eliminated.

In a tankless system, the exposure time of the bacteria to elevated temperatures is dependent upon the rate of flow, which is generally less than one minute. To kill Legionella instantaneously as it passes through the heat exchanger, the water would need to reach 71°C (160°F).

Because residential tankless heaters are typically set directly to the safe usage temperature of 49°C (120°F), they do not achieve thermal disinfection. However, public health guidelines generally accept this configuration because the lack of stagnation prevents the bacteria from multiplying to dangerous concentrations in the first place.[5]

For standard storage tanks, the physics remain absolute. The water must be held at 60°C to ensure the 32-minute pasteurization cycle completes, and a mechanical valve must intervene before that water reaches human skin. The thermostatic mixing valve stands as the single mechanical barrier between a sterile water supply and a catastrophic burn.[5]
